QMB620RL

Four-side Moulder

Steadfast Reliability, Uncompromising Quality

Affordable priceing for innovative efficient production

Main feature

QMB620RL is left and right double vertical axis of six axis four-side moulder, that is: bottom cutter+ right vertical cutter + left vertical cutter + right vertical cutter + left vertical cutter + left vertical cutter + top cutter structure. It adopts fully enclosed safety shield. The maximum processing width is 200mm, the maximum processing thickness is 125mm, and the speed is 8-33m/min (frequency conversion). The feeding system is configured with 12 and 4 groups (2 groups of active workbench), a total of 16 groups of active feeding roller, reducer and universal joint transmission. In particular, the left and right vertical cutter adopts double vertical cutter structure to achieve rough and fine planing and cutting, which effectively meets the needs of high efficiency and high quality of forming processing on both sides. It has the advantages of reasonable structure, stable performance and good processing quality.

Recommendation: The product is mainly suitable for all kinds of wood products side quality requirements of high enterprises for four side shaping planing processing. Such as: solid wood doors and Windows, wood window frames and other side quality requirements of solid wood processing industry.

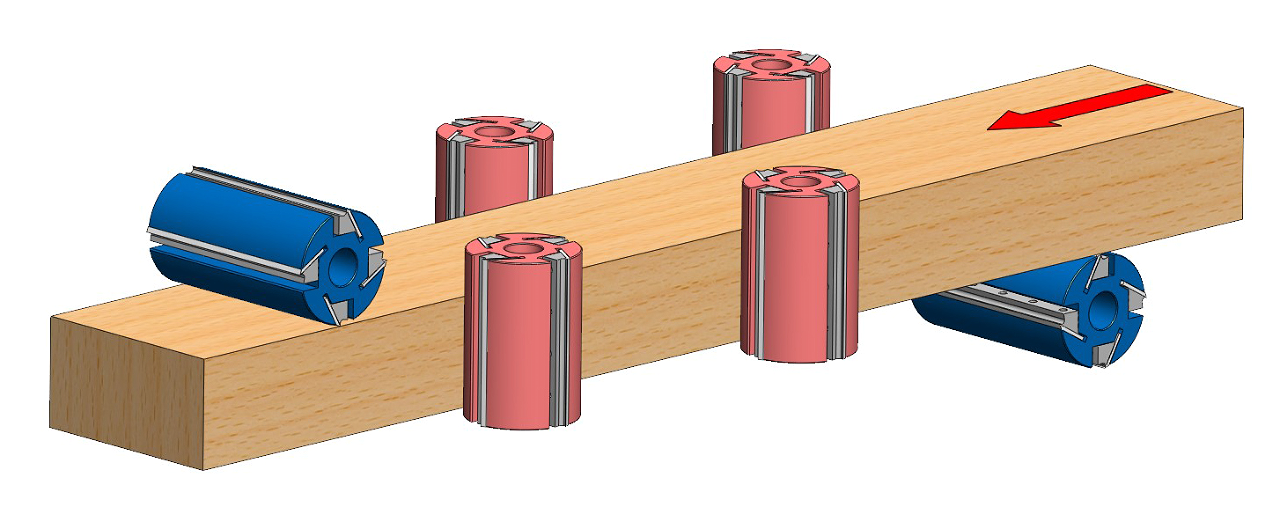

  • QMB620RL spindles layout
    QMB620RL spindles layout
  • It is made of high strength cast iron, stable structure, good rigidity
    It is made of high strength cast iron, stable structure, good rigidity
  • High precision tool shaft, speed 6800 RPM, high rigidity design, ensure cutting stability. It adopts G1 level dynamic balance processing, and automatic running-in test. The surface of the workpiece is more smooth and perfect
    High precision tool shaft, speed 6800 RPM, high rigidity design, ensure cutting stability. It adopts G1 level dynamic balance processing, and automatic running-in test. The surface of the workpiece is more smooth and perfect
  • After special treatment, hard chrome plating, wear resistance, long service life
    After special treatment, hard chrome plating, wear resistance, long service life
  • The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful
    The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful
  • The short material device is designed to make feeding smoother and operation safer when processing short parts
    The short material device is designed to make feeding smoother and operation safer when processing short parts

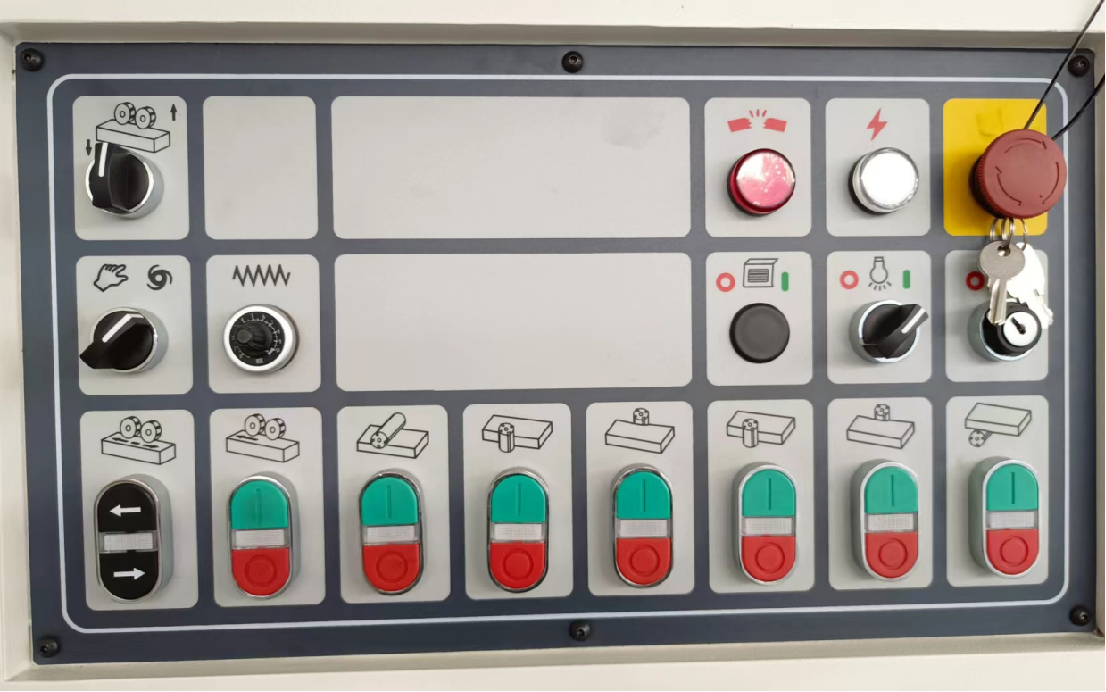

  • All electrical components are made of well-known brands, stable performance and long service life
    All electrical components are made of well-known brands, stable performance and long service life
  • The pressure plate before the knife is backward to prevent the knife from hitting
    The pressure plate before the knife is backward to prevent the knife from hitting
  • Each cutter shaft is equipped with a powerful motor and is driven separately
    Each cutter shaft is equipped with a powerful motor and is driven separately
  • Adopt new tooth shape design, special process treatment, high feeding efficiency. Long life, cylinder pressure can be as low as 0.2mpa
    Adopt new tooth shape design, special process treatment, high feeding efficiency. Long life, cylinder pressure can be as low as 0.2mpa
  • The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast
    The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast
  • The feeding system adopts frequency conversion speed regulation, which is more suitable for the processing requirements of various wood materials
    The feeding system adopts frequency conversion speed regulation, which is more suitable for the processing requirements of various wood materials
  • The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection
    The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection
Technical parameter
Item/Model 　 QMB420G QMB520AT QMB620AT QMB620RL
Processing width (tooldiameter 125mm)/mm 　 20~200 20~200 20~200 20~200
Processing height(tooldiameter 125mm)/mm 　 20~200 8~125 8~125 8~125
Feed speed /m/min 　 8~36 8~33 8~33 8~33
Spindle diameter /mm 　 40 40 40 40
Spindle speed/r/min 　 6800 6800 6800 6800
Tool cutting circle dia/mm First bottom spindle Flat cutter 125/Trimming cutter 152 Flat cutter 125/Trimmingcutter 152 Flat cutter 125/Trimmingcutter 152 Flat cutter 125/Trimming cutter152
　 Back bottom spindle / 108~200 108~200 /
　 Other spindles 108~180 108~180 108~180 108~180
Motor power/KW Feed motor 5.5 4 4 7.5
　 First bottom spindle 7.5 5.5 5.5 5.5
　 First right spindle 7.5 5.5 5.5 7.5
　 First left spindle 7.5 5.5 5.5 7.5
　 Second right spindle / / / 5.5
　 Second left spindle 1 / / 7.5
　 First upper spindle 11 7.5 7.5 7.5
　 Second upper spindle / / 5.5 /
　 Second bottom spindle / 5.5 5.5 /
　 Lifting motor 0.75 0.75 0.75 0.75
Overall dimention (L×W×H)/cm 　 340×186×180 350×180×175 400×10×175 410×180×175
Weight/kg 　 3650 3600 4400 4650
Optional: 1. All spindle motors can be optional from 5.511KW;2.Spindle diameter of 50mm is available; 3. Spindle speed of 8000rpm is available; 4. The last bottom spindle can install saw blades. (If you have special needs, please contact us)
