QMX1206DT
Double-end Tenoner
Fast speed, high output, and high precision
Product Overview
The vertical double-end tenon machine utilizes a high-precision conveyor chain, boasting a wide processing range, fast speed, high output, and high precision.
-

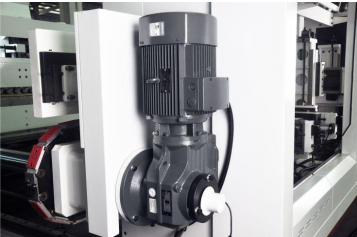

Equipped with a variable frequency gear reducer, the transmission is smooth and reliable.
-

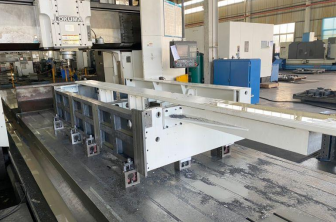

The left and right frames and chain plate beams are processed by an OKUMA pentahedron gantry machining center, ensuring dimensional and positional accuracy.
-

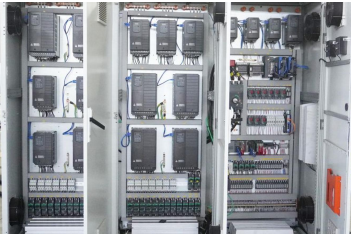

All electrical components are sourced from international brands, ensuring stability and durability
-

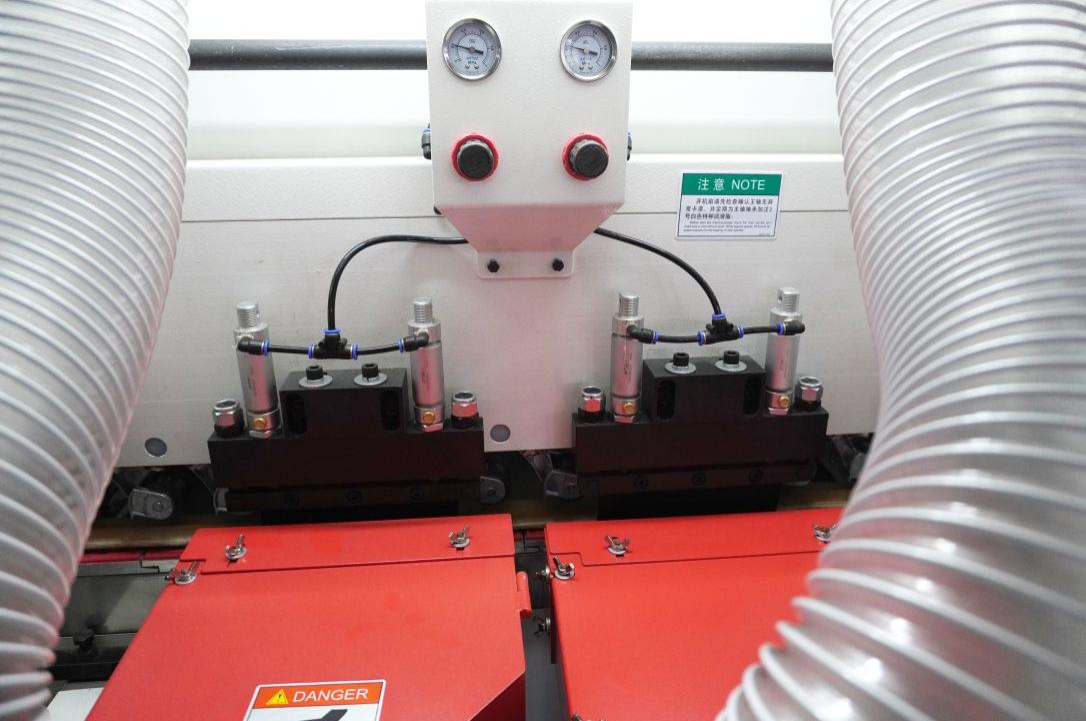

The upper pressing plate adopts dual-cylinder pressing.
Product Specifications
| Specification | nit | QMX1206DT |
| Processing Width | mm | 125—600 |
| Processing Thickness | mm | 8—25 |
| Feeding Speed | m/min | 10—100 |
| Milling Shaft Speed | r/min | 4500—6000 |
| Milling Cutter Specification | mm | Φ220～280×Φ40 |
| Worktable Height | mm | 1100 |
| Motor Power (1st, 2nd, 6th Stations) | kW | 7.5×6 |
| Motor Power (3rd, 4th, 5th Stations) | kW | 5.5×6 |
| Feeding Motor Power | kW | 7.5 |
| Width Adjusting Motor Power | kW | 1.0 |
| Vortex Air Pump Motor Power | kW | 2.2×2 |
| Total Motor Power | kW | 90.9 |
| Working Voltage | V/Hz | C380V、50Hz |
| Dust Suction Port Diameter | mm | φ120mm×12 |
| Dust Collection System Air Velocity | m/s | 30—35 |
| Dust Collection System Air Requirement | m³/min | 360 |
| Machine Tool Overall Dimension | cm | 540×270×190cm |
| Machine Tool Weight | Kg | 9500 |
