MB726F

Four-side Moulder

Fast and efficient, feeding speed up to 100M/Min.

Powerful performance, easy for long timber processing.

Special wear-resistant coating for table, durable precision, built to long-lasting.

Main feature

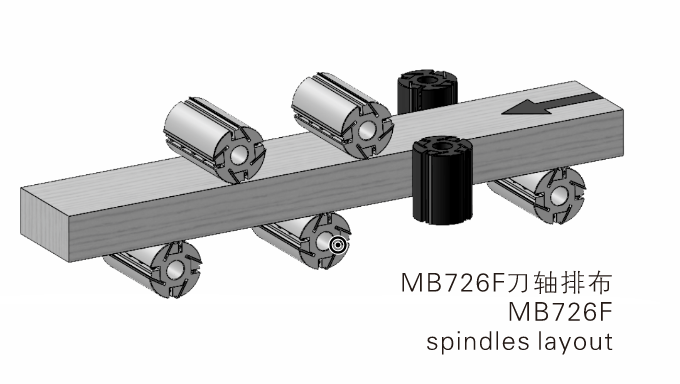

  • MB726F spindles layout
    MB726F

    spindles layout

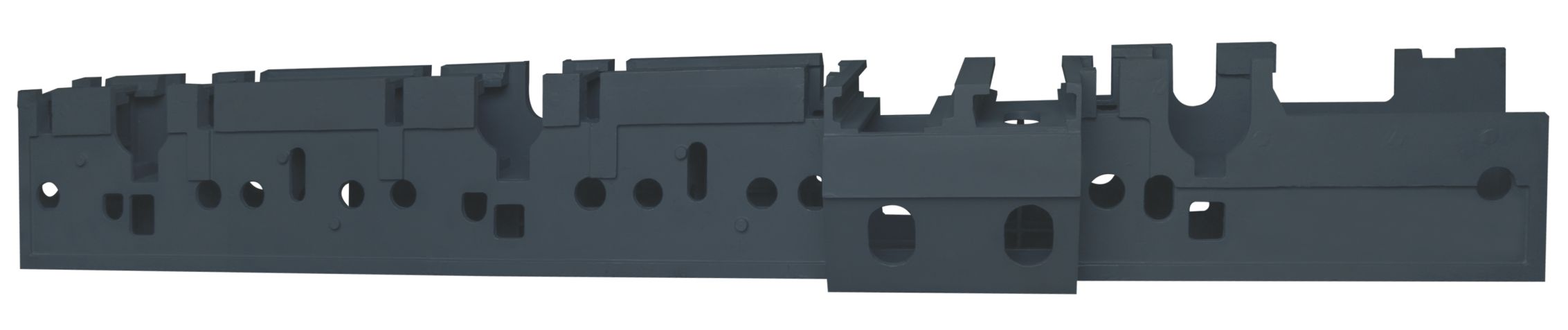

  • The machine bed is integrally cast as one piece, from high-grade, premium-quality castings. After undergoing special treatment and precision machining, it delivers stable performance, exceptional rigidity, and high precision.
    The machine bed is integrally cast as one piece, from high-grade, premium-quality castings. After undergoing special treatment and precision machining, it delivers stable performance, exceptional rigidity, and high precision.

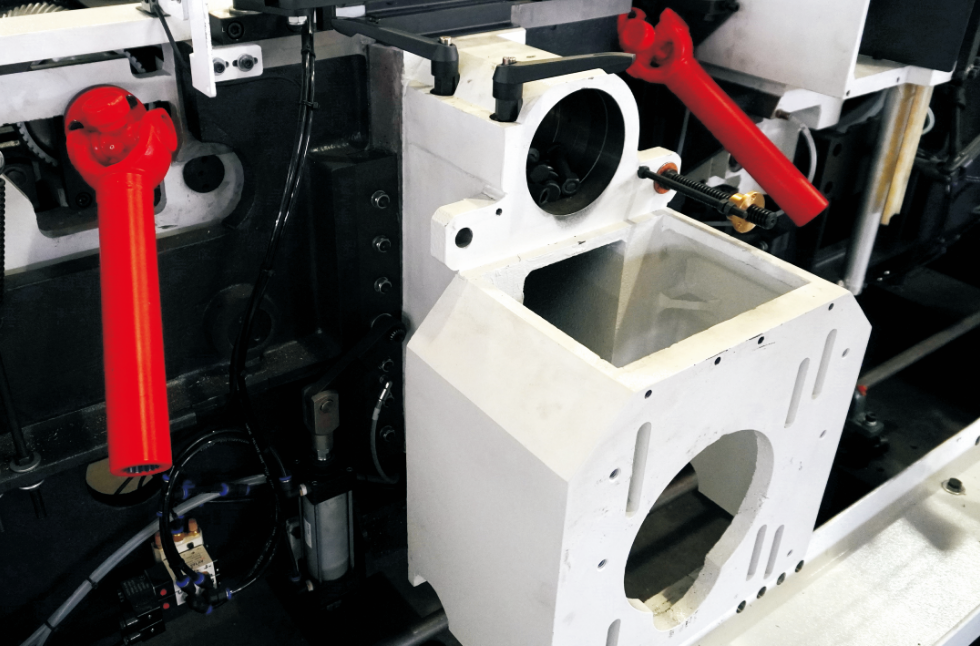

  • The spindle lifting slide carriage and spindle holder are constructed with an integrated monolithic structure through integral casting and precision machining, ensuring exceptional rigidity,high precision, and high stability.
    The spindle lifting slide carriage and spindle holder are constructed with an integrated monolithic structure through integral casting and precision machining, ensuring exceptional rigidity,high precision, and high stability.

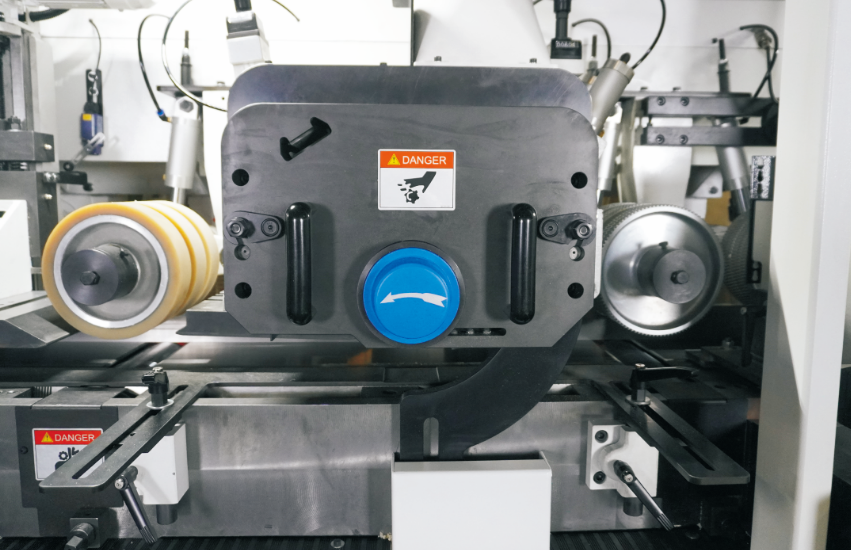

  • All horizontal spindles are equipped with outboard bearing devices, utilizing a high-pressure oil gun to apply oil pressure to fix, providing excellent rigidity that ensures high-speed cutting performance and delivers superior processed board surface quality.
    All horizontal spindles are equipped with outboard bearing devices, utilizing a high-pressure oil gun to apply oil pressure to fix, providing excellent rigidity that ensures high-speed cutting performance and delivers superior processed board surface quality.

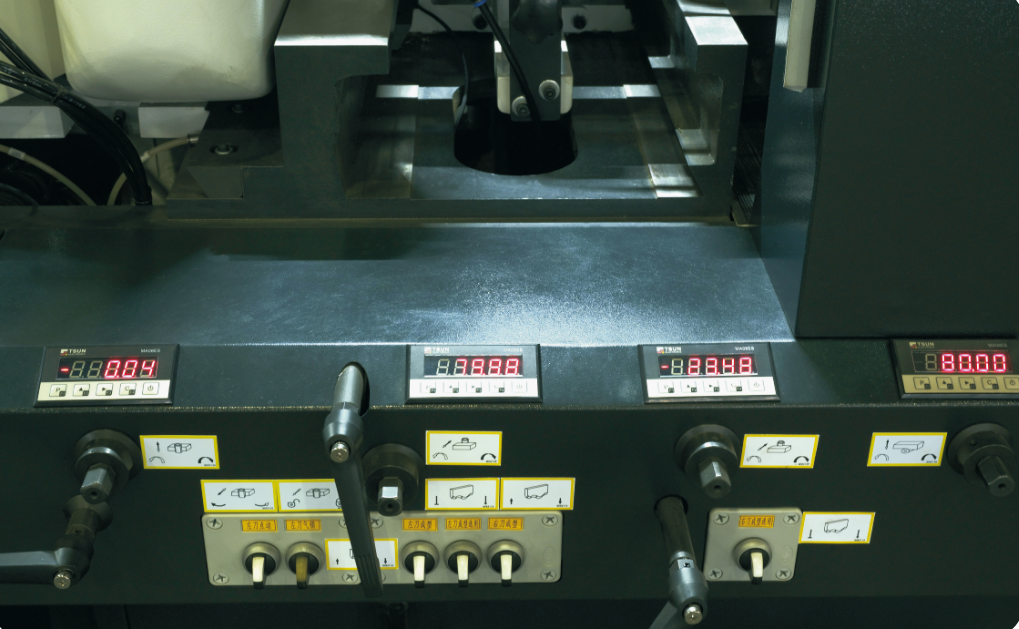

  • Each spindle is equipped with NC adjustment system, fine-tuning mechanism, and electronically controlled pneumatic locking, providing easier operation.
    Each spindle is equipped with NC adjustment system, fine-tuning mechanism, and electronically controlled pneumatic locking, providing easier operation.

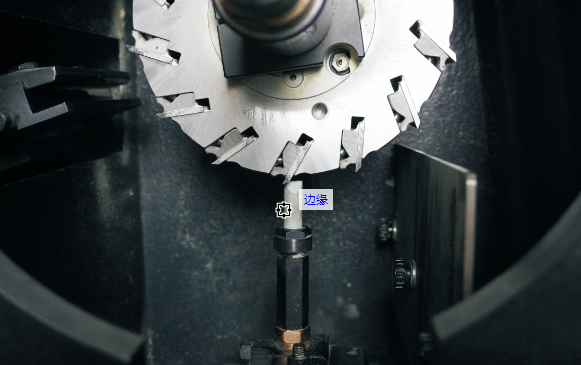

  • All spindles are equipped with a staight jointer system, and the last set of horizontal spindles are equipped with a profile jointer system to achieve automatic tool sharpening and ensure the good performance of the workpiece during high-speed feeding processing.
    All spindles are equipped with a staight jointer system, and the last set of horizontal spindles are equipped with a profile jointer system to achieve automatic tool sharpening and ensure the good performance of the workpiece during high-speed feeding processing.

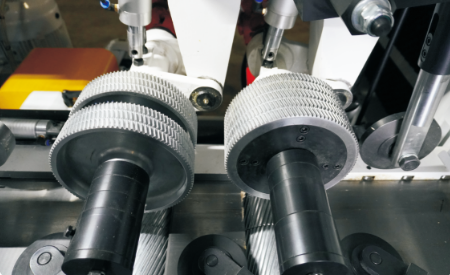

  • The first feeding wheel uses clutch rollers and is equipped with two sets of pneumatic floating driving rollers for stable and powerful feeding.
    The first feeding wheel uses clutch rollers and is equipped with two sets of pneumatic floating driving rollers for stable and powerful feeding.

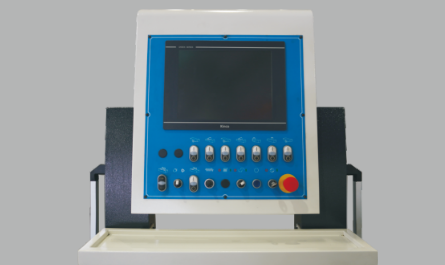

  • The control system adopts PLC+ touch screen+ physical key control, which is intuitive, convenient and stable.
    The control system adopts PLC+ touch screen+ physical key control, which is intuitive, convenient and stable.
Technical parameter
Item/Model MB626F MB726F MB826F MB926F
Processing width (tool diameter 160mm)/mm 20~260 20~260 20~260 20~260
Processing height(tool diameter 160mm)/mm 10~150 10~150 10~150 10~150
Feed speed /m/min 10~100 10~100 10~100 10~100
Tool cutting circle dia/mm 160~260 160~260 160~260 160~260
Spindle diameter/mm 50 50 50 50
Spindle speed /r/min 6000 6000 6000 6000
Motor power/KW Feed motor 18.5 18.5 18.5 18.5
First bottom spindle 18.5 18.5 18.5 18.5
First right spindle 15 15 15 15
First left spindle 15 15 15 15
Second right spindle / / 15 15
Second left spindle / / 15 15
First upper spindle 22 22 22 22
Second bottom spindle 15 15 15 15
Second upper spindle 15 15 15 15
Third bottom spindle / 15 / 15
Beam lifting motor 1.1 1.1 1.1 1.1
Overall dimension（L×W×H)/cm 570×265×210 610×265×210 670×265×210 725×265×210
Weight/kg undetermined 13000 undetermined undetermined
Optional: 1. All spindle motors can be optional from 11~22KW; 2. 22kw is optional for feeding motor;3. Profile jointer is available for all spindles (optional) (except the first bottom spindle); 4. The last bottom spindle can install saw blades; 5. Automatic feeding system is available. (If you have special needs, please contact us)
