QMB525D-H

Bottom Surfacer

The QMB525D-H is a four-column double-slope blade type automatic feeding woodworking planer. Its maximum processing width is 500mm and the maximum processing thickness is 170mm. The feeding speed ranges from 6 to 30m/min (variable frequency adjustable). The bed is made of high-quality castings and is forged as a whole, featuring strong rigidity and stable accuracy. The feeding mechanism uses a belt-type elastic pressing claw with lifting function. The spacing of the pressing claws can be adjusted according to the thickness and curvature of the wood to allow multiple pieces of wood to pass through at once, completing the combined processing of roughing and finishing. The planing base surface is straight and smooth, without chipping or tailing phenomena.

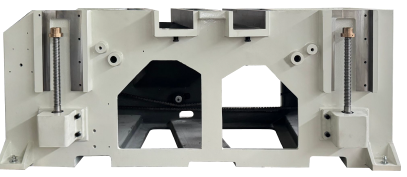

  • The bed body is made of high-quality castings and is formed through a single casting process. It undergoes special processing and is precisely machined by a five-sided gantry machining center. The structure has strong rigidity and stable operation performance, and can maintain excellent processing accuracy for a long time.
    The bed body is made of high-quality castings and is formed through a single casting process. It undergoes special processing and is precisely machined by a five-sided gantry machining center. The structure has strong rigidity and stable operation performance, and can maintain excellent processing accuracy for a long time.

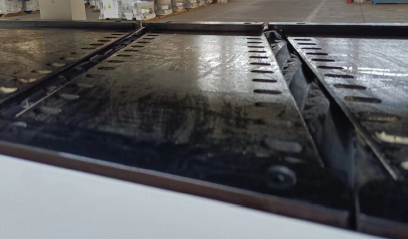

  • The workbench is made of cast iron and is treated through precise grinding and hard chrome plating polishing processes. It is durable, has smooth feed and low friction resistance, and can meet the surface processing requirements of various workpieces.
    The workbench is made of cast iron and is treated through precise grinding and hard chrome plating polishing processes. It is durable, has smooth feed and low friction resistance, and can meet the surface processing requirements of various workpieces.

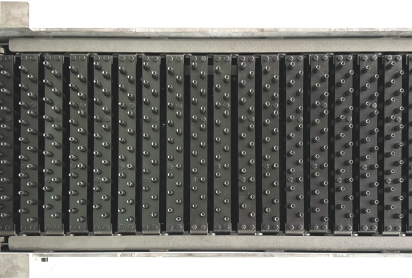

  • The upper feeding mechanism adopts a new type of conveying chain and guide rails. It operates smoothly with less vibration and noise. The pressing claws are made of high-quality steel through precise processing and feature a cross-overlapping dense design without any gaps. This ensures stable and uniform pressure from the pressing claws, meeting the feeding processing requirements for workpieces of different widths.
    The upper feeding mechanism adopts a new type of conveying chain and guide rails. It operates smoothly with less vibration and noise. The pressing claws are made of high-quality steel through precise processing and feature a cross-overlapping dense design without any gaps. This ensures stable and uniform pressure from the pressing claws, meeting the feeding processing requirements for workpieces of different widths.

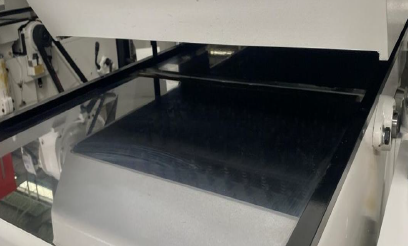

  • The dual-blade structure design is adopted, which enables smoother cutting, better planing effect and higher surface finish of the processed area.
    The dual-blade structure design is adopted, which enables smoother cutting, better planing effect and higher surface finish of the processed area.

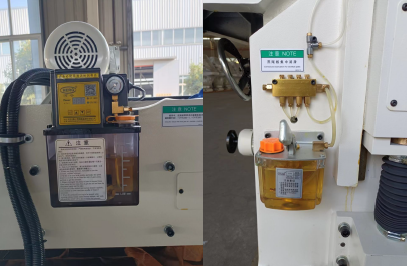

  • The machine tool is equipped with a centralized oil supply system, which enables convenient lubrication of the crawler slide and the vertical dovetail guide rails of the upper frame. This effectively reduces component wear and significantly extends the service life of the mechanical equipment.
    The machine tool is equipped with a centralized oil supply system, which enables convenient lubrication of the crawler slide and the vertical dovetail guide rails of the upper frame. This effectively reduces component wear and significantly extends the service life of the mechanical equipment.

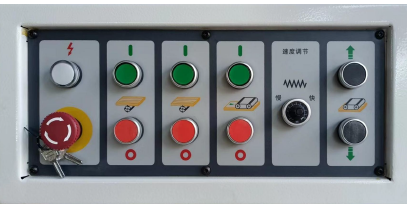

  • The front and rear tool shafts and the feeding start/stop button are centrally located on the button plate above the upper feeding frame, with clear and prominent markings. The machine is equipped with a manual fine adjustment device for the front tool shaft and feeding mechanism, precisely ensuring the thickness accuracy of the workpiece.
    The front and rear tool shafts and the feeding start/stop button are centrally located on the button plate above the upper feeding frame, with clear and prominent markings. The machine is equipped with a manual fine adjustment device for the front tool shaft and feeding mechanism, precisely ensuring the thickness accuracy of the workpiece.
Specification Model Unit QMB525D-H
Maximum Working Width mm 40-500
Working Thickness mm 10-170
Minimum Working Length mm 245
Maximum Planing Depth Per Cut (Front Lower Cutter Shaft) mm 5
Maximum Planing Depth Per Cut (Rear Lower Cutter Shaft) mm 0.8
Feed Speed m/min 6-30
Upper and Lower Cutter Shaft Rotation Speed r/min 5800
Cutter Shaft Cutting Diameter mm φ101
Total Motor Power kW 12.5
Front Lower Cutter Shaft Motor Power kW 5.5
Rear Lower Cutter Shaft Motor Power kW 4
Feed Motor Power kW 2.2
Lifting Motor Power kW 0.75
Overall Dimension (L×W×H) cm 226×103×160
Machine Weight (Approx.) kg 2250
