QMB723W

Four-side Moulder

Smart design is suitable for all kinds processing solution

Equipped with independent motor and universal spindle can rotate 360°

Calmly cope with all kinds of wood products processing needs

Main feature

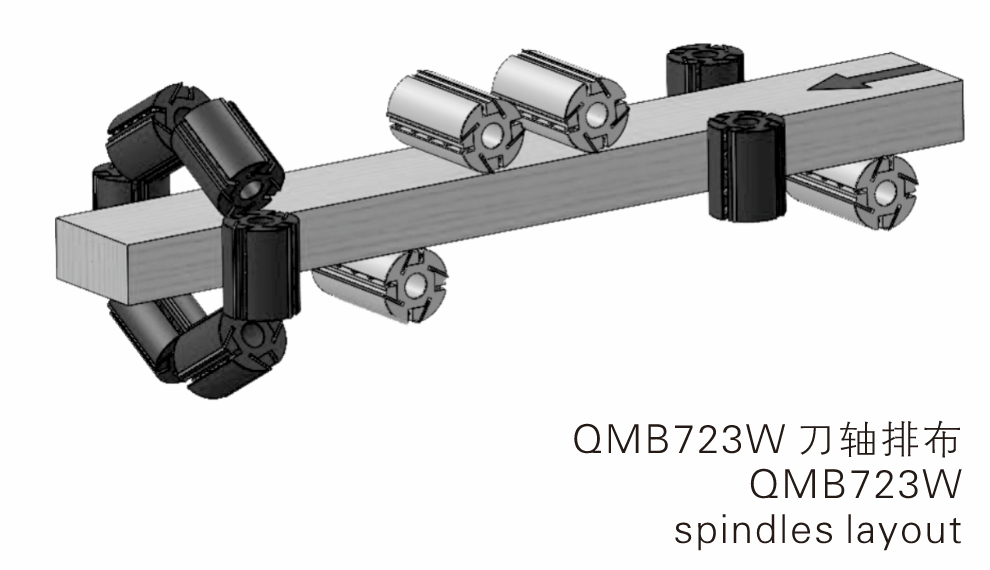

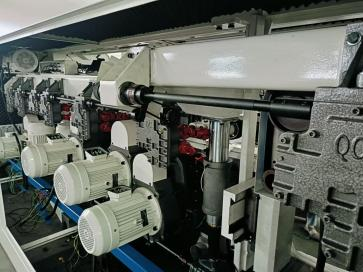

  • QMB723W spindles layout
    QMB723W

    spindles layout

  • The body is made of high quality castings, which are processed by special treatment and its performance is stable and accurate.
    The body is made of high quality castings, which are processed by special treatment and its performance is stable and accurate.
  • After special treatment, hard chrome plating, wear resistance, long service life.
    After special treatment, hard chrome plating, wear resistance, long service life.
  • The pressure plate before the top spindle is backward to prevent tool collision.
    The pressure plate before the top spindle is backward to prevent tool collision.
  • Feeding configuration 15 groups of upper feeding roller 6 groups of lower feeding roller a total of 21 groups of feeding roller and reducer and universal joint transmission, smooth feeding, strong.
    Feeding configuration 15 groups of upper feeding roller 6 groups of lower feeding roller a total of 21 groups of feeding roller and reducer and universal joint transmission, smooth feeding, strong.
  • The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast.
    The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast.
Technical parameter
Item/Model QMB523W QMB623W QMB723W
Processing width(tool diameter 160mm)/mm 20~230 20~230 20~230
Processing height(tool diameter 160mm)/mm 8~160 8~160 8~160
Feed speed/m/min 6~36 6~36 6~36
Spindle diameter/mm 40 40 40
Spindle speed /r/min 6800 6800 6800
Tool cutting circle dia/mm First bottom spindle Flat cutter 125/Trimmingcutter152 Flat cutter 125/Trimming cutter152 cutter 125/Trimming cutter 152
Left and right spindle 108~200 108~200 108~200
 Top spindle 108~180 108~180 108~180
Second bottom spindle / 108~200 108~200
Universal spindle 108~160 108~160 108~160
Motor power/KW Feed motor 4 5.5 5.5
First bottom spindle 5.5 5.5 5.5
First right spindle 5.5 5.5 5.5
First left spindle 7.5 7.5 7.5
First upper spindle 7.5 7.5 7.5
Second upper spindle / / 7.5
Second bottom spindle / 7.5 7.5
Universal spindle 7.5 7.5 7.5
Lifting motor 0.75 0.75 0.75
Overall dimension(L×W×H)/cm 468×186×183 519×186×183 583×186× 183
Weight/kg 5500 6000 6300
Optional:Left spindle and upper spindle can add CNC configuration
