Four-side Moulder
Super power,stable and efficient
Fast feeding, precise planing
Long service time,High performance four-side planer
-

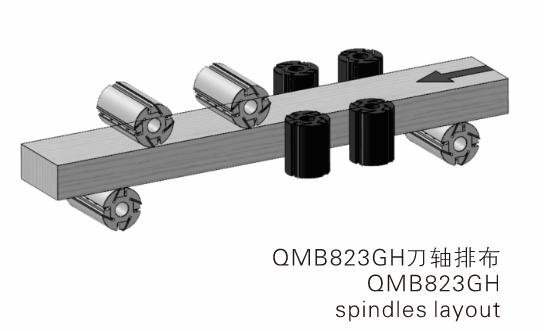

QMB823GH
spindles layout
-

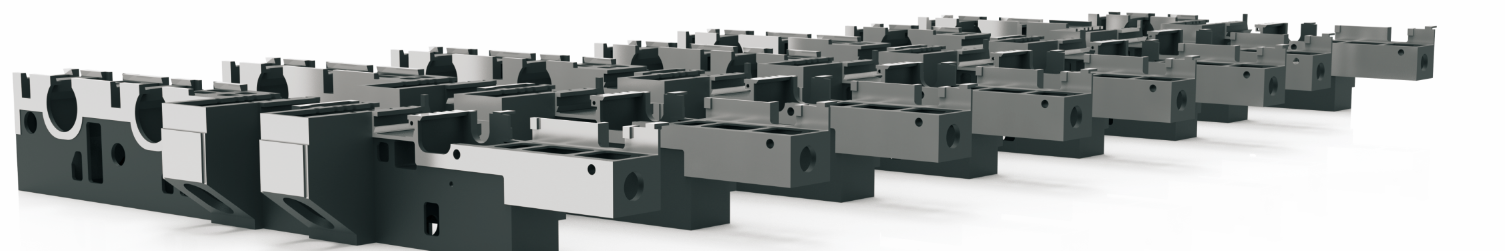

The machine bed is integrally cast as one piece. After undergoing special treatment, it delivers stable performance, exceptional rigidity, and high precision.
-

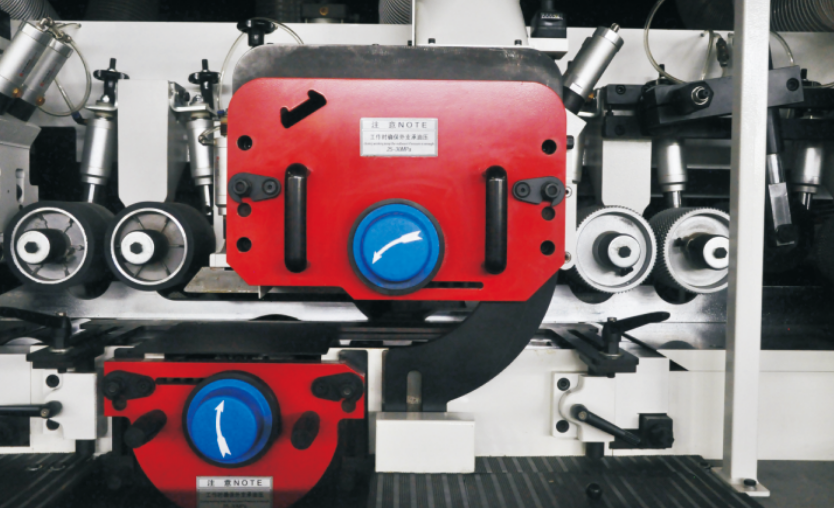

The tool sharpening system + external support
Upper spindle and second bottom spindle adopt online tool sharpening technology to meet high quality requirements of high-
speed feeding production.
-

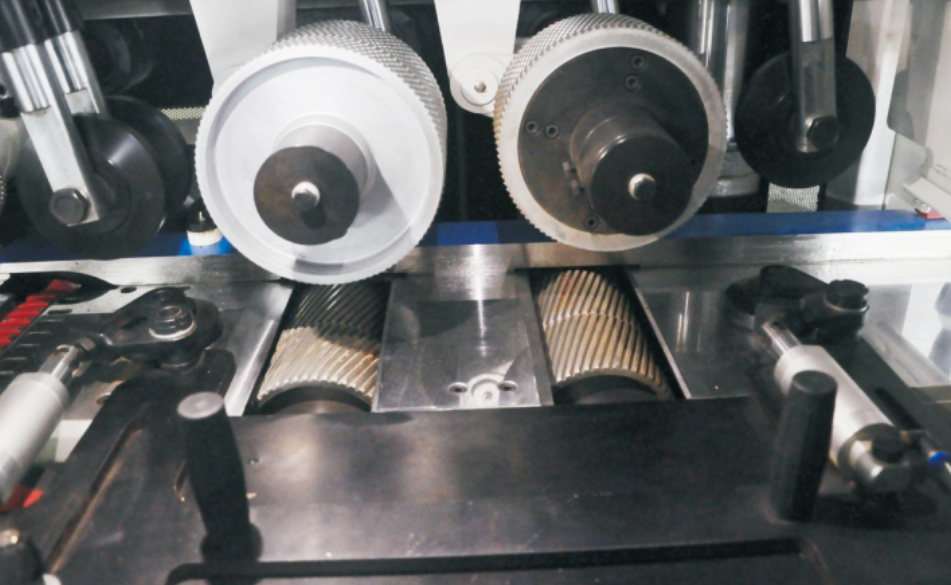

The feeding system is configured with two sets of floating drive
rollers to achieve stable and powerful feeding.
-

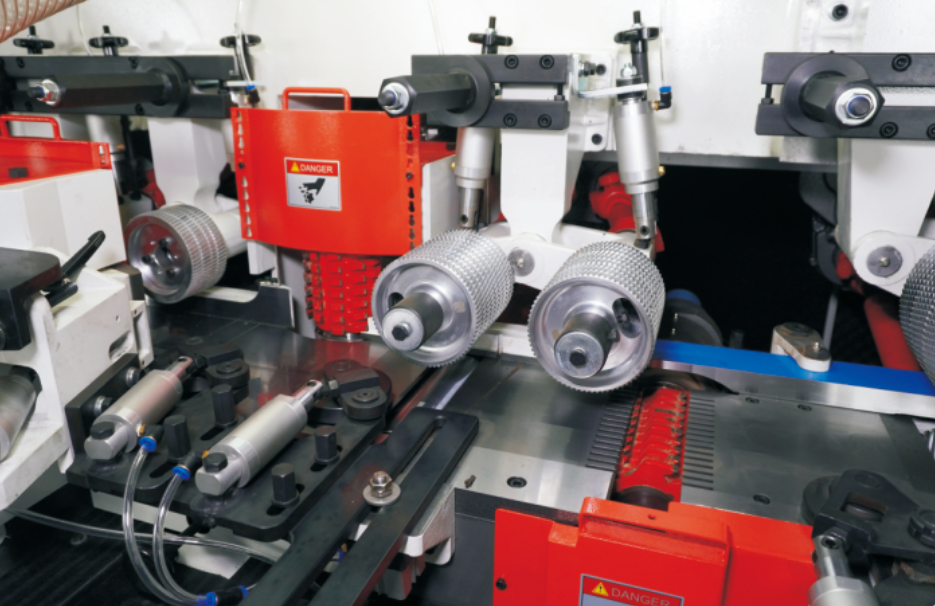

The side pressure of the left spindle adopts cylinder + large
diameter side wheels, and the front chip breaker is specially treated to ensure the stability of the side pressure during high-
speed feeding.
-

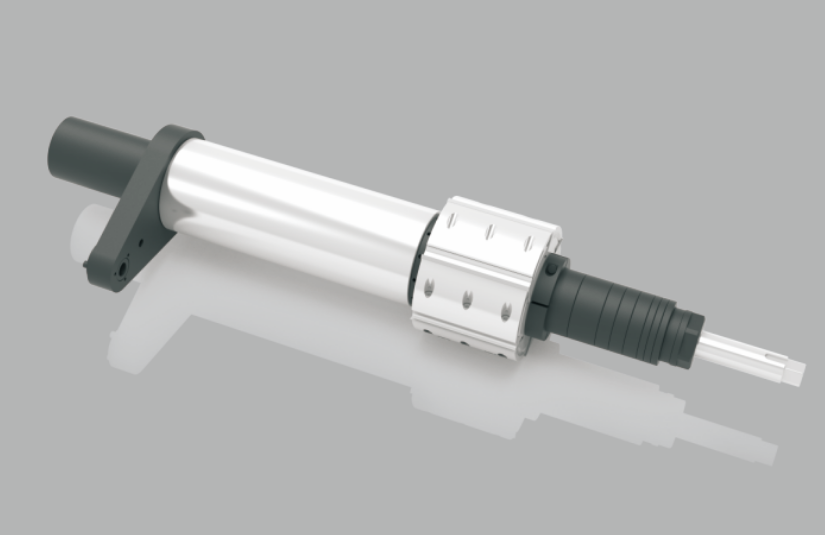

Precision spindle
The spindle is assembled after precision machining, and
undergoes special treatment, the use of precision bearings ensures
processing stability and spindle service life.
-

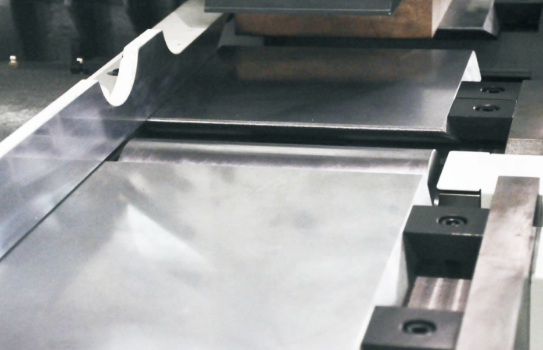

Workbench
The workbench undergoes special treatment by special craft
ensuring wear resistance and long service life
-

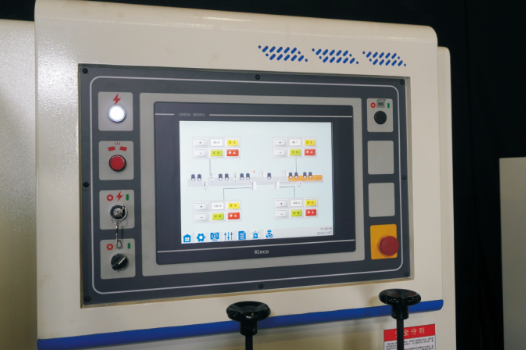

PLC control interface
The operating system adopts touch screen +PLC control, providing intuitive, convenient and fast
operation.
| Item/Model | QMB623GH | QMB723GH | QMB823GH | QMB923GH | |
| Processing width(tool diameter 160mm)/mm | 20~230 | 20~230 | 20~230 | 20~230 | |
| Processing height (tooldiameter 160mm)/mm | 10~160 | 10~160 | 10~160 | 10~160 | |
| Feed speed /m/min | 10~60 | 10~60 | 10~60 | 10~60 | |
| Spindle diameter/mm | 50 | 50 | 50 | 50 | |
| Spindle speed/r/min | 7000 | 7000 | 7000 | 7000 | |
| Tool cutting circle dia/mm | First bottom spindle | Flat cutter 140/Trimming cutter165 | Flat cutter 140/Trimming cutter165 | Flat cutter140/Trimming cutter 165 | Flat cutter 140/Trimming cutter165 |
| Other spindles | 140~250 | 140~250 | 140~250 | 140~250 | |
| 电机功率/KW Motor power/KW | Feed motor | 11 | 11 | 11 | 11 |
| First bottom spindle | 7.5 | 11 | 7.5 | 7.5 | |
| First right spindle | 7.5 | 11 | 7.5 | 7.5 | |
| First left spindle | 11 | 11 | 11 | 11 | |
| Second right spindle | / | / | 7.5 | 7.5 | |
| Second left spindle | / | / | 11 | 11 | |
| First upper spindle | 11 | 15 | 11 | 11 | |
| Second bottom spindle | 11 | 15 | 11 | 11 | |
| Second upper spindle | 11 | 15 | 11 | 11 | |
| Third bottom spindle | / | 15 | / | 11 | |
| Beam lifting motor | 1.1 | 1.1 | 1.1 | 1.1 | |
| Overall dimension (L×W×H)/cm | 566×210×190 | 566×210×190 | 658×210×190 | 658×210×190 | |
| Weight/kg | 8300 | 8800 | 10100 | 10600 | |
| Optional: 1. All spindle motors can be optional from 7.5~18.5KW; 2.Profile jointer is available for all spindles (optional)(except the first bottom spindle);3. Outboard bearing support device can be optionaI for horizontal spindles; 4. The last bottom spindle can install sa blades; 5. Magnetic grating digital readout can be optional for all spindles; 6. Automatic feeding system is available. (If you have special needs, please contact us) | |||||
