Double-end Tenoner
Stability
Efficiency
Double-end machining
Custom click machining solution Multiple processing options Flexible and efficient
Tenon machining specialized equipment,three-step processing: Pre-cutting, profiling, and V-grooving
The machine utilizes variable-frequency feeding to complete dual-end tenon processing in a single cycle, including pre-cutting, milling, V- grooving (or mortising) and insert-grooving operations.
This machine performs dual-end tenoning operations, enabling simultarneous forming of male or female tenons on both ends of workpieces on machine bed, specifically designed for producing Threespine click in decorative moldings,blockbords,soid woodflooring,and venered panel furniture.
-

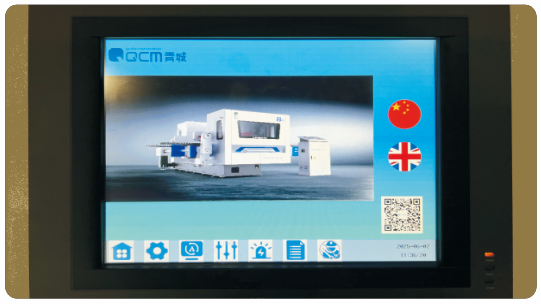

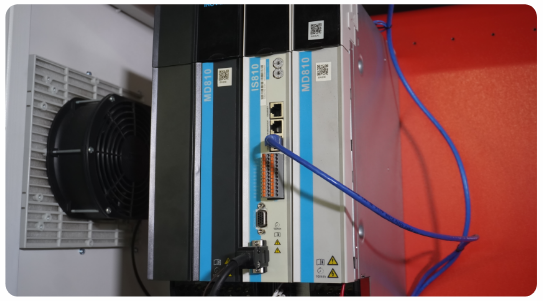

The machine is equipped with an imported computer touchscreen and PLC integrated control system for CNC thickness and width setting of the pressure beam and right movable table.
-
The machine features variable-frequencyfeeding,making it suitable for processing workpieces of different materials. It can complete pre-cutting,milling, and grooving in one time.
-

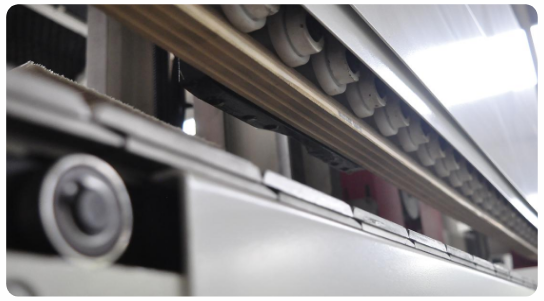

The machine utilizes imported clamping tape, and the pressing system employs nylon rollers to press the workpiece via the tape, ensuring easy adjustment.
-

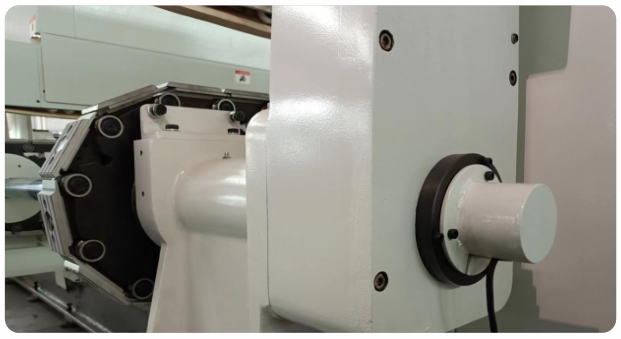

The feeding drive shaft uses encoder to control the jumping cutter.
-

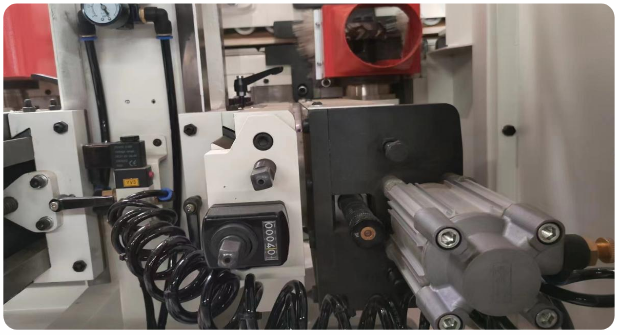

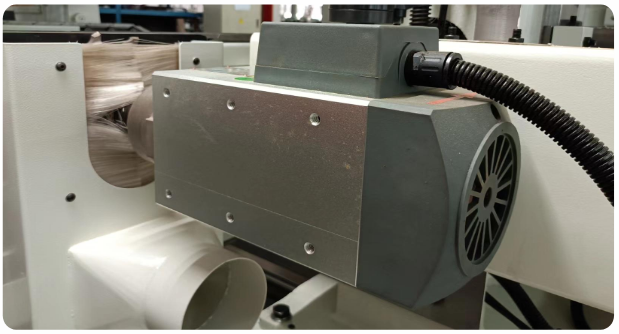

QMX6025GK's first milling spindle for pre-cutting tenon features (front & rear) pneumatic tool jumping function.
-
QMX6025GK's (V-groove) third milling spindle is a horizontal saw-milling spindle.
-

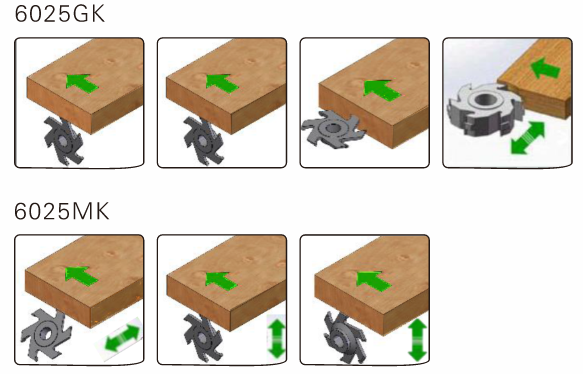

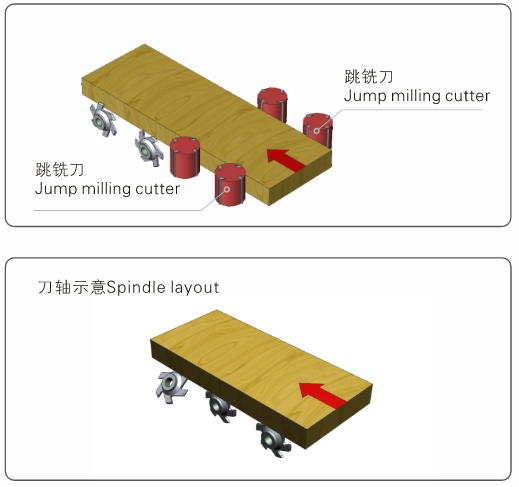

Spindle layout
-
Spindle layout
-
No need to drill holes
No hardware required

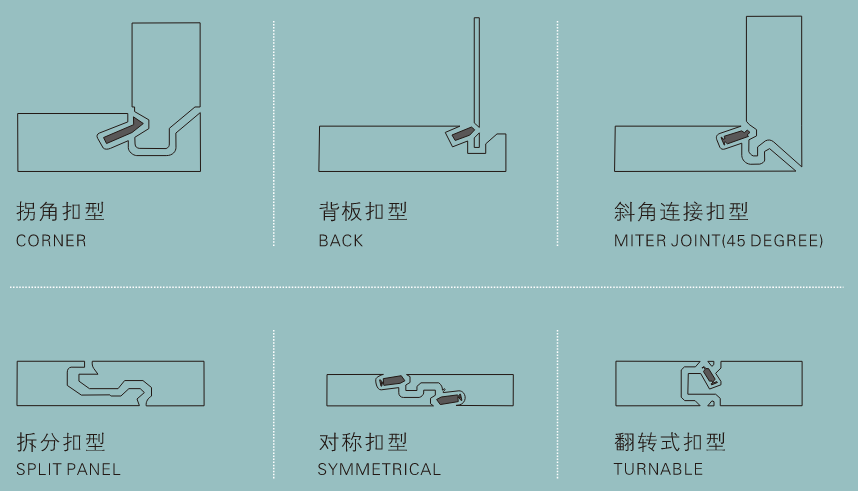

A variety of connection buckle
Covering various furniture scenarios
Compatible with various types of boards
Use thinner materials
| Item/Model | QMX6025GK | QMX6025BK | Item/Model | QMX6025MK |
| Working width | 300～2500mm | Working width | 300~2400mm | |
| Working thickness | 10~60mm | 3~15mm | Working thickness | 10~60mm |
| Feed block spacing | 1000mm | Feed block spacing | 1000mm | |
| Feeding speed | 3~36m/min | Feeding speed | 3~36m/min | |
| Pre-cutting speed | 6000–9000r/min | Groove speed | 6000–9000r/min | |
| Milling & milling V-groove speed | 4500–7500r/min | Insert-groove speed | 6000–9000r/min | |
| Pre-cutting milling cutter specification | Φ90~125xΦ30mm | Groove milling cutter specification | Φ100~125xΦ30mm | |
| Milling & milling V-groove cutter specification | Φ180~250xΦ40mm | Insert-groove milling cutter specification | Φ100~150xΦ30mm | |
| Pre-cutting motor power | 3.7kWx2 | Groove motor power | 3.7kWx4 | |
| Milling & milling V-groove motor power | 5.5kWx6 | Insert-groove motor power | 3.7kWx2 | |
| Feeding motor power | 4.0kW | Feeding motor power | 4.0kW | |
| Width setting motor power | 1.0kW | Width setting motor power | 1.0kW | |
| Pressing belt lifting motor power | 0.37kWx2 | Pressing belt lifting motor power | 0.37kWx2 | |
| Operation voltage | AC380V、50Hz | Operation voltage | AC380V、50Hz | |
| Suction port DIA. | Φ120mmx8 | Suction port DIA. | Φ120mmx6 | |
| Air speed of suction system | 30–35m/s | Air speed of suction system | 30–35m/s | |
| Air requirement of suction system | 240m³/min | Air requirement of suction system | 240m³/min | |
| Outline dimension | 495x465x190cm | Outline dimension | 505x465x190cm | |
| Weight | 6500kg | Weight | 6300kg | |
