ML9330DM

Planer&saw Union Machine

The ML9330DM panel-sawing and cutting machine is composed of three knife shafts. It first performs multi-piece sawing operations, and then processes the upper and lower surfaces of the wood at a fixed thickness. It is suitable for industries such as decorative wood profiles, veneer thin woodwork boards, veneer solid wood doors, and veneer artificial board furniture for manufacturing thin wood boards and wood strips.

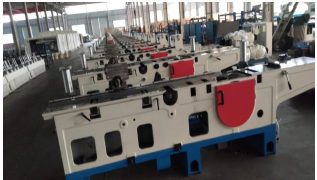

  • It is cast as a whole using high-strength and high-quality castings. After multiple aging treatments and precise processing, it has a stable structure and good rigidity.
    It is cast as a whole using high-strength and high-quality castings. After multiple aging treatments and precise processing, it has a stable structure and good rigidity.
  • The main shaft is made of special materials and undergoes special treatment, precise machining, and dynamic balancing processing. It is equipped with brand-name bearings, ensuring smooth operation and long-lasting durability.
    The main shaft is made of special materials and undergoes special treatment, precise machining, and dynamic balancing processing. It is equipped with brand-name bearings, ensuring smooth operation and long-lasting durability.

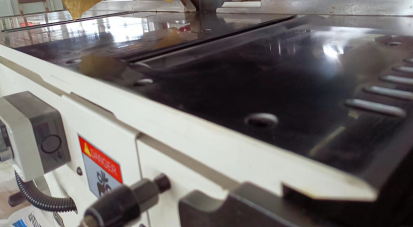

  • The workbench plate has undergone special treatment, precise processing and hard chrome plating. It is wear-resistant and has a long service life.
    The workbench plate has undergone special treatment, precise processing and hard chrome plating. It is wear-resistant and has a long service life.
  • The configuration includes 10 sets of active feeding rollers, with 5 sets in total. This ensures smooth feeding.
    The configuration includes 10 sets of active feeding rollers, with 5 sets in total. This ensures smooth feeding.

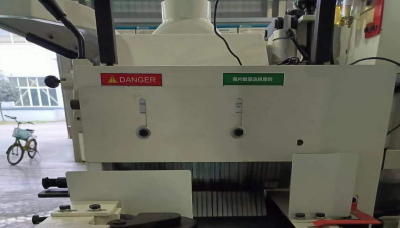

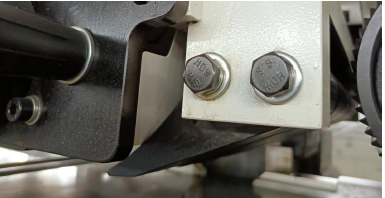

  • A fixed reverse-acting pawl safety anti-rebound device has been configured at the input end, which is safe and reliable, and ensures the operator's safety to the greatest extent.
    A fixed reverse-acting pawl safety anti-rebound device has been configured at the input end, which is safe and reliable, and ensures the operator's safety to the greatest extent.

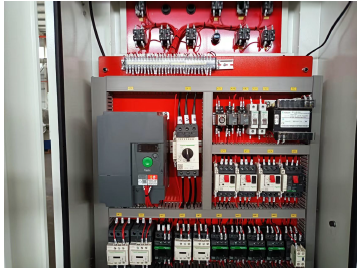

  • All the electrical components are of well-known brands, with stable performance and long service life.
    All the electrical components are of well-known brands, with stable performance and long service life.

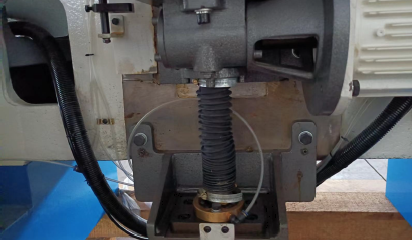

  • The lowering and raising of the sawing shaft component is achieved through an electric lifting mechanism, which is convenient and fast to operate.
    The lowering and raising of the sawing shaft component is achieved through an electric lifting mechanism, which is convenient and fast to operate.

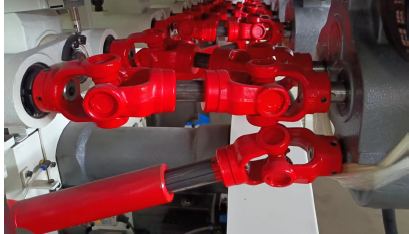

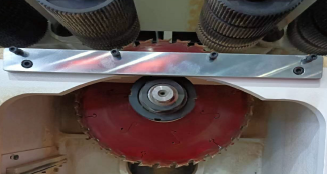

  • There are 15 sets of active feeding tooth rollers, consisting of 10 sets on the top and 5 sets at the bottom. All the feeding rollers are driven by universal couplings, ensuring smoother and more powerful feeding.
    There are 15 sets of active feeding tooth rollers, consisting of 10 sets on the top and 5 sets at the bottom. All the feeding rollers are driven by universal couplings, ensuring smoother and more powerful feeding.

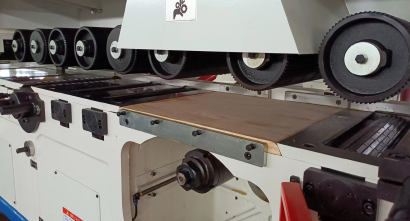

  • The front pressure plate adopts a segmented structure to address the issue of uneven upper surfaces of the wood and ensure smooth feeding.
    The front pressure plate adopts a segmented structure to address the issue of uneven upper surfaces of the wood and ensure smooth feeding.

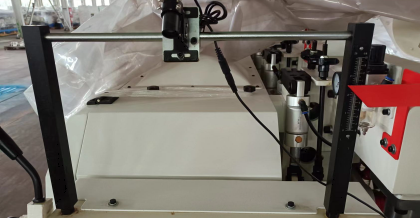

  • Install the laser marking device to facilitate the alignment of irregular wood materials during the feeding process.
    Install the laser marking device to facilitate the alignment of irregular wood materials during the feeding process.

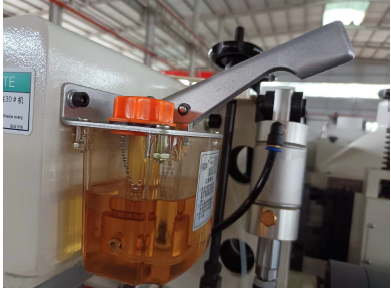

  • Configure a manual oil pump, and lubricate the worktable, slide seat, and each lubrication point as needed based on the required amount.
    Configure a manual oil pump, and lubricate the worktable, slide seat, and each lubrication point as needed based on the required amount.

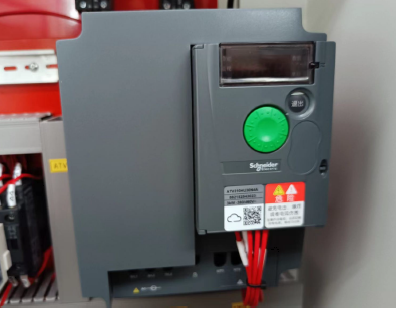

  • The delivery process is controlled by variable frequency speed regulation, which can be adjusted according to the processing requirements of various wood materials.
    The delivery process is controlled by variable frequency speed regulation, which can be adjusted according to the processing requirements of various wood materials.
Specification Model Unit ML9330DM
Max. Processing Width (Cutter Outer Diameter 125) mm 300
Processing Thickness (Cutter Outer Diameter φ125) mm 10—90
Max. Planing Depth for Lower & Upper Horizontal in One Pass mm 3/5
Max. Movement of Movable Worktable / Guide Strip mm 4/8
Planer Shaft Diameter mm φ50
Saw Shaft Diameter mm φ50
Saw Shaft Keyway mm 12mm×2 pcs
Saw Shaft Reducing Sleeve Keyway mm 20mm×2 pcs
Feed Roller Diameter mm φ140
Feed Speed m/min 6—35
Planer Shaft Rotation Speed r/min 6800
Saw Shaft Rotation Speed r/min 3800
Total Motor Power kW 52
Lower Planer Shaft Motor kW 7.5
Upper Planer Shaft Motor kW 7.5
Lower Saw Shaft Motor kW 30
Lower Saw Shaft Lifting Motor kW 0.75
Feed Motor kW 5.5
Beam Lifting Motor kW 0.75
Lower Horizontal Planer (Rotation Diameter x Inner Hole Diameter) mm φ125×φ50
Upper Horizontal Planer (Rotation Diameter x Inner Hole Diameter) mm φ125~φ160×φ50
Max. Saw Blade (Inner Hole Diameter) mm φ200~φ350x (φ70)
Overall Dimension (L×W×H) cm 345×145×180
Machine Weight Kg 3800
