MB623P

Four-side Moulder

Feeding speed is inverter-controlled, ranging from 6 to 36 m/min. It features reasonable structure, stable performance, smooth feeding and excellent machining quality.

Feature Introduction

This machine is mainly used for four- sided planing and profile machining of various wood products, such as solid- wood doors & windows, photo frames, solid wood flooring, wood mouldings, corner mouldings and wall panels. Equipped with a universal spindle, it can precisely plane any surface and perform five- sided profile machining. It supports diversified production with improved quality and smoother workpiece surfaces.

  • Worktable The worktable plate is specially treated and hard-chrome-plated. It features good wear resistance and long service life, providing a solid and reliable platform for long-term efficient operation.
    Worktable

    The worktable plate is specially treated and hard-chrome-plated. It features good wear resistance and long service life, providing a solid and reliable platform for long-term efficient operation.

  • Side Pressing Mechanism The side‑pressing mechanism in front of the leftspindle uses two sets of cylinders for material pressing. It ensures workpiece stability during processing, so as to improve machining accuracy and working efficiency.
    Side Pressing Mechanism

    The side‑pressing mechanism in front of the leftspindle uses two sets of cylinders for material pressing. It ensures workpiece stability during processing, so as to improve machining accuracy and working efficiency.

  • Spindle Lifting & In -out Adjustment Electric adjustment is adopted for upper spindle lifting and left spindle in-out movement for simpler and faster operation.
    Spindle Lifting & In -out Adjustment

    Electric adjustment is adopted for upper spindle lifting and left spindle in-out movement for simpler and faster operation.

  • Steel Feed Roller The steel feed rollers feature a new tooth profile design with special surface treatment. They deliver high feeding efficiency and long service life, and the cylinder pressure can be as low as 0.2 MPa.
    Steel Feed Roller

    The steel feed rollers feature a new tooth profile design with special surface treatment. They deliver high feeding efficiency and long service life, and the cylinder pressure can be as low as 0.2 MPa.

  • Control Panel All operation buttons are integrated on the button panel with reasonable layout for convenient centralized control. Especially, feeding speed can be easily adjusted for different wood materials to ensure efficient operation.
    Control Panel

    All operation buttons are integrated on the button panel with reasonable layout for convenient centralized control. Especially, feeding speed can be easily adjusted for different wood materials to ensure efficient operation.

  • Upper Spindle Front & Rear Pressure Plates The upper spindle adopts cylinder- controlled front and rearpressure plates for clamping, facilitating the processing of workpieces with different shapes.

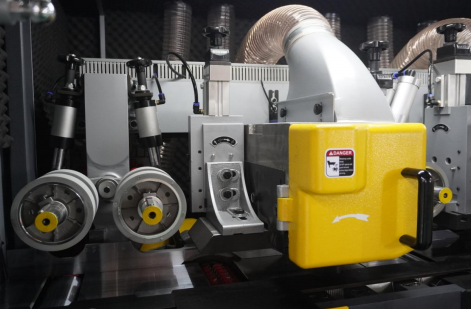

    Upper Spindle Front & Rear Pressure Plates

    The upper spindle adopts cylinder- controlled front and rearpressure plates for clamping, facilitating the processing of workpieces with different shapes.

Technical parameter
规格型号 Specifications 单位 MB423P MB523P MB623P MB723P MB823P
最大加工宽度 mm 230 230 230 230 230
最小加工宽度 mm 20 20 20 20 20
最大加工厚度 mm 160 160 160 160 160
最小加工厚度 mm 10 10 10 10 10
最短刨削长度 mm 650 650 650 650 650
活动工作台最大升降幅度 mm 5 5 5 5 5
活动限位条最大移动量 mm 10 10 10 10 10
刀轴数 根 4 5 6 7 8
主轴刀轴直径 mm φ40 φ40 φ40 φ40 φ40
刀轴转速 r/min 6000 6000 6000 6000 6000
送料速度 m/min 6-36 6-36 6-36 6-36 6-36
压料轮直径 mm φ140 φ140 φ140 φ140 φ140
立轴轴向移动量 mm 40 40 40 40 40
水平轴轴向移动量 mm 20 20 20 20 20
排屑管直径 mm 4x125 5x125 6x125 7x125 8x125
吸尘风量 m³/h 6200 7700 9200 10700 12200
外形尺寸（长x宽x高） mm 3960x2000x1900 3960x2000x1900 4500x2000x1900 4750x2000x1900 5400x2000x1900
机床重量 kg 3400 3600 4500 5000 5500
可选配置：①活动工作台长度1.4/2.5/3m; ②电机功率可增加; ③刀轴转速可选7200rpm或8000rpm; ④最后一根下轴可选配锯轴。
