ML9616SMX

Planer&saw Union Machine

The ML9616SMX joint planer and sawing machine features a four-sided planing and cross-cutting structure. The maximum processing width is 160mm and the maximum processing thickness is 120mm. The feeding speed ranges from 6 to 30 meters per minute (variable frequency speed control). The bed is made of high-quality castings and is cast as a whole. The worktable is made of special wear-resistant materials, which are precisely processed and chrome-plated. It has the advantages of stable performance, excellent precision, wear-resistant worktable and long service life.

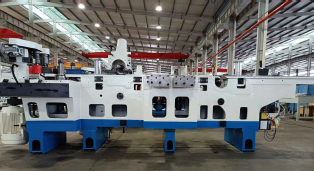

  • The machine tool bed is made by casting high-strength cast iron as a whole, with a stable structure and excellent rigidity.
    The machine tool bed is made by casting high-strength cast iron as a whole, with a stable structure and excellent rigidity.

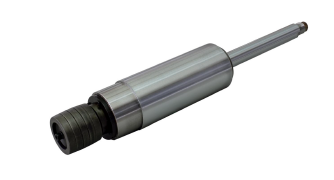

  • The main shaft undergoes precise machining and fine grinding, and is equipped with high-precision bearings to ensure the lifespan of the tool axis.
    The main shaft undergoes precise machining and fine grinding, and is equipped with high-precision bearings to ensure the lifespan of the tool axis.

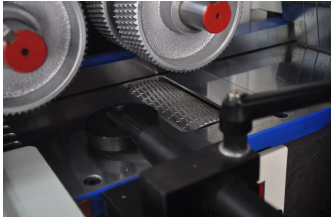

  • The workbench plate has undergone special heat treatment and is then plated with hard chromium. It is wear-resistant and has a long service life.
    The workbench plate has undergone special heat treatment and is then plated with hard chromium. It is wear-resistant and has a long service life.

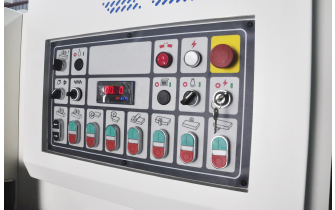

  • Push-button operation, precise and stable.
    Push-button operation, precise and stable.

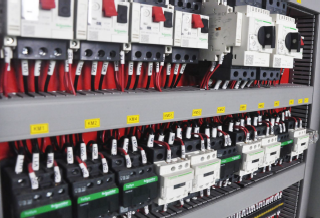

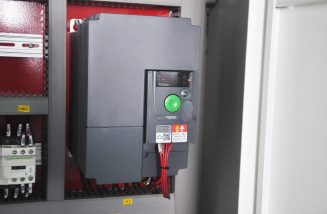

  • Using international brand electronic components ensures reliable performance.
    Using international brand electronic components ensures reliable performance.
  • The delivery system adopts variable frequency speed regulation, which is more suitable for the processing requirements of various wood materials.
    The delivery system adopts variable frequency speed regulation, which is more suitable for the processing requirements of various wood materials.

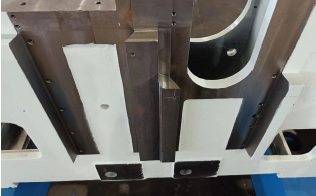

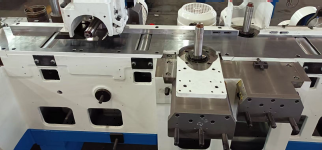

  • The left and right vertical shaft sliding plates and the left and right saw shaft sliding plates are combined with the dovetail surfaces and the entire body is cast together. This design ensures excellent stability and is less prone to deformation.
    The left and right vertical shaft sliding plates and the left and right saw shaft sliding plates are combined with the dovetail surfaces and the entire body is cast together. This design ensures excellent stability and is less prone to deformation.
  • The upper and lower horizontal skateboards are combined with the dovetail surface and the entire body is cast together. This design ensures excellent stability and is less prone to deformation.
    The upper and lower horizontal skateboards are combined with the dovetail surface and the entire body is cast together. This design ensures excellent stability and is less prone to deformation.

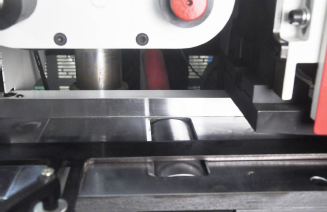

  • Install an external lateral pressure device to prevent the workpiece from deviating.
    Install an external lateral pressure device to prevent the workpiece from deviating.
  • Two sets of universal joint-driven rollers are configured below to ensure smooth and powerful material feeding during the processing.
    Two sets of universal joint-driven rollers are configured below to ensure smooth and powerful material feeding during the processing.

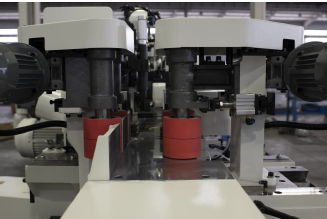

  • Four sets of vertical active feeding rollers are configured before and after to ensure smooth feeding for multi-piece sawing.
    Four sets of vertical active feeding rollers are configured before and after to ensure smooth feeding for multi-piece sawing.

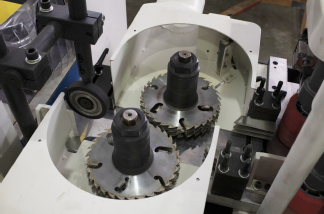

  • The saw shaft does not have a variable-diameter sleeve, which enables the diameter of the saw blade to be reduced.
    The saw shaft does not have a variable-diameter sleeve, which enables the diameter of the saw blade to be reduced.
Specification Unit ML9616SMX
Max Planing Width mm 160
Min Machining Width mm 35
Max Sawing Width mm 160
Max Machining Thickness mm 120
Min Machining Thickness mm 15
Min Machining Length (Intermittent/Continuous) mm 650/480
Max Lifting Stroke of Movable Worktable mm 6
Max Movement of Movable Guide Plate mm 6
Saw Shaft Diameter mm φ50
Saw Shaft Keyway mm 10x2
Saw Shaft Rotation Speed r/min 4000
Planer Shaft Diameter mm φ40
Rotation Speed of Front Lower Planer Shaft, Left & Right Vertical Shaft r/min 6800
Rotation Speed of Other Planer Shafts r/min 8000
Feed Speed m/min 6-30
Feed Roller Diameter mm φ140
Cutter Rotation Diameter: Front Lower Cutter (Flat) mm φ125
Front Lower Cutter (Side Cutter Outer Diameter × Thickness) mm φ152×12
Left & Right Vertical Shaft mm φ115-φ170
Upper Planer Shaft mm φ105-φ150
Left & Right Saw Blade Diameter mm φ160-φ250
Total Motor Power kW 62.3
Front Lower Cutter Shaft kW 4
Left & Right Vertical Shaft, Upper Cutter Shaft kW 5.5 / 5.5 / 7.5
Left & Right Saw Motor kW 15 each
Feed Motor kW 7.5
Auxiliary Feed Motor kW 0.75×2
Beam Lifting Motor kW 0.75
Air Source Pressure Mpa 0.3-0.6
Compressed Air Consumption m³/min 0.15
Dust Outlet Diameter (Planing) mm φ120×4
Dust Outlet Diameter (Sawing) mm φ150×2
Air Velocity of Dust Collection System m/s 30-35
Air Demand of Dust Collection System m³/min 150
Overall Dimension (Length × Width × Height) cm 458×153×172
Machine Weight kg 4200
