QMJ175M4

Multi-blade Movable Rip Saw

precise marking

Precise calculation

Make the most of every inch of wood

Product Overview

The robust mechanical core architecture ensures long-term stable operation of the equipment, while the modular design facilitates daily maintenance and upkeep. The user-friendly operation interface is intuitive and easy to use, making operation simpler. Strict safety protection standards ensure the safety of operators and a wide range of product applications, meeting the diverse and personalized needs of the market. At the same time, we also provide professional operation training and technical support to ensure that operators can master the skills of using the equipment.

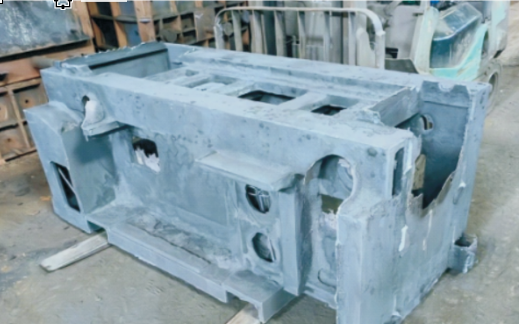

  • The high-strength integrated cast structure effectivelyprevents vibration and deformation during the machining process,thereby ensuring the machine's stability and machining accuracy.
    The high-strength integrated cast structure effectivelyprevents vibration and deformation during the machining process,thereby ensuring the machine's stability and machining accuracy.

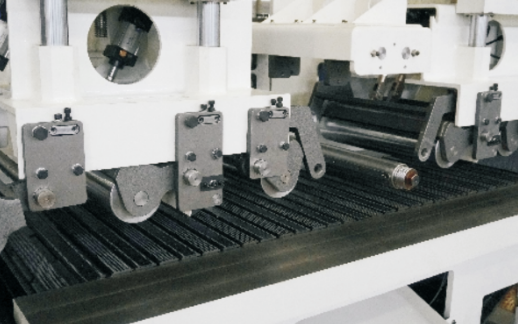

  • The six sets of air-floating pressure rollers can ensure uniform pressure application, adapting to materials of different types,thicknesses, and widths, demonstrating strong adaptabilityand flexibility.
    The six sets of air-floating pressure rollers can ensure uniform pressure application, adapting to materials of different types,thicknesses, and widths, demonstrating strong adaptabilityand flexibility.
  • The adaptive pressure plate can make self-adjustments basedon the real-time position and movement status of the wood,also feature an anti-tearing function.
    The adaptive pressure plate can make self-adjustments basedon the real-time position and movement status of the wood,also feature an anti-tearing function.
  • The dual diamond-shaped rails provide stable support andguidance, ensuring the smoothness and accuracy of timberduring the conveying process.
    The dual diamond-shaped rails provide stable support andguidance, ensuring the smoothness and accuracy of timberduring the conveying process.
Technical parameter
Specifications unit Main parameter Specifications unit Main parameter
Max working width mm 450 Movable laser marking   5
Min working width mm 45 Fixed laser marking   1
Max piece passing width mm 800 Feeding speed m/min 6~60
Nail-mounted chain plate mm ●Standard configuration Press roller quantity   6
Chain plate width mm 500 Worktable height mm 870
Pressing plate mm   Standard voltage   380V 50Hz
Max saw blade diameter mm Φ305 Total power kW 46.2
Max working thickness with pressing plate mm 60 Suction hood DIA   1XΦ250
Max working thickness without pressing plate mm 80 Required suction volume m³/h 5300
Saw spindle speed rpm 4200 Required suction speed m/s 30
Min working thickness mm 10 Air supply pressure Mpa 0.3~0.6
Min working length with pressing plate mm 600 Air consumption m³/min 0.1
Adaptive pressure plate   ●Standard configuration Overall dimension mm 2286x2004x2642
Saw spindle diameter mm 65 Weight kg 5500
Saw blade bore diameter mm 80 Optimization control system   ●Standard configuration
Servo control system   ●Standard configuration Visual feeding system   ○Optional configuration
Movable blade   4 Belt feeding system   ○Optional configuration
Fixed blade   1 Discharge system   ○Optional configuration
