SRP1300B

Belt Sanding Machine

High processing precision

High sanding efficiency

Wide range of applicable materials

Feature Introduction

SRP1300B products are coarse sand fixed thickness + fine sand polishing combination of processing broadband 1300mm double sand frame broadband sander. The maximum sanding width is 1300mm, the maximum sanding thickness is 160mm, and the feeding speed is 6-30m /min (frequency conversion). The coarse sand and fine sand motor adopts built-in structure, which can realize the coarse sand setting thickness and fine sand polishing operation. It has the advantages of stable performance, beautiful appearance and convenient operation.

Recommended: The product is mainly used for thickness sanding and surface fine sanding of solid wood board, fine wood board, finger jointing board, plywood, fiberboard, door core board and other boards with a width within 1300mm.

Optional configuration: Optional polishing pad structure with air bag, suitable for the surface polishing processing of veneer panels, to prevent surface hourglass.

  • The frame is made of heavy channel steel and high quality plate welding, after special treatment, precision machining, with sufficient rigidity and strength.
    The frame is made of heavy channel steel and high quality plate welding, after special treatment, precision machining, with sufficient rigidity and strength.
  • The worktable is made of heavy channel steel and high quality plate welding, especially the encryption welding of the bottom support plate of the worktable, which has sufficient rigidity and strength through special treatment and precision machining.
    The worktable is made of heavy channel steel and high quality plate welding, especially the encryption welding of the bottom support plate of the worktable, which has sufficient rigidity and strength through special treatment and precision machining.
  • In the sand frame parts of the machine, the coarse sand roller and the fine sand beam support are made of high quality castings, heavy volume, special treatment and precision machining, which can overcome the phenomenon that the rigid deformation of the sanding machine affects the processing quality of the product during use.
    In the sand frame parts of the machine, the coarse sand roller and the fine sand beam support are made of high quality castings, heavy volume, special treatment and precision machining, which can overcome the phenomenon that the rigid deformation of the sanding machine affects the processing quality of the product during use.

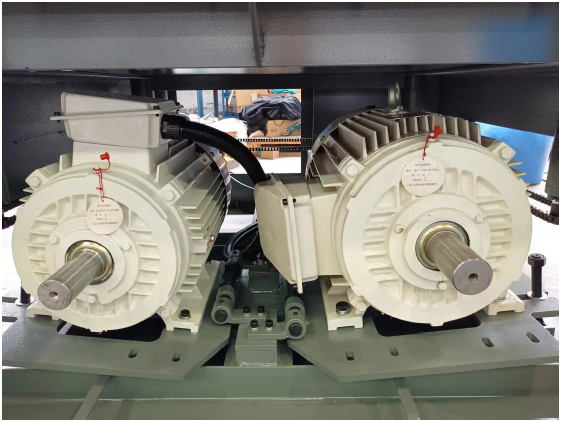

  • The installation of the motor adopts the fixed structure of the base, which is stable in operation and high in processing precision, convenient in installation and maintenance.
    The installation of the motor adopts the fixed structure of the base, which is stable in operation and high in processing precision, convenient in installation and maintenance.

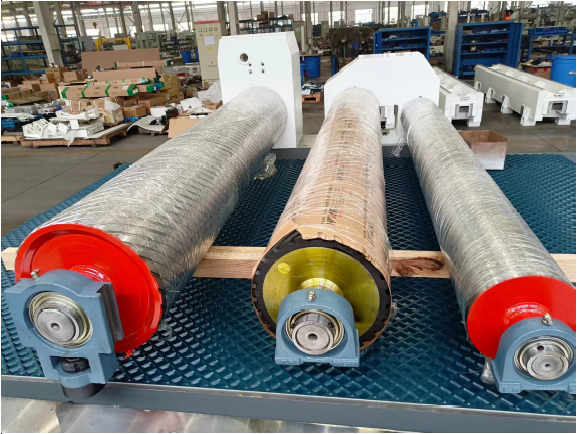

  • In the front and back sand roller configuration, the front coarse sand roller adopts thick wall large diameter steel roller, through precision processing and dynamic balance treatment, to ensure the quality of strong constant thickness cutting; The back sand roller is made of high quality sand roller and equipped with imported polishing pad. The surface of the sand cutting board is smooth, flat and stable in performance accuracy.
    In the front and back sand roller configuration, the front coarse sand roller adopts thick wall large diameter steel roller, through precision processing and dynamic balance treatment, to ensure the quality of strong constant thickness cutting; The back sand roller is made of high quality sand roller and equipped with imported polishing pad. The surface of the sand cutting board is smooth, flat and stable in performance accuracy.

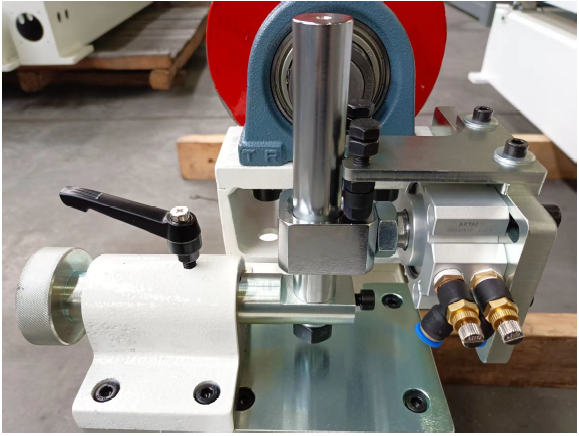

  • The sand swing assembly adopt the new sand belt swing adjustment structure, and configure the imported photoelectric control system to ensure the normal use of the sand belt, thus reducing equipment failures and realizing man-machine safety.
    The sand swing assembly adopt the new sand belt swing adjustment structure, and configure the imported photoelectric control system to ensure the normal use of the sand belt, thus reducing equipment failures and realizing man-machine safety.

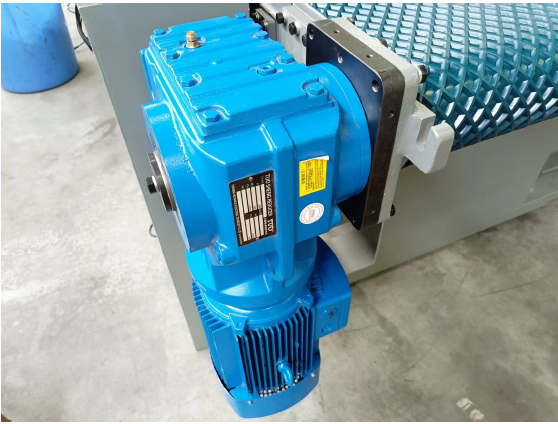

  • The feeding is equipped with hard gear reducer and inverter, and the feeding is strong and suitable for sanding a variety of different plates.
    The feeding is equipped with hard gear reducer and inverter, and the feeding is strong and suitable for sanding a variety of different plates.

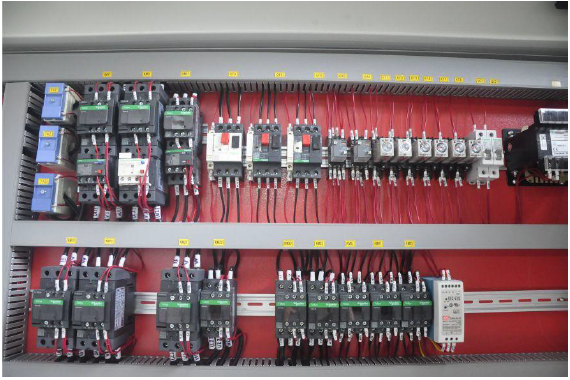

  • Electronic components using international brand electronic components, stable and reliable performance.
    Electronic components using international brand electronic components, stable and reliable performance.

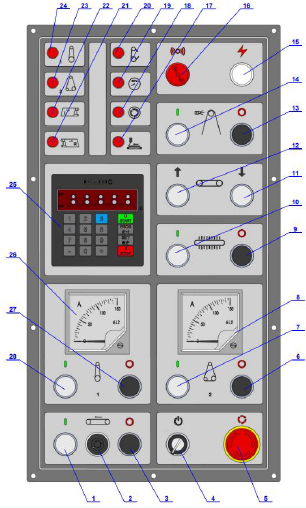

  • The operation buttons of the button board are evenly arranged, and the operation parts are simple and easy to operate.
    The operation buttons of the button board are evenly arranged, and the operation parts are simple and easy to operate.
Technical parameter
Model SRP-1300B
Sanding width 40-1300mm
Sanding thickness 3-160mm
Mini. sanding length 580mm
The first set of belt speed 19m/s
The second set of belt speed 18m/s
Feed speed 6-30m/min
Belt size 1330x2200mm
Sand conveyor belt size 1330x4000mm
Motor power 57.1kw
The first set of sand roller motor 30kw
The second set of sand roller motor 22kw
Feeding motor 4kw
Work table lifting motor 0.75kw
Dust-removing machine 0.37kw
Working pressure 0.6Mpa
Vacuum cover caliber 5-φ150mm
Overall dimensions（Length x Width x Height） 226x206x223cm
Encasement weight 3700Kg
