QMJ153S

Single Rip Saw

Classic design, crafted with precision

Expertly solves wood longitudinal cutting and edging tasks

Accuracy meets edge gluing standards

Feature Introduction

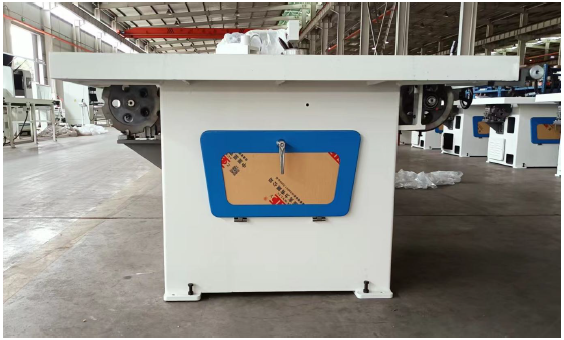

MJ153S Single-blade Rip Saw is mainly suitable for lengthwise sawing of large width wood, which is composed of three parts: bed table, rolling box and spindle.

The body adopts high quality steel plate welding and aging treatment, strong thickness, no deformation, rolling box, spindle sleeve adopts high grade cast iron, and aging treatment, to ensure that the machine has high reliable stability and accuracy retention.

The spindle is processed with special materials and special technology, with high precision and strong durability.

  • The body made of high strength steel welding, after multiple vibration aging treatment, precision processing, stable structure, good rigidity.
    The body made of high strength steel welding, after multiple vibration aging treatment, precision processing, stable structure, good rigidity.
  • The saw shaft is made of special materials, special treatment, precision processing, dynamic balance treatment, and equipped with brand bearings, which runs smoothly and is durable.
    The saw shaft is made of special materials, special treatment, precision processing, dynamic balance treatment, and equipped with brand bearings, which runs smoothly and is durable.

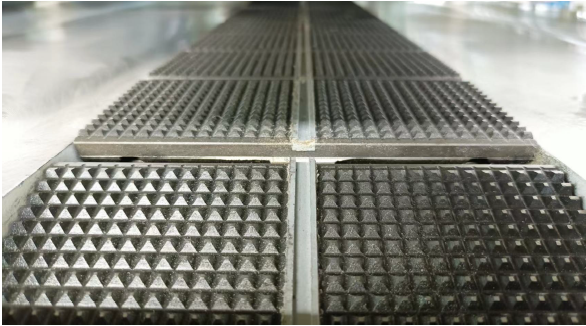

  • The chain plate and guide rail of the rail conveyor block are made of high wear-resistant cast iron, heat treatment and precision processing to ensure that the long-term use of abrasion is small.
    The chain plate and guide rail of the rail conveyor block are made of high wear-resistant cast iron, heat treatment and precision processing to ensure that the long-term use of abrasion is small.

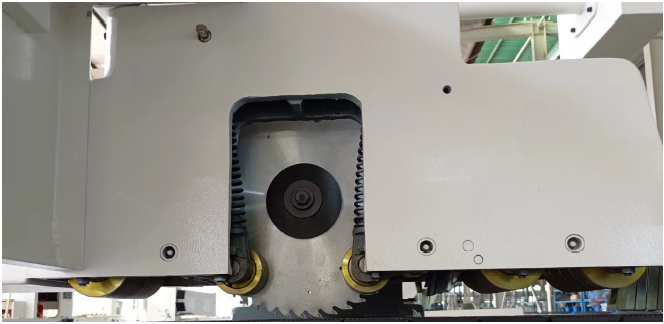

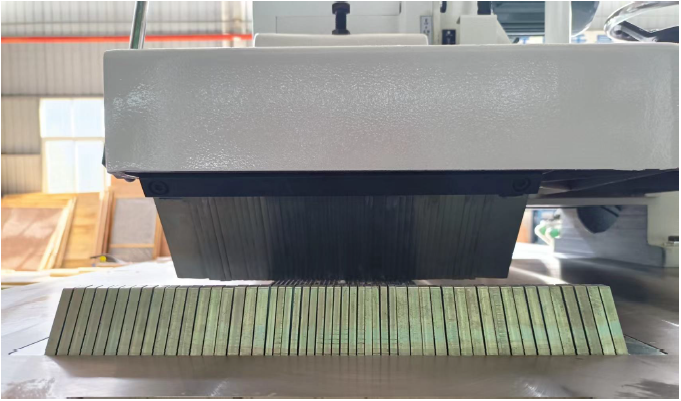

  • The press roller box is equipped with 5 groups of top press roller components to ensure smooth feeding.
    The press roller box is equipped with 5 groups of top press roller components to ensure smooth feeding.

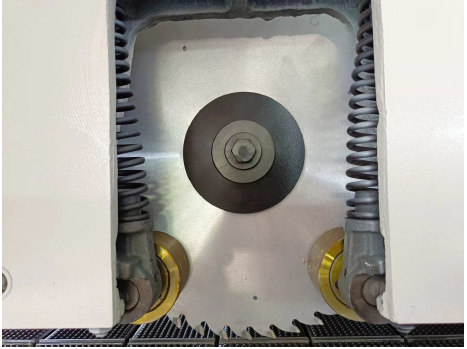

  • The feed side is equipped with three groups of Anti kick-back fingers safety anti-rebound device, safe and reliable, to ensure the safety of the operator.
    The feed side is equipped with three groups of Anti kick-back fingers safety anti-rebound device, safe and reliable, to ensure the safety of the operator.

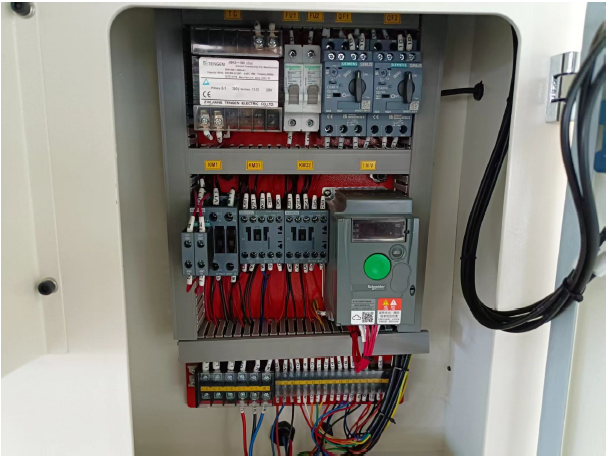

  • All electrical components are made of well-known brands, stable performance and long service life.
    All electrical components are made of well-known brands, stable performance and long service life.

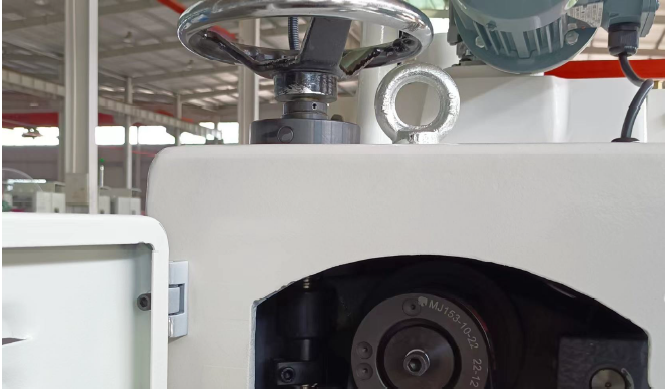

  • The lifting of the top saw shaft can be manually lifted according to the cutting thickness, which is convenient and fast to operate.
    The lifting of the top saw shaft can be manually lifted according to the cutting thickness, which is convenient and fast to operate.

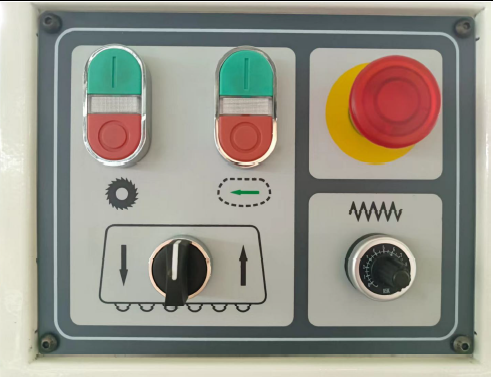

  • Each operation button is centrally installed on the button board, easy to operate.
    Each operation button is centrally installed on the button board, easy to operate.

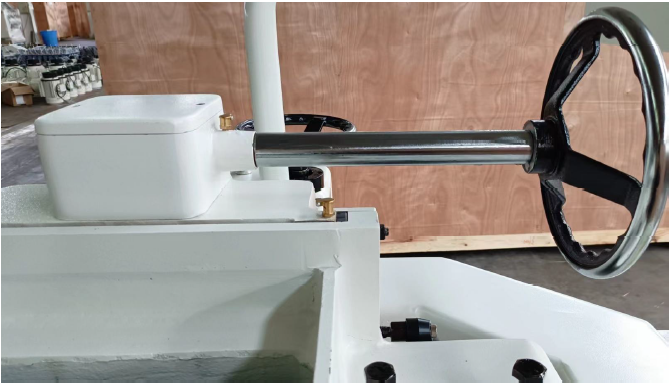

  • The lifting of the press roller box adopts manual lifting according to the height of the press material, which is convenient and fast to operate.
    The lifting of the press roller box adopts manual lifting according to the height of the press material, which is convenient and fast to operate.
  • The lifting of the press roller box adopts manual lifting according to the height of the press material, which is convenient and fast to operate.（Optional）
    The lifting of the press roller box adopts manual lifting according to the height of the press material, which is convenient and fast to operate.（Optional）

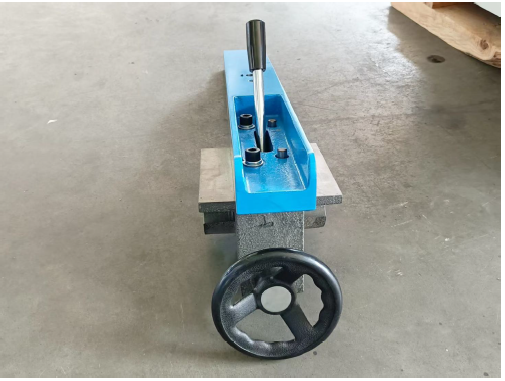

  • The feeding side is equipped with a plate assembly, which can slide left and right to adjust the positioning according to the fixed size of the wood, convenient adjustment and fast locking.
    The feeding side is equipped with a plate assembly, which can slide left and right to adjust the positioning according to the fixed size of the wood, convenient adjustment and fast locking.

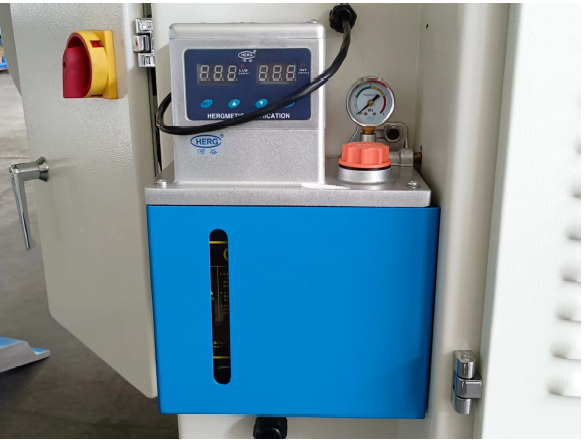

  • Equipped with automatic lubricating oil pump, respectively, the guide rail, drag chain, each lubrication point for automatic lubrication.
    Equipped with automatic lubricating oil pump, respectively, the guide rail, drag chain, each lubrication point for automatic lubrication.

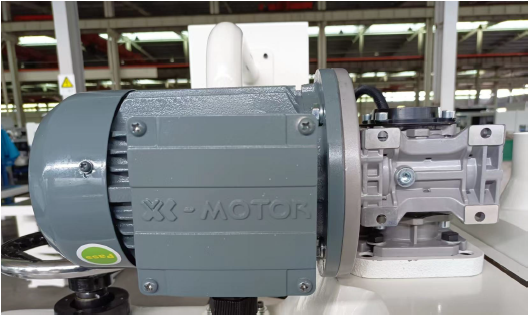

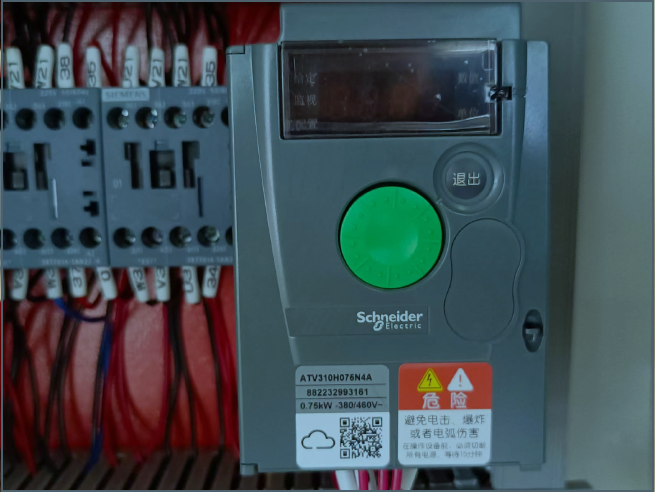

  • The feeding adopts frequency conversion speed regulation, which can be adjusted according to the processing requirements of various wood materials.
    The feeding adopts frequency conversion speed regulation, which can be adjusted according to the processing requirements of various wood materials.

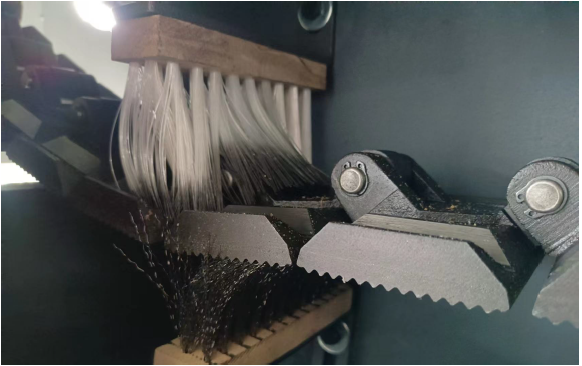

  • The body is equipped with two groups of dust removal brush for the chain plate to carry out two dust removal treatment to prevent dust from entering the chain plate and causing wear to the chain plate.
    The body is equipped with two groups of dust removal brush for the chain plate to carry out two dust removal treatment to prevent dust from entering the chain plate and causing wear to the chain plate.
Technical parameter
Specifications Unit MJ153D/D-T(选) MJ153F/F-T(选) MJ153S(短料) MJ154D/D-T(选) MJ154F/F-T(选) MJ164A/A-T(选) MJ164AF/AF-T(选) MJ163S/S-T(选)
Max.working thickness mm 85 85 70 125 125 120 120 75
Min.working length mm 330 330 150 300 300 120(修边250) 120(修边250) 120(修边180)
Throat depth mm 460 460 460 510 510 660 660 510
Saw spindle DIA mm Φ25.4 Φ25.4 Φ25.4 Φ30 Φ30 Φ50.8 Φ50.8 Φ50.8
Spindle speed r/min 4000 4000 4000 3450 3450 3000 3000-4000 4000
Blade diameter mm Φ205-305 Φ205-Φ305 Φ205-Φ305 Φ300-Φ400 Φ300-Φ400 Φ355-Φ455 Φ355-Φ455 Φ305-Φ355
Feeding speed m/min 12/17/23/32 8-32 12/17/23/32 8/13/20/32 8-32 46203 46203 46203
Total power kW 8.3 8.3 8.3 12.5 12.5 13.2 13.2 9
Feeding motor kW 0.75 0.75 0.75 1.5 1.5 2.2 2.2 7.5
Saw spindle motor kW 7.5 7.5 7.5 11 11 11 11 1.5
Press roller lifting motor kW 0.37(选) 0.37(选) / 0.37(选) 0.37(选) 0.37(选) 0.37(选) 0.37(选)
Suction hood DIA mm 2XΦ100 2XΦ100 2XΦ100 2XΦ100 2XΦ100 Φ150+Φ120 Φ150+Φ120 Φ150+Φ120
Overall dimension cm 170X110X158 170X110X158 163X106X158 196X118X160 196X118X160 225X168X155 225X168X155 200X116X138
Weight  kg 950/1050 950/1050 920 1150/1450 1150/1450 1950 1950 1350
