QMB520GH
Four-side Moulder
Break traditional thinking, adopt unique design
Work surface with groove guide
Efficient and tight feed roller driving system
Four-side planing, special for short and warped workpiece
Main feature
Professional solution: large finger jointing plant, high efficiency, large quantity of short material processing
-

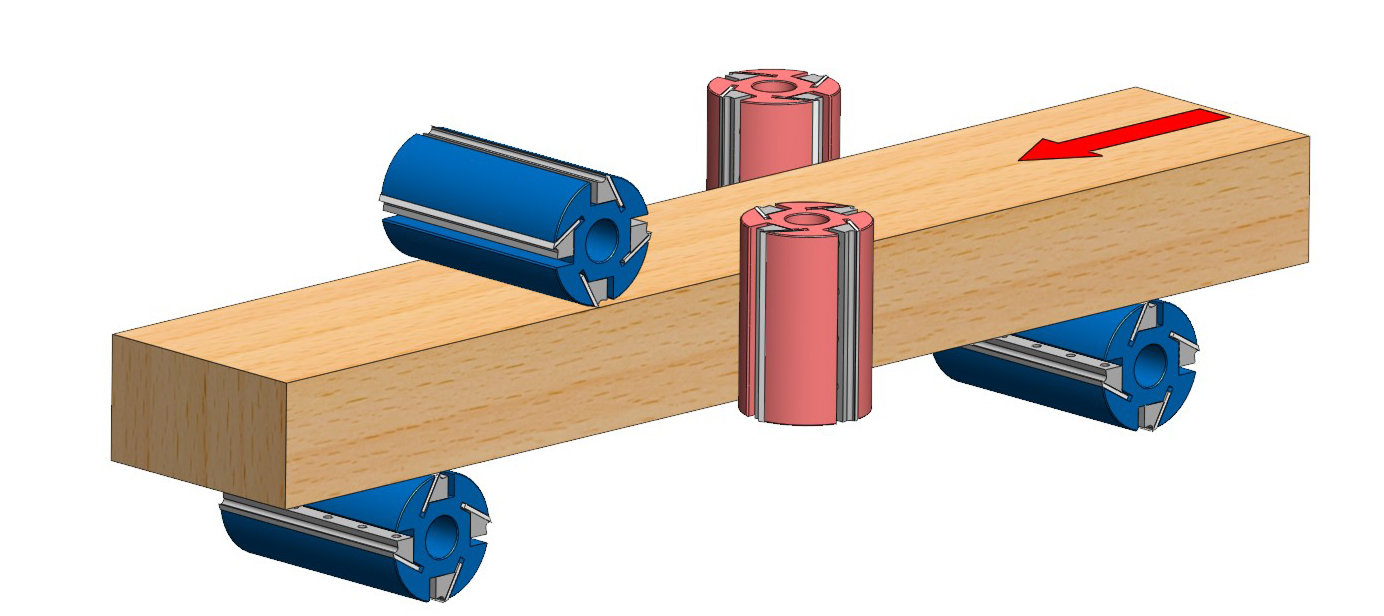

QMB520GH spindles layout
-
It is made of high strength cast iron, stable structure and good rigidity
-
After special treatment, hard chrome plating, wear resistance, long service life
-
Cylinder pressing and segmented pressing structure are adopted to ensure the smoothness of high-speed feeding
-
CLSJ90 side chain conveyor is standard on the outside of the movable worktable
-
The groove positioning guide structure can overcome the phenomenon of running and sticking in the ordinary four-side planing
-
Spindle precision machining fine grinding, and the use of high-precision bearings, to ensure the life of the spindle
-
The new feeding wheel can feed smoothly under 0.2mpa, and the feeding efficiency is high
-
Equipped with international brand inverter, stable performance, easy adjustment
-
Electrical components are made of well-known brands, possessing stable performance and long service life
-
The use of fully enclosed safety cover, effectively reduce working noise, more safe and environmental protection
Technical parameter
| Item/Model | QMB520GH | QMB620GH | |
| Processing width (tool diameter 125mm)/mm | 20~200 | 20~200 | |
| Processing height (tool diameter 125mm)/mm | 8~125 | 8~125 | |
| Feed speed/m/min | 10~60 | 10~60 | |
| Spindle diameter/mm | 40 | 40 | |
| Spindle speed/r/min | 8000 | 8000 | |
| Tool cutting circle dia/mm | First bottom spindle (groove tool diameter × thickness × number of pieces) | 125×10×9 | 125×10×9 |
| 125×9×1 | 125×9×1 | ||
| 125×18×1 | 125×18×1 | ||
| Other spindles | 100~180 | 100~180 | |
| Motor power/KW | Feed motor | 7.5 | 7.5 |
| First bottom spindle | 5.5 | 5.5 | |
| First right spindle | 5.5 | 5.5 | |
| First left spindle | 5.5 | 5.5 | |
| First upper spindle | 7.5 | 7.5 | |
| Second upper spindle | / | 7.5 | |
| Second bottom spindle | 5.5 | 5.5 | |
| Lifting motor | 0.75 | 0.75 | |
| Side feeder motor | 1.1 | 1.1 | |
| Overall dimention (L×W×H)/cm | 363×180×175 | 417×180×175 | |
| Weight/kg | 4300 | 5100 | |
| Optional: 1. Flat work surface 2. Longitudinal conveyor and disc conveyor | |||
