Four-side Moulder
This machine combines advanced engineering with precision
manufacturing for effortless four-side processing of all wood types.
-

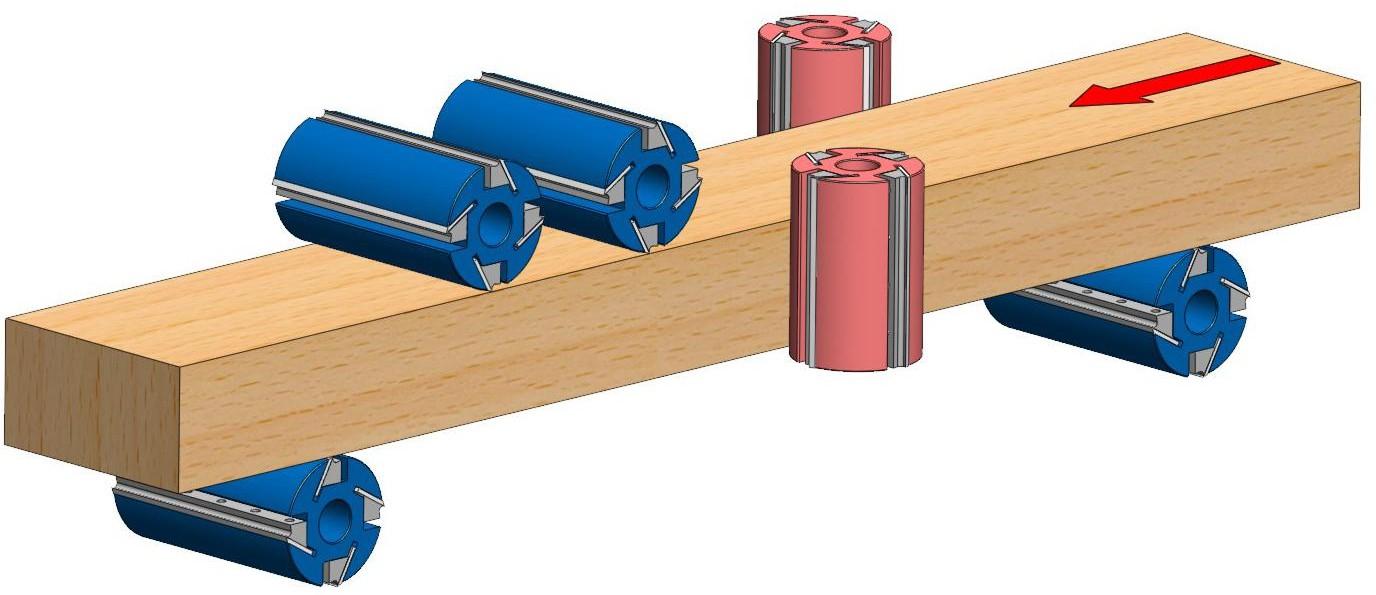

MB623C spindles layout
-

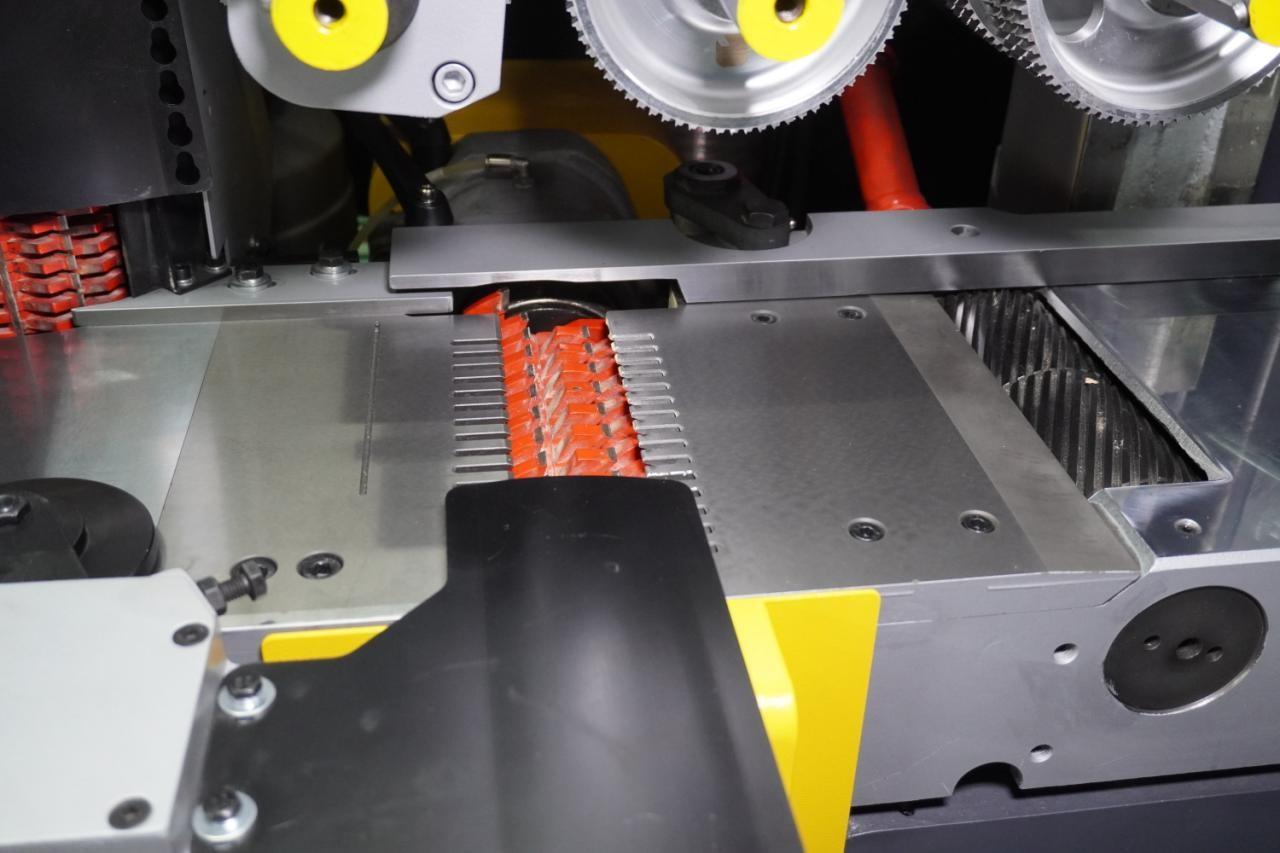

worktable
The worktable is specially treated with
hard chrome plating, wear-resistant and
long service life.
-

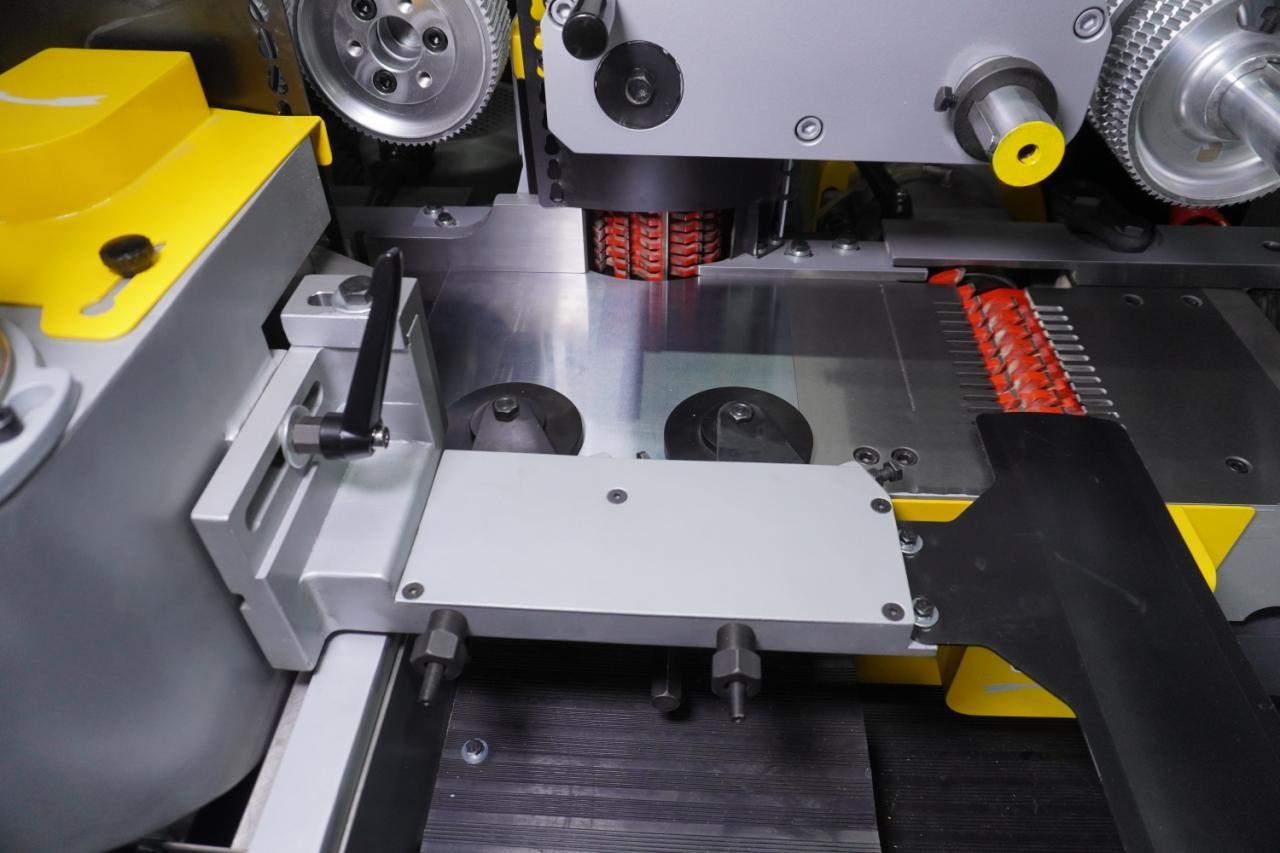

Upper horizontal cutter
front & rear pressure plates
The upper horizontal cutter uses springs to
control the front and rear pressure plates for
clamping.
-

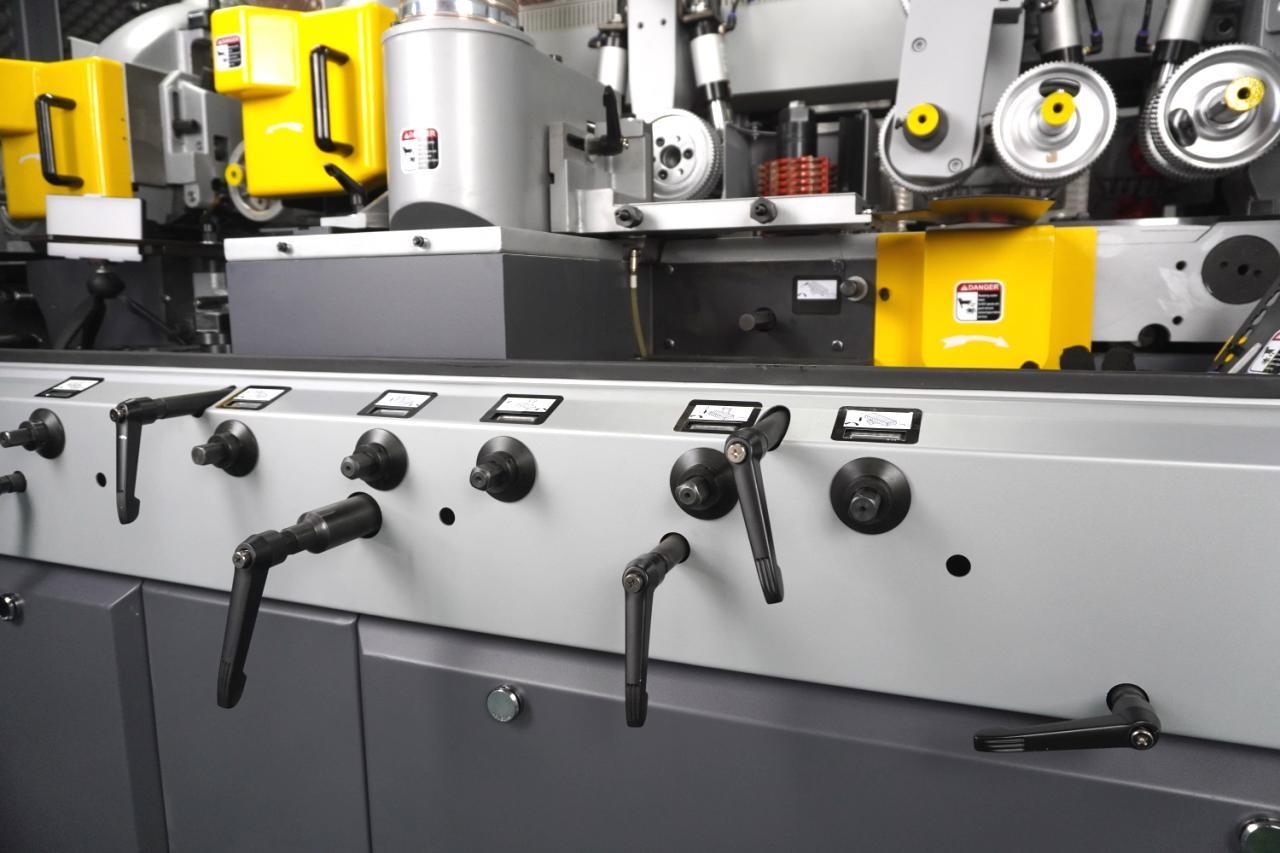

Lifting and in/out
adjustment of spindle
The upper spindle lifting and left spindle in/
out movement are mechanically adjusted
with digital display.
-

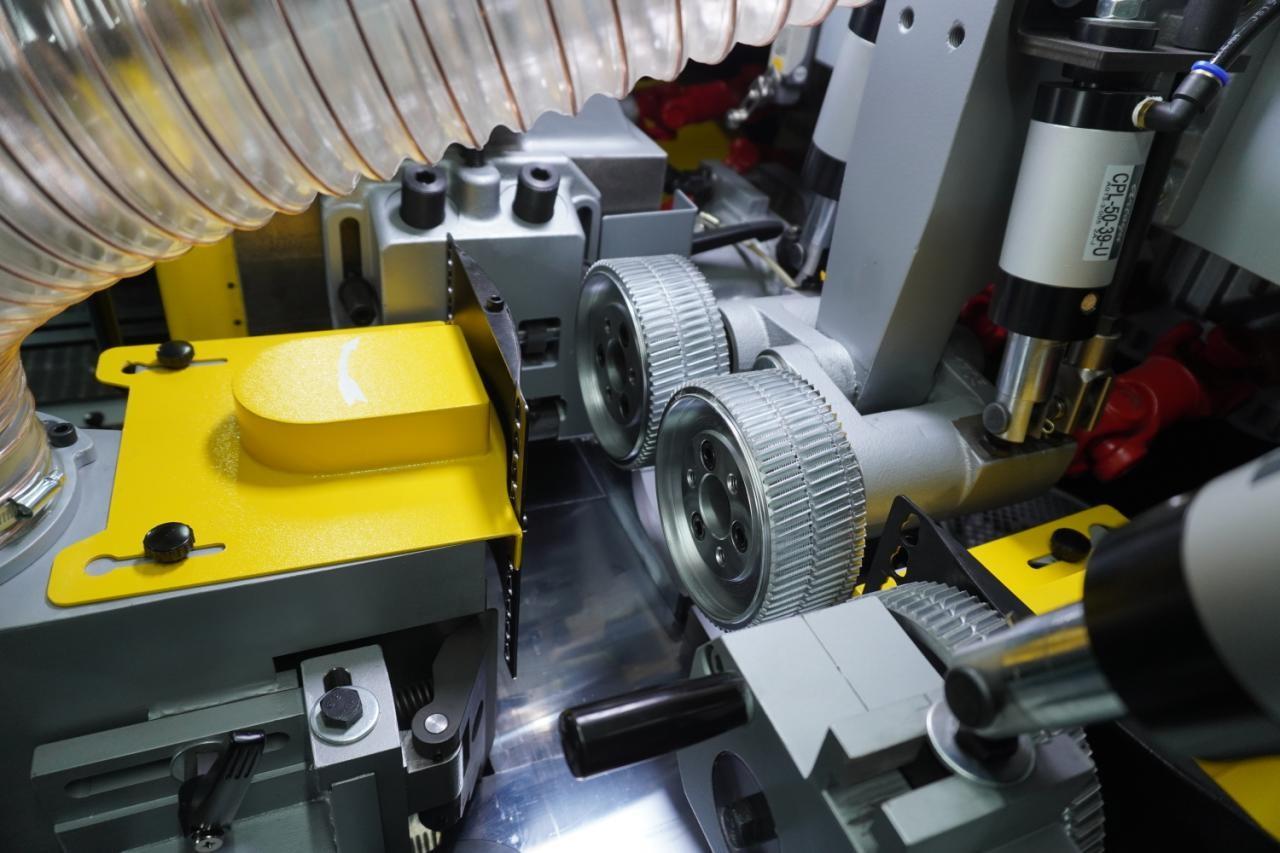

feed steel roller
The feed steel rollers feature a new tooth
profile design and special treatment, ensuring
high feeding efficiency and long service life. Cylinder pressure can be as low as 0.2 MPa.
-

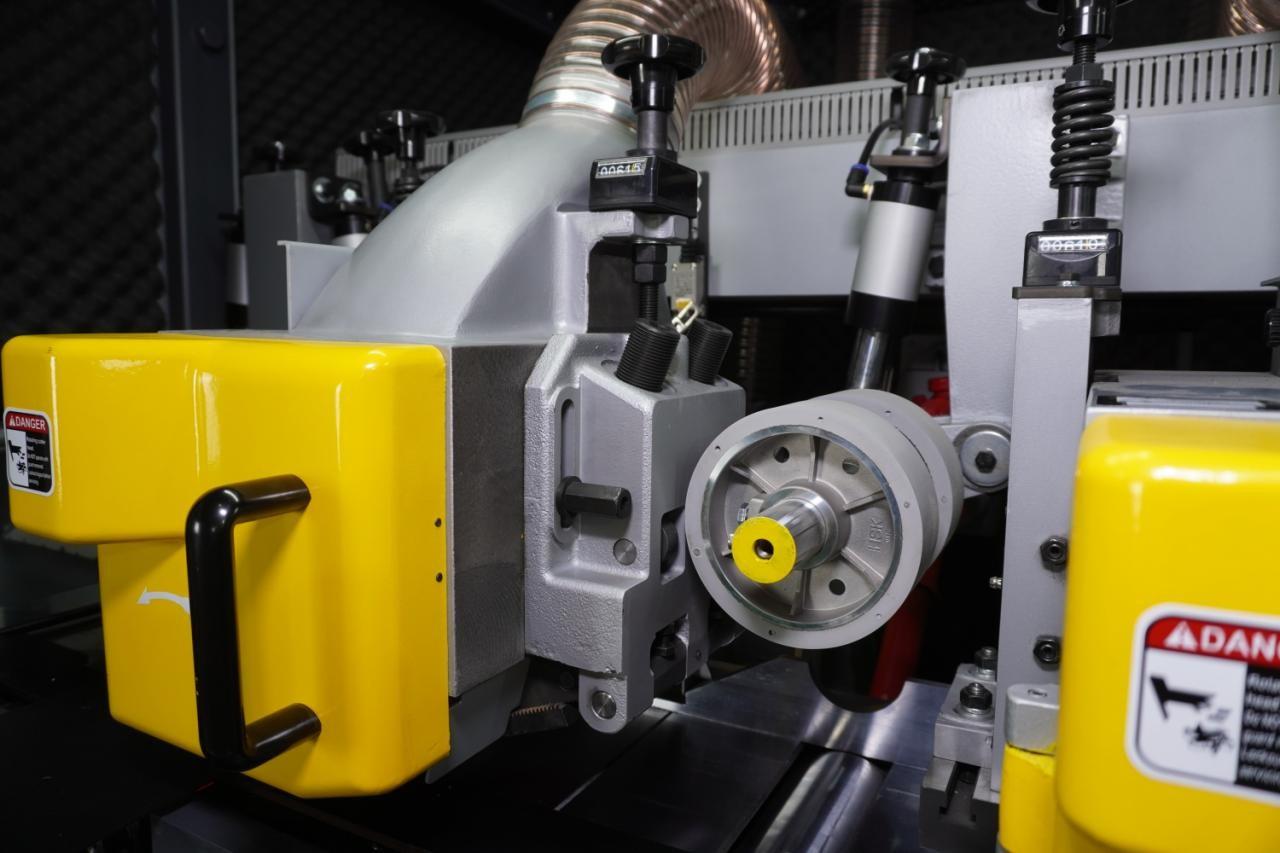

side pressing mechanism
The side pressing mechanism in front of
the left spindle can be adjusted manually
to ensure workpiece stability during
processing
-

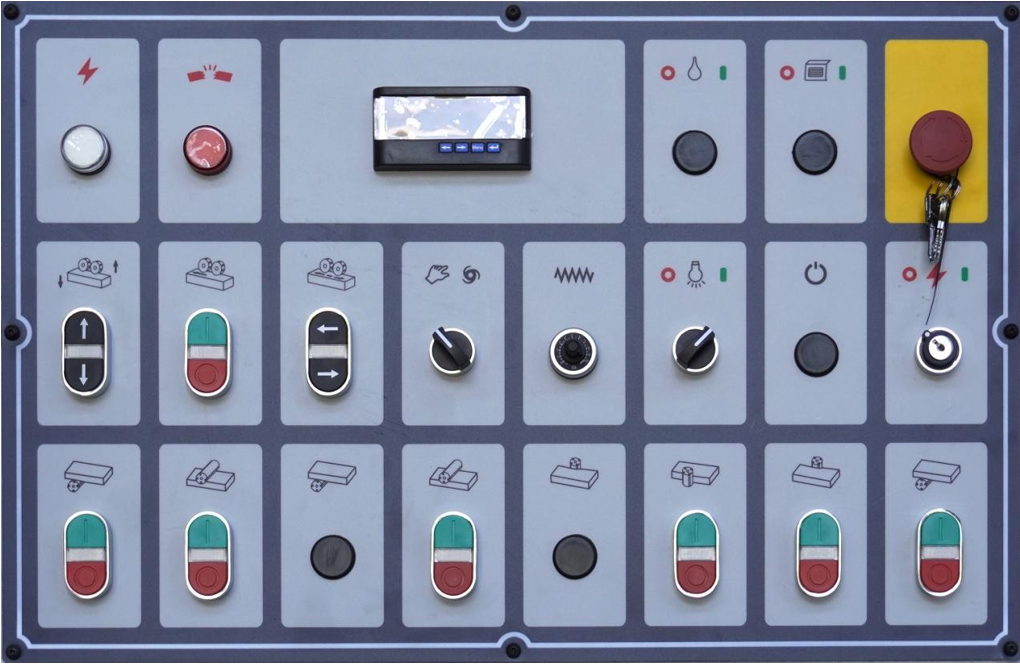

control panel
Intuitive push-button control
panel for faster and easier
operation.。
| Specifications | Unit | MB423PC | MB523C | MB623C | MB723C | MB823C |
| Max.working width | mm | 230 | 230 | 230 | 230 | 230 |
| Min.working width | mm | 20 | 20 | 20 | 20 | 20 |
| Max.working thickness | mm | 160 | 160 | 160 | 160 | 160 |
| Min.working thickness | mm | 10 | 10 | 10 | 10 | 10 |
| Min.working length | mm | 650 | 650 | 650 | 650 | 650 |
| Max. lifting range of infeed table | mm | 5 | 5 | 5 | 5 | 5 |
| Max. travel of infeed basic side ruler | mm | 10 | 10 | 10 | 10 | 10 |
| Spindle number | 根 | 4 | 5 | 6 | 7 | 8 |
| Spindle diameter | mm | φ40 | φ40 | φ40 | φ40 | φ40 |
| Spindle speed | r/min | 6000 | 6000 | 6000 | 6000 | 6000 |
| Feeding speed | m/min | 6-36 | 6-36 | 6-36 | 6-36 | 6-36 |
| Pressure roller diameter | mm | φ140 | φ140 | φ140 | φ140 | φ140 |
| Vertical spindle axial travel | mm | 40 | 40 | 40 | 40 | 40 |
| Horizontal spindle axial trave | mm | 20 | 20 | 20 | 20 | 20 |
| Dust outlet diameter | mm | 4x125 | 5x125 | 6x125 | 7x125 | 8x125 |
| Dust suction air flow | m³/h | 6200 | 7700 | 9200 | 10700 | 12200 |
| Overall（LxWxH） | mm | 3960x2000x1900 | 3960x2000x1900 | 4500x2000x1900 | 4750x2000x1900 | 5400x2000x1900 |
| Weight | kg | 3400 | 3600 | 4400 | 5000 | 5500 |
| Optional： ①Length of movable worktable1.4/2.5/3m; ②Motor power can be increased.； ③Spindle speed is optional at 7200rpmor8000rpm; ④The last lower spindle can be equipped with a saw shaft as an option.。 |
||||||
