QMB623A-K

Four-side Moulder

Timelessly verified, classically inherited

Universal compatibility,steadfast support

Every running is a promise of reliability,

Enables you to confidently handle various production needs.

Main feature

QMB623A-K is a six-axis, four-side woodworking moulder, using a fully enclosed safety cover, feeding configuration of 12 up and 5 down a total of 17 groups of active feed roller and universal joint transmission, the speed is up to 6-36m /min (frequency conversion speed regulation). It has the advantages of reasonable structure, stable performance, smooth feeding and good processing quality. In particular, the double tool structure is used to achieve the combination of rough planing and fine planing, and the planing quality is more smooth and perfect. The computer touch screen numerical control operating system is configured to operate and control each spindle, and the top spindle and left vertical spindle are automatically fixed in thickness and width. The operation is convenient and quick, so as to improve work efficiency and realize humanized operation.

The product is mainly used for processing the four sides planing and molding of various wood products with a width within 230mm. For example: solid wood doors and windows, photo frames, solid wood floors, wood lines, corner lines, wall panels and other processing enterprises.

  • QMB623A-K spindles layout
    QMB623A-K

    spindles layout

  • The body is made of high quality castings, which are processed by special treatment and its performance is stable and accurate.
    The body is made of high quality castings, which are processed by special treatment and its performance is stable and accurate.
  • High precision spindle, speed is 6800 r/min, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect.
    High precision spindle, speed is 6800 r/min, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect.

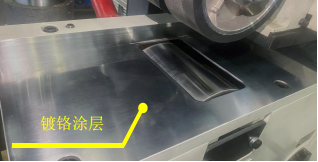

  • After special treatment, hard chrome plating, wear resistance, long service life.
    After special treatment, hard chrome plating, wear resistance, long service life.
  • The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful.
    The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful.

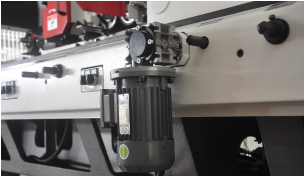

  • The left vertical spindle is driven by CNC motor
    The left vertical spindle is driven by CNC motor
  • The computer touch screen numerical control operating system is configured to operate and control each spindle, and the top spindle and left vertical spindle are automatically fixed in thickness and width. The operation is convenient and fast.
    The computer touch screen numerical control operating system is configured to operate and control each spindle, and the top spindle and left vertical spindle are automatically fixed in thickness and width. The operation is convenient and fast.
  • The front pressing plate of the upper spindle adopts the backward type to prevent the tool collision
    The front pressing plate of the upper spindle adopts the backward type to prevent the tool collision

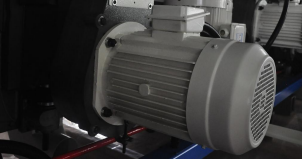

  • Each spindle is equipped with a powerful motor and is driven separately
    Each spindle is equipped with a powerful motor and is driven separately
  • Adopt new tooth shape design, special process treatment, high feeding efficiency, long service life, cylinder pressure can be as low as 0.2mpa.
    Adopt new tooth shape design, special process treatment, high feeding efficiency, long service life, cylinder pressure can be as low as 0.2mpa.
  • The feeding system adopts frequency control speed , which is more suitable for the processing requirements of various wood materials.
    The feeding system adopts frequency control speed , which is more suitable for the processing requirements of various wood materials.

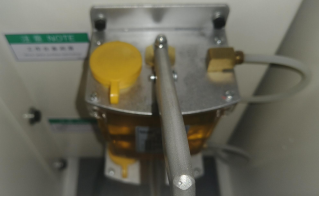

  • The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast.
    The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast.
  • The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast.
    The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast.
  • The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection.
    The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection.
Technical parameter
Item/Model QMB523A QMB623A QMB623A-K QMB623R QMB723R
Processing width(tool diameter 125mm)/mm 20~230 20~230 20~230 20~230 20~230
Processing height(tool diameter125mm/mm 8~160 8~160 8~160 8~160 8~160
Feed speed/m/min 6~36 6~36 6~36 6~36 6~36
Spindle diameter/mm 40 40 40 40 40
Spindle speed /r/min 6800 6800 6800 6800 6800
Tool cutting circle dia/mm First bottom spindle Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152
Left and right spindle 108~200 108~200 108-200 108-200 108-200
Top spindle 108~180 108~180 108~180 108-180 108~180
Second bottom spindle 108~230 108~230 108~230 108~230 108-230
Motor power/KW Feed motor 4 5.5 5.5 5.5 5.5
First bottom spindle 5.5 5.5 5.5 5.5 5.5
First right spindle 5.5 5.5 5.5 5.5 5.5
First left spindle 7.5 7.5 7.5 7.5 7.5
Second right spindle / / / 7.5 7.5
First upper spindle 7.5 7.5 7.5 7.5 7.5
Second upper spindle / 7.5 7.5 / 7.5
Second bottom spindle 7.5 7.5 7.5 7.5 7.5
Lifting motor 0.75 0.75 0.75 0.75 0.75
 Overall dimension(L×W×H)/cm 428×190×170 496×190×170 496×190×170 475×186×176 538×186×176
Weight/kg 4600 5600 5600 5650 6050
Optional :1. Spindle diameter of 50mm is available;2. Spindle speeed of 8000rpm is available;3. The last bottom spindle caninstall saw blades (If you have special needs, please contact us)
