QMXK1225S
Double-end Tenoner
Stability
Efficiency
Double-end machining
One machine handles sawing+ milling and sanding.
Adaptable arrangement Customizable solutions
Feature Introduction
-

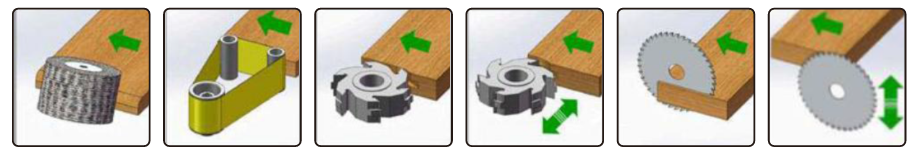

First station
Lower saw shaft for scoring(with jump cutter)
-
Second station
Upper cut-off saw shaft for edge trimming
-
Third station
Milling spindle (with jump cutter)
-
Fourth station
Milling spindle for profiling
-
Fifth station

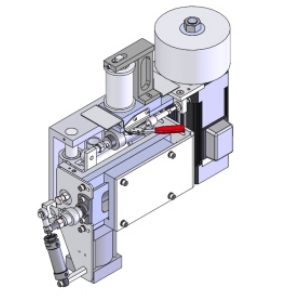

riangular sand frame assembly
-
Sixth station
Multi-functional sanding head for profiling polishing
-
Integrated double-end trimming, milling, triangular plane sanding & multi-functional sanding heads in one complete system
After the double-end sawing, milling and sanding by this machine, workpieces can directly proceed to the next process
-

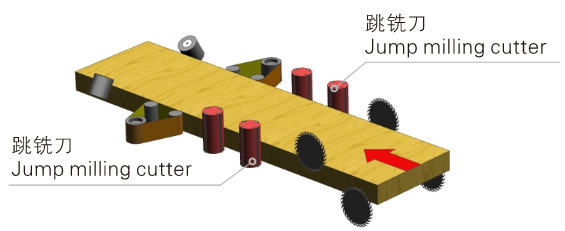

Spindle layout
-
Spindle layout
Technical parameter
| Item/Model | QMXK1225S | QMXK1225JS |
| Working width | 250–2500mm | 250–2500mm |
| Working thickness | 10–80mm | 10–80mm |
| Feed block spacing | 600mm | 600mm |
| Feeding speed | 3–36m/min | 3–36m/min |
| Saw spindle speed | / | 3000 – 6000r/min |
| Milling spindle speed | 6000–9000r/min | 6000–9000r/min |
| Sand belt speed | 8–13.5m/s | 8–13.5m/s |
| Multi-function sanding head speed | 0–1400r/min (variable frequency) | 0–1400r/min (variable frequency) |
| Triangular sanding frame width | 180mm | 180mm |
| (外径 × 内孔) Saw blade specification | / | Φ160–300×Φ40mm |
| (外径 × 内孔) Milling cutter specification | Φ150–180×Φ40mm | Φ150–180×Φ40mm |
| Triangular sanding belt specification | 1460 (perimeter)×90 (width) mm | 1460 (perimeter)×90 (width) mm |
| Multi-function sanding head Max. specification | Φ200 (outer DIA)×Φ25.4 (inner hole)×90 (length) mm | Φ200 (outer DIA)×Φ25.4 ( inner hole)×90 (length) mm |
| Saw spindle motor power | / | 5.5kW ×4 |
| Jump milling spindle motor power | 5.5kW×2 | 5.5kW×2 |
| Milling spindle motor power | 7.5kW×2 | 7.5kW×2 |
| Triangular sanding motor power | 2.2kW×4 | 2.2kW×2 |
| Triangular sanding oscillation motor power | 0.12kW×4 | 0.12kW×2 |
| Multi-function sanding head motor power | 1.5kW×2 | 1.5kW×2 |
| Pressing belt drive motor power | 1.8kW×2 | 1.8kW×2 |
| Pressing belt lifting motor power | 0.37kW×2 | 0.37kW×2 |
| Feeding motor power | 7.5kW | 7.5kW |
| Width setting motor power | 1kW | 1kW |
| Operation voltage | 380V 50Hz | 380V 50Hz |
| Suction port DIA. | Φ120mm×12 | Φ120mm×12 |
| Air speed of suction system | 30–35m/s | 30–35m/s |
| Air requirment of suction system | 360m³/min | 360m³/min |
| Outline dimension | 550×432×180cm | 550×432×180cm |
| Weight | 9500kg | 9800kg |
