MJ163C

Multi-blade Rip Saw

Casting body

Steady as arock

Minimal loss in sawing

Smooth feeding

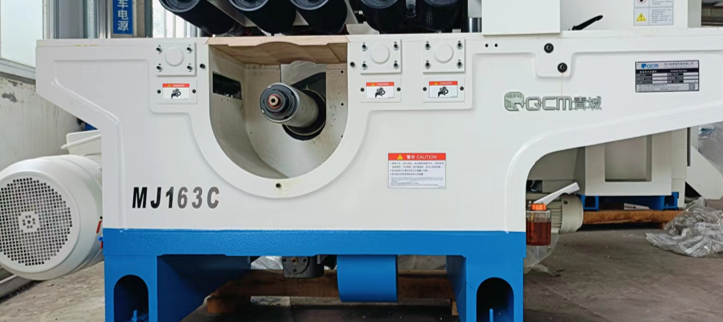

  • The machine base is integrally cast from high-strength castings, subjected to multiple aging treatments and precision machining, featuring stable structure and excellent rigidity.
    The machine base is integrally cast from high-strength castings, subjected to multiple aging treatments and precision machining, featuring stable structure and excellent rigidity.

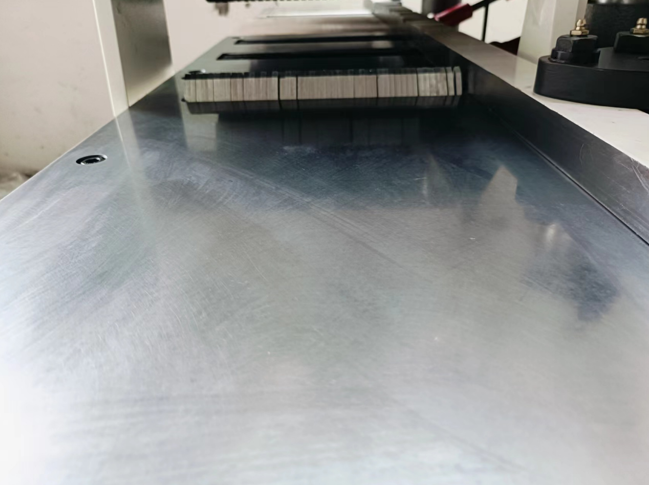

  • The workbench plate has undergone special treatment, precise processing, and hard chrome plating. It is wear-resistant and has a long service life.
    The workbench plate has undergone special treatment, precise processing, and hard chrome plating. It is wear-resistant and has a long service life.

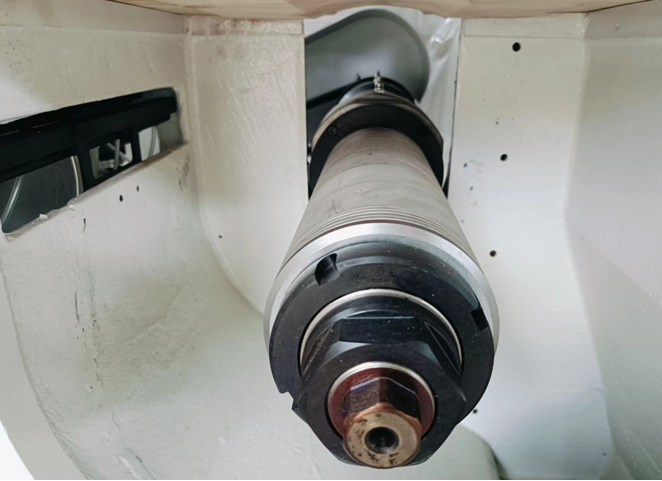

  • The main shaft is made of special materials and undergoes special treatment, precise machining, dynamic balancing processing, and is equipped with brand-name bearings. As a result, it operates smoothly and is extremely durable.
    The main shaft is made of special materials and undergoes special treatment, precise machining, dynamic balancing processing, and is equipped with brand-name bearings. As a result, it operates smoothly and is extremely durable.

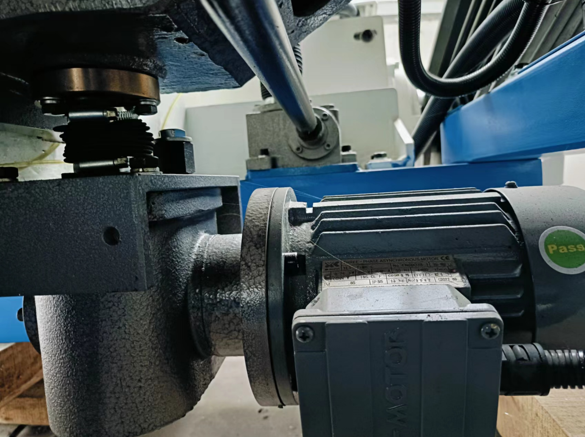

  • The height adjustment of the saw blade is achieved through an electric mechanism, which is both convenient and fast to operate.
    The height adjustment of the saw blade is achieved through an electric mechanism, which is both convenient and fast to operate.

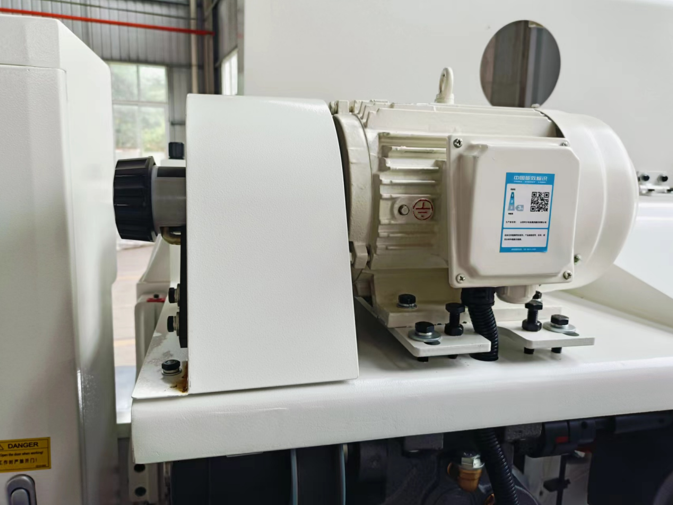

  • The feeding speed is adjustable continuously, enabling it to quickly and conveniently meet the processing requirements of both soft and hard woods.
    The feeding speed is adjustable continuously, enabling it to quickly and conveniently meet the processing requirements of both soft and hard woods.

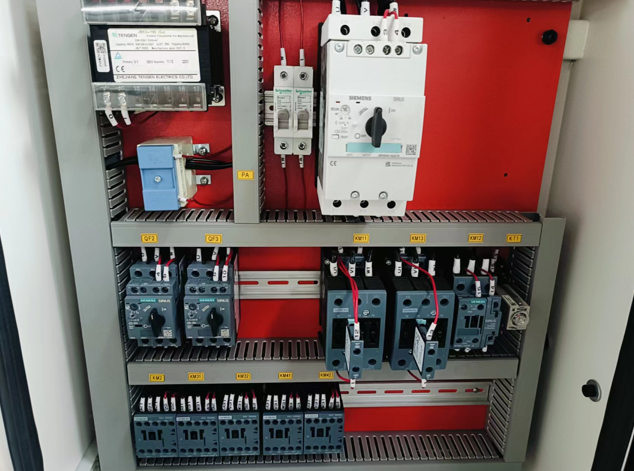

  • All electrical components are of internationally renowned brands, featuring stable performance and long service life.
    All electrical components are of internationally renowned brands, featuring stable performance and long service life.
Specifications 单位 MJ163C MJ264C MJ1440E
Working thickness mm 10-100 40-70 10-115
Max.working width mm 300 450 300
Min. working length mm 400 600 450
Min.working length(continuous) mm 300 / /
Saw spindle DIA mm Φ55 Φ60 Φ50
Reducing sleeve DIA mm Φ70 / Φ70
Spindle speed r/min 4000 4500 3800
Blade diameter mm Φ255-Φ355 Φ160 Φ255-Φ405
Feeding speed m/min 6-24 6-24 8-33
Total power kW 33.3 64.8 50.5
Feeding motor kW 2.2 4 4
Saw spindle motor kW 30 / 45
Top saw spindle motor kW / 30 /
Bottom saw spindle motor kW / 30 /
Saw spindle lifting motor kW 0.37 / 0.75
Beam lifting motor kW 0.75 0.75 0.75
Suction hood DIA mm 2XΦ150 4XΦ140 4XΦ140
Overall dimension cm 230X119X148 285X158X162 305X135X165
Weight kg 1900 2800 2350
