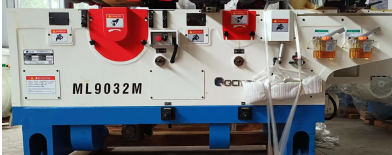

ML9032M

Planer&saw Union Machine

Crafted with Precision, Planer & Saw All-in-One

Double-Sided Thickness Planing & Slitting

Ideal for Veneered Panels & Wood Mouldings

Feature Introduction

The ML9032M planer-saw combined machine is composed of three cutting shafts. It can be used for precise thickness processing on both upper and lower surfaces of wood, and then perform multi-piece sawing operations. It is suitable for industries such as decorative wood profiles, veneer fine woodwork boards, veneer solid wood doors and veneer artificial board furniture for manufacturing thin wood boards and wood strips.

  • Made from high-strength, high-quality castings through one-piece casting, multiple aging treatments, and precision machining, ensuring stable structure and excellent rigidity.
    Made from high-strength, high-quality castings through one-piece casting, multiple aging treatments, and precision machining, ensuring stable structure and excellent rigidity.

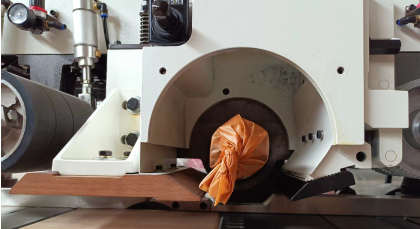

  • The spindle is made of special materials, undergoes special treatment, precision machining, and dynamic balancing, and is equipped with brand-name bearings, ensuring smooth operation and long service life.
    The spindle is made of special materials, undergoes special treatment, precision machining, and dynamic balancing, and is equipped with brand-name bearings, ensuring smooth operation and long service life.

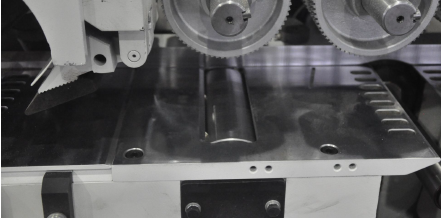

  • The workbench surface is specially treated, precision-machined, and hard chrome-plated, offering excellent wear resistance and a long service life.
    The workbench surface is specially treated, precision-machined, and hard chrome-plated, offering excellent wear resistance and a long service life.
  • The activity workbench is equipped with pneumatic floating drive rollers, enabling smooth feeding of bent and deformed materials.
    The activity workbench is equipped with pneumatic floating drive rollers, enabling smooth feeding of bent and deformed materials.

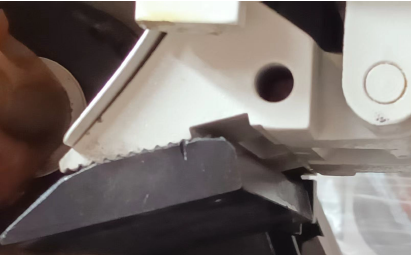

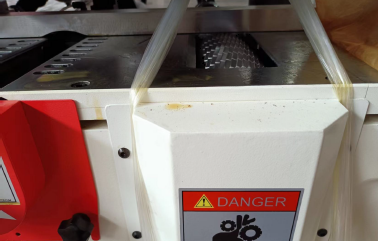

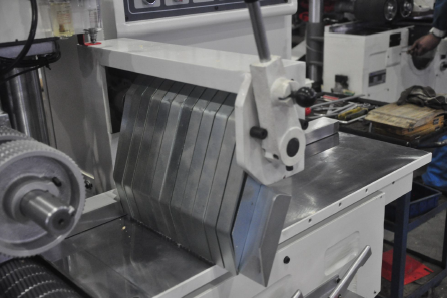

  • A reverse-acting safety anti-rebound device has been installed at the feeding end to ensure the utmost safety for the operator.
    A reverse-acting safety anti-rebound device has been installed at the feeding end to ensure the utmost safety for the operator.

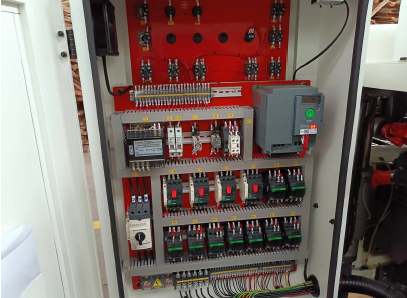

  • All the electrical components are of well-known brands, with stable performance and long service life.
    All the electrical components are of well-known brands, with stable performance and long service life.

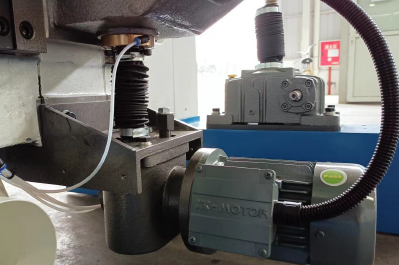

  • The lowering and raising of the saw shaft component is achieved through an electric lifting mechanism, which is convenient and fast to operate.
    The lowering and raising of the saw shaft component is achieved through an electric lifting mechanism, which is convenient and fast to operate.

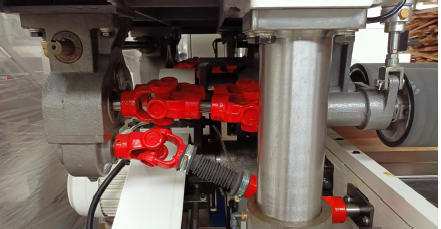

  • The configuration includes 6 lower and 3 upper groups, totaling 9 sets of active feeding optical rollers. All the feeding rollers are driven by universal couplings, ensuring smooth and powerful feeding.
    The configuration includes 6 lower and 3 upper groups, totaling 9 sets of active feeding optical rollers. All the feeding rollers are driven by universal couplings, ensuring smooth and powerful feeding.
  • The front pressure plate adopts a backward structure to prevent the cutter from getting stuck.
    The front pressure plate adopts a backward structure to prevent the cutter from getting stuck.

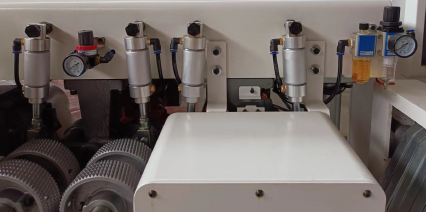

  • The material feeding is achieved through a continuous mechanical transmission system. The upper feeding roller is compressed by a cylinder.
    The material feeding is achieved through a continuous mechanical transmission system. The upper feeding roller is compressed by a cylinder.

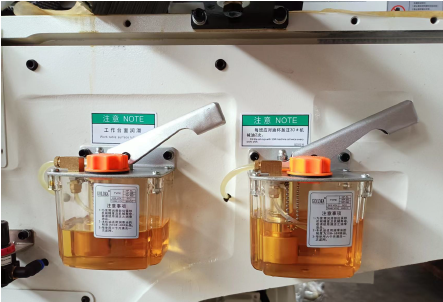

  • Two manual oil pumps are configured. They are used to manually lubricate the worktable, slide seat, and various lubrication points as needed.
    Two manual oil pumps are configured. They are used to manually lubricate the worktable, slide seat, and various lubrication points as needed.

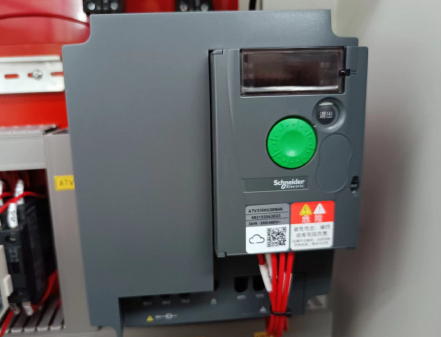

  • The delivery process is controlled by variable frequency speed regulation, which can be adjusted according to the processing requirements of various wood materials.
    The delivery process is controlled by variable frequency speed regulation, which can be adjusted according to the processing requirements of various wood materials.
Specification Model Unit ML9032M
Max. Processing Width (Cutter Outer Diameter 125) mm 200
Processing Thickness (Cutter Outer Diameter φ125) mm 10-75
Maximum One-time Planing Depth of Lower and Upper Horizontal mm 5/6
Maximum Movement of Movable Worktable / Guide Strip mm 5/5
Diameter of Feed Roller mm φ140
Feed Speed m/min 10-36
Planer Shaft Speed r/min 6000
Saw Shaft Speed r/min 4500
Total Motor Power kW 36
Lower Planer Shaft Motor kW 4
Upper Planer Shaft Motor kW 5.5
Lower Saw Shaft Motor kW 22
Lower Saw Shaft Lifting Motor kW 0.75
Feed Motor kW 3
Beam Lifting Motor kW 0.75
Lower Horizontal Planer (Rotation Diameter x Inner Hole Diameter) mm φ105~φ125xφ40
Upper Horizontal Planer (Rotation Diameter x Inner Hole Diameter) mm φ105~φ150xφ40
Maximum Saw Blade (Inner Hole Diameter) mm φ250 (φ40)
Overall Dimension (Length x Width x Height) cm 295x132x150
Machine Weight Kg 2300
