NC Quick Crosscut Saw
Digital control
Safe cutting
High-speed cross-cut processing
Labor savings with high-speed four-side moulder integration
Achieving high-efficiency production
-

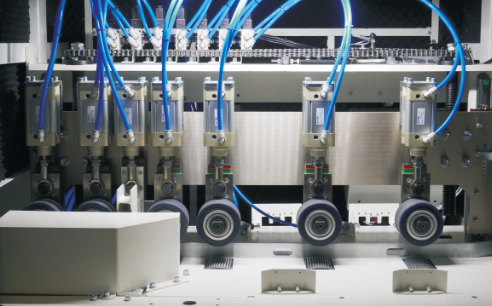

High-performance pneumatic control system
The full set of pneumatic components uses renowned brands,making the pneumatic system more reliable and ensuring
long-term stable operation of the equipment for sawing.
-

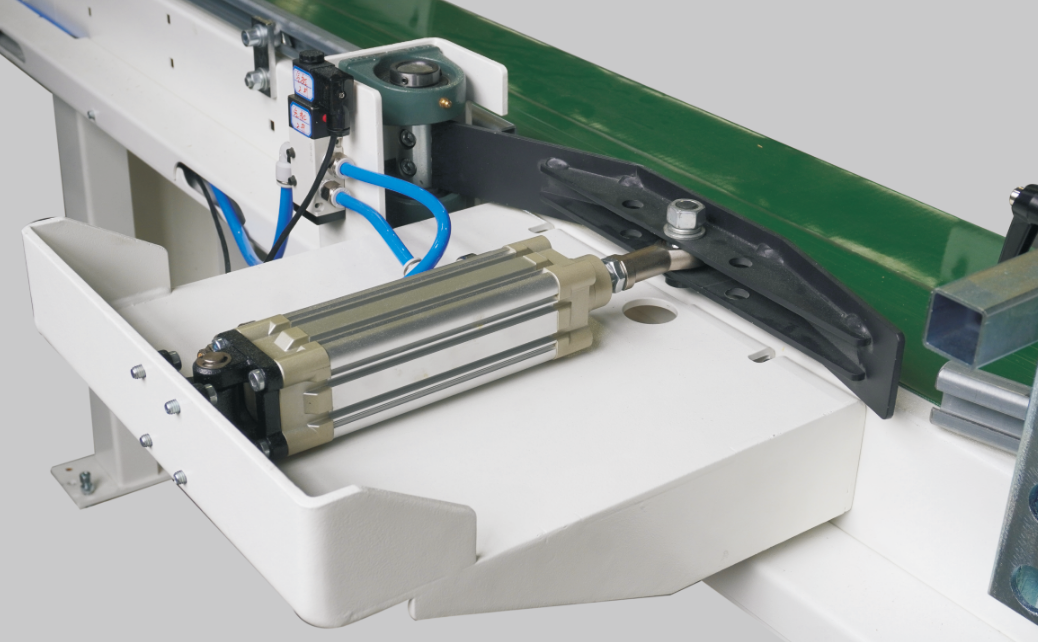

Precision sorting system
Upon completion of cross-cutting operations, automated material grading and sorting can be executed according to specified parameters including dimensional, qualitative,and value-based classifications as per client specifications.
-

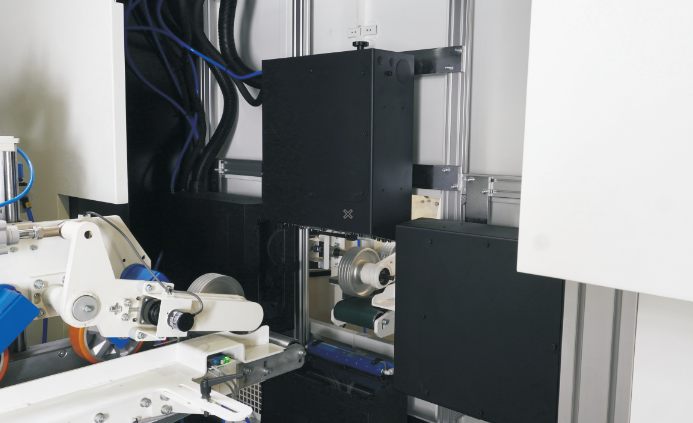

Automated scanning control system
Electrically adjustable height/width of the collectionmodule; auto-aligned camera for enhanced imagingaccuracy; customizable multi-side (top/bottom/left/right)scanning configurations to meet production needs.
-

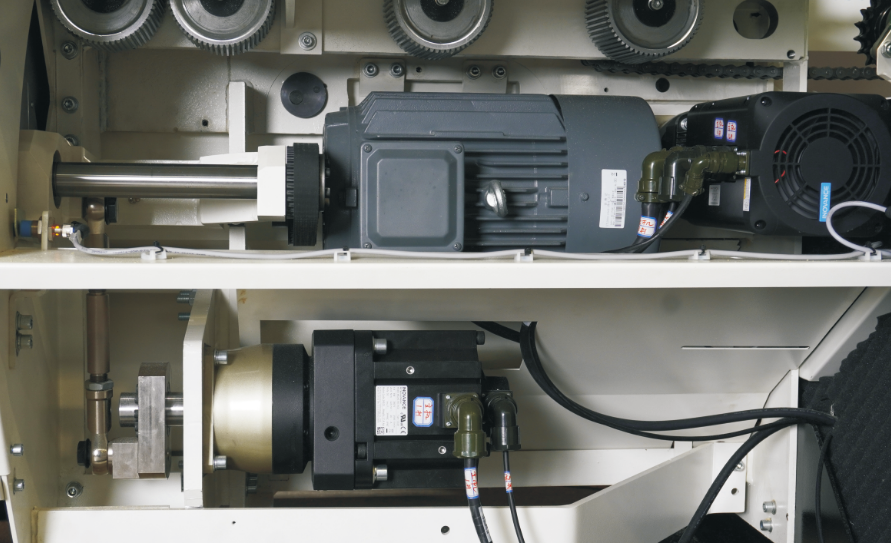

Stable servo driving system
The feeding and cutting servo systems utilize renownedbrands, ensuring smooth feeding and precise cutting.
| Parameter type | Description | Parameter type | Description | Parameter type | Description |
| Quantity of scanning surfaces | 2 | Measurement package(Standalone Unit) | ● | Feeding length | 300~∞ |
| Quantity of line scan cameras | 2 | Servotracking(Standalone Unit) | ● | Feeding width | 20~220 |
| Camera module cooling system | ○ | Optimization | ● | Feeding thickness | 15~100 |
| Thickness adjustment | Manual | Quantity of driving roller | 6 | Feeding specification | 220×35 200×50 180×65 150×80 120×90 100×100 |
| Pneumatic parts brand | AirTAC | Quantity of pressing roller | Single stroke | Feeding thickness tolerance | ±3 Within ±3 |
| Bottom camera automatic cleaning | ● | Press cylinder | Single stroke | Max.lumber bending(in all directions) | 10 |
| Control system | Beckhoff | Scrap removal | ● | Lumber species | Softwood or hardwood |
| IO and servo | Inovance | Electric lifting | ○ | The shortest cut size | 80 |
| Electric control brand(customizable) | Siemens | Automatic lifting | ○ | Sawing tolerance(when the length of the cut timber is shorter than 1m) | ±0.8 |
| Automatic exposure | ● | Cylinder sawing | ● | Sawing tolerance(when the length of the cut timber is 1 to 2.5m) | ±1.5 |
| Software upgrade | Random fixation | Servo cutting | 5 | Sawing tolerance(when the length of the cut timber is shorter than 2.5m) | ±1 |
| Max. speed | 120m/min | Quantity of ejectors | ○ | Saw spindle speed | 3500 |
| Min./max. working length | 600-6500mm | Scrap transfer | 5.5kW | Max. feeding speed | 180 |
| Min./max. working width | 35-160mm | Spindle motor | 0.37kW | Sawing time | 0.15-0.3s |
| Min./max. working thickness | 15-120mm | Lifting motor | 2.2kW | Total power | 19kW |
| Max. quantity of optimization saw can be connected | 1 | Sorting motor | 5kW | Sawing motor | 7.5kW |
| Install at the optimization saw feed belt | 1 | Feeding motor | 5kW | Feeding motor(servo) | 5.5kW |
| Random species | 1 | Sawing motor | 4kW | Saw lifting motor(servo) | 4.5kW |
| Knots | ● | Tracking motor | 4kW | Discharge motor | 0.75kW |
| Cracks | ● | Servo brand | Inovance | Pressure roller lifting motor | 0.37kW |
| Edge defect | ● | Pneumatic brand | Jadek | Suction hood diameter | 3×Φ120 |
| Visual defects are optional | Wormhole, mildew, decayed, pith, core, clip, line, round, blind, burr, stain, water mark, oil | Feeding speed | 210m/min | Worktable height | 900mm |
| Acceleration | 25m/s² | Cut by marking | ● | ||
| Sawblade diameter | 500mm | Overall dimension (L*W*H) | 640×150×178cm | ||
| Max.sawing width | 240mm | Weight | 1750kg | ||
| Sawing height | 80mm | ||||
| Sawing range | 270×30 240×55 | ||||
| Operation table | PC mobile console | ||||
| Remark: ○ means optional; ● means included | |||||
