QMF4000

Multi-blade Movable Rip Saw

precise marking

Precise calculation

Make the most of every inch of wood

Product Overview

The robust mechanical core architecture ensures long-term stable operation of the equipment, while the modular design facilitates daily maintenance and upkeep. The user-friendly operation interface is intuitive and easy to use, making operation simpler. Strict safety protection standards ensure the safety of operators and a wide range of product applications, meeting the diverse and personalized needs of the market. At the same time, we also provide professional operation training and technical support to ensure that operators can master the skills of using the equipment.

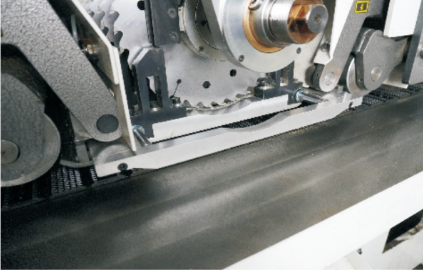

  • The adaptive pressure plate can make self-adjustments basedon the real-time position and movement status of the wood,also feature an anti-tearing function.
    The adaptive pressure plate can make self-adjustments basedon the real-time position and movement status of the wood,also feature an anti-tearing function.

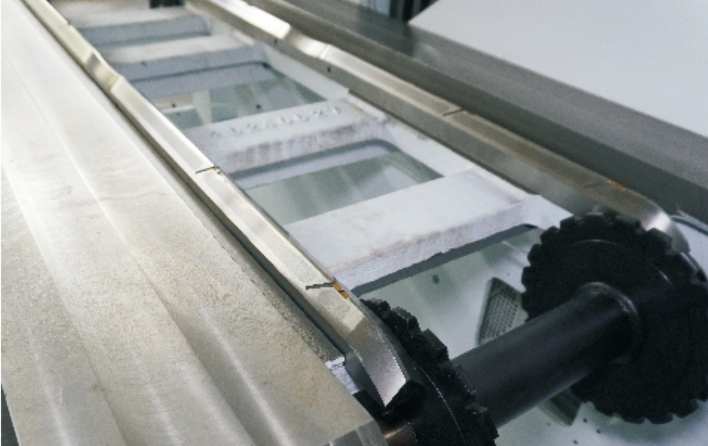

  • The dual diamond-shaped rails provide stable support andguidance, ensuring the smoothness and accuracy of timberduring the conveying process.
    The dual diamond-shaped rails provide stable support andguidance, ensuring the smoothness and accuracy of timberduring the conveying process.
Technical parameter
Specifications unit Main parameter
Feeding table motor power kW 0.75
Positioning conveyor table transverse feeding motor power kW 0.75
Positioning conveyor table longitudinal feeding motor power kW 1.5
Positioning conveyor table pawl servo motor power kW 2x0.75
Camera lifting servo motor power kW 2x1
Positioning conveyor table lifting motor power kW 0.2
Feeder feeding speed m/min 6~60
Positioning conveyor table transverse feeding speed m/min 6~60
Positioning conveyor table longitudinal feeding speed m/min 6~60
Conveyor height mm 870 Adjustable
Max. feeding width mm 800
Feeding length mm 1000–4000
Max. feeding height mm 60
Longitudinal feeding roller DIA mm 9xΦ89
Overall dimension mm 5550x4650x2060
Weight kg 4700
Movable blade   4
Fixed blade   1
Movable laser marking   5
Fixed laser marking   1
Feeding speed m/min 6~60
Press roller quantity   6
Worktable height mm 870
Standard voltage   380V 50Hz
Total power kW 46.2
Suction hood DIA   1XΦ250
Required suction volume m³/h 5300
Required suction speed m/s 30
Air supply pressure Mpa 0.3~0.6
Air consumption m³/min 0.1
Overall dimension mm 2286x2004x2642
Weight kg 5500
Optimization control system   ●标配Standard configuration
Visual feeding system   ○选配Optional configuration
Belt feeding system   ○选配Optional configuration
Discharge system   ○选配Optional configuration
