QMB620AT

Four-side Moulder

Steadfast Reliability, Uncompromising Quality

Affordable priceing for innovative efficient production

Main feature

QMB620AT is a standard six-axis four-side woodworking moulder. The maximum processing width is 200mm, the maximum processing thickness is 125mm, and the speed is 8-33m /min (frequency conversion). It is equipped with 12 groups of active feed rollers, 9 up and 3 down. The chip breaker adopts the backward chip breaker structure before the cutting tool, which can effectively prevent the cutting phenomenon of the cutting tool. The structure of upper and lower double tool is adopted to realize the four-side forming process. It has the advantages of reasonable structure, stable performance, convenient operation and good processing quality.

Recommended: This product is mainly used for processing a wide range of wood products within 200mm of high quality processing, such as: solid wood door factory, picture frame, stair handrail factory, wood flooring factory wood lines, wall panels and other industries of four-side planing molding processing.

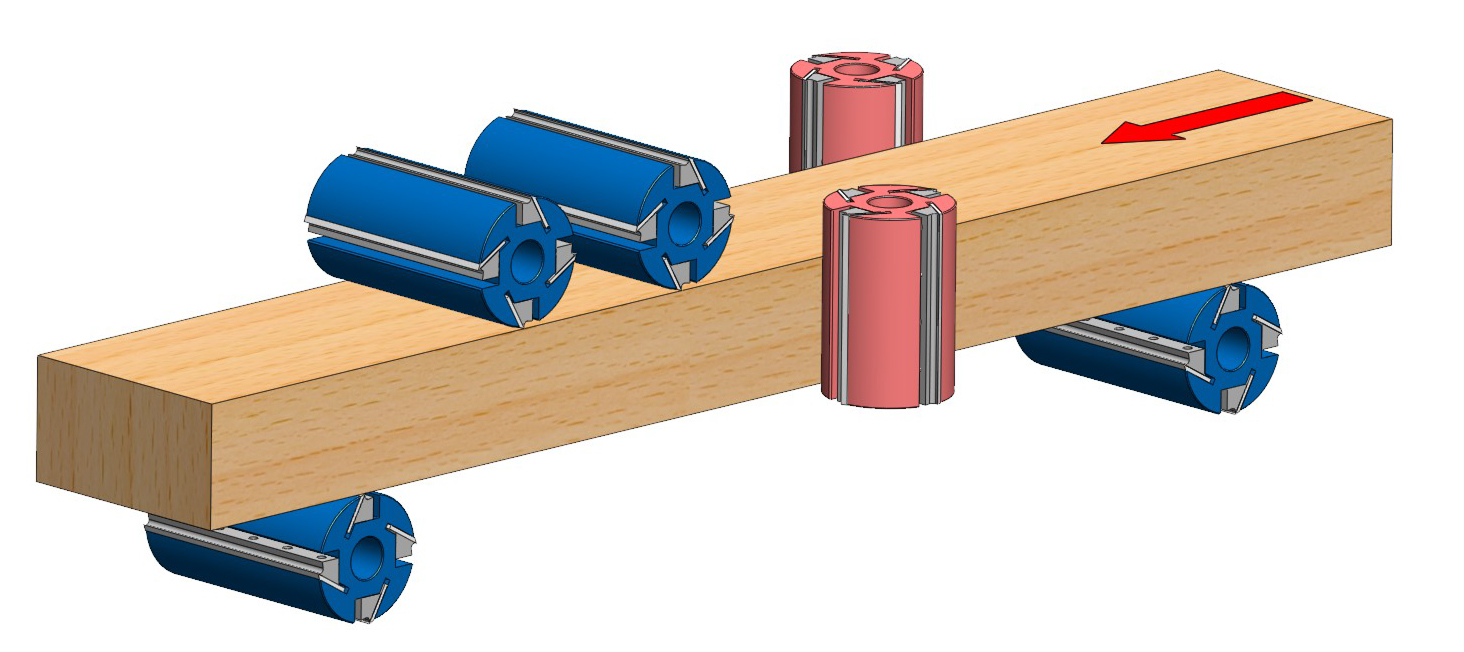

  • QMB620AT spindles layout
    QMB620AT spindles layout

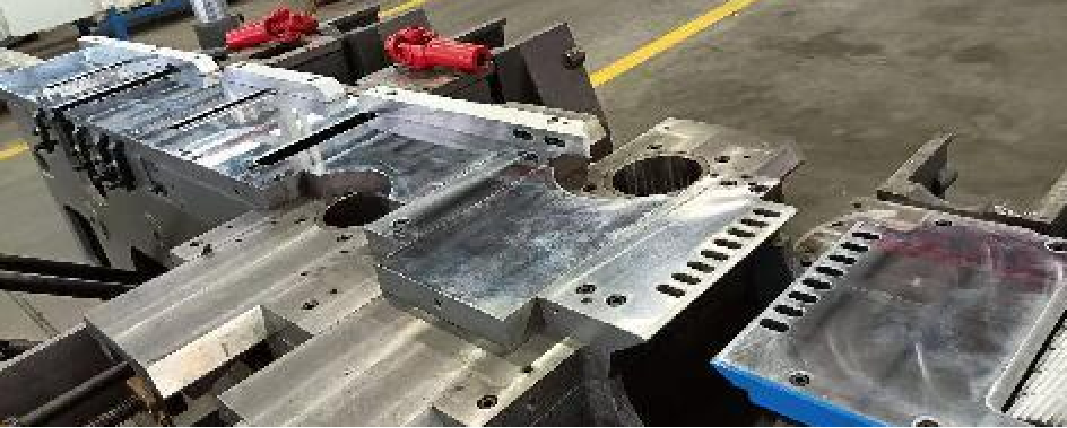

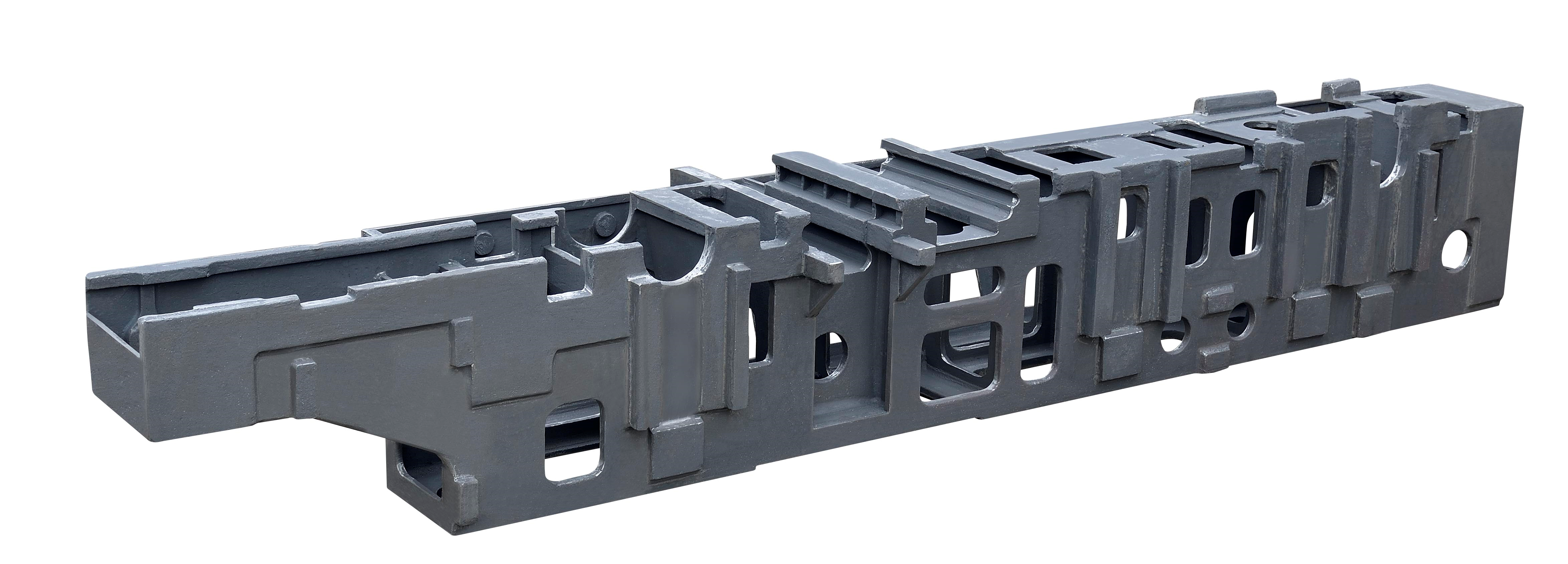

  • The machine bed is made of high strength cast iron, stable structure and good rigidity
    The machine bed is made of high strength cast iron, stable structure and good rigidity
  • After special treatment, hard chrome plating, wear resistance, long service life
    After special treatment, hard chrome plating, wear resistance, long service life
  • High precision tool shaft, speed 6800 RPM, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect
    High precision tool shaft, speed 6800 RPM, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect

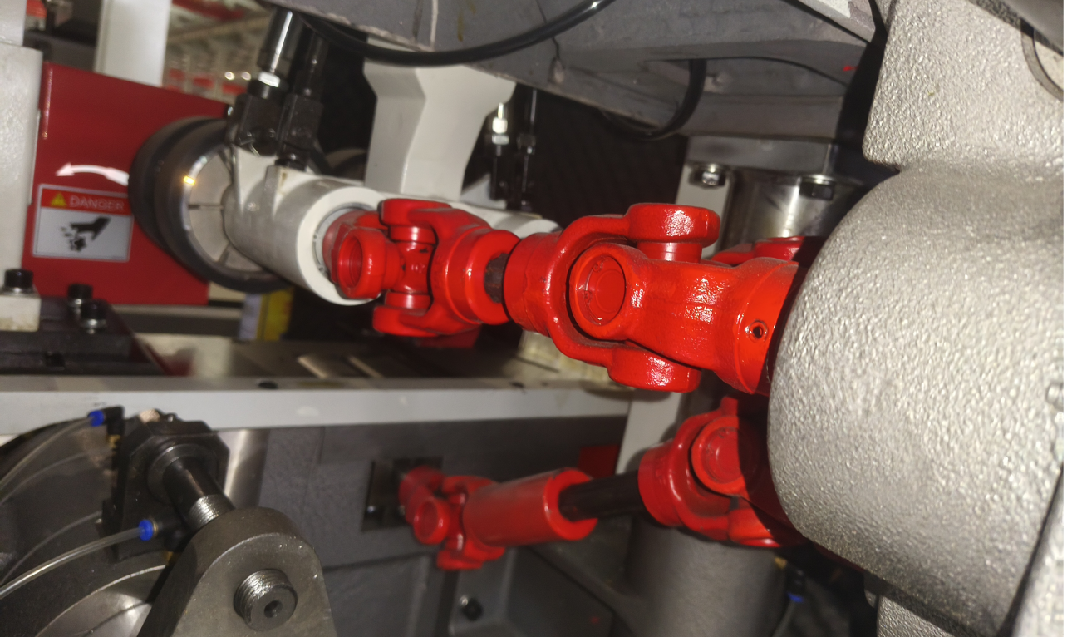

  • The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful
    The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful
  • The pressure plate of top spindle is backward to prevent the tool collision
    The pressure plate of top spindle is backward to prevent the tool collision

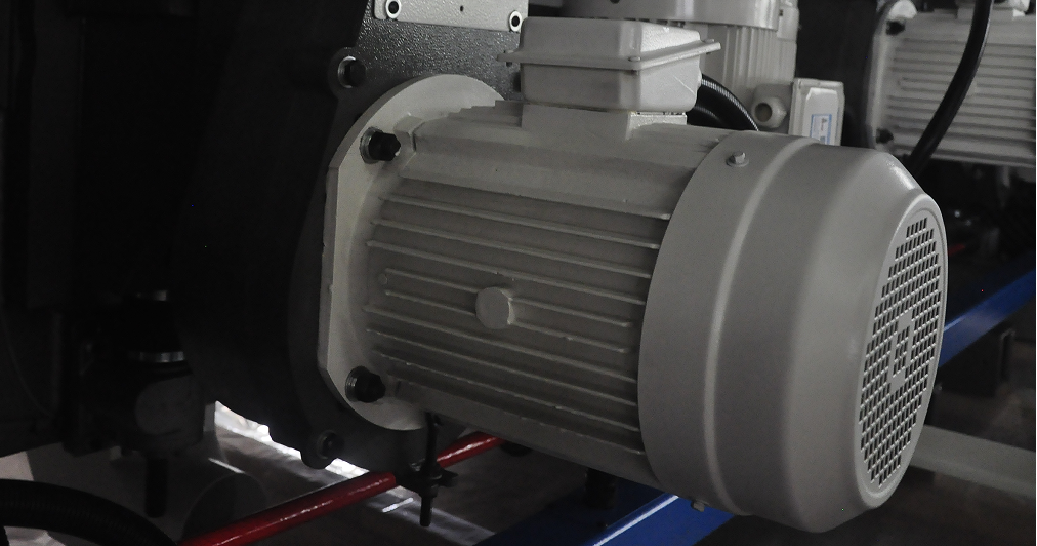

  • Each tool shaft is equipped with a strong motor power, separate drive, can be processed more complex profile
    Each tool shaft is equipped with a strong motor power, separate drive, can be processed more complex profile
  • The short material device is designed to make feeding smoother and operation safer when processing short workpieces.
    The short material device is designed to make feeding smoother and operation safer when processing short workpieces.

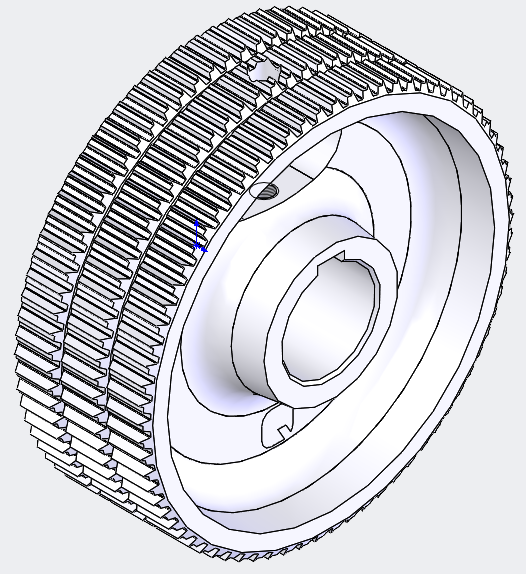

  • Adopt new dentiform design, special process treatment, high feeding efficiency and long service life, cylinder pressure can be as low as 0.2mpa
    Adopt new dentiform design, special process treatment, high feeding efficiency and long service life, cylinder pressure can be as low as 0.2mpa

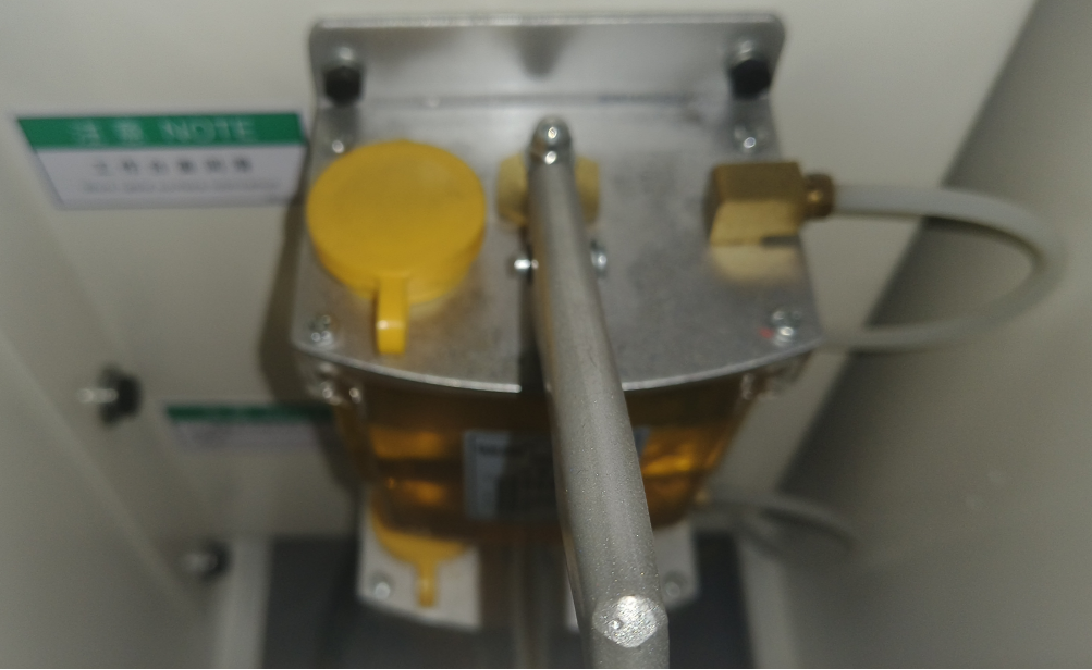

  • The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast
    The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast
  • The feeding system adopts frequency control speed , which is more suitable for the processing requirements of various wood materials
    The feeding system adopts frequency control speed , which is more suitable for the processing requirements of various wood materials

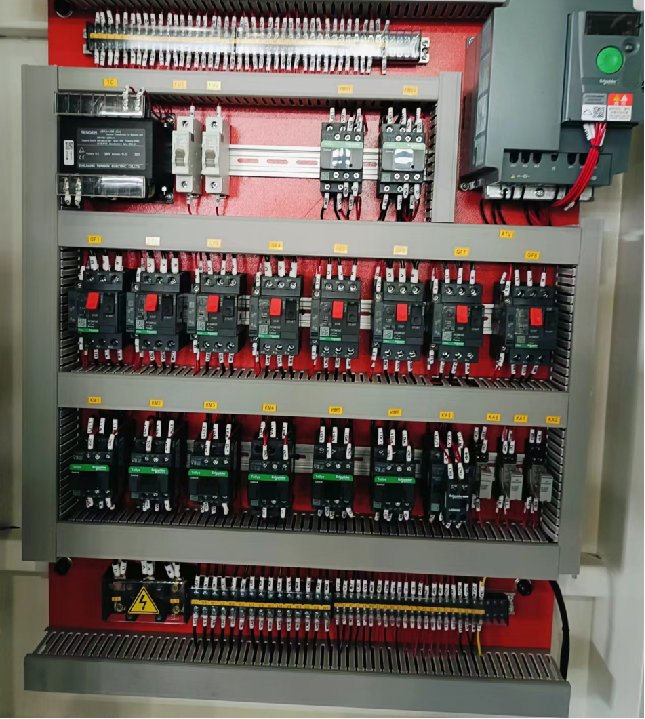

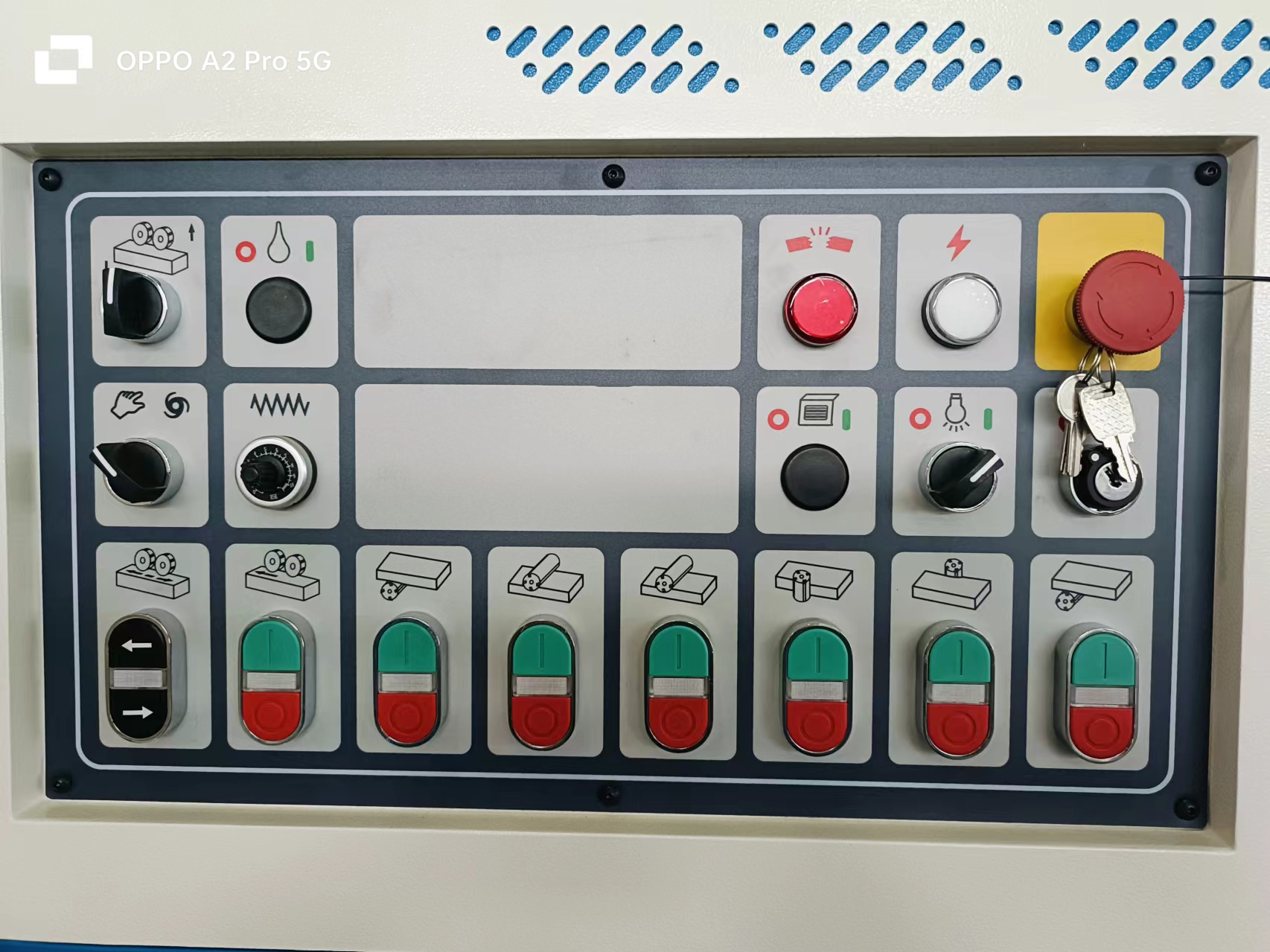

  • All electrical components are well-known brands, stable performance, long service life
    All electrical components are well-known brands, stable performance, long service life

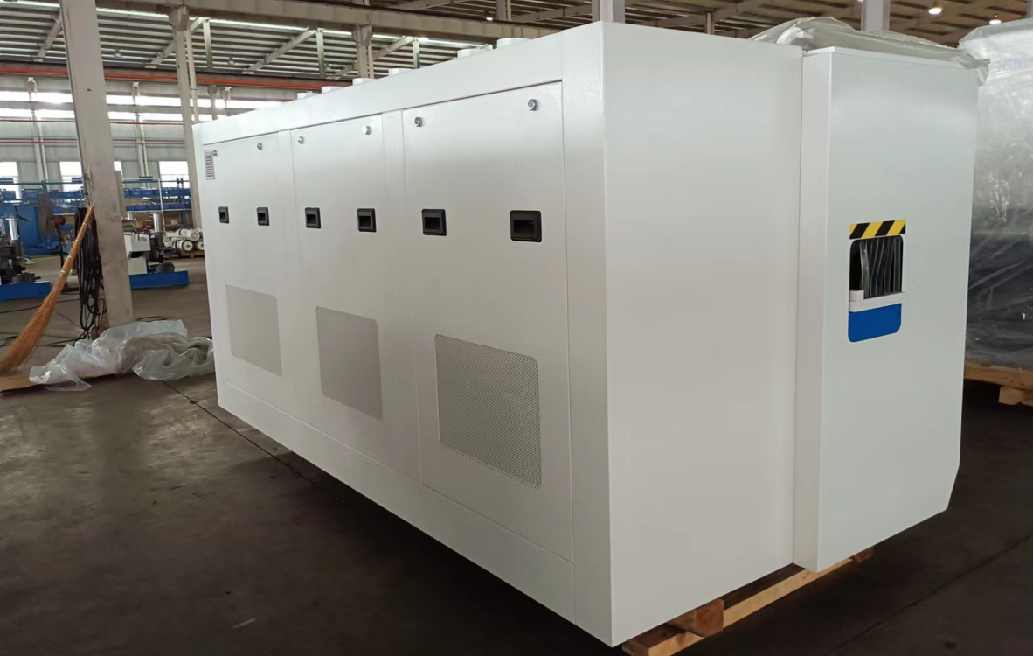

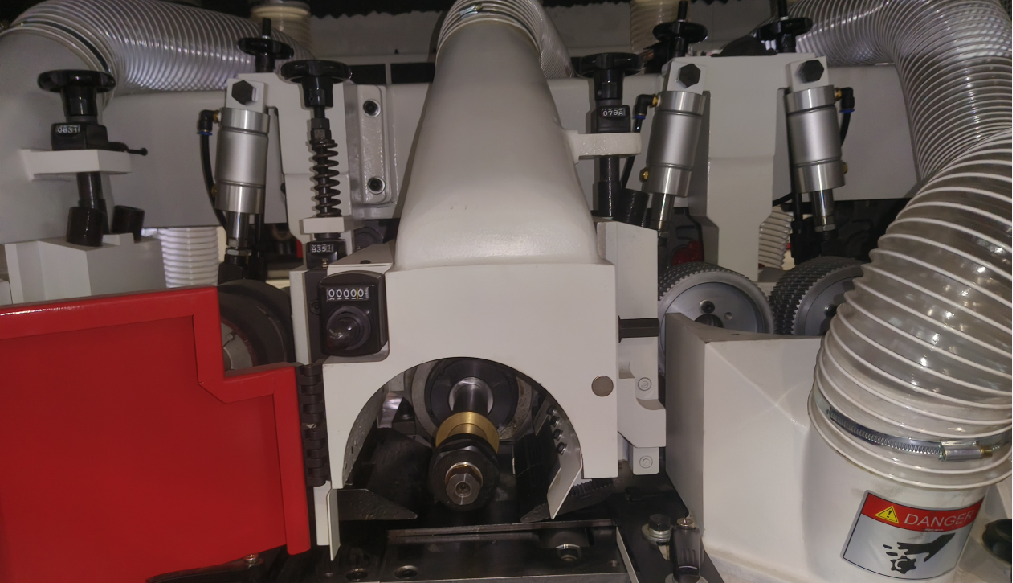

  • The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection
    The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection
Technical parameter
Item/Model 　 QMB420G QMB520AT QMB620AT QMB620RL
Processing width (tooldiameter 125mm)/mm 　 20~200 20~200 20~200 20~200
Processing height(tooldiameter 125mm)/mm 　 20~200 8~125 8~125 8~125
Feed speed /m/min 　 8~36 8~33 8~33 8~33
Spindle diameter /mm 　 40 40 40 40
Spindle speed/r/min 　 6800 6800 6800 6800
Tool cutting circle dia/mm First bottom spindle Flat cutter 125/Trimming cutter 152 Flat cutter 125/Trimmingcutter 152 Flat cutter 125/Trimmingcutter 152 Flat cutter 125/Trimming cutter152
　 Back bottom spindle / 108~200 108~200 /
　 Other spindles 108~180 108~180 108~180 108~180
Motor power/KW Feed motor 5.5 4 4 7.5
　 First bottom spindle 7.5 5.5 5.5 5.5
　 First right spindle 7.5 5.5 5.5 7.5
　 First left spindle 7.5 5.5 5.5 7.5
　 Second right spindle / / / 5.5
　 Second left spindle 1 / / 7.5
　 First upper spindle 11 7.5 7.5 7.5
　 Second upper spindle / / 5.5 /
　 Second bottom spindle / 5.5 5.5 /
　 Lifting motor 0.75 0.75 0.75 0.75
Overall dimention (L×W×H)/cm 　 340×186×180 350×180×175 400×10×175 410×180×175
Weight/kg 　 3650 3600 4400 4650
Optional: 1. All spindle motors can be optional from 5.511KW;2.Spindle diameter of 50mm is available; 3. Spindle speed of 8000rpm is available; 4. The last bottom spindle can install saw blades. (If you have special needs, please contact us)
