Four-side Moulder
The machine adopts advanced design and manufacturing technology with rational structure, easy operation and excellent performance, suitable for four-sided machining of various wood products.
The machine base is integrally cast from high-strength cast iron for stable structure and high rigidity.
CNC touchscreen system with digital display controls vertical movement of upper spindle and horizontal travel of left spindle.
Air cylinder pressing devices are fitted for front pressure mechanism of left spindle and front/rear press plates of upper spindle, delivering stable pressure and easy operation.
Worktable and guide strips are hard chrome-plated for enhanced wear resistance.
Timed automatic lubrication system supplies precise lubrication continuously to the worktable for smoother feeding.
-
Worktable

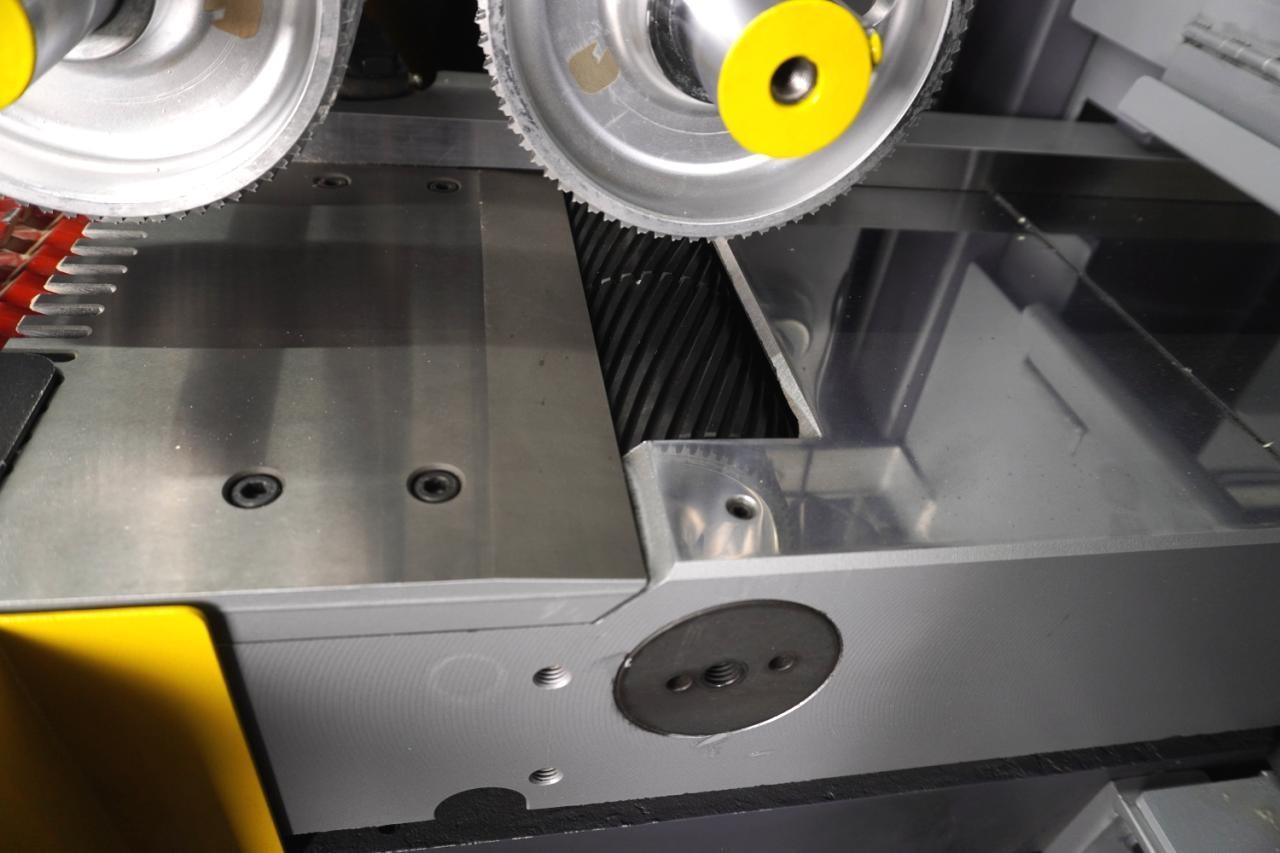

The worktable features hard-chrome plating for superior wear resistance and extended service life
-
Pneumatic front/rear press plates for upper spindle

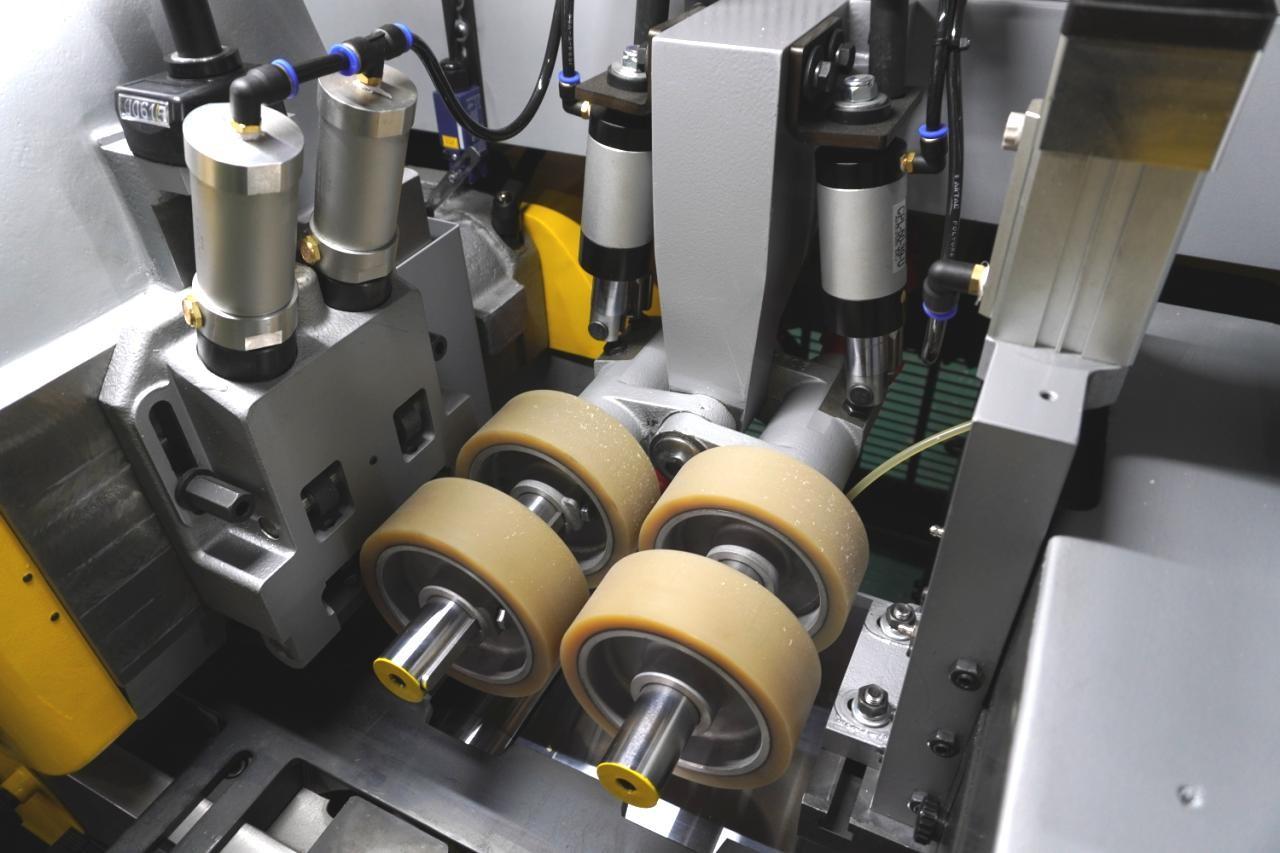

The upper spindle features pneumatic-controlled front/rear press plates for secure clamping of variably shaped workpieces
-
Spindle vertical and horizontal adjustment

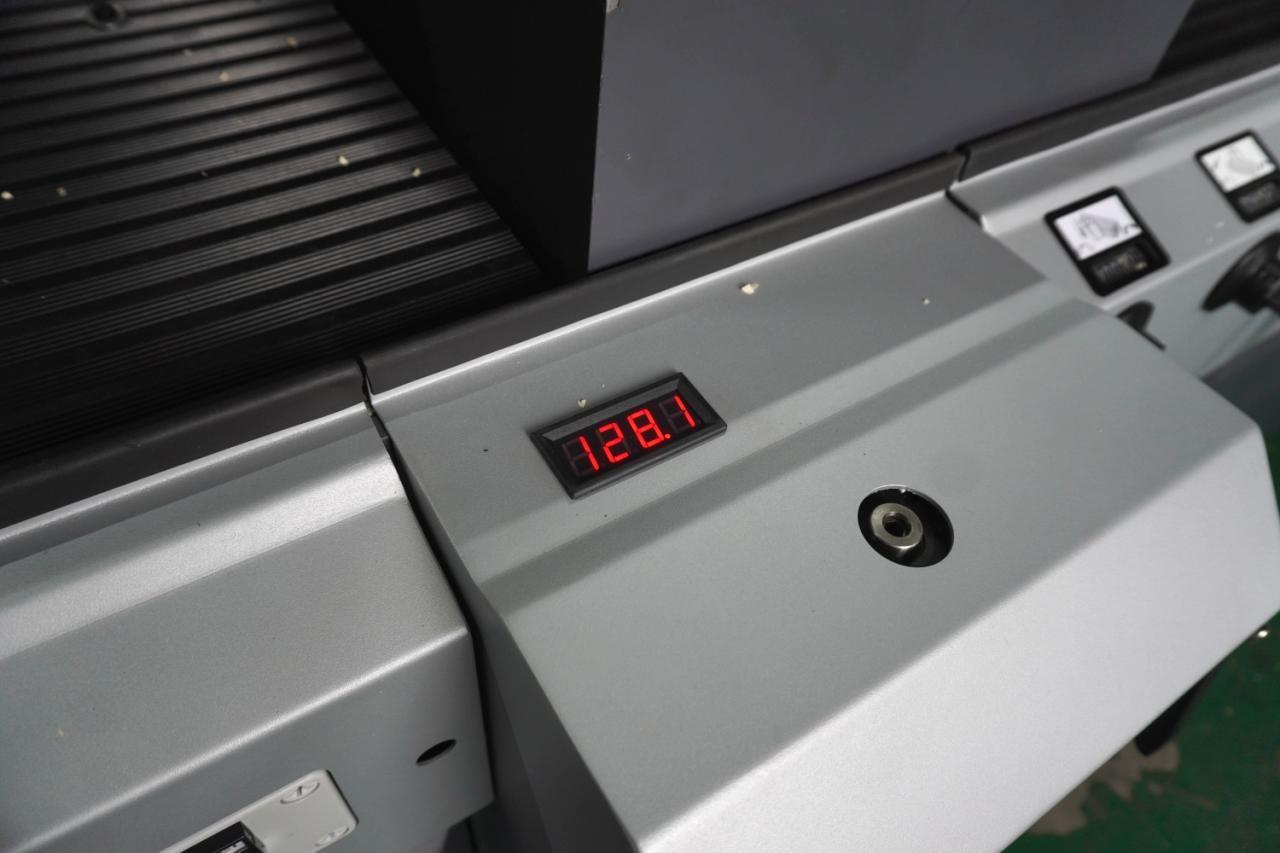

The upper spindle's vertical adjustment and left spindle's horizontal adjustment adopt electric adjustment for simplified operation
-
Driving feed roller

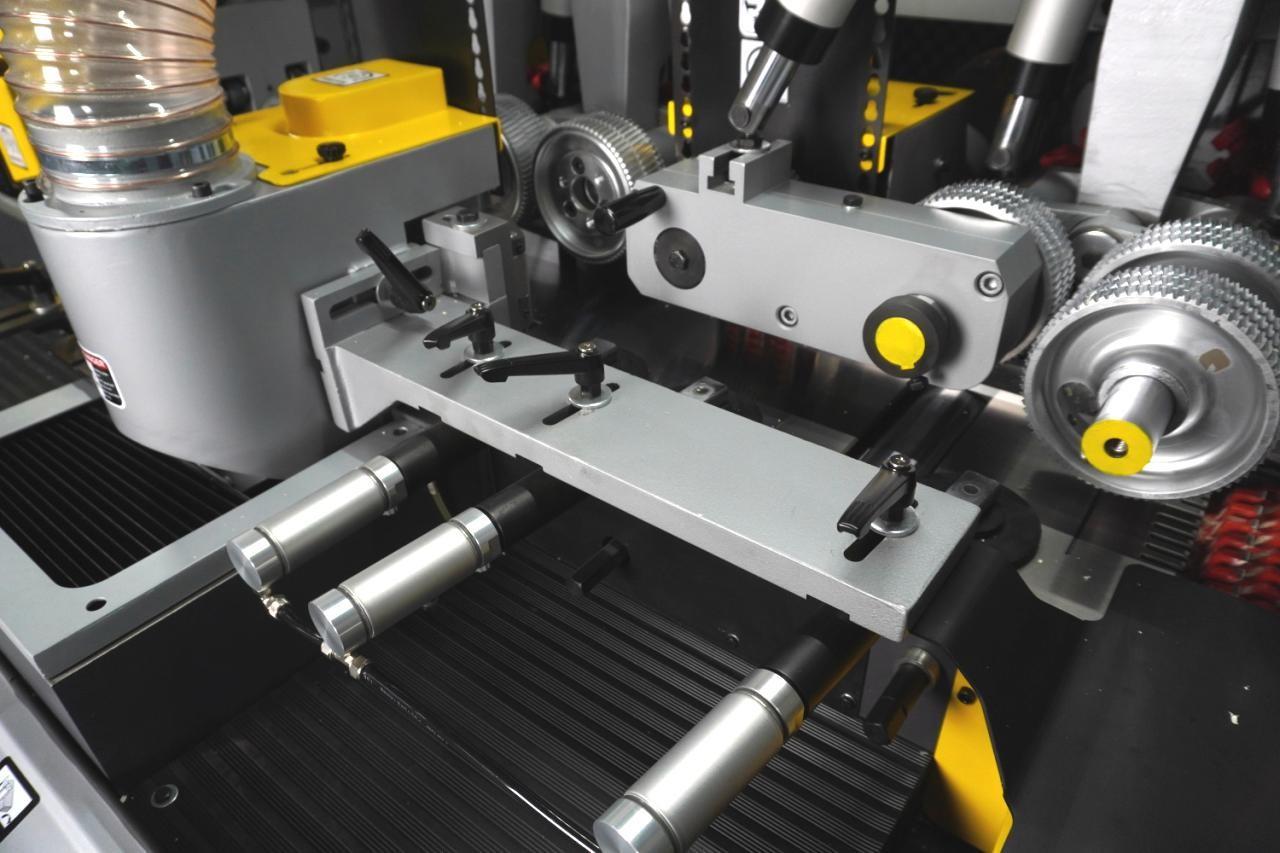

Add multiple sets of upper and lower driving feed rollers to make the feeding more powerful and forceful
-
Side press mechanism

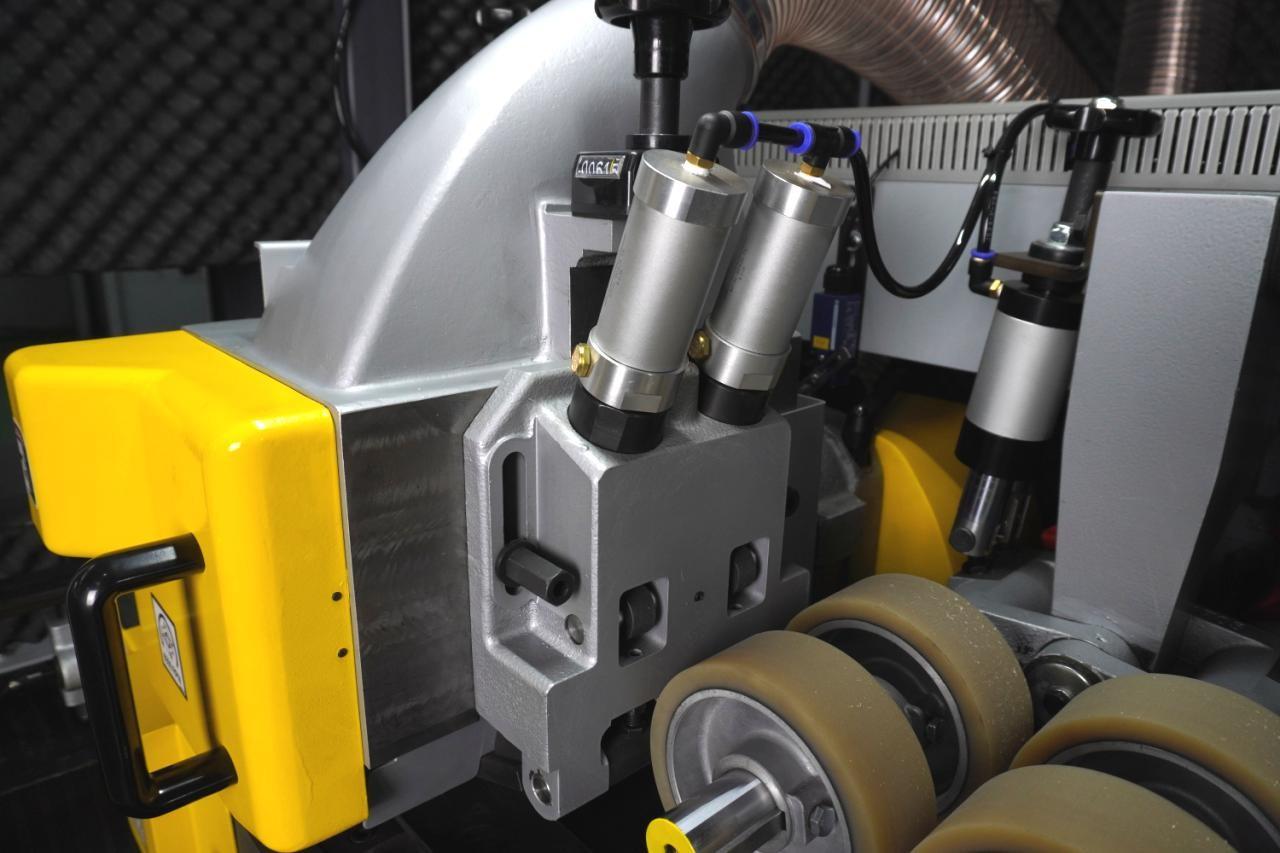

The left spindle features 3 sets cylinder side press mechanism, ensuring workpiece stability during operation to enhance machining accuracy and productivity
-
Control Panel

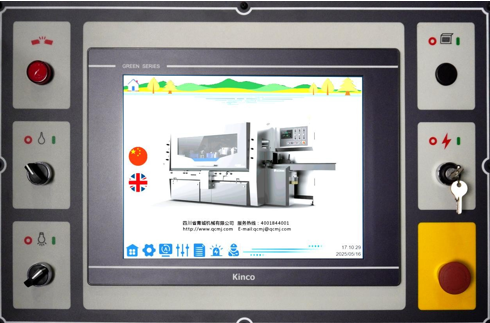

The touchscreen control delivers intuitive operation and precise command input, embodying human-centric design principles
-

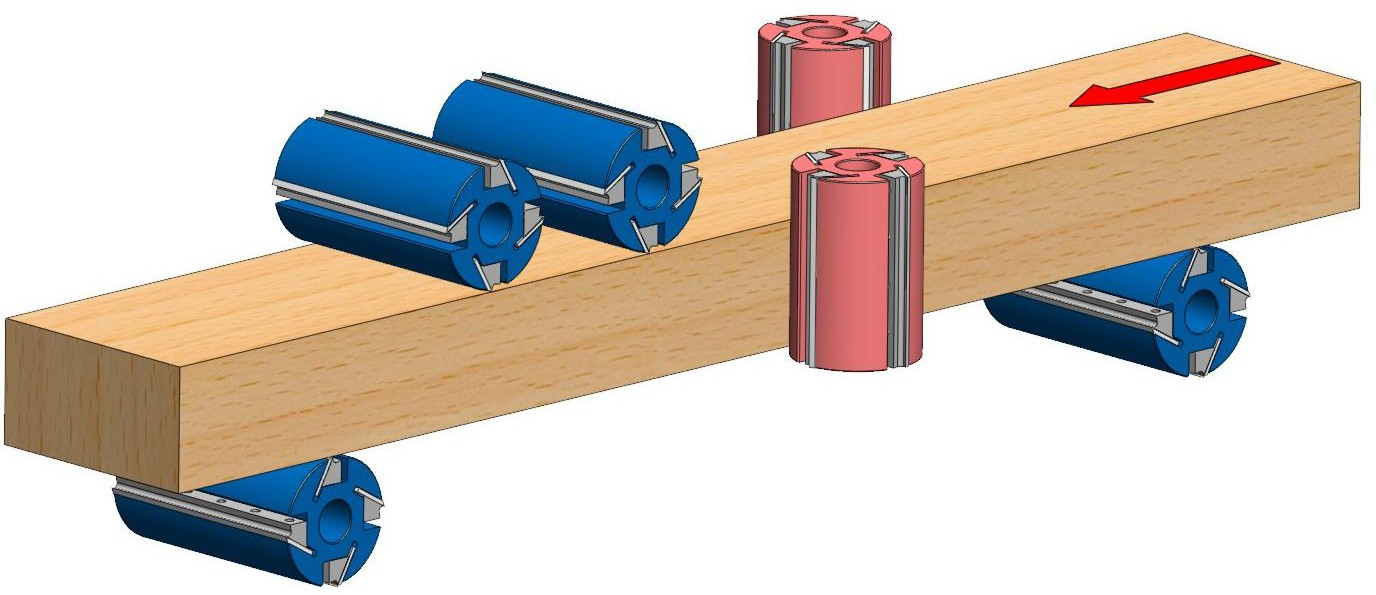

MB623Vspindles layout
| Specifications | Unit | MB423V | MB523V | MB623V | MB723V | MB823V | MB923V |
| Max.working width | mm | 230 | 230 | 230 | 230 | 230 | 230 |
| Min. working width | mm | 20 | 20 | 20 | 20 | 20 | 20 |
| Max. working thickness | mm | 160 | 160 | 160 | 160 | 160 | 160 |
| Min. working thickness | mm | 10 | 10 | 10 | 10 | 10 | 10 |
| Min. working length | mm | 650 | 650 | 650 | 650 | 650 | 650 |
| Max.lifting range of worktable | mm | 5 | 5 | 5 | 5 | 5 | 5 |
| Max. movement of limit bar | mm | 10 | 10 | 10 | 10 | 10 | 10 |
| Spindle quantity | 根 | 4 | 5 | 6 | 7 | 8 | 8 |
| Spindle DIA. | mm | φ40 | φ40 | φ40 | φ40 | φ40 | φ40 |
| Spindle speed | r/min | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Feeding speed | m/min | 6-36 | 6-36 | 6-36 | 6-36 | 6-36 | 6-36 |
| Press roller DIA. | mm | φ140 | φ140 | φ140 | φ140 | φ140 | φ140 |
| Vertical spindle axial travel | mm | 40 | 40 | 40 | 40 | 40 | 40 |
| Horizontal spindle axial travel | mm | 20 | 20 | 20 | 20 | 20 | 20 |
| Dust exit | mm | 4x125 | 5x125 | 6x125 | 7x125 | 8x125 | 9x125 |
| Dust extraction airflow | m³/h | 6200 | 7700 | 9200 | 10700 | 12200 | 13700 |
| Outline dimension (L*W*H) | mm | 4300x1960x1900 | 4300x1960x1900 | 4980x1960x1900 | 5080x1960x1900 | 5560x1960x1900 | 5950x1960x1900 |
| Weight | kg | 4100 | 4300 | 5200 | 5800 | 6400 | 7000 |
| Optional configurations:：①Adjustable worktable length1.4/2/2.5/3m; ②Motor power upgrade available；③spindle speed selectable: 7000 or 8000 rpm; ④Final lower spindle convertible to saw shaft | |||||||
