Four-side Moulder

Timelessly verified, classically inherited

Universal compatibility,steadfast support

Every running is a promise of reliability,

Enables you to confidently handle various production needs.

Main feature

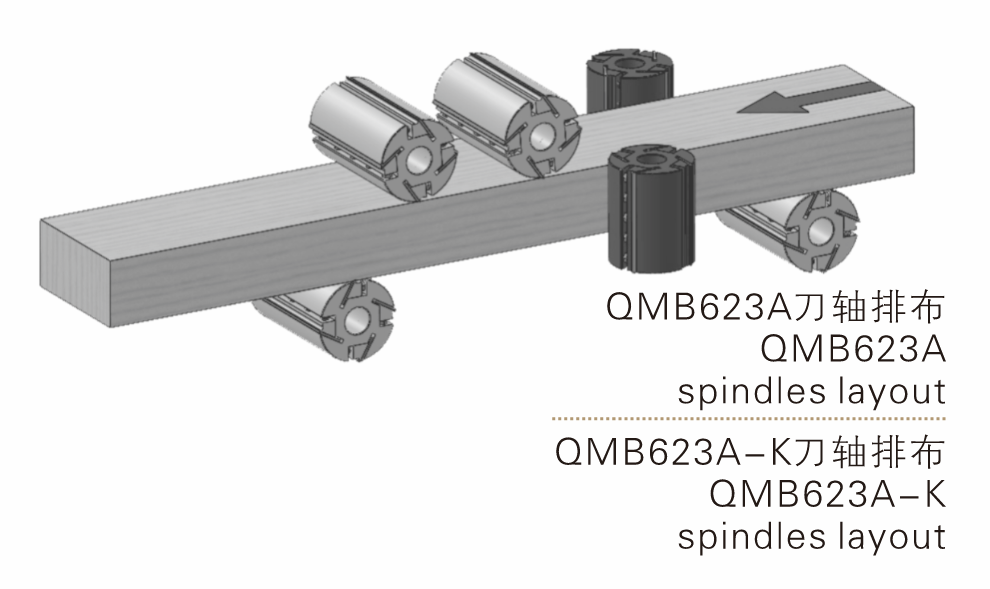

  • QMB623A spindles layout
    QMB623A

    spindles layout

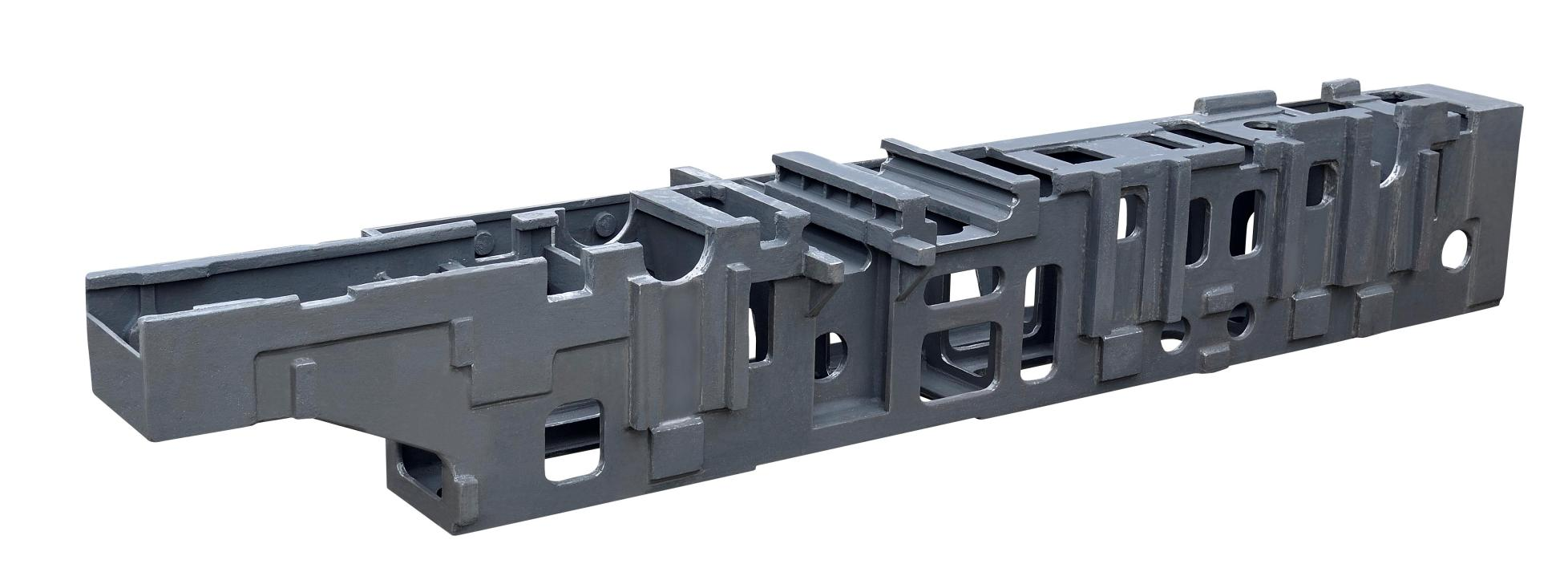

  • The body is made of high quality castings, which are processed by special treatment and its performance is stable and accurate.
    The body is made of high quality castings, which are processed by special treatment and its performance is stable and accurate.

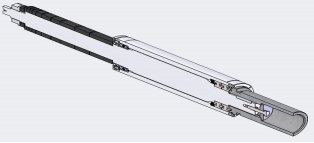

  • High precision spindle, speed is 6800 r/min, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect.
    High precision spindle, speed is 6800 r/min, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect.

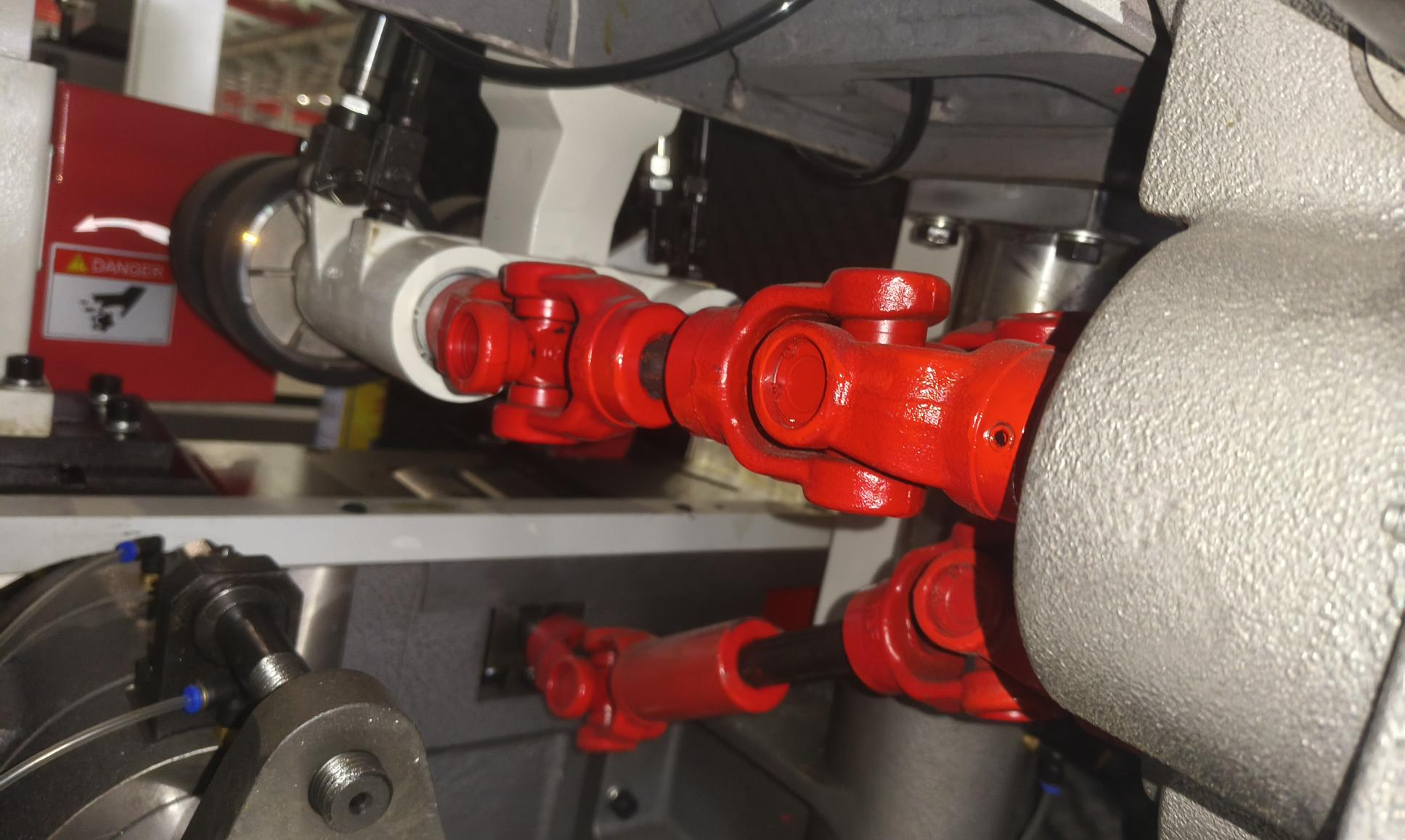

  • The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful.
    The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful.

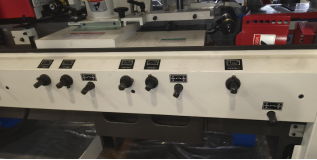

  • All spindle lift and retreat using computer control to ensure feed accuracy.
    All spindle lift and retreat using computer control to ensure feed accuracy.

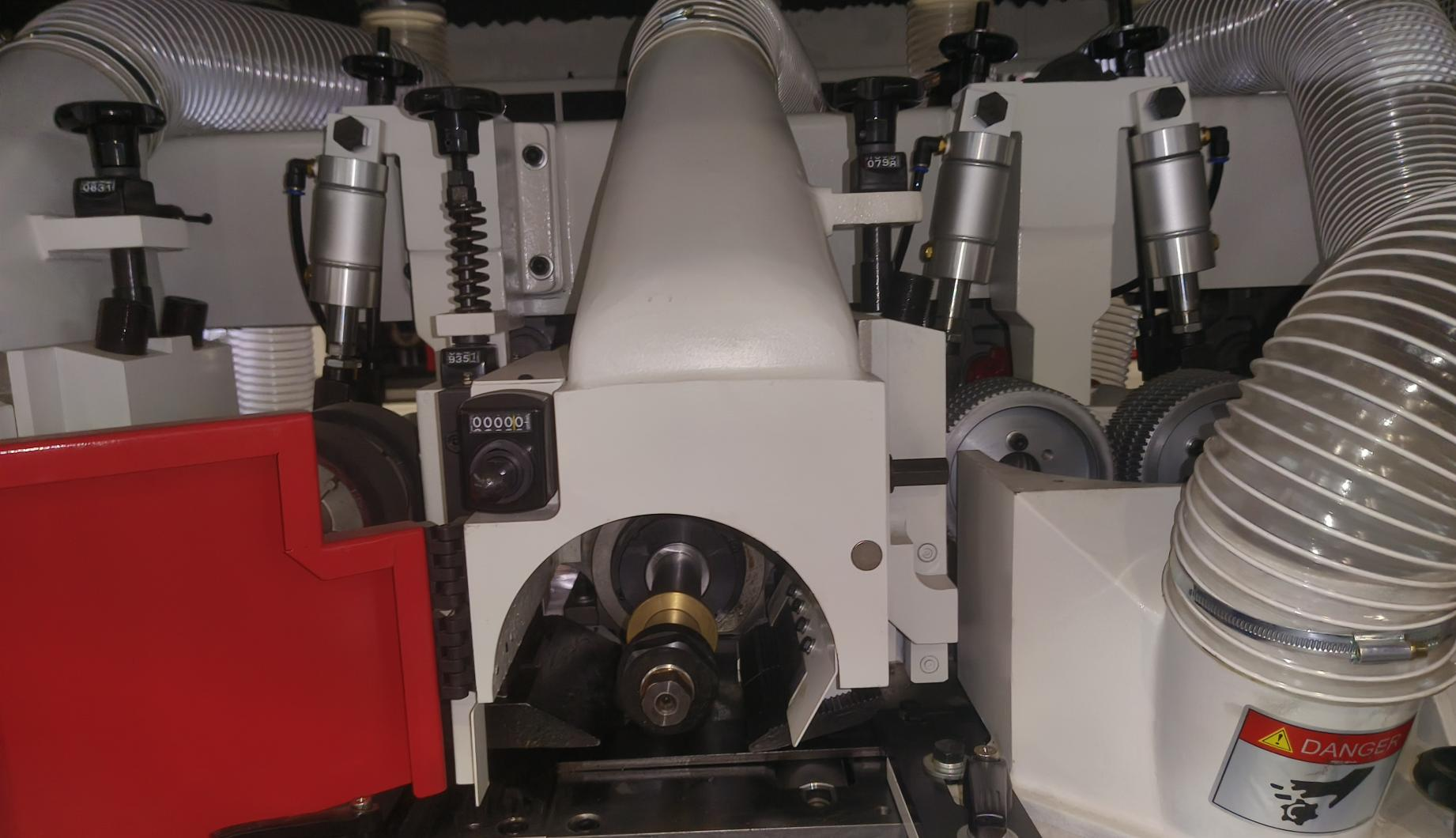

  • The pressure plate before the spindle is backward to prevent tool collision.
    The pressure plate before the spindle is backward to prevent tool collision.

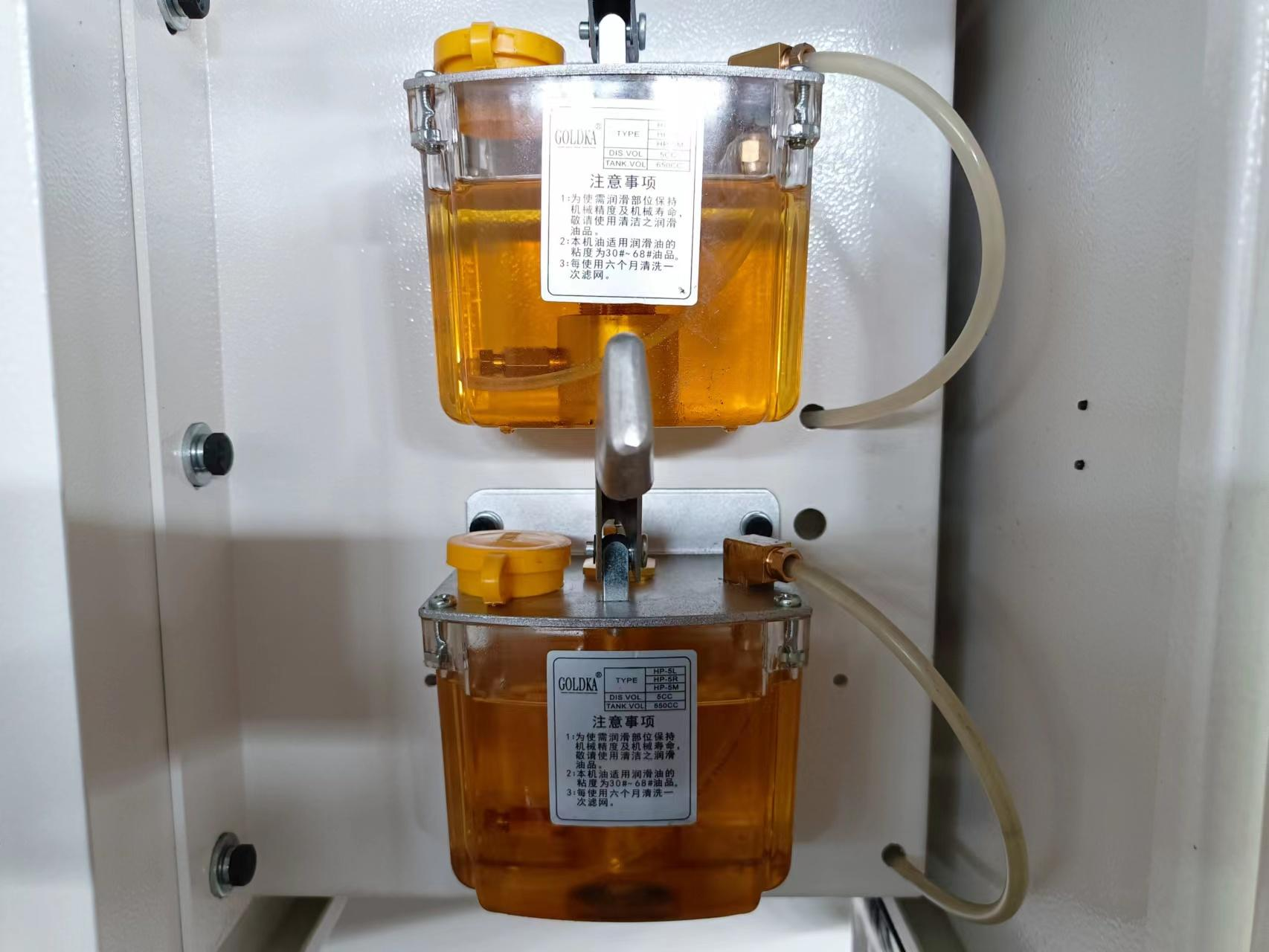

  • The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast.
    The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast.
Technical parameter
Item/Model QMB523A QMB623A QMB623A-K QMB623R QMB723R
Processing width(tool diameter 125mm)/mm 20~230 20~230 20~230 20~230 20~230
Processing height(tool diameter125mm/mm 8~160 8~160 8~160 8~160 8~160
Feed speed/m/min 6~36 6~36 6~36 6~36 6~36
Spindle diameter/mm 40 40 40 40 40
Spindle speed /r/min 6800 6800 6800 6800 6800
Tool cutting circle dia/mm First bottom spindle Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152
Left and right spindle 108~200 108~200 108-200 108-200 108-200
Top spindle 108~180 108~180 108~180 108-180 108~180
Second bottom spindle 108~230 108~230 108~230 108~230 108-230
Motor power/KW Feed motor 4 5.5 5.5 5.5 5.5
First bottom spindle 5.5 5.5 5.5 5.5 5.5
First right spindle 5.5 5.5 5.5 5.5 5.5
First left spindle 7.5 7.5 7.5 7.5 7.5
Second right spindle / / / 7.5 7.5
First upper spindle 7.5 7.5 7.5 7.5 7.5
Second upper spindle / 7.5 7.5 / 7.5
Second bottom spindle 7.5 7.5 7.5 7.5 7.5
Lifting motor 0.75 0.75 0.75 0.75 0.75
 Overall dimension(L×W×H)/cm 428×190×170 496×190×170 496×190×170 475×186×176 538×186×176
Weight/kg 4600 5600 5600 5650 6050
Optional :1. Spindle diameter of 50mm is available;2. Spindle speeed of 8000rpm is available;3. The last bottom spindle caninstall saw blades (If you have special needs, please contact us)
