QMB420G

Four-side Moulder

Steadfast Reliability, Uncompromising Quality

Affordable priceing for innovative efficient production

Main feature

QMB420G four-axis four-side moulder. Its max. processing width is 200mm, max. processing thickness is 200mm, speed up to 8--36m/min (frequency conversion) using the most advanced design and manufacturing technology, its reasonable structure, excellent performance, easy operation, can realize the processing size of 200X200 generous material processing. It is mainly used for the four-side planing and processing of wooden structural beams and large wooden squares. It is an economical and suitable equipment for large wood products processing plants and wooden house manufacturing enterprises.

Note: When the processing thickness is less than 20mm, the processing width should be greater than 60mm; when the processing width is less than 60mm, the processing thickness should be greater than 20mm.

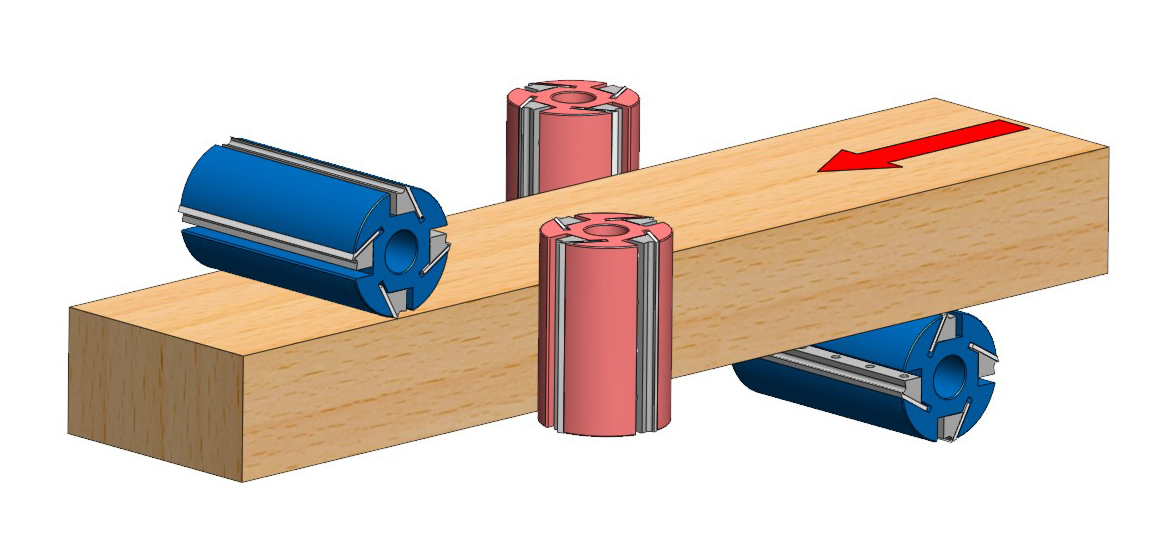

  • QMB420G spindles layout
    QMB420G spindles layout

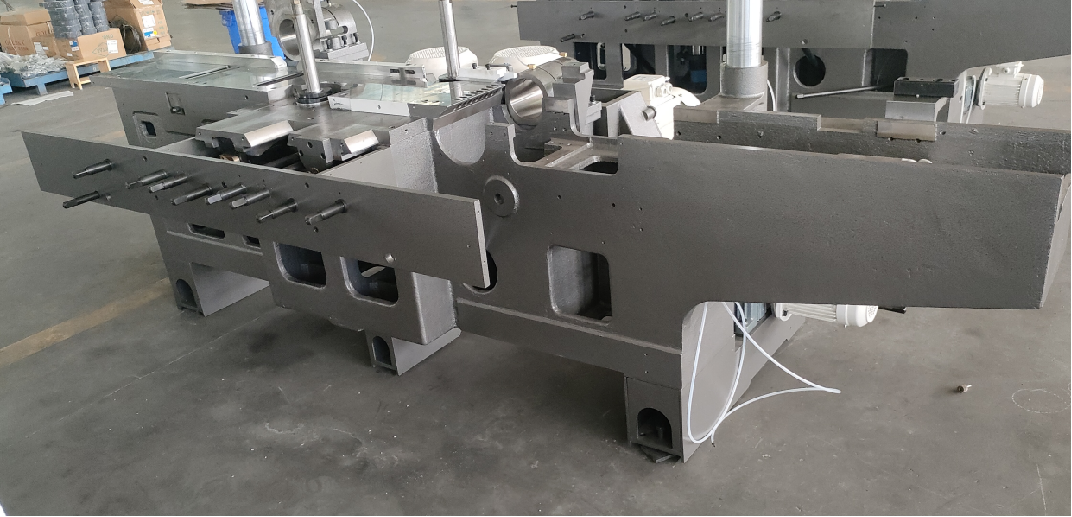

  • It is made of high strength cast iron, stable structure and good rigidity
    It is made of high strength cast iron, stable structure and good rigidity

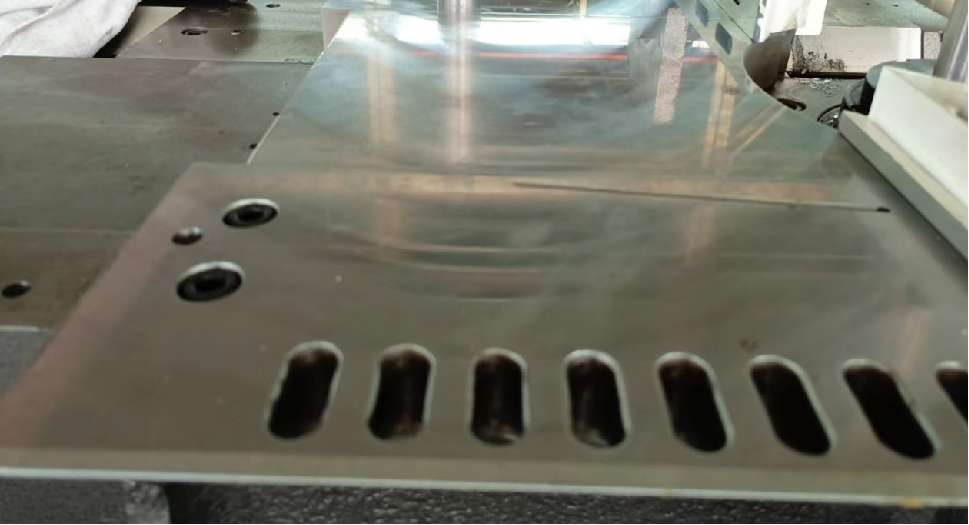

  • After special treatment, hard chrome plating, wear resistance, long service life
    After special treatment, hard chrome plating, wear resistance, long service life

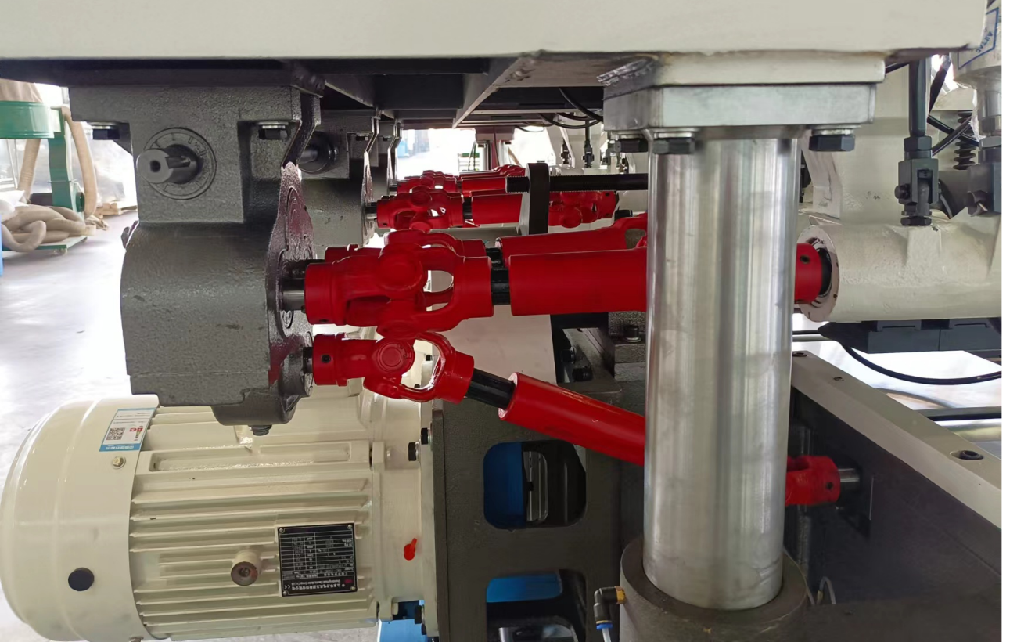

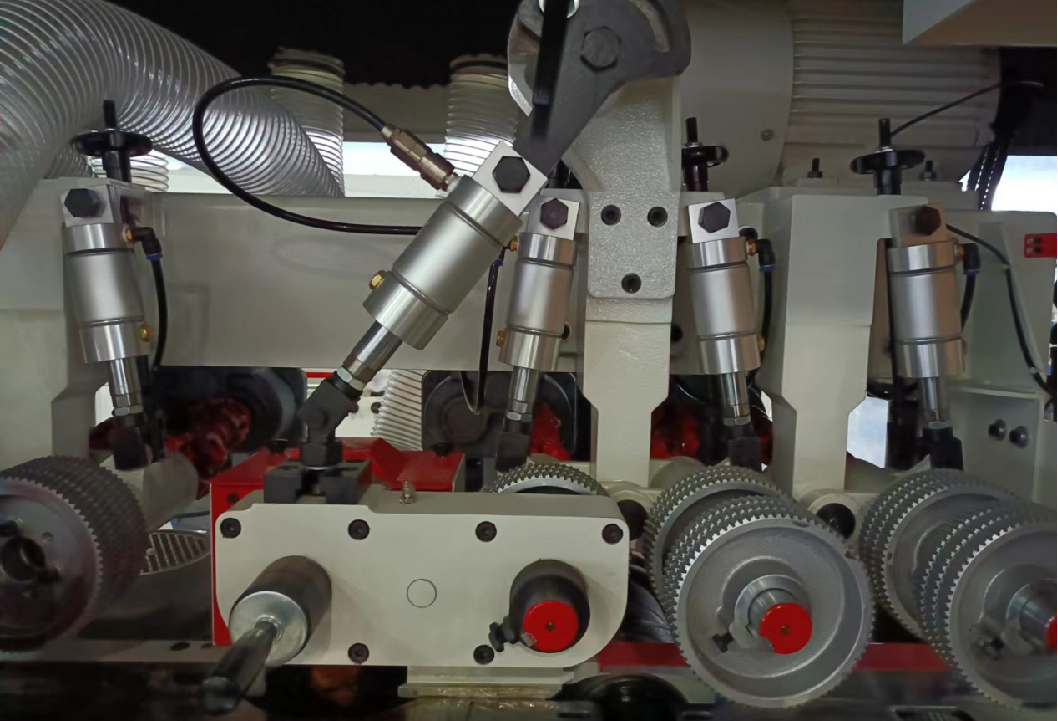

  • The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful.
    The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful.

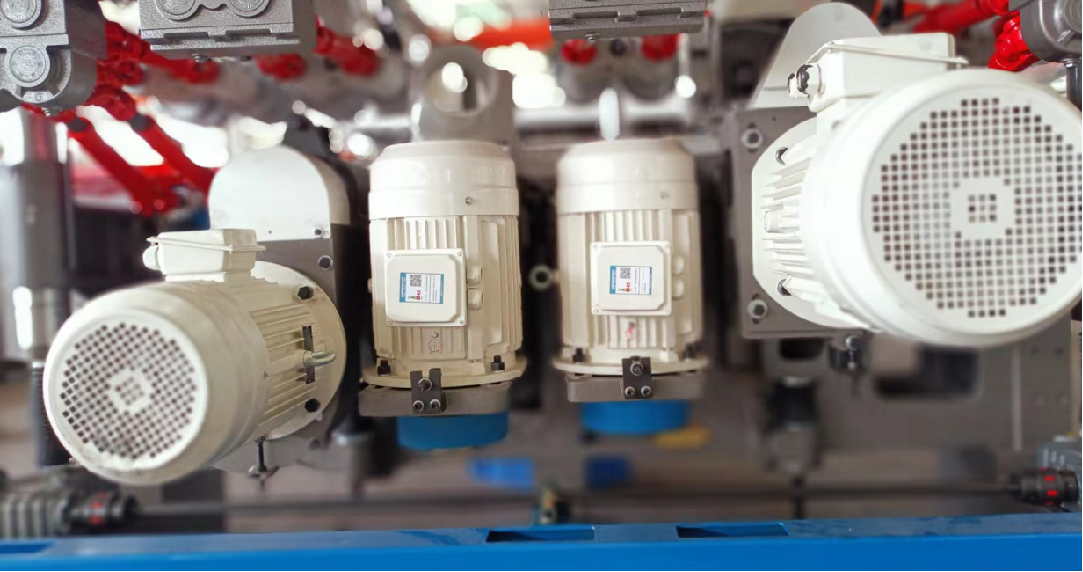

  • Each spindle is equipped with a powerful motor and is driven separately
    Each spindle is equipped with a powerful motor and is driven separately

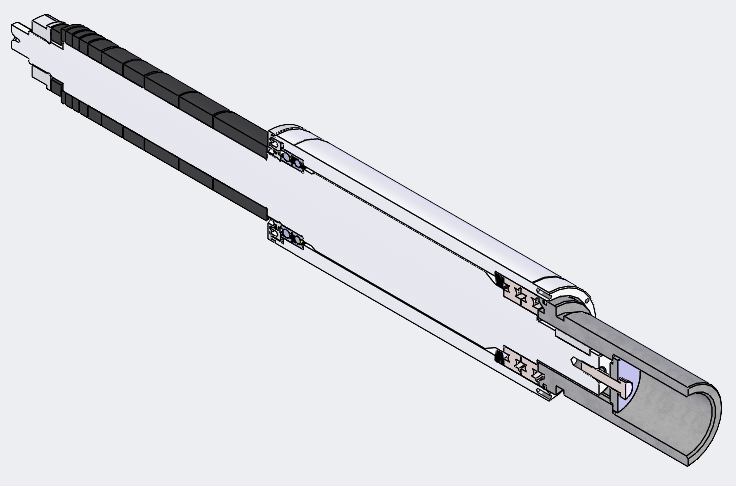

  • High precision spindle, speed 6800 r/min, high rigidity design to ensure cutting stability, G1 level dynamic balance treatment, automatic running-in test. The surface of the workpiece is more smooth and perfect
    High precision spindle, speed 6800 r/min, high rigidity design to ensure cutting stability, G1 level dynamic balance treatment, automatic running-in test. The surface of the workpiece is more smooth and perfect

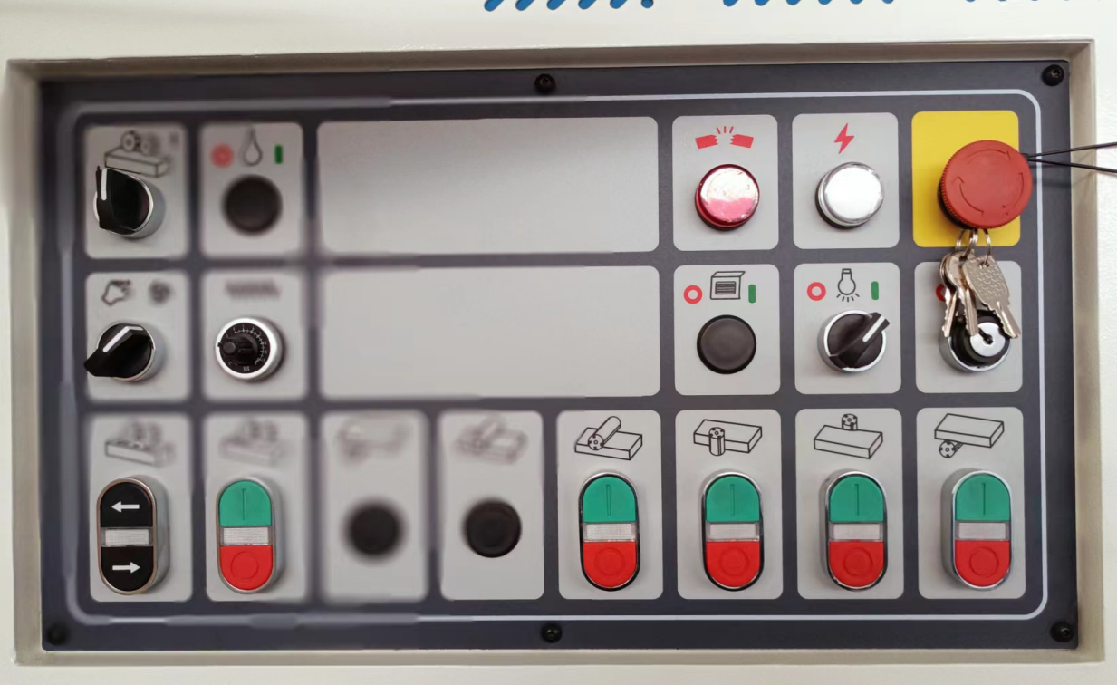

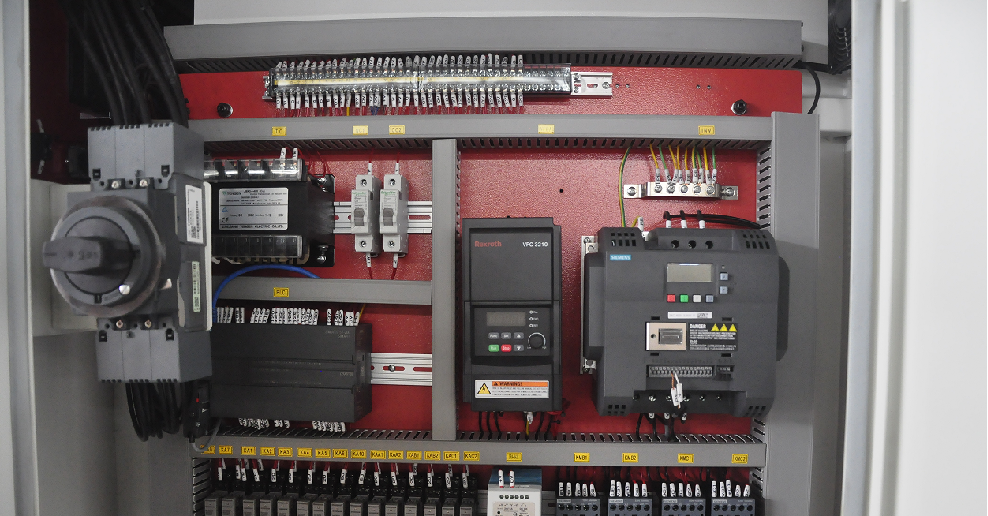

  • All electrical components are made of well-known brands, stable performance and long service life
    All electrical components are made of well-known brands, stable performance and long service life
  • The short material device is designed to make feeding smoother and operation safer when processing short workpieces
    The short material device is designed to make feeding smoother and operation safer when processing short workpieces

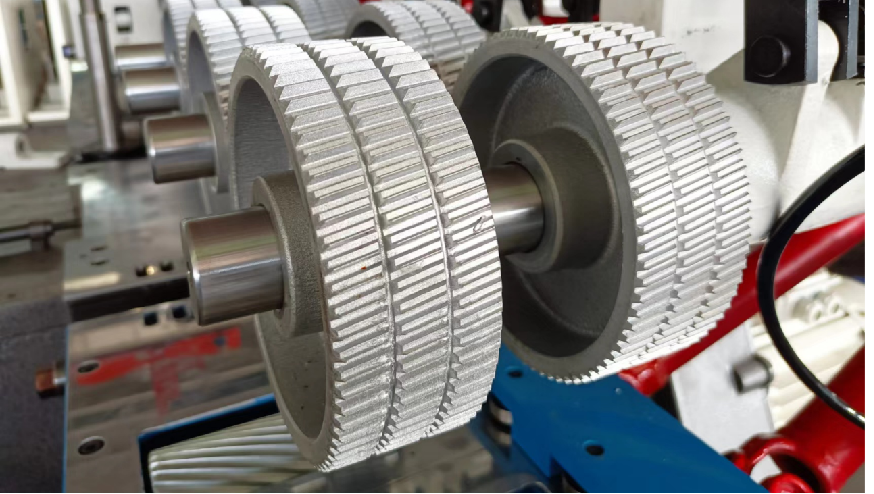

  • Adopt new tooth shape design, special processing treatment, high feeding efficiency, long service life, cylinder pressure can be as low as 0.2mpa
    Adopt new tooth shape design, special processing treatment, high feeding efficiency, long service life, cylinder pressure can be as low as 0.2mpa

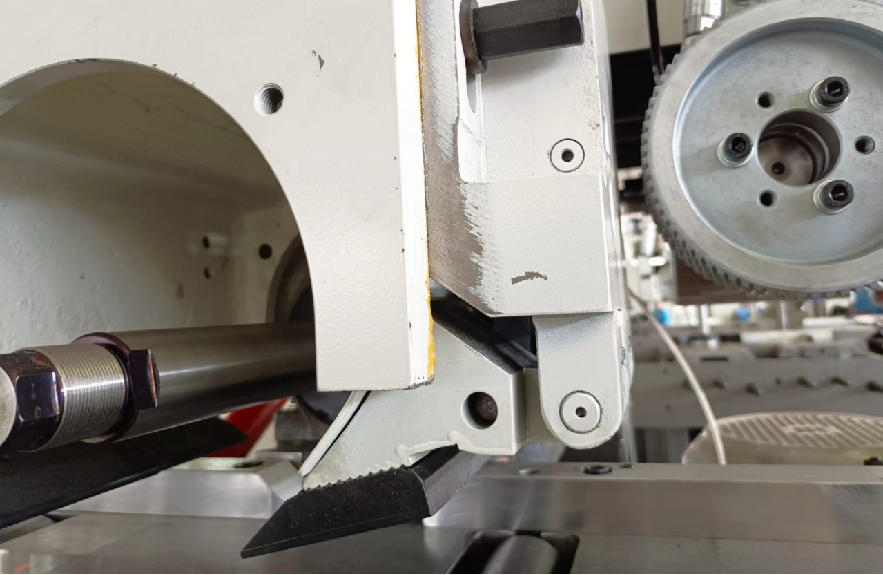

  • The pressure plate before the cutting tool adopts the backward structure to prevent the tool collision
    The pressure plate before the cutting tool adopts the backward structure to prevent the tool collision
  • The feeding system adopts frequency control speed, which is more suitable for the processing requirements of various wood materials
    The feeding system adopts frequency control speed, which is more suitable for the processing requirements of various wood materials

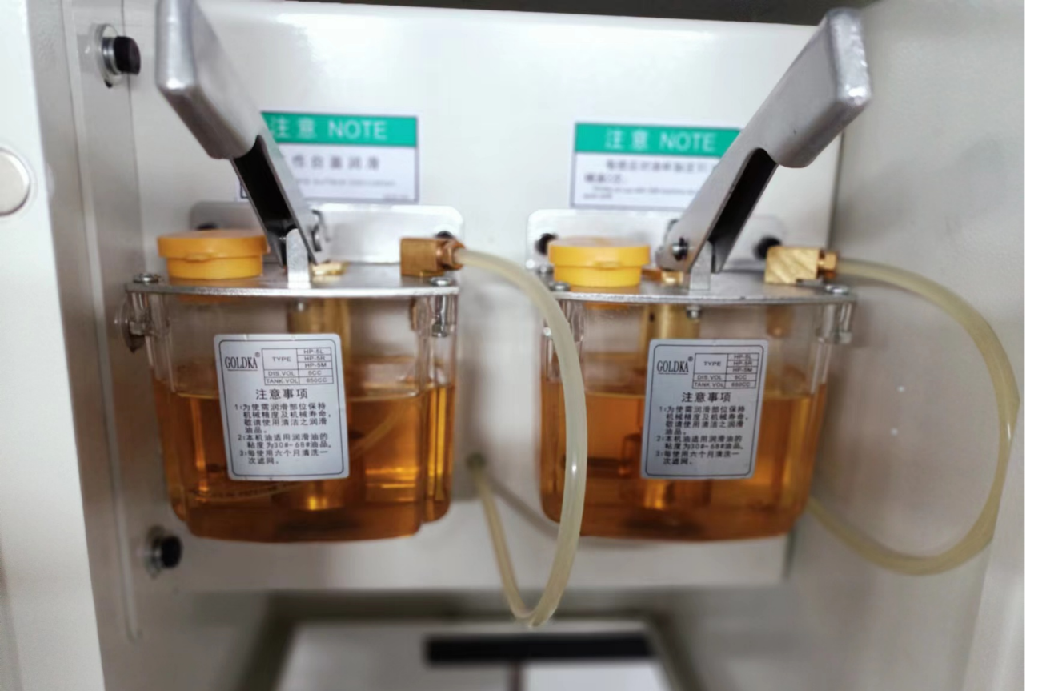

  • The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast
    The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast

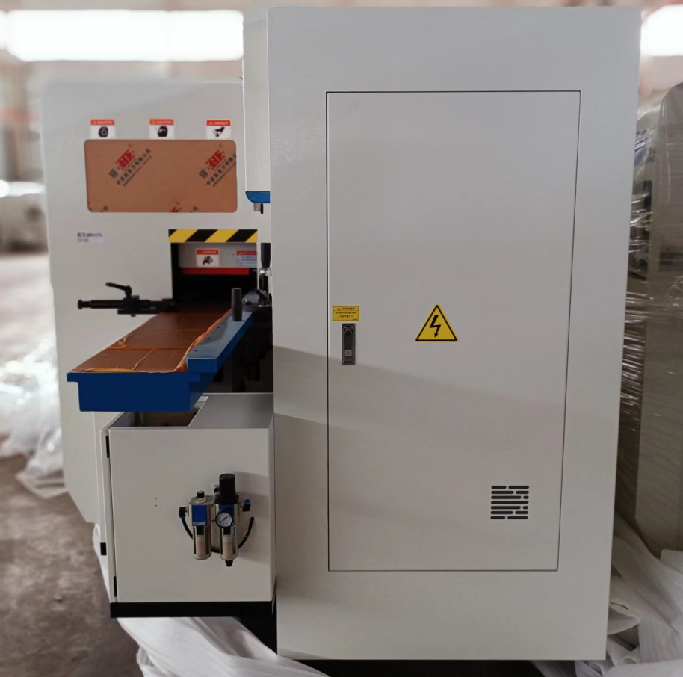

  • The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection
    The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection
Technical parameter
Item/Model 　 QMB420G QMB520AT QMB620AT QMB620RL
Processing width (tooldiameter 125mm)/mm 　 20~200 20~200 20~200 20~200
Processing height(tooldiameter 125mm)/mm 　 20~200 8~125 8~125 8~125
Feed speed /m/min 　 8~36 8~33 8~33 8~33
Spindle diameter /mm 　 40 40 40 40
Spindle speed/r/min 　 6800 6800 6800 6800
Tool cutting circle dia/mm First bottom spindle Flat cutter 125/Trimming cutter 152 Flat cutter 125/Trimmingcutter 152 Flat cutter 125/Trimmingcutter 152 Flat cutter 125/Trimming cutter152
　 Back bottom spindle / 108~200 108~200 /
　 Other spindles 108~180 108~180 108~180 108~180
Motor power/KW Feed motor 5.5 4 4 7.5
　 First bottom spindle 7.5 5.5 5.5 5.5
　 First right spindle 7.5 5.5 5.5 7.5
　 First left spindle 7.5 5.5 5.5 7.5
　 Second right spindle / / / 5.5
　 Second left spindle 1 / / 7.5
　 First upper spindle 11 7.5 7.5 7.5
　 Second upper spindle / / 5.5 /
　 Second bottom spindle / 5.5 5.5 /
　 Lifting motor 0.75 0.75 0.75 0.75
Overall dimention (L×W×H)/cm 　 340×186×180 350×180×175 400×10×175 410×180×175
Weight/kg 　 3650 3600 4400 4650
Optional: 1. All spindle motors can be optional from 5.511KW;2.Spindle diameter of 50mm is available; 3. Spindle speed of 8000rpm is available; 4. The last bottom spindle can install saw blades. (If you have special needs, please contact us)
