QMX3825E

Double-end Tenoner

Stability

Efficiency

Double-end machining

Trimming & tenoning in one pass

Highly efficient & practical

Feature Introduction

The QMX3820E double-end tenoning machine adopts chain-driven continuous feeding, making it ideal for processing solid and engineered floor .It is widely used for double-end trimming and tenoning operations of solid wood and panel furniture.It can achieve automated mass production when integrated with four-side moulder and floor conveyors.

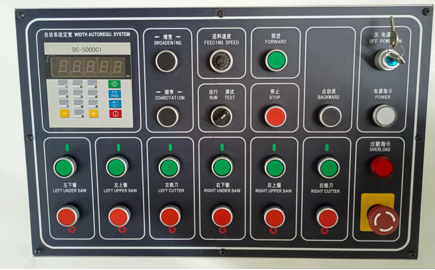

  • The operating system is configured with a brand PLC for joint control, providing intuitive and convenient operation. This can effectively reduce adjustment time and improve production efficiency.
    The operating system is configured with a brand PLC for joint control, providing intuitive and convenient operation. This can effectively reduce adjustment time and improve production efficiency.

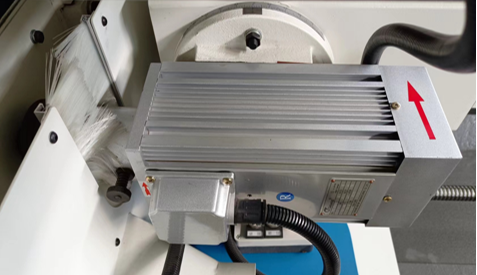

  • The upper and lower sawing and milling axes can be independently adjusted for lifting, advancing, retracting, and tilting, and are equipped with digital displays and scale markings for indication.
    The upper and lower sawing and milling axes can be independently adjusted for lifting, advancing, retracting, and tilting, and are equipped with digital displays and scale markings for indication.

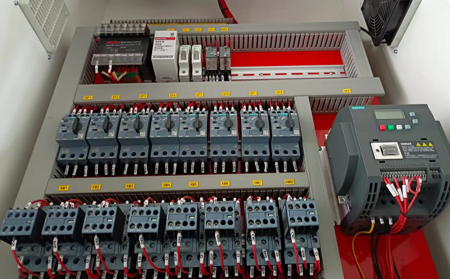

  • The electrical components are sourced from reputable brands, ensuring stable performance and a long service life.
    The electrical components are sourced from reputable brands, ensuring stable performance and a long service life.

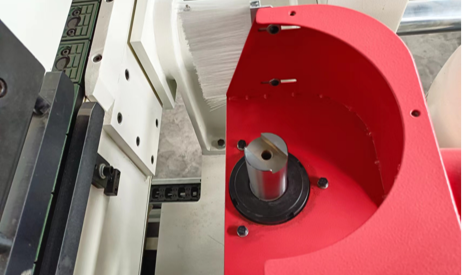

  • The milling shaft is made of special materials, undergoes special treatment and precision machining, and is equipped with branded high-precision bearings. The milling cutter can rotate at up to 7500r/min, ensuring excellent machining quality.
    The milling shaft is made of special materials, undergoes special treatment and precision machining, and is equipped with branded high-precision bearings. The milling cutter can rotate at up to 7500r/min, ensuring excellent machining quality.
Technical parameter
Item/Model 　 QMX3820E QMX3825E
Working width 　 300~2000mm 300~2500mm
Working thickness 　 10~70mm 10~70mm
Feed block spacing 　 400mm 400mm
Feeding speed 　 5~20m/min 5~20m/min
Trimming saw speed 　 3000r/min 3000r/min
Milling spindle speed 　 7500r/min 7500r/min
Milling spindle DIA. 　 Φ40mm Φ40mm
Tool DIA. Bottom saw Φ200~300(outer DIA)xΦ25.4(inner hole)mm Φ200~300(outer DIA)xΦ25.4(inner hole)mm
Top saw Φ200~300(outer DIA)xΦ25.4(inner hole)mm Φ200~300(outer DIA)xΦ25.4(inner hole)mm
Total motor power 27.8kW Milling cutter Φ108~180(outer DIA)xΦ40(inner hole)mm Φ108~180(outer DIA)xΦ40(inner hole)mm
Bottom saw 3kWx2 3kWx2
Top saw 3kWx2 3kWx2
Milling cutter 5.5kWx2 5.5kWx2
Feeding 4kW 4kW
Width setting 0.75kW 0.75kW
Suction port DIA. 　 Φ120mmx6 Φ120mmx6
Air requirement of suction system 　 135m³/min 135m³/min
Air speed of suction system 　 30~35m/s 30~35m/s
Outline dimension 　 410x290x146cm 460x290x146cm
Weight 　 3800kg 4100kg
