The ML9326CM joint planer-saw machine can be used for precise thickness processing on both sides of the wood and then for multi-saw blade sawing operations. This product is mainly designed to meet the needs of solid wood processing users for high-efficiency production of wide board planer-saw processing, especially the requirements for high precision, high quality and smooth feeding. It is a three-axis planer-saw joint machine produced. Its features include an active roller configured on the movable worktable at the bottom, and an additional pair of upper and lower active feeding rollers in front of the saw shaft to achieve strong feeding, which can effectively improve the smoothness of feeding and can also be applied to the processing of semi-dry materials in the lumber industry. It is an ideal equipment for efficient production in the solid wood processing, keel bar processing and furniture manufacturing industries.
-

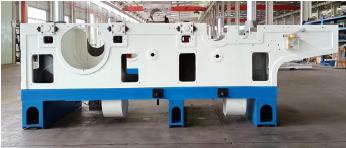

It is cast as a whole using high-strength and high-quality castings. After multiple aging treatments and precise processing, it has a stable structure and good rigidity.
-

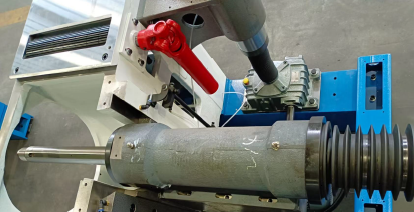

The main shaft is made of special materials and undergoes special treatment, precise machining, and dynamic balancing processing. It is equipped with brand-name bearings, ensuring smooth operation and long-lasting durability.
-

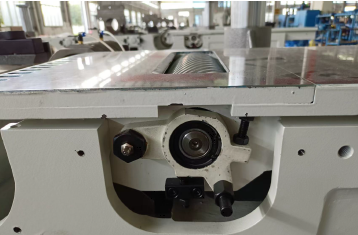

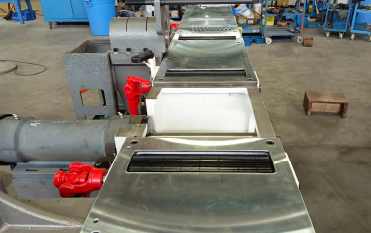

The workbench plate has undergone special treatment, precise processing and hard chrome plating. It is wear-resistant and has a long service life.
-
The activity workbench is equipped with pneumatic floating drive rollers, enabling smooth feeding of bent and deformed materials.
-

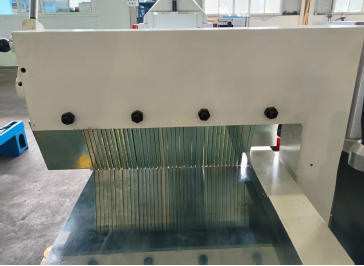

A fixed reverse-acting pawl safety anti-rebound device has been configured at the input end, which is safe and reliable, and ensures the operator's safety to the greatest extent.
-

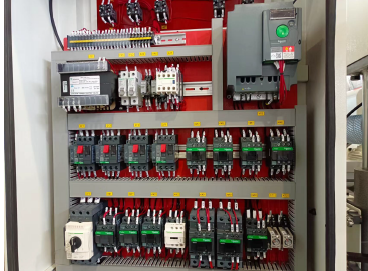

All the electrical components are of internationally renowned brands, ensuring stable performance and long service life.
-

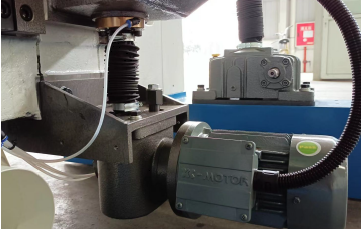

The lowering and raising of the saw shaft component is achieved through an electric lifting mechanism, which is convenient and fast to operate.
-

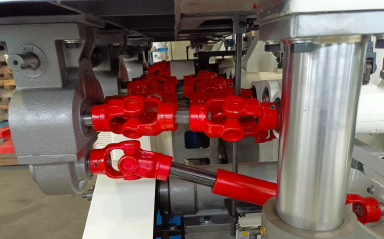

The configuration features 8 downward and 4 upward sets of active feeding belt tooth rollers, totaling 12 sets. All the feeding rollers are driven by universal couplings, ensuring smoother and more powerful feeding.
-

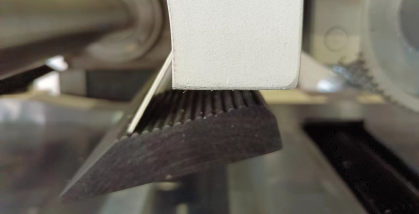

The front pressure plate adopts a backward structure to prevent the cutter from getting stuck.
-

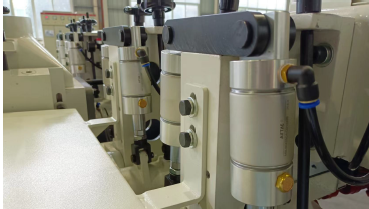

The material feeding is achieved through a continuous mechanical transmission system. The upper feeding roller is compressed by a cylinder.
-

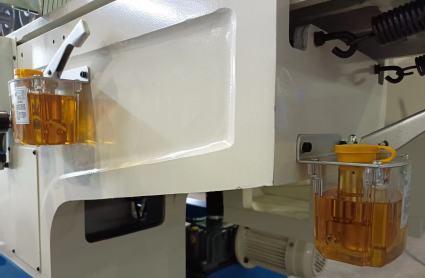

Two manual oil pumps are configured. They are used to manually lubricate the worktable, slide seat, and various lubrication points as needed.
-

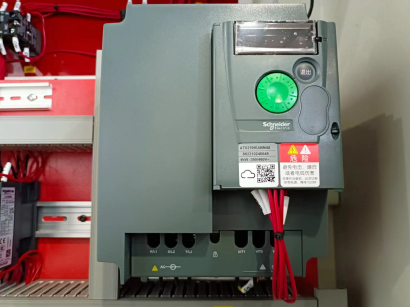

The delivery process is controlled by variable frequency speed regulation, which can be adjusted according to the processing requirements of various wood materials.
| Specification Model | Unit | ML9326CM |
| Maximum Processing Width (Cutter Outer Diameter 125) | mm | 260 |
| Processing Thickness (Cutter Outer Diameter φ125) | mm | 10-100 |
| Maximum One-time Planing Depth of Lower and Upper Horizontal Shaft | mm | 5/6 |
| Maximum Movement of Movable Worktable / Guide Strip | mm | 5/8 |
| Cutter Shaft Diameter | mm | φ50 |
| Saw Shaft Keyway | mm | 12mm×2 PCS |
| Feed Roller Diameter | mm | φ140 |
| Feed Speed | m/min | 4—30 |
| Planer Shaft Rotation Speed | r/min | 6800 |
| Saw Shaft Rotation Speed | r/min | 4200 |
| Total Motor Power | kW | 54 |
| Lower Planer Cutter Shaft Motor | kW | 7.5 |
| Upper Planer Cutter Shaft Motor | kW | 11 |
| Lower Saw Shaft Motor | kW | 30 |
| Lower Saw Shaft Lifting Motor | kW | 0.75 |
| Feed Motor | kW | 4 |
| Beam Lifting Motor | kW | 0.75 |
| Lower Horizontal Planer (Rotation Diameter x Inner Hole Diameter) | mm | φ140xφ50 |
| Upper Horizontal Planer (Rotation Diameter x Inner Hole Diameter) | mm | φ140~φ180xφ50 |
| Maximum Saw Blade (Inner Hole Diameter) | mm | φ200~φ350x (φ50) |
| Overall Dimension (Length x Width x Height) | cm | 340x172x160 |
