Belt Sanding Machine
SPR-RP1000 Planer Sander The front spiral planer + semi-finished sand + finished sand is integrated into a planer sander. Its heavy body is welded with high-quality steel plates, 180mm imported spiral planer, semi-fine sand with large diameter hard rubber roller, fine sand with fixed thickness rubber roller (with polishing pad structure). The use of planer knife first fixed thickness processing, and then sanding, can effectively save the sand belt, reduce power consumption. It has the advantages of stable performance, power saving, low production consumption and high cost performance.
Optional configuration: This series of products can be selected according to the needs of users for unequal thickness of wool weight cutting, 30* 12 weight cutting spiral planer roller to meet the requirements of cutting performance and processing quality.
-
The frame is made of heavy channel steel and high quality plate welding, after special treatment, precision machining, with sufficient rigidity and strength
-
The worktable is made of heavy channel steel and high quality plate welding, especially the encryption welding of the bottom support plate of the worktable, which has sufficient rigidity and strength through special treatment and precision machining
-

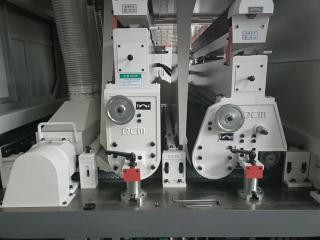

In the sand frame parts of the machine, the coarse sand roller and the fine sand beam support are made of high quality castings, heavy volume, special treatment and precision machining, which can overcome the phenomenon that the rigid deformation of the sanding machine affects the processing quality of the product during use
-

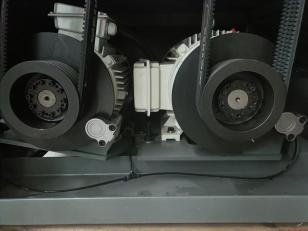

The installation of the motor adopts the fixed structure of the base, which is stable in operation and high in processing precision, convenient in installation and maintenance
-
In the disposition of the front and back sand rolls, the thick wall and large diameter steel rolls are used for the front coarse sand rolls, which are processed by precision machining and dynamic balancing to ensure the quality of strong and constant thickness cutting. The finishing sand roller is made of high quality sand roller and equipped with imported polishing pad. The surface of the sand cutting board is smooth, flat and stable in performance accuracy
-

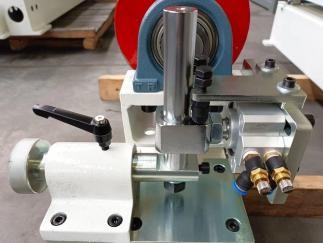

The sand swing assembly adopt the new sand belt swing adjustment structure, and configure the imported photoelectric control system to ensure the normal use of the sand belt, thus reducing equipment failures and realizing man-machine safety
-
The feeding is equipped with hard gear reducer and inverter, and the feeding is strong and suitable for sanding a variety of different plates
-

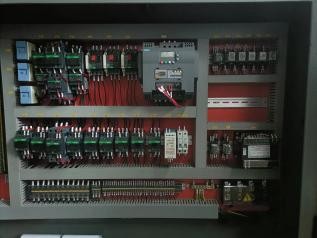

Electronic components using international brand electronic components, stable and reliable performance
-
The operation buttons of the button board are evenly arranged, and the operation parts are simple and easy to operate
|
SPR-RP1000 Planing and Sanding Machine Technical parameter |
||
|
Model |
Unit |
SRP-RP1000 |
|
Sanding width |
mm |
40-1000 |
|
Sanding thickness |
mm |
3-160 |
|
Mini. sanding length |
mm |
No less than520 |
|
The first set of planer speed |
m/s |
36 |
|
The second set of belt speed |
m/s |
18 |
|
The third set of belt speed |
m/s |
16 |
|
Conveyor belt feed speed |
m/min |
6-30 |
|
Belt size |
mm |
1030x2200 |
|
Sand conveyor belt size |
mm |
1000x4890x9 |
|
Motor power |
kw |
60.6 |
|
Planer shaft motor |
kw |
18.5 |
|
The first group of sand belt motors |
kw |
22 |
|
The second group of sand belt motors |
kw |
15 |
|
Conveyor motor |
kw |
4 |
|
Work table lifting motor |
kw |
0.75 |
|
Dust-removing machine |
kw |
0.37 |
|
Working pressure |
Mpa |
0.6 |
|
Vacuum cover caliber |
mm |
9-φ150 |
|
Air volume required for vacuuming |
m³/h |
17000 |
|
Overall dimensions（Length x Width x Height） |
cm |
277x177x217 |
|
Encasement weight |
Kg |
4250 |
