QMB206GX

Double-side Planer

one-step forming

Simultaneous Planing

Excellence in both efficiency and accuracy

Feature Introduction

This product is developed in response to the demand for high-efficiency and mass production from solid wood furniture factories and various solid wood stock processing enterprises, especially the requirement for processing thicker workpieces. Designed and developed adopting internationally advanced structural concepts and technologies, it is a heavy-duty double-sided wood planer.

It features a maximum working width of 630 mm and a maximum working thickness of 200 mm, with advantages including high production efficiency, superior machining quality and stable performance.

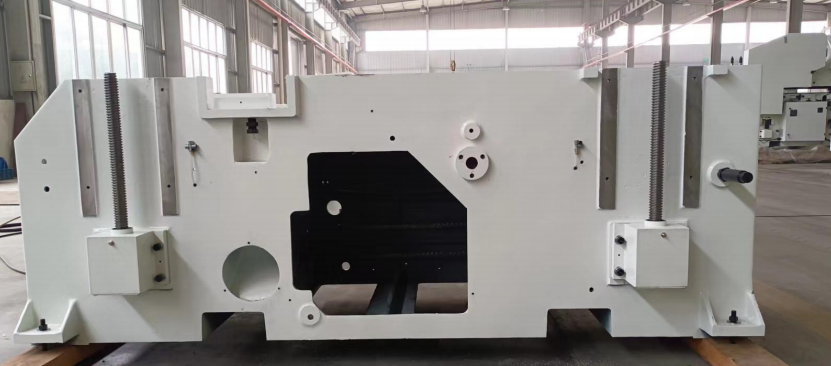

  • The bed frame is made of high-quality castings, integrally cast and precisely machined by a special treatment and a pentahedral gantry machining center, ensuring stable performance and excellent precision.
    The bed frame is made of high-quality castings, integrally cast and precisely machined by a special treatment and a pentahedral gantry machining center, ensuring stable performance and excellent precision.

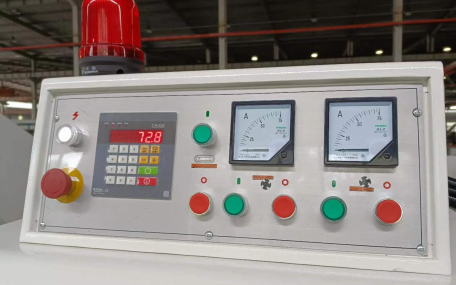

  • The digital display allows for convenient and precise adjustment of the cutting thickness. Simply input the thickness data to be processed into the digital display, and it will automatically adjust to the desired value
    The digital display allows for convenient and precise adjustment of the cutting thickness. Simply input the thickness data to be processed into the digital display, and it will automatically adjust to the desired value

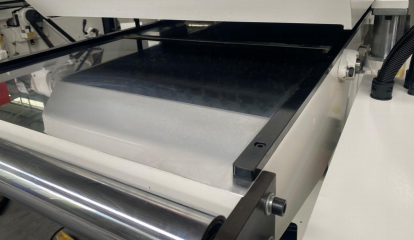

  • The tabletop is made of cast iron, precision-ground, and hard chrome-plated and polished. It is durable and wear-resistant, with smooth feeding and low frictional resistance. It is suitable for various workpiece surface characteristics.
    The tabletop is made of cast iron, precision-ground, and hard chrome-plated and polished. It is durable and wear-resistant, with smooth feeding and low frictional resistance. It is suitable for various workpiece surface characteristics.

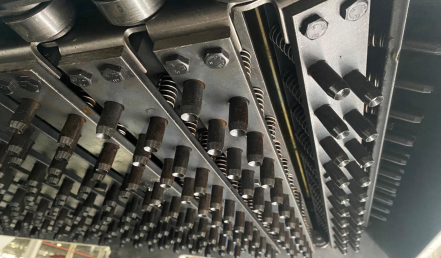

  • The feeding and pressing mechanism adopts a staggered arrangement of ejector pins and overlaps without gaps, ensuring stable and uniform pressure.
    The feeding and pressing mechanism adopts a staggered arrangement of ejector pins and overlaps without gaps, ensuring stable and uniform pressure.
Product parameters
Specifications Unit QMB206GZ
Max. working width mm 630
Working thickness mm 8—200
Min. working length mm 315
Max. cutting depth per pass (upper cutter shaft) mm 5
Max. cutting depth per pass (lower cutter shaft) mm 3
Feeding speed m/min 8~30
Upper and lower cutter shaft speed r/min 5000
Cutter shaft cutting speed m/s 34
Cutter shaft cutting diameter mm φ130
Blade specification mm 15*15*2.5
Suction port diameter mm 2-φ150
Total motor power kW 30.4
Upper cutter shaft motor kW 15
Lower cutter shaft motor kW 11
Feeding motor kW 4
Lifting motor kW 0.37
Overall dimension (L×W×H) cm 280×150×182
Machine weight (approx.) kg 3000
