QMB626H-K
Four-side Moulder
Heavy-duty Frame, Rock-solid Foundation
Wide-range processing, Comprehensive Coverage
Heavy Cutting for Large Timber
Feature Introduction
Standard 6-Spindle Four-Side Moulder
Max. machining width: 260 mm, max. machining thickness: 200 mm; variable-frequency feed speed: 8–36 m/min.
Equipped with 17 active feed rollers (12 upper, 5 lower). The front chip breaker for upper cutters adopts retractable structure to effectively prevent cutter damage.

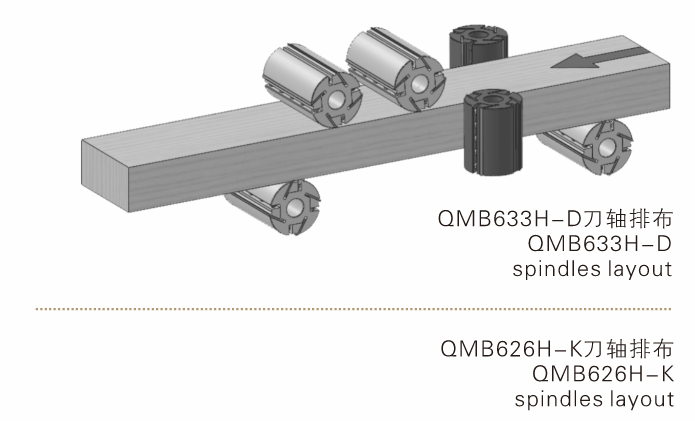

Twin upper cutters and twin lower cutters enable four-sided profiling machining.
It features rational structure, stable performance, convenient operation and superior machining quality.
Technical parameter
| Item/Model | QMB633H-D | QMB626H-K | |
| Processing width(tool diameter 125mm)/mm | 50~330 | 30~260 | |
| Processing height (tool diameter 125mm)/mm | 20~250 | 10~200 | |
| Feed speed/m/min | 8~36 | 8~36 | |
| Spindle diameter/mm | 50 | 50 | |
| Spindle speed/r/min | 6500 | 6500 | |
| Tool cutting circle dia/mm | First bottom spindle | 140 | 125~140 |
| Left and right spindle | 140~230 | 118~200 | |
| Top spindle | 140~230 | 118~200 | |
| Second bottom spindle | 140~230 | 118~250 | |
| Motor power/KW | Feed motor | 11 | 7.5 |
| First bottom spindle | 11 | 7.5 | |
| First right spindle | 11 | 11 | |
| First left spindle | 11 | 11 | |
| First upper spindle | 15 | 11 | |
| Second upper spindle | 11 | 11 | |
| Second bottom spindle | 11 | 11 | |
| Lifting motor | 1.5 | 0.75 | |
| Overall dimention (L×W×H)/cm | 600×228×209 | 525×193×186 | |
| Weight/kg | 9600 | 6650 | |
