QMJ163SK

Single Rip Saw

Classic design, crafted with precision

Expertly solves wood longitudinal cutting and edging tasks

Accuracy meets edge gluing standards

Feature Introduction

trimming processing operations, can also be used for equal width processing operations, the biggest feature is large power, guide rail and chain plate guide length, high sawing speed, high trimming straightnessl, the workpiece feed adopts frequency conversion speed regulation, which can adapt to the sawing requirements of different materials and workpieces of different thickness, and greatly improve the sawing quality.

  • The body made of high strength steel welding, after multiple vibration aging treatment, precision processing, stable structure, good rigidity.
    The body made of high strength steel welding, after multiple vibration aging treatment, precision processing, stable structure, good rigidity.
  • The saw shaft is made of special materials, special treatment, precision processing, dynamic balance treatment, and equipped with brand bearings, which runs smoothly and is durable.
    The saw shaft is made of special materials, special treatment, precision processing, dynamic balance treatment, and equipped with brand bearings, which runs smoothly and is durable.

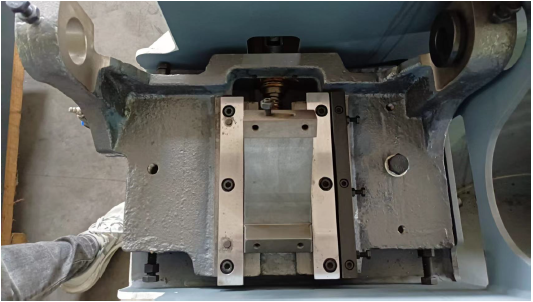

  • The chain plate and guide rail of the rail conveyor block are made of high wear-resistant cast iron, heat treatment and precision processing to ensure that the long-term use of abrasion is small.
    The chain plate and guide rail of the rail conveyor block are made of high wear-resistant cast iron, heat treatment and precision processing to ensure that the long-term use of abrasion is small.
  • The press roller box is equipped with 5 groups of top press roller components to ensure smooth feeding.
    The press roller box is equipped with 5 groups of top press roller components to ensure smooth feeding.

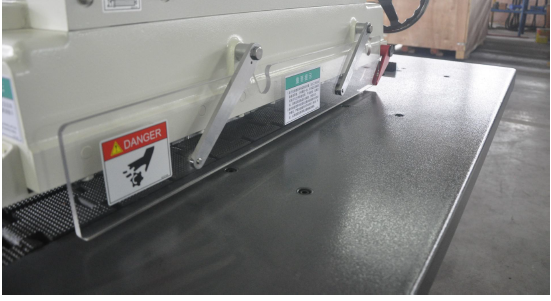

  • The feed side is equipped with three groups of Anti kick-back fingers safety anti-rebound device, safe and reliable, to ensure the safety of the operator.
    The feed side is equipped with three groups of Anti kick-back fingers safety anti-rebound device, safe and reliable, to ensure the safety of the operator.

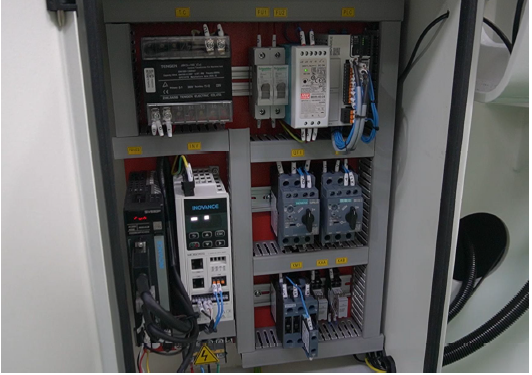

  • All electrical components are made of well-known brands, stable performance and long service life.
    All electrical components are made of well-known brands, stable performance and long service life.
  • The lifting of the top saw shaft can be manually lifted according to the cutting thickness, which is convenient and fast to operate.
    The lifting of the top saw shaft can be manually lifted according to the cutting thickness, which is convenient and fast to operate.
  • The table is welded from high-strength steel to ensure durability.
    The table is welded from high-strength steel to ensure durability.
  • Equipped with automatic lubricating oil pump, respectively, the guide rail, drag chain, each lubrication point for automatic lubrication.
    Equipped with automatic lubricating oil pump, respectively, the guide rail, drag chain, each lubrication point for automatic lubrication.
  • The feeding adopts frequency conversion speed regulation, which can be adjusted according to the processing requirements of various wood materials.
    The feeding adopts frequency conversion speed regulation, which can be adjusted according to the processing requirements of various wood materials.
Technical parameter
Specification and model Unit  MJ163S
Max. cutting thickness mm 75
Min. cutting length  mm 120（180when trimming）
Max. blade dia mm 355
Min. blade dia mm 305
Saw shaft dia. mm 50.8
Feed speed m/min 6~30
Spindle speed r/min 4000
Total motor power KW 9.4
Spindle motor KW 7.5
Feeding motor KW 1.5

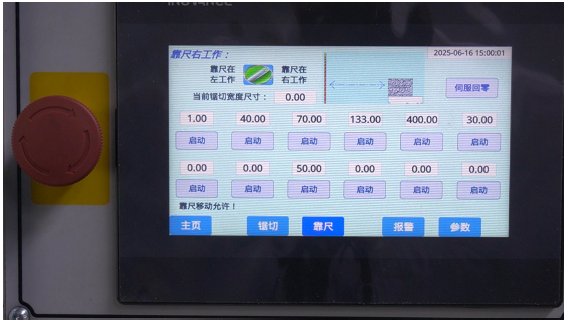

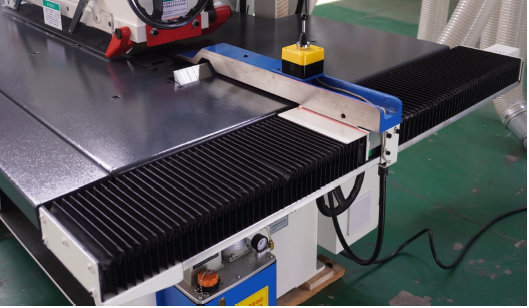

Power for servo-driven fence travel KW 0.4
Throat depth mm 510
Worktable surface dimension mm L1760×W920
Top suction port diameter mm Φ120
Bottom suction port diameter mm Φ150
Overall dimension (L x W x H) cm 198×136×138
Weight  KG 1380
