QMB523W

Four-side Moulder

Smart design is suitable for all kinds processing solution

Equipped with independent motor and universal spindle can rotate 360°

Calmly cope with all kinds of wood products processing needs

The QMB523W product is a (4+1) universal-axis five-axis four-sided woodworking planer. It features a fully enclosed safety guard. The feeding system consists of 11 lower and 3 upper groups, totaling 14 sets of active feeding rollers, a reducer, and a universal joint for transmission. The feeding is achieved through variable frequency speed control, with a speed range of 6 - 36 meters per minute. It has the advantages of a reasonable structure, stable performance, smooth feeding, and excellent processing quality.

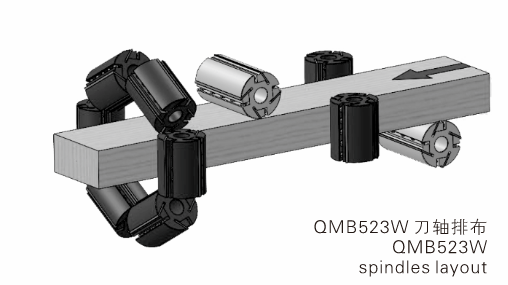

  • QMB523W spindles layout
    QMB523W

    spindles layout

  • The machine bed is made of high strength cast iron, stable structure and good rigidity.
    The machine bed is made of high strength cast iron, stable structure and good rigidity.
  • After special treatment, hard chrome plating, wear resistance, long service life.
    After special treatment, hard chrome plating, wear resistance, long service life.

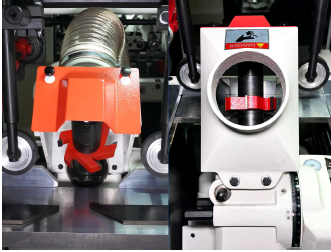

  • This machine is equipped with 5 high-precision tool axes, rotating at 6800 revolutions per minute. The surface of the processed workpiece is much smoother and perfect. Among them, one tool axis is a universal tool axis, which can be adjusted to be used for horizontal, vertical, right vertical, and left vertical processing according to different needs, and can also be used for 360° forming processing.
    This machine is equipped with 5 high-precision tool axes, rotating at 6800 revolutions per minute. The surface of the processed workpiece is much smoother and perfect. Among them, one tool axis is a universal tool axis, which can be adjusted to be used for horizontal, vertical, right vertical, and left vertical processing according to different needs, and can also be used for 360° forming processing.
  • The front pressing plate assembly of the upper horizontal spindle adopts a backward structure to effectively prevent cutting.
    The front pressing plate assembly of the upper horizontal spindle adopts a backward structure to effectively prevent cutting.
  • Feeding configuration 11 groups of upper feeding roller 3 groups of lower feeding roller a total of 14 groups of active feeding roller and reducer and universal joint transmission, smooth feeding, strong.
    Feeding configuration 11 groups of upper feeding roller 3 groups of lower feeding roller a total of 14 groups of active feeding roller and reducer and universal joint transmission, smooth feeding, strong.
  • The tabletop and all sliding parts are lubricated by a centralized oil pump, which is convenient and efficient.
    The tabletop and all sliding parts are lubricated by a centralized oil pump, which is convenient and efficient.
  • The feeding system adopts frequency control, the speed can reach 6-36m/min, which is more suitable for the processing requirements of various wood materials.
    The feeding system adopts frequency control, the speed can reach 6-36m/min, which is more suitable for the processing requirements of various wood materials.

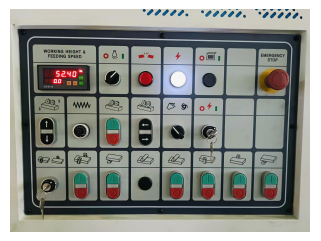

  • All electrical components are of well-known brands, with stable performance and long lifespan.
    All electrical components are of well-known brands, with stable performance and long lifespan.
  • The use of a fully enclosed safety guard effectively prevents wood chips from flying and isolates noise, providing a safety protection function.
    The use of a fully enclosed safety guard effectively prevents wood chips from flying and isolates noise, providing a safety protection function.
Technical parameter
Item/Model QMB523W QMB623W QMB723W
Processing width(tool diameter 160mm)/mm 20~230 20~230 20~230
Processing height(tool diameter 160mm)/mm 8~160 8~160 8~160
Feed speed/m/min 6~36 6~36 6~36
Spindle diameter/mm 40 40 40
Spindle speed /r/min 6800 6800 6800
Tool cutting circle dia/mm First bottom spindle Flat cutter 125/Trimmingcutter152 Flat cutter 125/Trimming cutter152 cutter 125/Trimming cutter 152
Left and right spindle 108~200 108~200 108~200
 Top spindle 108~180 108~180 108~180
Second bottom spindle / 108~200 108~200
Universal spindle 108~160 108~160 108~160
Motor power/KW Feed motor 4 5.5 5.5
First bottom spindle 5.5 5.5 5.5
First right spindle 5.5 5.5 5.5
First left spindle 7.5 7.5 7.5
First upper spindle 7.5 7.5 7.5
Second upper spindle / / 7.5
Second bottom spindle / 7.5 7.5
Universal spindle 7.5 7.5 7.5
Lifting motor 0.75 0.75 0.75
Overall dimension(L×W×H)/cm 468×186×183 519×186×183 583×186× 183
Weight/kg 5500 6000 6300
Optional:Left spindle and upper spindle can add CNC configuration
