Double-end Tenoner
Stability
Efficiency
Double-end machining
Custom click machining solution Multiple processing options Flexible and efficient
Process tenon on the left, and mortise on the right
Left tenon processing:Top/bottom saw scoring, front/rear pre-cutting, profiling, and V-grooving
Right mortise processing:Mortise milling & insert-groove milling
With variable-frequency feeding, it completes alloperations in one pass: upper/lower sawing, marking, pre-cutting, milling and V-grooving on the left male tenon, while simultaneously milling the right female groove and tenoning the insert-grooving enabling double-end tenoning operations,suitableforformprocessing both male and female tenons simultaneously on both ends of workpieces. Specifically designed for Threespine click production in decorative moIdings, blockboards, solid wood flooring, and veneered panel furniture.
-

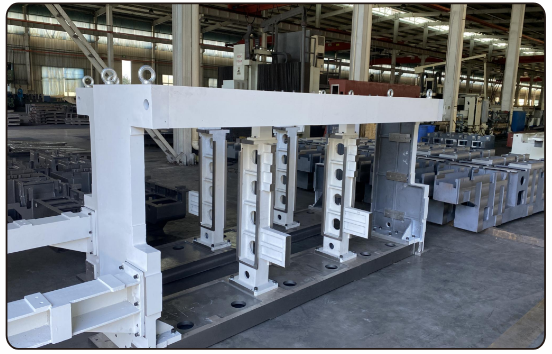

The machine's left/right base and wall panel are constructed from high-quality castings. After rough machining and assembly into an integrated structure, they undergo precision machining ona 5-side gantry machining center, delivering optimal machining performance,
exceptional stability, and high-precision results.
-

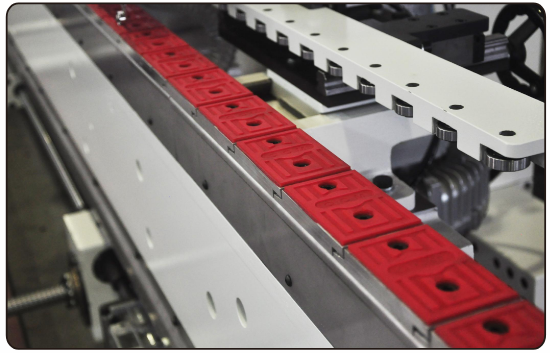

The feeding belt utilizes high-precision chain and aluminum alloychain plates with needle roller bearings and deep-groove ball bearingfor guidance, ensuring enhanced plate and connection pin flexibilityand stable plate guidance for consistent performance, smooth material feeding, and superior machining quality.
-

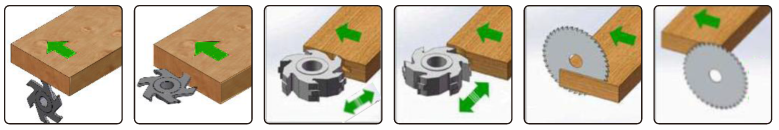

All spindles (saw and milling) employ variable-frequency high-speedmotors for cutting operations, enabling versatile wood processing including top/bottom sawing, marking, pre-cutting, milling and V-grooving, delivering high productivity and precision machining.
-

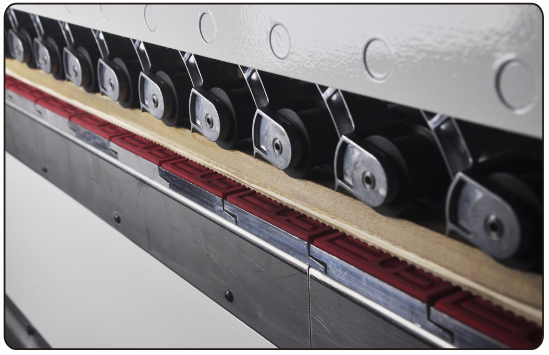

The machine's left/right upper pressing system features a four-column synchronous lifting pressing structure, with pressing roller incorporate built-in rolling bearings to achieve synchronized lifting pressure, ensuring flexible rotation, stable material holding, and smooth feeding performance.
-

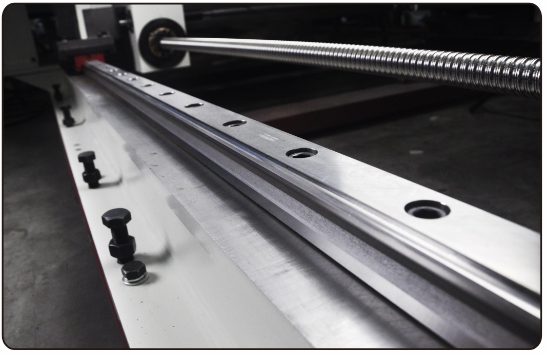

The machine's right worktable features imported linear guides, dual ballscrew drives, and CNC width-setting mechanism for effortless adjustment, precise positioning, and reliable performance.
-

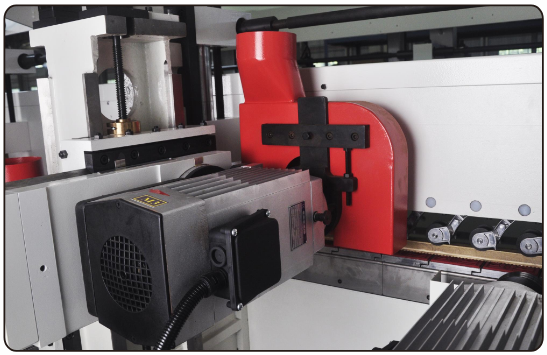

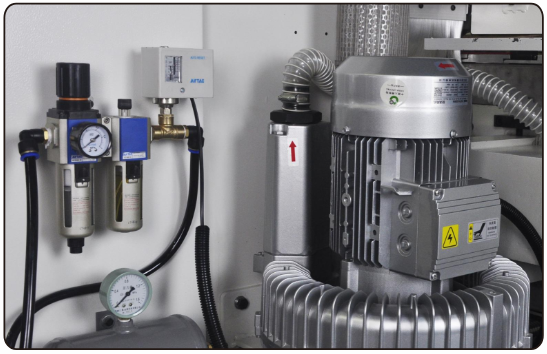

The machine'sleft/right chain beams are equippedwith 2.2kWhigh-pressure vortex blowers on both sides, providing high-pressure dust blowingand heat dissipation cooling treatment for both side guides and chains dust,ensuring precision chain movement meets machining accuracy requirements.
-

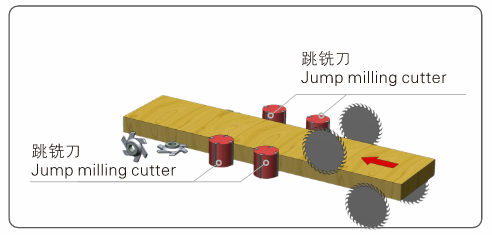

Spindle layout
-
Spindle layout
-
No need to drill holes
No hardware required

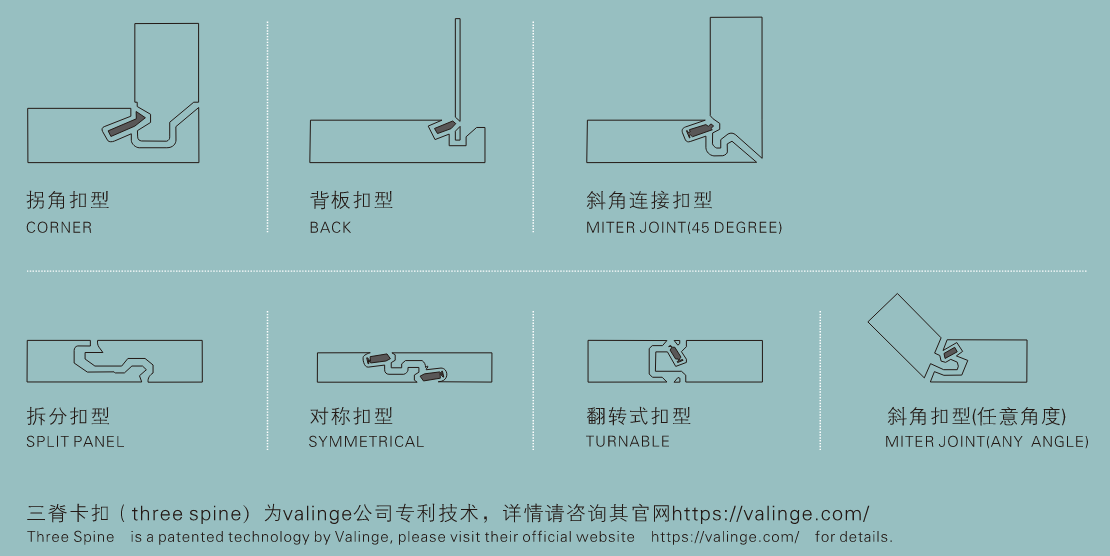

A variety of connection buckle
Covering various furniture scenarios
Compatible with various types of boards
Use thinner materials
| Item/Model | QMX1225GMK | Item/Model | QMX1225GK |
| Working width | 280~2500mm | Working width | 280~250mm |
| Working thickness | 10~50mm | Working thickness | 10~50mm |
| Feed block spacing | 1200mm | Feed block spacing | 1200mm |
| Feeding speed | 3~36m/min | Feeding speed | 3~36m/min |
| Sawing speed | 3000–6000r/min | Sawing speed | 3000-6000r/min |
| Pre-cutting speed | 6000–9000r/min | Pre-cutting speed | 6000-9000r/min |
| Milling & milling V-groove speed | 4500–7500r/min | Milling & milling V-groove speed | 4500-7500r/min |
| Saw blade specification | Φ200~250xΦ40mm | Saw blade specification | Φ200~250xΦ40mm |
| Pre-cutting milling cutter specification | Φ90~125xΦ40mm | Pre-cutting milling cutter specification | Φ90~125xΦ40mm |
| Milling & milling V-groove cutter specification | Φ180~250xΦ40mm | Milling & milling V-groove cutter specification | Φ180~250xΦ40mm |
| Sawing & pre-cutting motor power | 5.5kWx4 | Sawing,pre-cutting, milling & milling V-groove spindle DIA. | Φ40mm |
| Milling & milling V-groove motor power | 7.5kWx2 | Sawing & pre-cutting motor power | 5.5kWx8 |
| Groove speed | 6000–9000r/min | Milling & milling V-groove motor power | 7.5kWx4 |
| Insert-groove speed | 6000–9000r/min | Feeding motor power | 7.5kW |
| Groove milling cutter specification | Φ125~150xΦ30mm | Width setting motor power | 1.0kW |
| Insert-groove milling cutter specification | Φ125~180xΦ40mm | Pressing belt driving motor power | 1.8kWx2 |
| Groove motor power | 3.7kWx3 | Suction port DIA. | Φ120mmx12 |
| Insert-groove motor power | 5.5kW | Air speed of suction system | 30-35m/s |
| Feeding motor power | 7.5kW | Air requirement of suction system | 360m³/min |
| Width setting motor power | 1.0kW | Outline dimension | 550x432x180cm |
| Pressing belt driving motor power | 1.8kWx2 | Weight | 10000kg |
| Suction port DIA. | Φ120mmx12 | ||
| Air speed of suction system | 30–35m/s | ||
| Air requirement of suction system | 360m³/min | ||
| Outline dimension | 550x432x180cm | ||
| Weight | 10000kg |
