Double-end Tenoner
Stability
Efficiency
Double-end machining
One machine handles sawing+ milling and sanding.
Adaptable arrangement Customizable solutions
Integrates dual-end milling,triangular plane sanding, andmulti-functional sanding heads into one complete system;
The jump milling cutter and milling cutter areequipped with cabinet door frame pneumatic clamping devices, effectively preventing woodpiece deformation;
This machine is designed for integrated double-end sawing, milling and sanding processing of solid wood cabinet doors, bathroom doors, American-stylecabinet doors ad soid woodfurniture products.
-

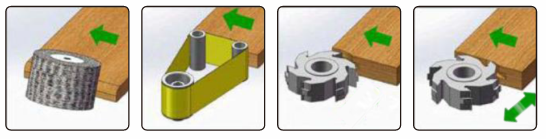

First station
Milling spindle (with jump cutter)
-
Second station
Milling spindle for profiling
-
Third station
Triangular sanding frame assembly
-
Fourth station
Multi-functional sanding head for profiling polishing
-
Integrated double-end trimming, milling, triangular plane sanding & multi-functional sanding heads in one complete system

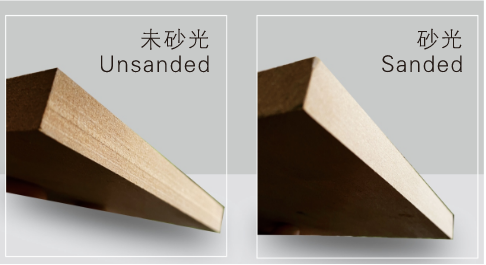

After the double-end sawing, milling and sanding by this machine, workpieces can directly proceed to the next process
-

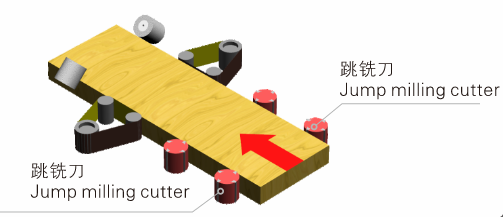

Spindle layout
-
Spindle layout
| Item/Model | QMX8025S |
| Working width | 300～2500mm |
| Working thickness | 10～80mm |
| Feed block spacing | 500/1000mm |
| Feeding speed | 3～36m/min |
| Milling spindle speed | 6000～9000r/min |
| Multi-function sanding head speed | 0～1400r/min(variable frequency ) |
| Triangular sanding belt speed | 8～13.5m/s |
| Triangular sanding frame width | 180mm |
| Milling spindle DIA. | Φ40mm |
| (x)Milling cutter specification | Φ150～180×Φ40mm |
| Max. length of milling cutter | 80mm |
| Triangular sanding belt specification | 1460 mm (perimeter)×90 mm (width) |
| Multi-function sanding head Max. specification | Φ200(outer DIA)×Φ25.4(inner hole)×90mm (length) |
| First jump milling spindle motor power | 5.5kW×2 |
| Second milling spindle motor power | 7.5kW×2 |
| Triangular sanding motor power | 2.2kW×2 |
| Triangular sanding oscillation motor power | 0.12kW×2 |
| Multi-function sanding head motor power | 1.5kW×2 |
| Feeding motor power | 4.0kW |
| Width setting motor power | 1.0kW |
| Pressing belt lifting motor power | 0.37kW×2 |
| Operation voltage | AC380V、50Hz |
| Suction port DIA. | Φ120mm×8 |
| Air speed of suction system | 30~35m/s |
| Air requirment of suction system | 240m³/min |
| Outline dimension | 495×465×190cm |
| Weight | 7000kg |
