QMB633H-D

Four-side Moulder

Heavy-duty Frame, Rock-solid Foundation

Wide-range processing, Comprehensive Coverage

Heavy Cutting for Large Timber

Feature Introduction

Heavy-Duty 6-Spindle Four-Side Moulder

Max. machining width: 330 mm, max. machining thickness: 250 mm.

Fitted with 17 active feed rollers (11 upper, 6 lower), and the movable worktable is equipped with dual driving feed rollers.

CNC touchscreen system controls upper cutters and left vertical cutters.

Upper and lower cutters adopt hydraulic clamping external support technology for heavy-duty cutting.

It features rational structure, stable performance, smooth feeding, easy operation and superior machining quality.

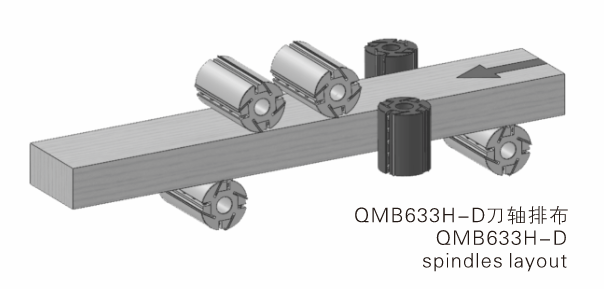

  • QMB633H-Dspindles layout
    QMB633H-Dspindles layout

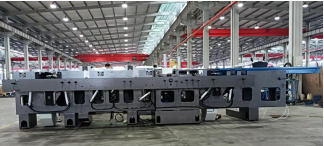

  • The body is made of high quality castings, which are processed by special treatment and its performance is stable and accurate.
    The body is made of high quality castings, which are processed by special treatment and its performance is stable and accurate.

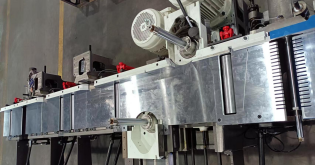

  • After special treatment, hard chrome plating, wear resistance, long service life.
    After special treatment, hard chrome plating, wear resistance, long service life.

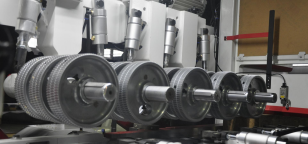

  • High precision spindle, speed is 6800 r/min, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect.
    High precision spindle, speed is 6800 r/min, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect.

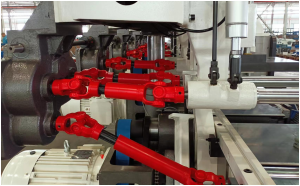

  • The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful.
    The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful.
  • The computer touch screen numerical control operating system is configured to operate and control each spindle, and the upper spindle and left vertical spindle are automatically fixed in thickness and width. The operation is convenient and fast.
    The computer touch screen numerical control operating system is configured to operate and control each spindle, and the upper spindle and left vertical spindle are automatically fixed in thickness and width. The operation is convenient and fast.
  • All electrical components are international well-known brands, stable performance, long service life.
    All electrical components are international well-known brands, stable performance, long service life.

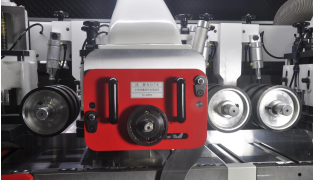

  • The pressure plate before the spindle is backward to prevent the spindle collision.
    The pressure plate before the spindle is backward to prevent the spindle collision.
  • Adopt new tooth shape design, special process treatment, high feeding efficiency, long service life, cylinder pressure can be as low as 0.2mpa.
    Adopt new tooth shape design, special process treatment, high feeding efficiency, long service life, cylinder pressure can be as low as 0.2mpa.
Technical parameter
Item/Model QMB633H-D QMB626H-K
Processing width(tool diameter 125mm)/mm 50~330 30~260
Processing height (tool diameter 125mm)/mm 20~250 10~200
Feed speed/m/min 8~36 8~36
Spindle diameter/mm 50 50
Spindle speed/r/min 6500 6500
Tool cutting circle dia/mm First bottom spindle 140 125~140
Left and right spindle 140~230 118~200
Top spindle 140~230 118~200
Second bottom spindle 140~230 118~250
Motor power/KW Feed motor 11 7.5
First bottom spindle 11 7.5
First right spindle 11 11
First left spindle 11 11
First upper spindle 15 11
Second upper spindle 11 11
Second bottom spindle 11 11
Lifting motor 1.5 0.75
Overall dimention (L×W×H)/cm 600×228×209 525×193×186
Weight/kg 9600 6650
