MXK3190A

Dovtail Joint Machine

Stable performance and easy operation.

An ideal high-efficiency processing machine for the solid wood furniture manufacturing industry.

Feature Introduction

This product is a high-precision CNC dovetail machine developed according to the needs of solid wood furniture manufacturing industry. The machine has the advantages of stable performance, high processing efficiency and high cost performance. By setting different processing data, it is possible to process dovetail tenon and a variety of different types of tenon. It is the ideal equipment for efficient processing of solid wood furniture manufacturing industry.

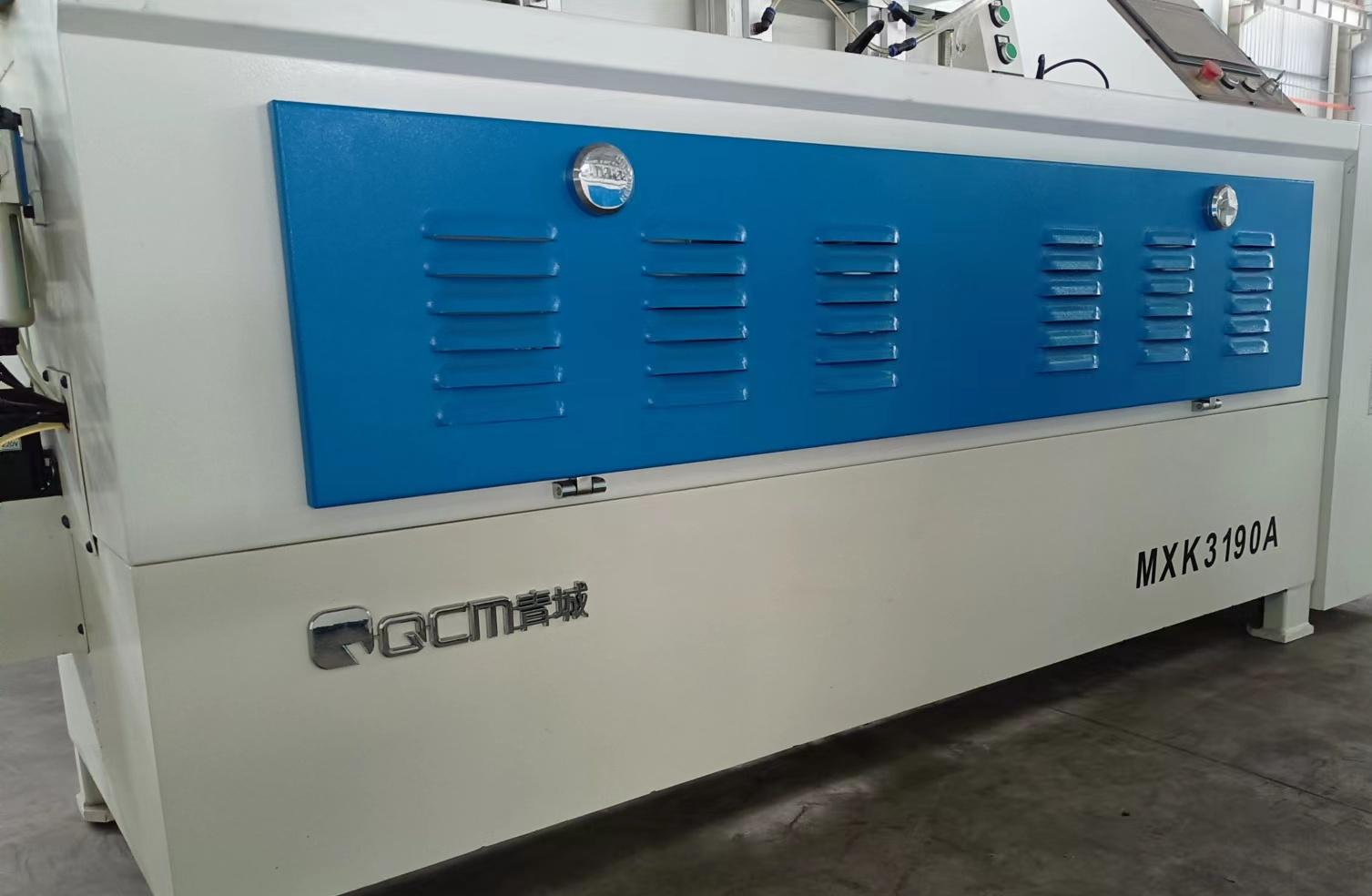

  • It is welded with high strength steel plate, stable structure and good rigidity
    It is welded with high strength steel plate, stable structure and good rigidity

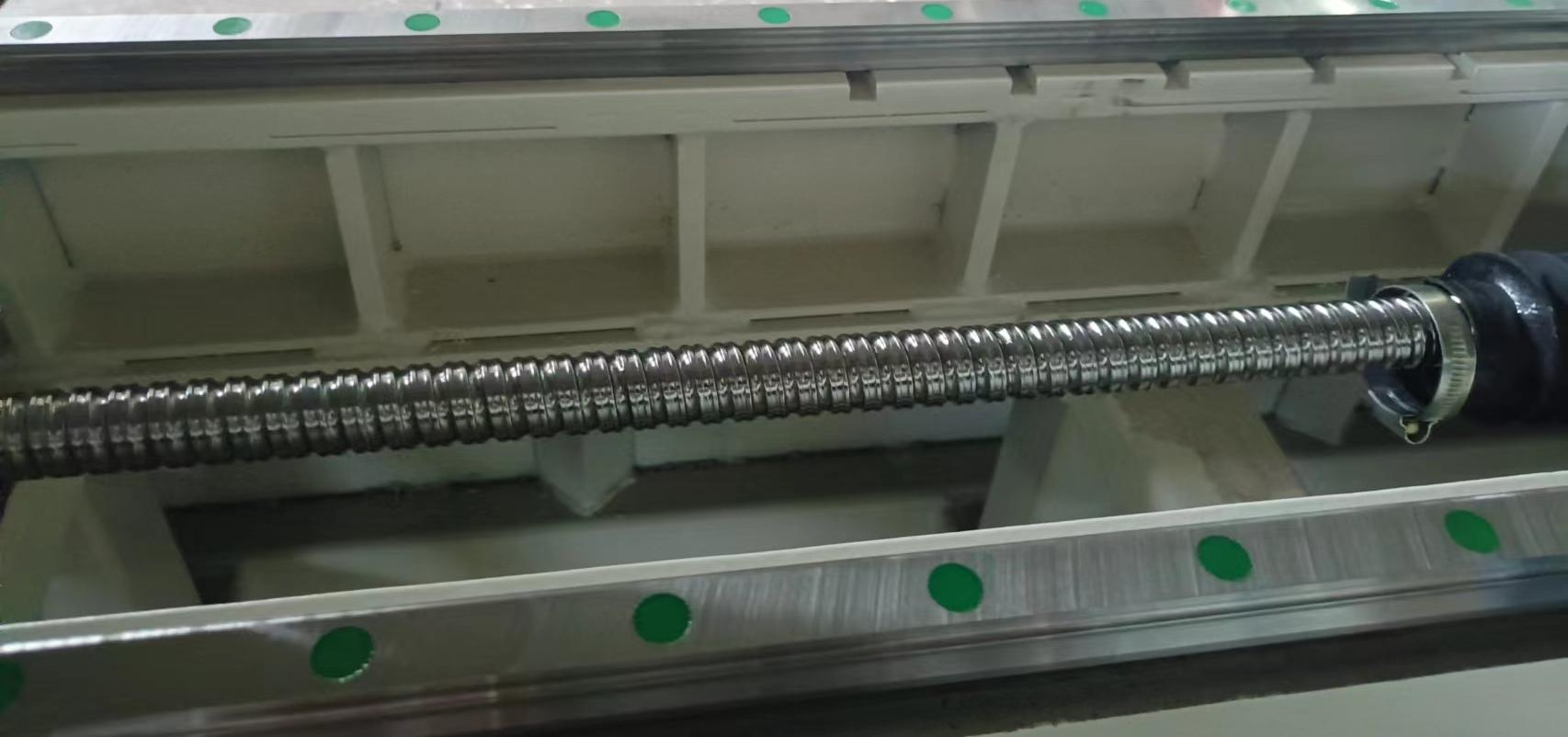

  • XY axis adopts brand linear guide rail, ball screw drive. It has the advantages of flexible movement and stable performance
    XY axis adopts brand linear guide rail, ball screw drive. It has the advantages of flexible movement and stable performance

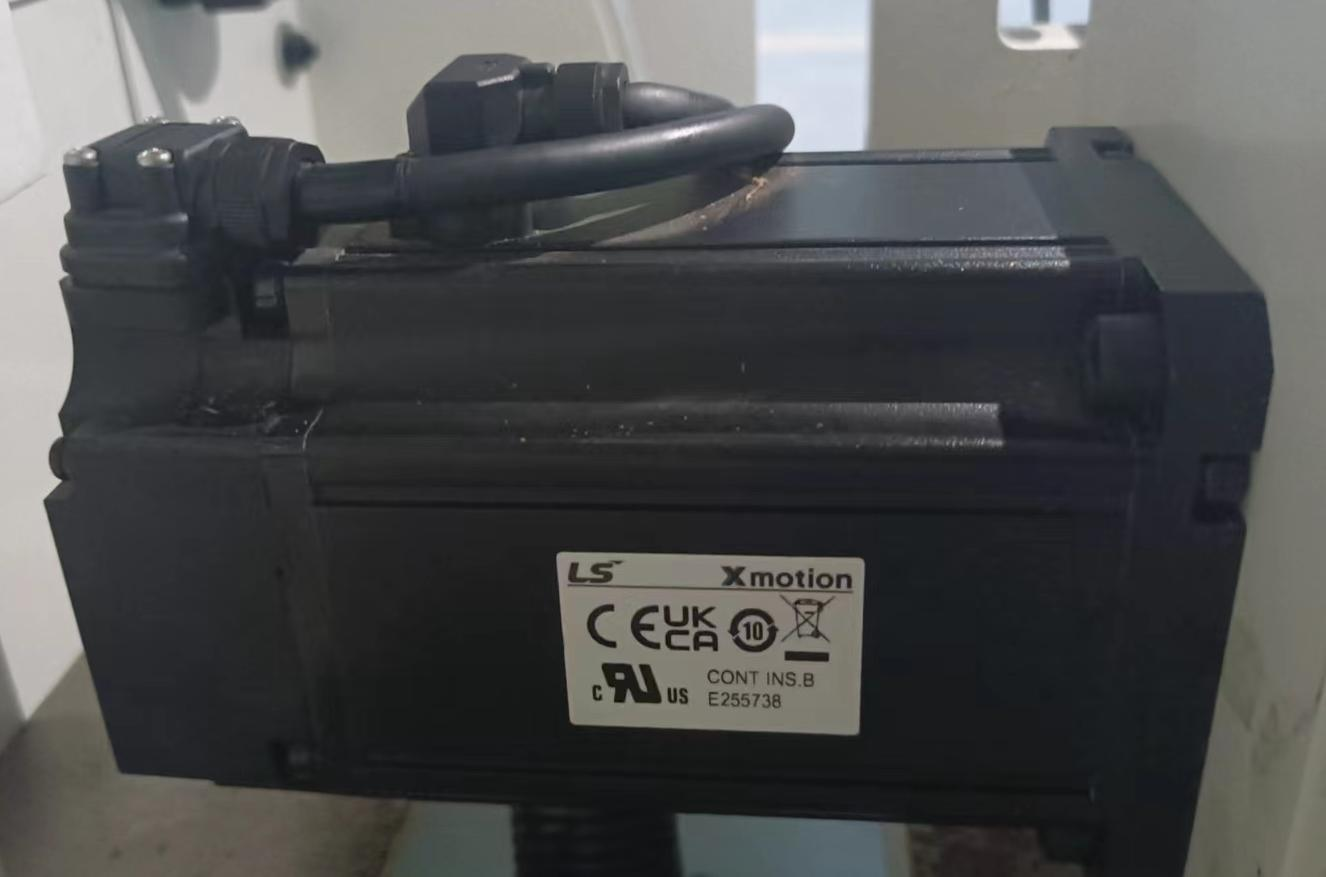

  • The use of enhanced servo motor, stable and reliable operation. According to the material changes of the workpiece, the feed speed can be adjusted stepless
    The use of enhanced servo motor, stable and reliable operation. According to the material changes of the workpiece, the feed speed can be adjusted stepless

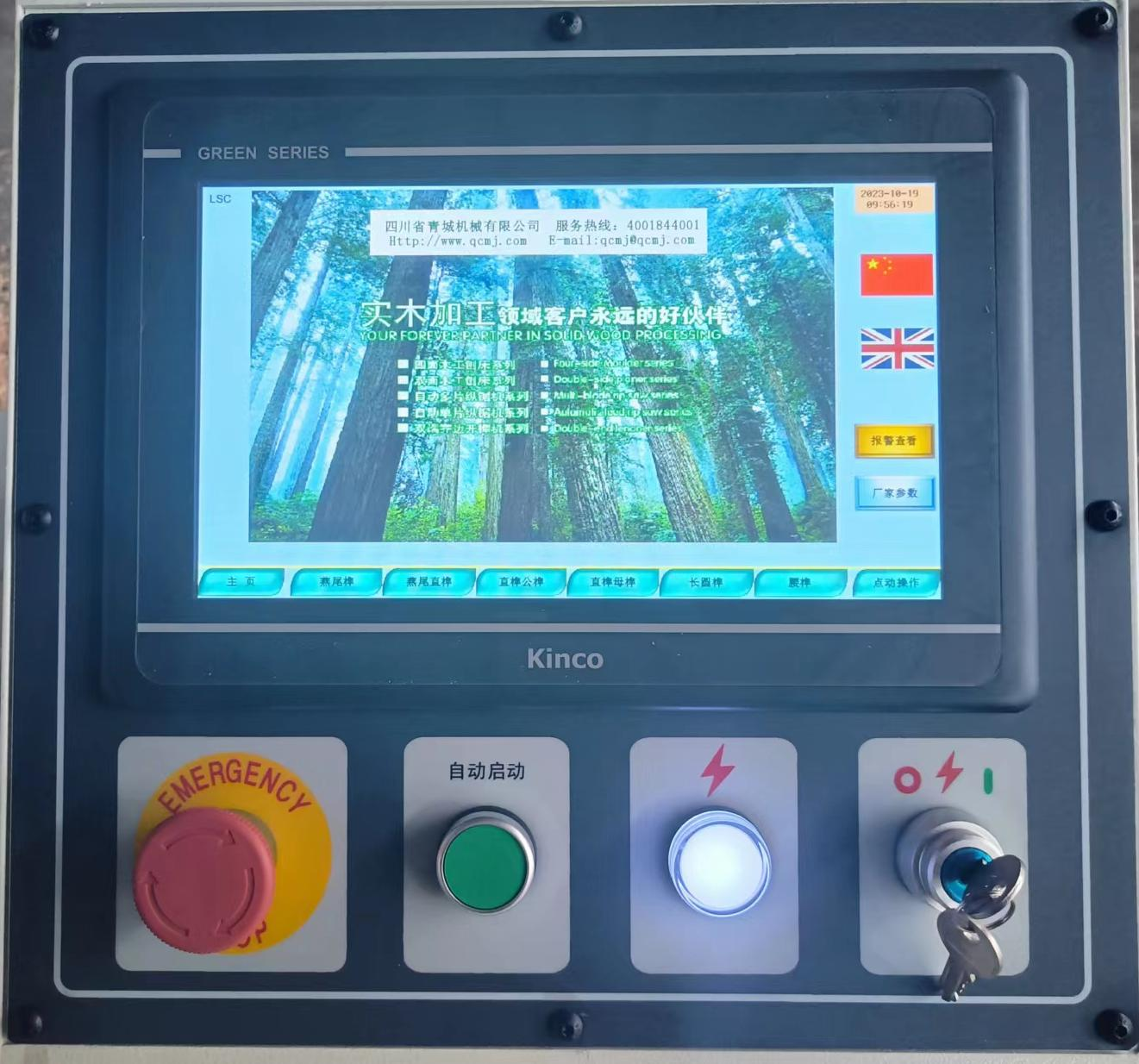

  • Set and modify data through the touch screen. Easy to operate, convenient and fast. No special training for operators is required
    Set and modify data through the touch screen. Easy to operate, convenient and fast. No special training for operators is required

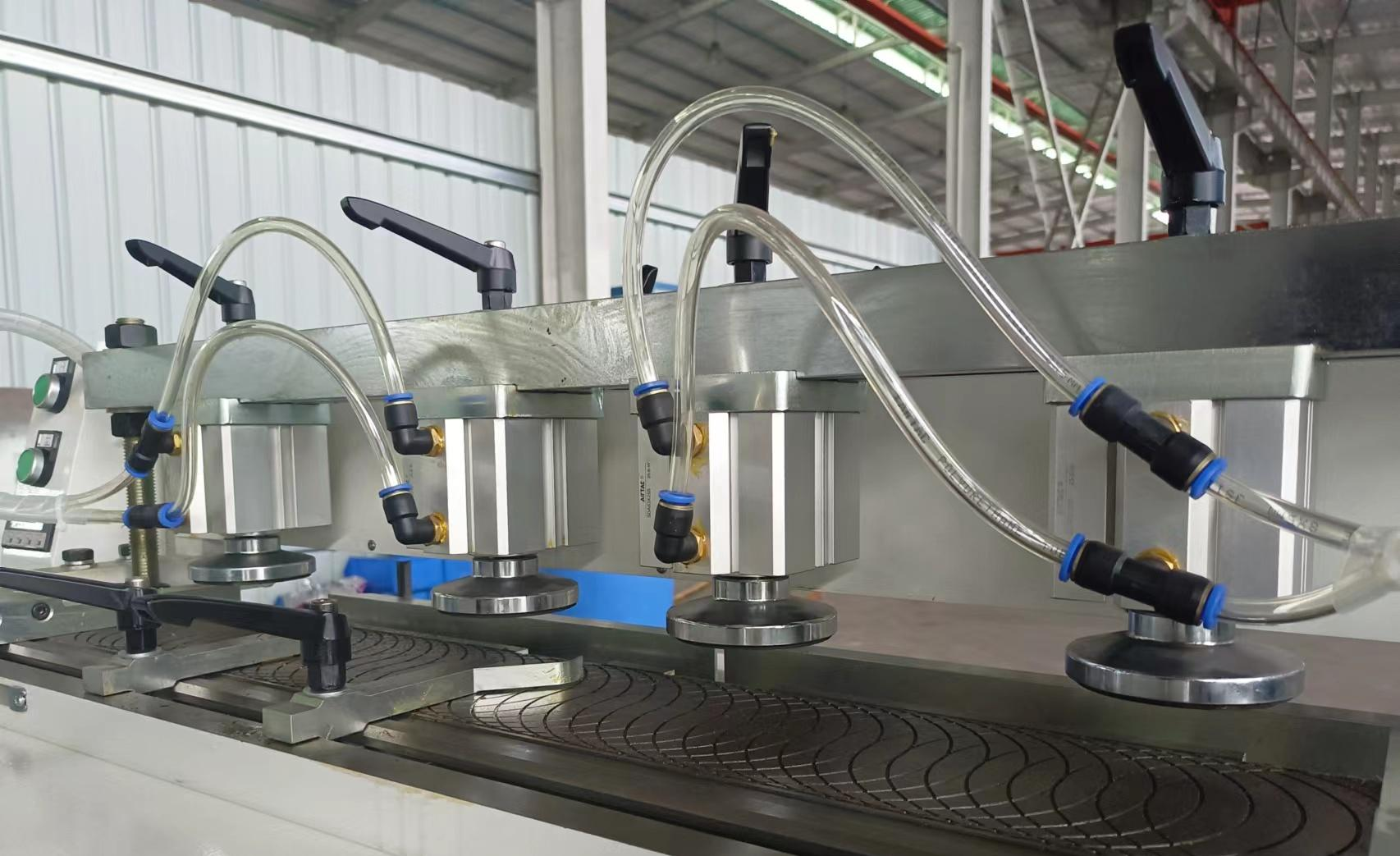

  • For double station processing, each station is equipped with four press cylinders. Ensure stable pressing and good processing quality
    For double station processing, each station is equipped with four press cylinders. Ensure stable pressing and good processing quality

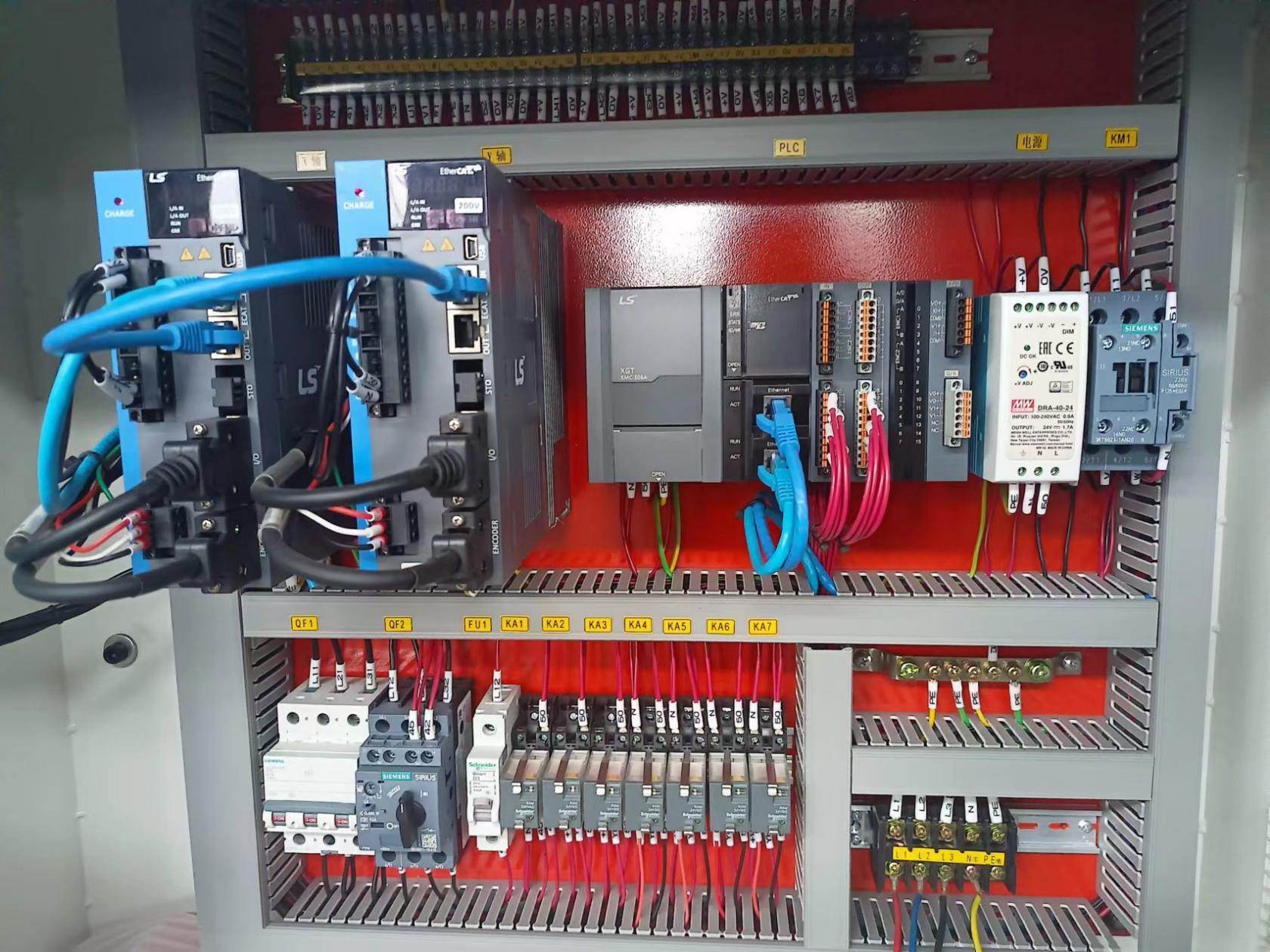

  • All electrical components are made of well-known brands, stable performance and long service life
    All electrical components are made of well-known brands, stable performance and long service life
Technical parameter
Item/Model MXK3190A MXK3155A
Working width 900mm 500mm
Working thickness 10-40mm
Spindle speed 18000r/min
Spindle quantity 1 pc
Tenon space Adjustable
Total power 3.2kW 2.6kW
