QMB523A

Four-side Moulder

Timelessly verified, classically inherited

Universal compatibility,steadfast support

Every running is a promise of reliability,

Enables you to confidently handle various production needs.

Main feature

QMB523A is a standard five-axis four-side moulder. The max. processing width is 230mm, the max. processing thickness is 160mm, and the speed is 6-36m /min (frequency conversion). It is equipped with 14 groups of active feed roller, 10 up and 4 down. The chip breaker adopts the backward chip breaker structure before the cutting tool, which can effectively prevent the cutting phenomenon of the cutting tool. The structure of single upper tool and lower double tool is adopted to realize four-side forming. It has the advantages of reasonable structure, stable performance, convenient operation and good processing quality.

Recommended: The product is mainly used for processing width within 230mm of a variety of wood products of high quality processing, such as: solid wood door factory, picture frame, stair handrail factory, wood flooring factory wood lines, wall panels and other industries of four sides planing molding processing.

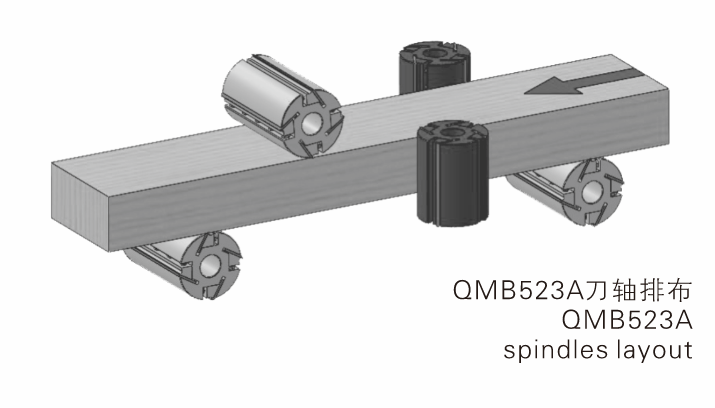

  • QMB523A spindles layout
    QMB523A

    spindles layout

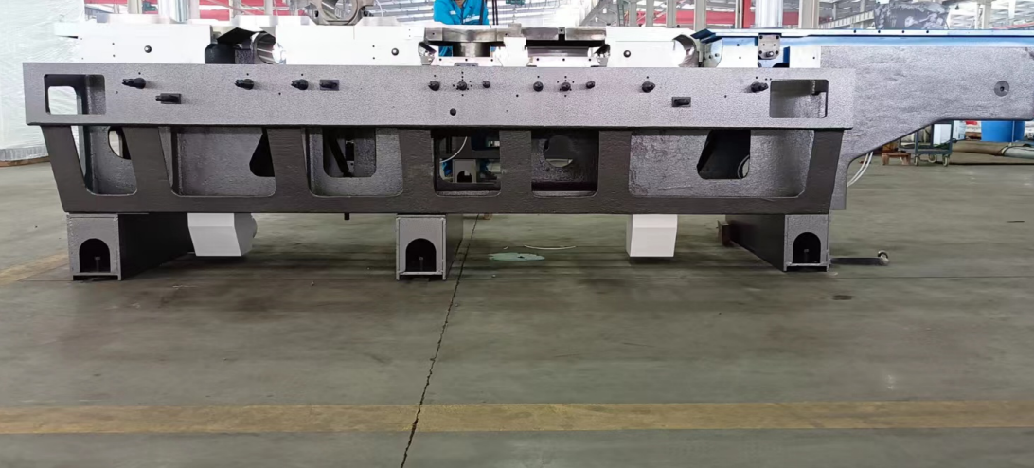

  • The body is made of high quality castings, which are processed by special treatment and precision machining by the pentahedral gantry machining center, and its performance is stable and accurate
    The body is made of high quality castings, which are processed by special treatment and precision machining by the pentahedral gantry machining center, and its performance is stable and accurate
  • High precision tool shaft, speed is 6800 r/min, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect
    High precision tool shaft, speed is 6800 r/min, high rigidity design, ensure cutting stability, G1 level dynamic balance processing, automatic running-in test. The surface of the workpiece is more smooth and perfect

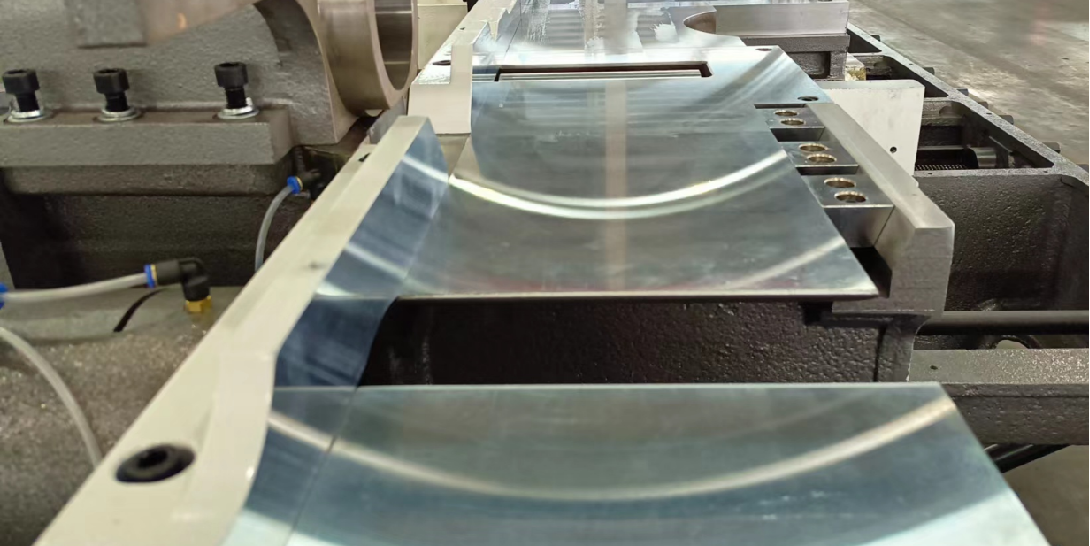

  • After special treatment, hard chrome plating, wear resistance, long service life
    After special treatment, hard chrome plating, wear resistance, long service life

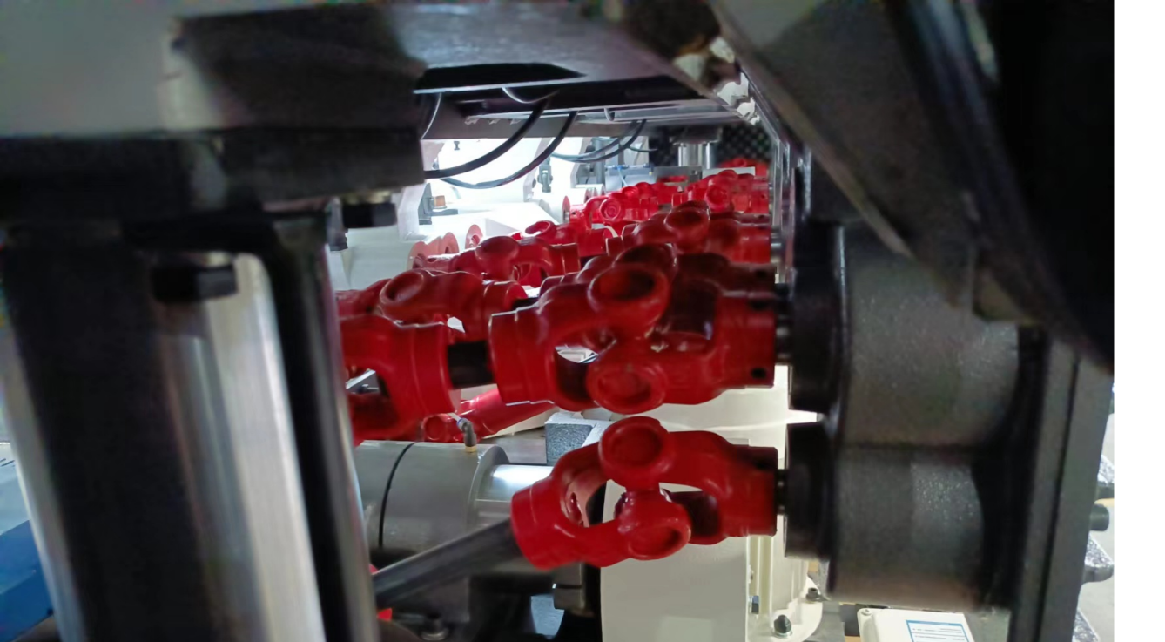

  • The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful
    The feeding system adopts chainless universal transmission shaft, which makes the feeding smooth and powerful
  • The short material device is designed to make feeding smoother and operation safer when processing short parts
    The short material device is designed to make feeding smoother and operation safer when processing short parts

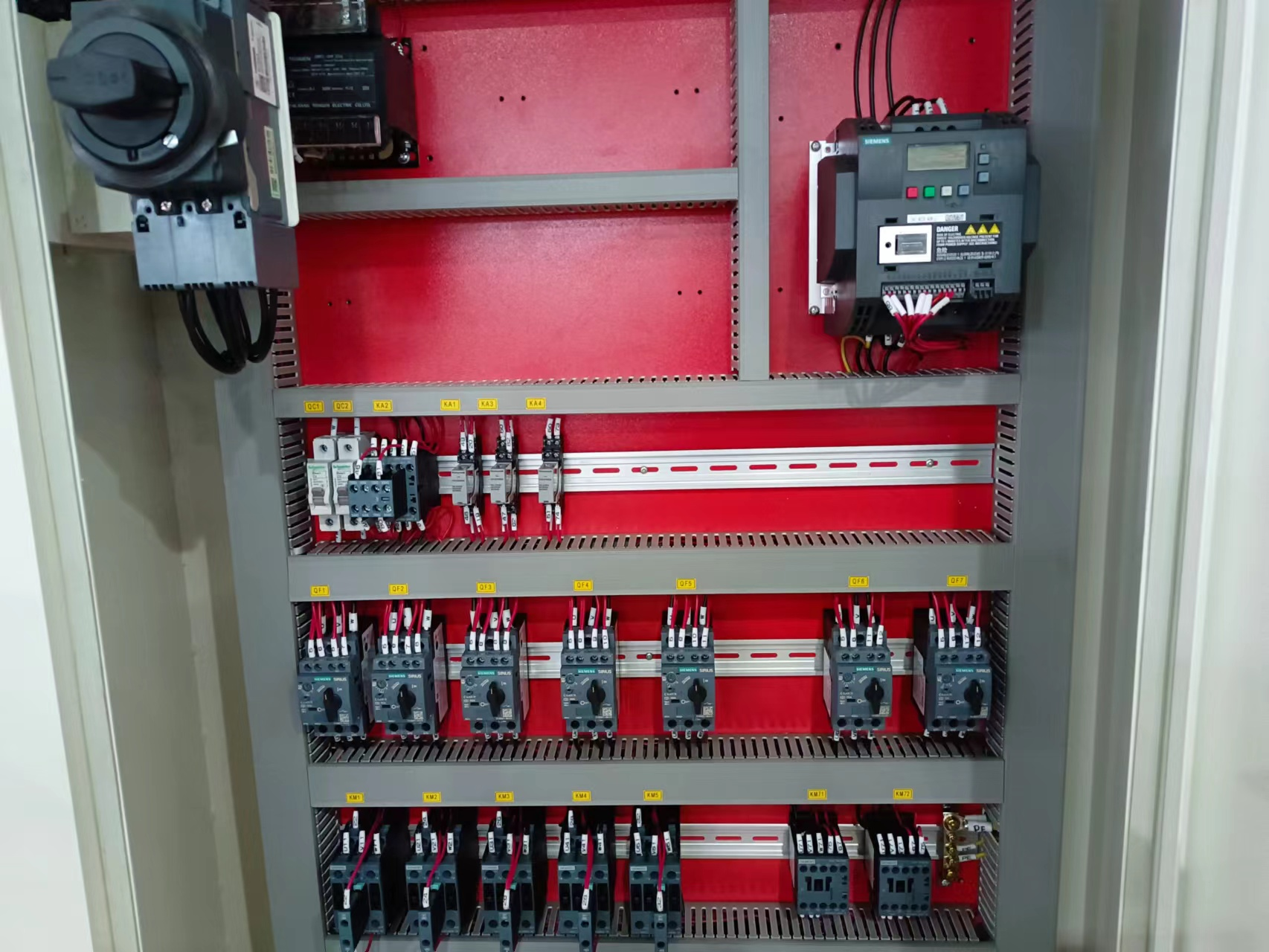

  • All electrical components are international well-known brands, stable performance, long service life
    All electrical components are international well-known brands, stable performance, long service life

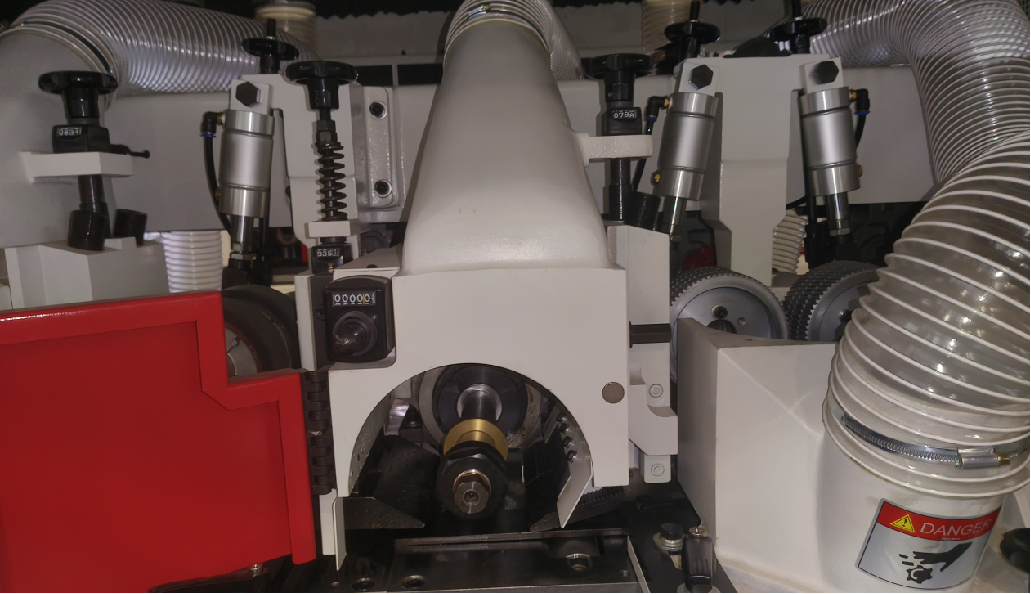

  • The pressure plate before the spindle is backward to prevent the spindle from hitting
    The pressure plate before the spindle is backward to prevent the spindle from hitting

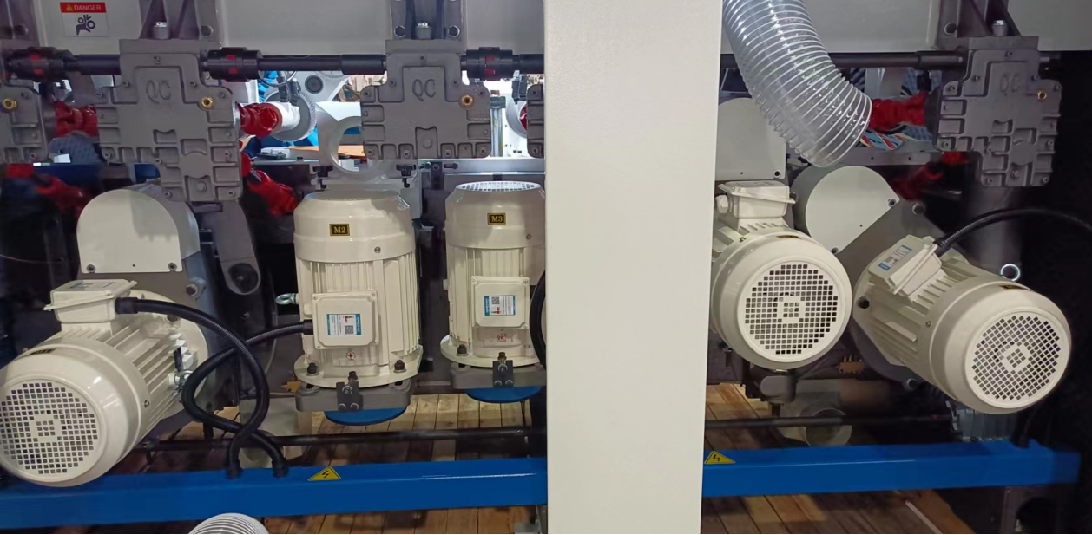

  • Each cutter shaft is equipped with a powerful motor and is driven separately
    Each cutter shaft is equipped with a powerful motor and is driven separately

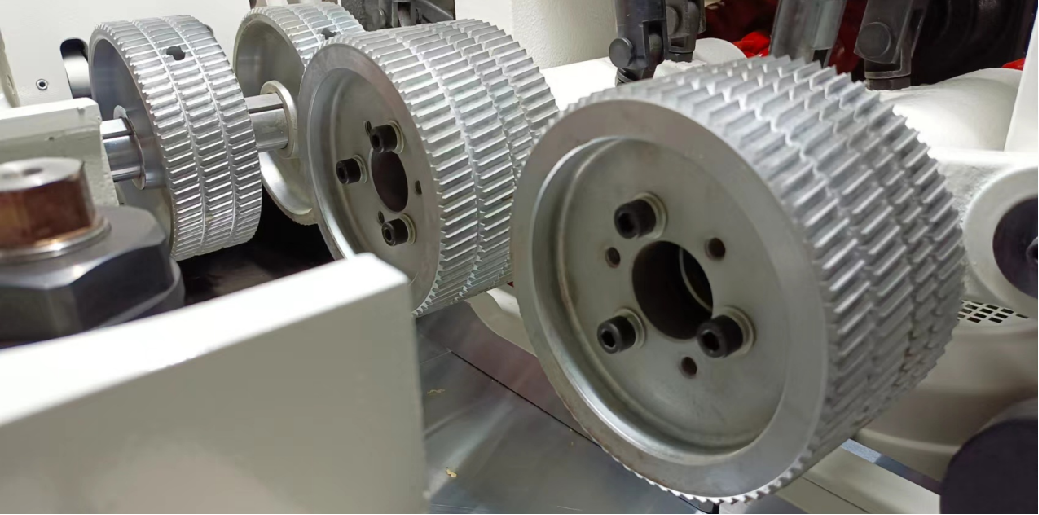

  • Adopt new tooth shape design, special process treatment, high feeding efficiency, long service life, cylinder pressure can be as low as 0.2mpa
    Adopt new tooth shape design, special process treatment, high feeding efficiency, long service life, cylinder pressure can be as low as 0.2mpa

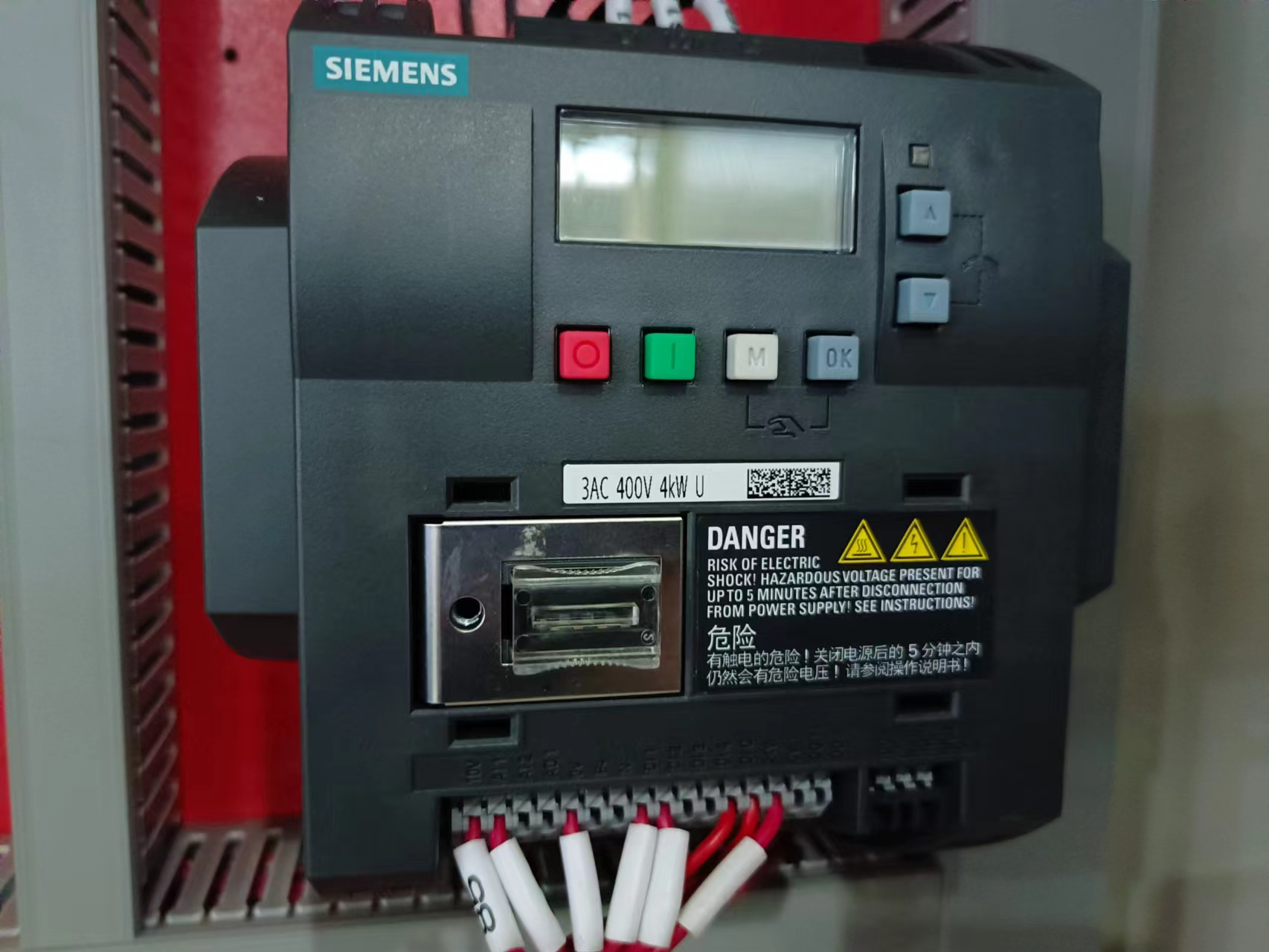

  • The feeding system adopts frequency control speed , which is more suitable for the processing requirements of various wood materials
    The feeding system adopts frequency control speed , which is more suitable for the processing requirements of various wood materials

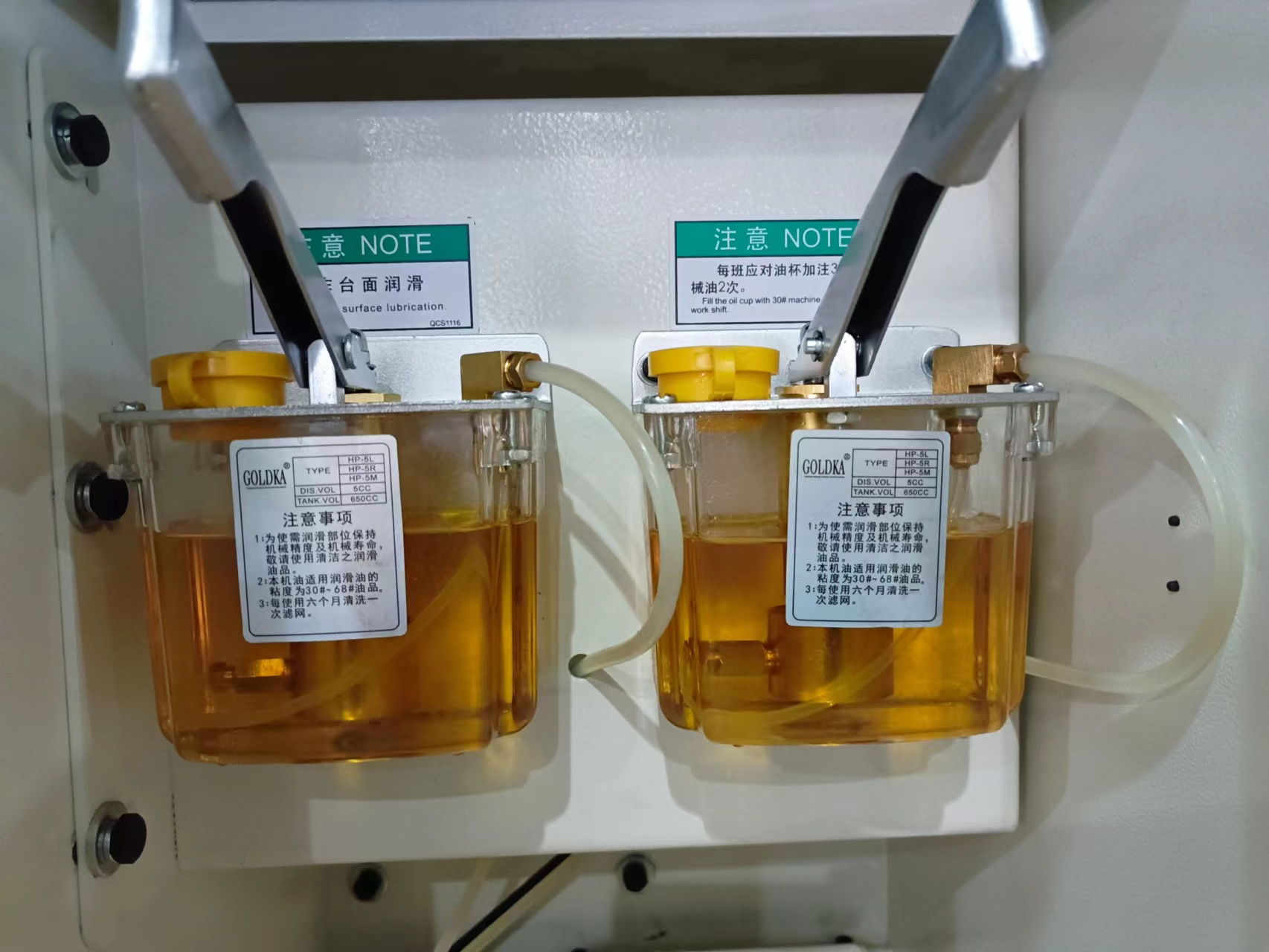

  • The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast
    The table and the sliding parts are lubricated by centralized oil supply pump, which is convenient and fast

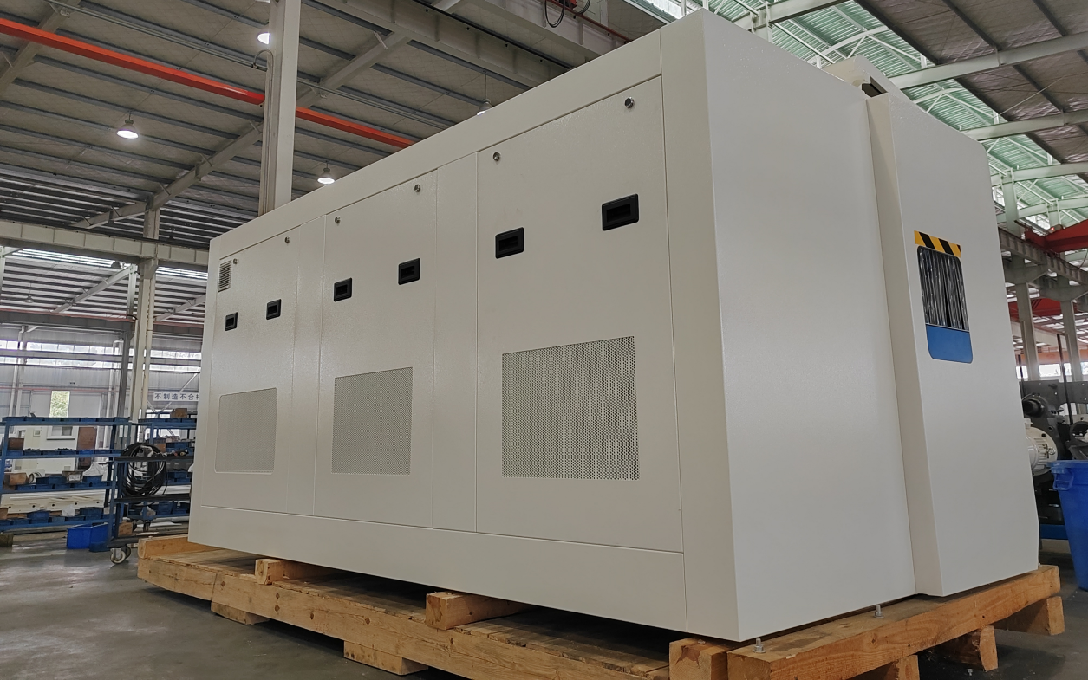

  • The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection
    The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection
Technical parameter
Item/Model QMB523A QMB623A QMB623A-K QMB623R QMB723R
Processing width(tool diameter 125mm)/mm 20~230 20~230 20~230 20~230 20~230
Processing height(tool diameter125mm/mm 8~160 8~160 8~160 8~160 8~160
Feed speed/m/min 6~36 6~36 6~36 6~36 6~36
Spindle diameter/mm 40 40 40 40 40
Spindle speed /r/min 6800 6800 6800 6800 6800
Tool cutting circle dia/mm First bottom spindle Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152 Flat cuter 125/Trimming cuter152
Left and right spindle 108~200 108~200 108-200 108-200 108-200
Top spindle 108~180 108~180 108~180 108-180 108~180
Second bottom spindle 108~230 108~230 108~230 108~230 108-230
Motor power/KW Feed motor 4 5.5 5.5 5.5 5.5
First bottom spindle 5.5 5.5 5.5 5.5 5.5
First right spindle 5.5 5.5 5.5 5.5 5.5
First left spindle 7.5 7.5 7.5 7.5 7.5
Second right spindle / / / 7.5 7.5
First upper spindle 7.5 7.5 7.5 7.5 7.5
Second upper spindle / 7.5 7.5 / 7.5
Second bottom spindle 7.5 7.5 7.5 7.5 7.5
Lifting motor 0.75 0.75 0.75 0.75 0.75
 Overall dimension(L×W×H)/cm 428×190×170 496×190×170 496×190×170 475×186×176 538×186×176
Weight/kg 4600 5600 5600 5650 6050
Optional :1. Spindle diameter of 50mm is available;2. Spindle speeed of 8000rpm is available;3. The last bottom spindle caninstall saw blades (If you have special needs, please contact us)
