ML9620MF

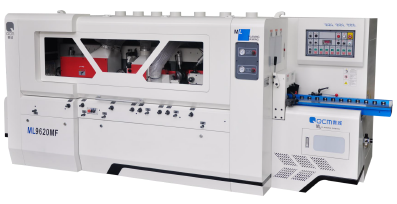

Planer&saw Union Machine

This machine tool has a structure with upper and lower sawing shafts on all four sides. It can perform both fixed-width and fixed-thickness processing on the workpiece, as well as multi-saw blade sawing operations. It is suitable for industries such as wood flooring, decorative wood strips, decorative panels, finger-jointed boards, and solid wood furniture for manufacturing thin wood boards and wood strips. It has the advantages of high processing quality, low labor cost, and material saving during processing.

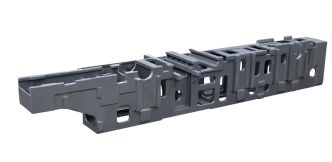

  • The machine tool bed is made by casting high-strength cast iron as a whole, with a stable structure and excellent rigidity.
    The machine tool bed is made by casting high-strength cast iron as a whole, with a stable structure and excellent rigidity.

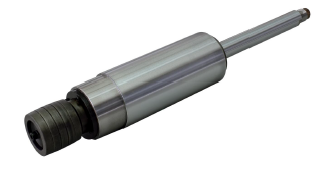

  • The main shaft undergoes precise machining and fine grinding, and is equipped with high-precision bearings to ensure the lifespan of the tool axis.
    The main shaft undergoes precise machining and fine grinding, and is equipped with high-precision bearings to ensure the lifespan of the tool axis.

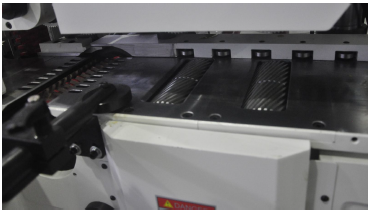

  • The workbench plate has undergone special heat treatment and is then plated with hard chromium. It is wear-resistant and has a long service life.
    The workbench plate has undergone special heat treatment and is then plated with hard chromium. It is wear-resistant and has a long service life.

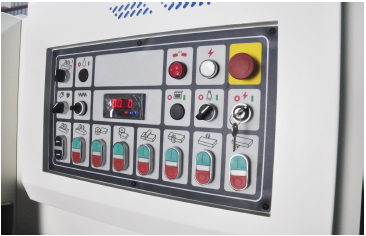

  • Push-button operation, precise and stable.
    Push-button operation, precise and stable.

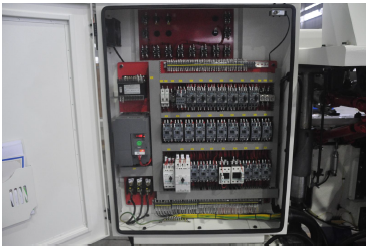

  • Using internationally renowned brand electronic components, the performance is reliable and the service life is long.
    Using internationally renowned brand electronic components, the performance is reliable and the service life is long.

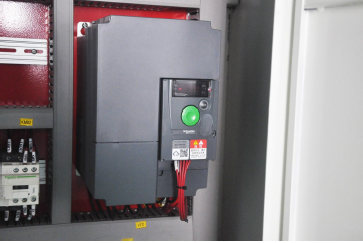

  • The delivery system adopts variable frequency speed regulation, which is more suitable for the processing requirements of various wood materials.
    The delivery system adopts variable frequency speed regulation, which is more suitable for the processing requirements of various wood materials.
  • The anti-reverse and anti-bounce device effectively protects the operator's safety during use.
    The anti-reverse and anti-bounce device effectively protects the operator's safety during use.

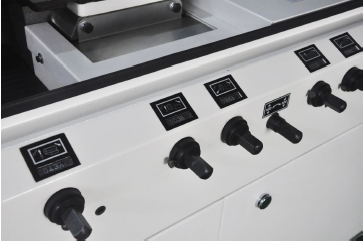

  • Each knife shaft can be raised and lowered, moved forward and backward. The process is digitally displayed, which is precise and convenient.
    Each knife shaft can be raised and lowered, moved forward and backward. The process is digitally displayed, which is precise and convenient.

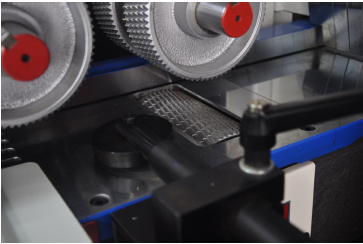

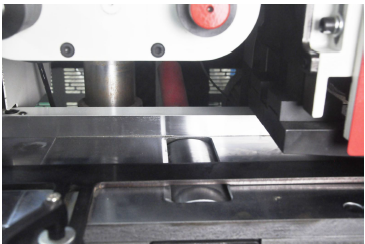

  • Install an external lateral pressure device to prevent the workpiece from deviating.
    Install an external lateral pressure device to prevent the workpiece from deviating.
  • Four sets of universal joint-driven rollers are configured below, ensuring smooth and powerful material feeding during the processing.
    Four sets of universal joint-driven rollers are configured below, ensuring smooth and powerful material feeding during the processing.

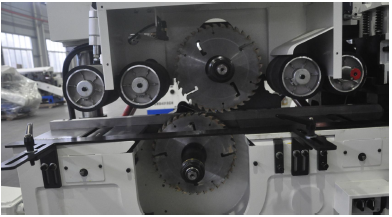

  • The upper and lower saw blades perform the slicing operation, minimizing the loss of wood.
    The upper and lower saw blades perform the slicing operation, minimizing the loss of wood.

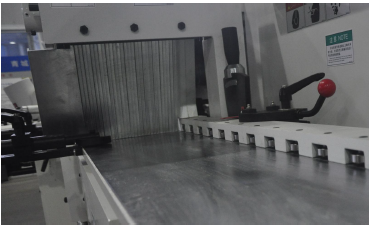

  • The use of a fully enclosed safety cover effectively prevents wood chips from flying and isolates noise, providing a safety protection function.
    The use of a fully enclosed safety cover effectively prevents wood chips from flying and isolates noise, providing a safety protection function.
Specification Model Unit ML9620HMF
Max Planing Width mm 200
Min Machining Width mm 20
Max Machining Thickness mm 125
Min Machining Thickness mm 10
Min Machining Length (Intermittent/Continuous) mm 650/480
Max Lifting Stroke of Movable Worktable mm 6
Max Movement of Movable Guide Plate mm 6
Saw Shaft Diameter mm φ40
Saw Shaft Keyway mm 10x2
Saw Shaft Rotation Speed r/min 4500
Planer Cutter Shaft Diameter mm φ40
Speed of Front Lower Planer Shaft, Left & Right Vertical Shaft r/min 6800
Feed Speed m/min 5-25
Feed Roller Diameter mm φ140
Tool Rotation Diameter: Front Lower Cutter (Flat) mm φ125
Front Lower Cutter (Side Cutter Outer Diameter × Thickness) mm φ152×12
Left & Right Vertical Shaft mm φ110-φ180
Upper Planer Cutter Shaft mm φ110-φ180
Upper and Lower Saw Blade Diameter mm φ180-φ250
Total Motor Power kW 94.5
Front Lower, Right Vertical and Left Vertical Cutter Shaft Motor kW 7.5 each
Upper Planer Cutter Shaft Motor kW 11
Upper Saw Shaft Motor kW 18.5
Lower Saw Shaft Motor kW 22
Feed Motor kW 7.5
Beam Lifting Motor kW 0.75
Air Source Pressure Mpa 0.3-0.6
Compressed Air Consumption m³/min 0.15
Dust Outlet Diameter (Planing Section) mm φ120×4
Dust Outlet Diameter (Sawing Section) mm φ150×7
Air Velocity of Dust Collection System m/s 30-35
Air Consumption of Dust Collection System m³/min 150
Overall Dimension (Length × Width × Height) mm 4650×2030×1790
Machine Weight kg 5500
