QMJ143SA

Multi-blade Rip Saw

Precision in motion, assurance in delivery

Casting body, robust and stable

High precision and efficiency achieve perfection in every detail

The QMJ143SA is designed for short material processing, with a minimum continuous feeding length of 230mm. It features a track-based frequency-controlled conveyor system that ensures straight and precise material feeding, with an adjustable feed speed ranging from 4 to 30 m/min, meeting diverse processing requirements. The machine is equipped with a rebound prevention safety device, ensuring safe operation, and an automatic centralized lubrication system that continuously maintains the track, extending the machine's service life. Its high-power saw shaft delivers ample cutting power, and the motor specifications can be customized according to needs, providing excellent cutting performance. Ideal for short material cutting in furniture factories, this model is the preferred choice for longitudinal cutting of wide boards in various wood processing plants.

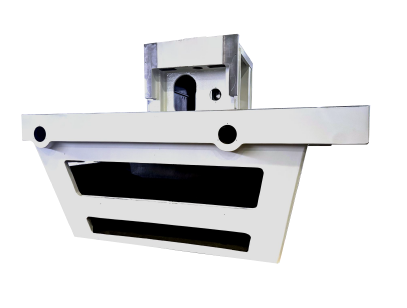

  • The machine body is made of high-strength cast iron and formed through a single casting process, followed by multiple vibration时效 treatments and precision machining, ensuring excellent structural stability and rigidity, enabling the equipment to maintain high-precision operation over the long term.
    The machine body is made of high-strength cast iron and formed through a single casting process, followed by multiple vibration时效 treatments and precision machining, ensuring excellent structural stability and rigidity, enabling the equipment to maintain high-precision operation over the long term.

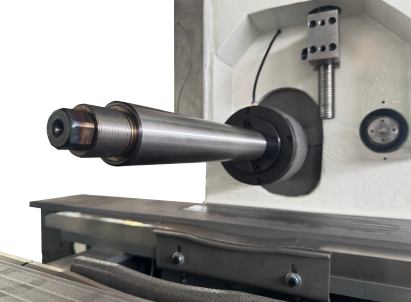

  • The precision spindle unit is professionally designed and engineered, featuring high rigidity and strong load-bearing capacity, ensuring stable and reliable operation with consistently excellent machining accuracy.
    The precision spindle unit is professionally designed and engineered, featuring high rigidity and strong load-bearing capacity, ensuring stable and reliable operation with consistently excellent machining accuracy.

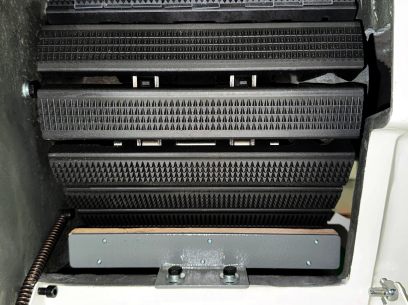

  • The crawler-type feeding chain plate is equipped with a V-shaped guide rail structure. The core components are precisely manufactured from wear-resistant cast iron. They have excellent wear resistance and durability, resulting in low wear over a long period of use, effectively ensuring the high precision and stability of continuous wood cutting.
    The crawler-type feeding chain plate is equipped with a V-shaped guide rail structure. The core components are precisely manufactured from wear-resistant cast iron. They have excellent wear resistance and durability, resulting in low wear over a long period of use, effectively ensuring the high precision and stability of continuous wood cutting.

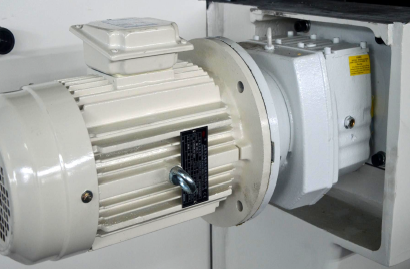

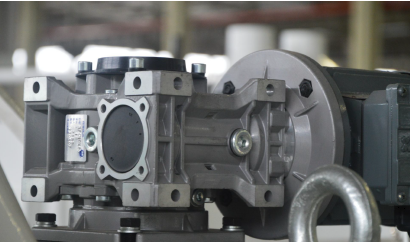

  • The delivery system is precisely matched with a hard toothed reducer and a frequency converter. The transmission is efficient and stable, ensuring a smooth and unobstructed delivery process with abundant and powerful power.
    The delivery system is precisely matched with a hard toothed reducer and a frequency converter. The transmission is efficient and stable, ensuring a smooth and unobstructed delivery process with abundant and powerful power.
  • The pressure roller press assembly is equipped with an electrically adjustable lifting mechanism. There is no need for manual adjustment during operation, making it convenient and labor-saving. The lifting response is sensitive and the adjustment accuracy is high. It can quickly adapt to the pressing requirements of different thicknesses of wood, significantly improving the efficiency of material replacement and ensuring the stability of pressing and the consistency of sawing.
    The pressure roller press assembly is equipped with an electrically adjustable lifting mechanism. There is no need for manual adjustment during operation, making it convenient and labor-saving. The lifting response is sensitive and the adjustment accuracy is high. It can quickly adapt to the pressing requirements of different thicknesses of wood, significantly improving the efficiency of material replacement and ensuring the stability of pressing and the consistency of sawing.

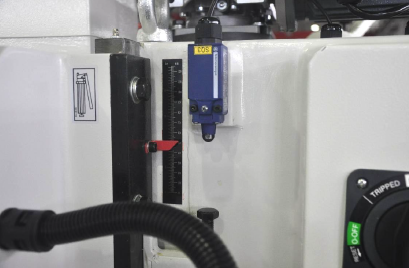

  • Each lifting component is equipped with a safety limit device, which precisely controls the running stroke and effectively avoids the risk of over-operation. This ensures the safe and stable operation of the equipment and builds a solid safety barrier for the operation.
    Each lifting component is equipped with a safety limit device, which precisely controls the running stroke and effectively avoids the risk of over-operation. This ensures the safe and stable operation of the equipment and builds a solid safety barrier for the operation.

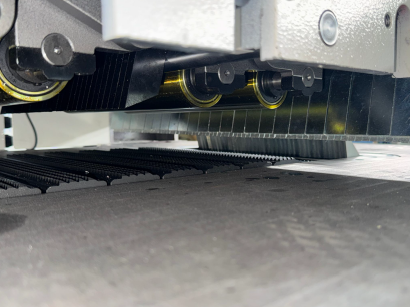

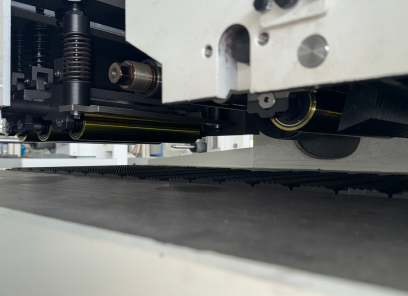

  • The upper pressing roller box is equipped with six sets of pressing rollers, arranged in a front three and rear three layout. This design provides a fully stable pressing force on the workpiece, effectively preventing the deviation and shaking of the feeding process, ensuring smooth and stable feeding throughout the process, and further improving the cutting accuracy.
    The upper pressing roller box is equipped with six sets of pressing rollers, arranged in a front three and rear three layout. This design provides a fully stable pressing force on the workpiece, effectively preventing the deviation and shaking of the feeding process, ensuring smooth and stable feeding throughout the process, and further improving the cutting accuracy.

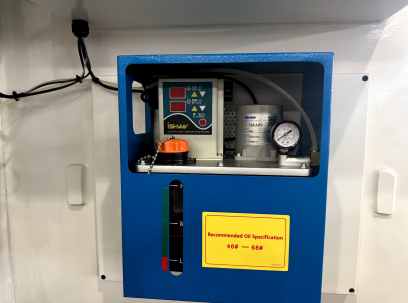

  • Equipped with a forced oil supply system, it continuously supplies oil precisely to the tracks and guide rails, forming a stable lubricating oil film, effectively reducing contact wear. The oil tank is equipped with an automatic shutdown protection function in case of low oil level. When the oil quantity is insufficient, the tracks will immediately stop running to avoid dry grinding damage and extend the service life of the tracks and guide rails.
    Equipped with a forced oil supply system, it continuously supplies oil precisely to the tracks and guide rails, forming a stable lubricating oil film, effectively reducing contact wear. The oil tank is equipped with an automatic shutdown protection function in case of low oil level. When the oil quantity is insufficient, the tracks will immediately stop running to avoid dry grinding damage and extend the service life of the tracks and guide rails.
  • At the feeding end, there are a total of 3 sets of reverse pawl safety anti-rebound devices arranged in two rows. An additional set of reverse pawls is built into the frame, which can effectively prevent the workpiece from retreating and rebounding. This measures effectively eliminates potential safety hazards during operation and ensures the safety of the operators to the greatest extent.
    At the feeding end, there are a total of 3 sets of reverse pawl safety anti-rebound devices arranged in two rows. An additional set of reverse pawls is built into the frame, which can effectively prevent the workpiece from retreating and rebounding. This measures effectively eliminates potential safety hazards during operation and ensures the safety of the operators to the greatest extent.

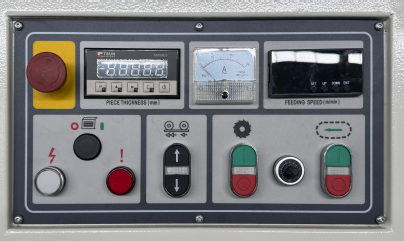

  • Each operation component is equipped with its own dedicated identification icon. The icons are clear, intuitive, simple and straightforward, significantly reducing the operational barriers and making the equipment operation convenient and efficient. Even beginners can quickly master it.
    Each operation component is equipped with its own dedicated identification icon. The icons are clear, intuitive, simple and straightforward, significantly reducing the operational barriers and making the equipment operation convenient and efficient. Even beginners can quickly master it.

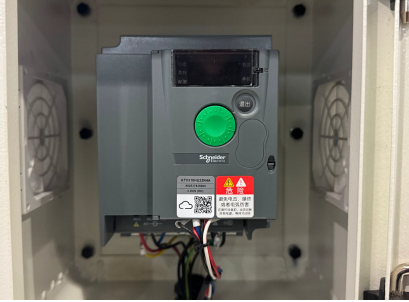

  • The feeding speed is equipped with a variable frequency speed control system. The speed adjustment is convenient and efficient, allowing for quick and precise adjustment to the feeding rate suitable for the specific working conditions, and it can meet the processing requirements of different types of wood materials.
    The feeding speed is equipped with a variable frequency speed control system. The speed adjustment is convenient and efficient, allowing for quick and precise adjustment to the feeding rate suitable for the specific working conditions, and it can meet the processing requirements of different types of wood materials.

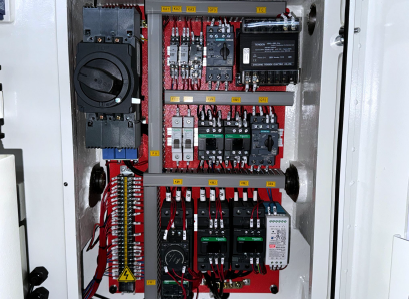

  • All the electrical components of the entire machine are made by well-known brands in the industry. This ensures the stable operation of the circuit from the very beginning, effectively reduces the occurrence of faults, and significantly extends the overall service life of the equipment.
    All the electrical components of the entire machine are made by well-known brands in the industry. This ensures the stable operation of the circuit from the very beginning, effectively reduces the occurrence of faults, and significantly extends the overall service life of the equipment.
Specification Unit QMJ143SA
Max. Sawing Thickness mm 50
Min. Machining Length mm 450
Min. Machining Length (Continuous Feeding) mm 230
Max. Sawing Width mm 300
Distance from Machine Column to Track Center mm 360
Saw Blade Diameter mm 225
Spindle Diameter mm 55
Spindle Rotation Speed r/min 4000
Total Motor Power kW 32.6
Spindle Motor Power kW 30
Feeding Motor Power kW 2.2
Feeding Speed (Frequency Control) m/min 4-30
Power of Automatic Lifting Motor for Pressure Roller Box kW 0.37
Dust Suction Port Diameter mm 2×150
Air Requirement of Dust Collection System m³/h 3800
Air Velocity of Dust Collection System m/s 25-35
Height of Worktable from Ground mm 740
Worktable Dimension mm 1570×760
Max. Machine Dimension (L×W×H) cm 193×158×156
Net Weight of Equipment kg 2350
