Belt Sanding Machine
High processing precision
High sanding efficiency
Wide range of applicable materials
SFR-R1300V product is a floating primer sanding machine with semi-fine sand + fine sand polishing combination. The maximum processing width is 1300mm, the maximum processing thickness is 100mm, and the feeding speed is 3-20m /min (frequency conversion). The front and rear sand rolls (diameter Φ215mm) are equipped with high-quality soft rubber rolls of different hardness to achieve semi-fine sand and fine sand polishing operations. It has high precision and high efficiency.
Recommend: The product is mainly used for processing the width of the workpiece within 1300mm primer grinding and pre-treatment of materials (sanding before painting) fine sanding of various surfaces, and can also be formed in the NV and UV coating line production line, to achieve safety and environmental protection, high efficiency, high quality and line production.
-
Machine body
The frame is welded with heavy channel steel and high quality plate, and is made of special treatment and precision machining, with sufficient rigidity and strength.
-

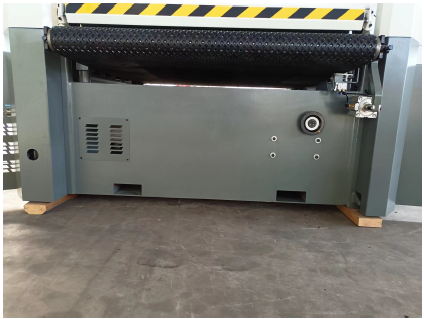

Work table
The worktable is welded with heavy channel steel and high quality plate, especially the underside of the worktable supporting reinforcement plate by special treatment, precision processing and has enough steel and strength.
-

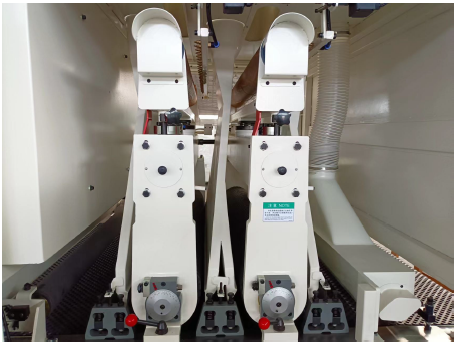

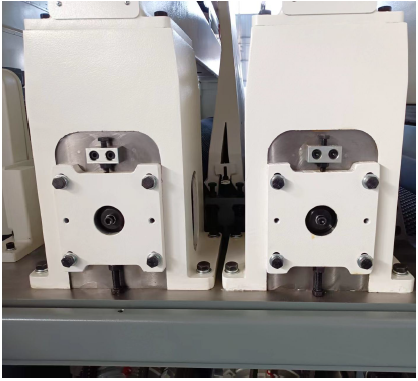

Beam support
Coarse and fine sand beam bearing adopts high quality castings, thick volume, special treatment, precision processing to overcome the sander in the use of rigid deformation affecting product processing quality phenomenon.
-
Coarse and fine sand roller
Equipped with 2 large rubber rollers with 215mm diameter to achieve coarse and fine sand cutting, and the sand cutting surface is smooth and straight.
-

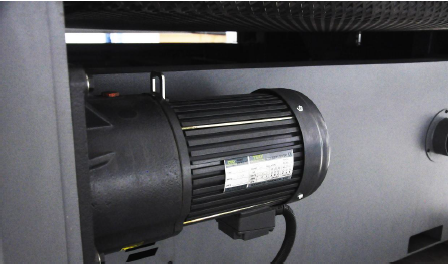

Feed reducer
The feed is equipped with hard gear reducer and inverter, and the feed is strong and suitable for sanding different kinds of plates.
-

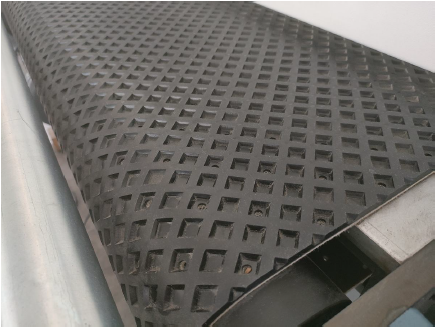

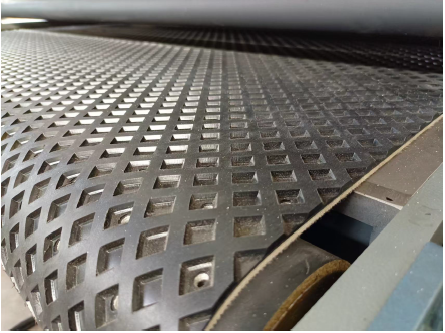

Vacuum absorber
The conveyor belt and vacuum pump are used for adsorption, and the sanding effect is better.
-

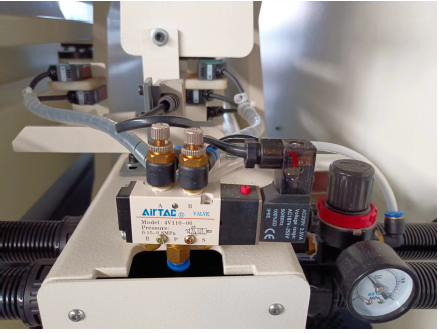

Pendulum assembly
Adopt the brand photoelectric switch and the brand pneumatic element, with the protection function of broken belt and deviation stop.
-

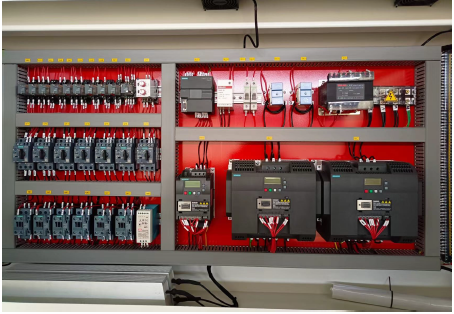

Electrical component
All electrical components adopt international well-known brands, stable and reliable performance, long service life.
-

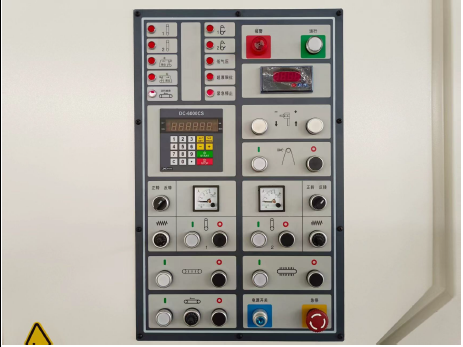

Button panel
The operation buttons of the button board are evenly arranged, and the operation parts are simple and easy to operate.
| Model | SFR-R1300V |
| Sanding sheet width | 40-1300mm |
| Sanding sheet thickness | 3~100mm |
| Sanding sheet length | Not less than 300mm |
| Conveyor belt feed speed | 3~25m/min |
| Belt size | 1370x2100mm |
| Motor power | 29.2kW |
| The first group of sand belt motors | 11kW |
| The second group of sand belt motors | 11kW |
| Vacuum adsorption motor | 4kW |
| Conveyor motor | 2.2kW |
| Dust-removing machine | 0.37kW |
| Work table lifting motor | 0.55kW |
| Blowing oscillating motor | 25W |
| Air source pressure | 0.6Mpa |
| Vacuum cover caliber | φ180x2+φ150x3mm |
| Overall dimensions（Length x Width x Height） | 210x225x230cm |
| Encasement weight | 3800Kg |
