MBZ106D

Thicknesser

The MBZ106D product is a heavy-duty single-sided woodworking planer with a four-sided column lifting mechanism for the worktable. Its processing width is 630mm, processing thickness is 300mm, and the feeding speed is 5 - 18m/min. The thick base and bed structure, with the idler rollers under the worktable serving as the active feeding rollers, uses a variable frequency speed control mechanism for feeding, and uses a CNC lifting mechanism for fixed thickness. It has the advantages of stable machine performance, high precision, smooth feeding, powerful force, and excellent processing quality.

  • The structure of the machine tool is highly rigid, thus ensuring the working accuracy of the machine tool to the fullest extent.
    The structure of the machine tool is highly rigid, thus ensuring the working accuracy of the machine tool to the fullest extent.

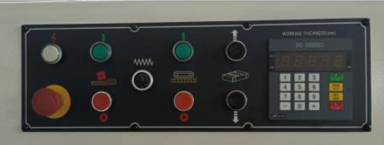

  • The start and stop buttons for the main shaft and feeding motion, as well as the switch buttons for the feeding mechanism and the buttons for the worktable lifting motion, are all concentrated on the upper side buttons box in the direction of the machine tool's feeding. Moreover, they are equipped with clear operation instructions.
    The start and stop buttons for the main shaft and feeding motion, as well as the switch buttons for the feeding mechanism and the buttons for the worktable lifting motion, are all concentrated on the upper side buttons box in the direction of the machine tool's feeding. Moreover, they are equipped with clear operation instructions.
  • The delivery mechanism is controlled by a frequency converter for an electric motor, which is connected to a reducer mechanism. It is driven by a chain wheel and chain transmission, making adjustment and maintenance very convenient.
    The delivery mechanism is controlled by a frequency converter for an electric motor, which is connected to a reducer mechanism. It is driven by a chain wheel and chain transmission, making adjustment and maintenance very convenient.

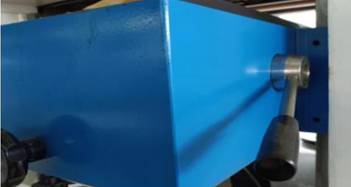

  • The locking mechanism of the workbench is of eccentric type, which makes the operation simpler and more convenient. When the workbench is locked by electrical control, the lifting motor of the workbench cannot be started, ensuring the safety of operation and protecting the machine tool.
    The locking mechanism of the workbench is of eccentric type, which makes the operation simpler and more convenient. When the workbench is locked by electrical control, the lifting motor of the workbench cannot be started, ensuring the safety of operation and protecting the machine tool.

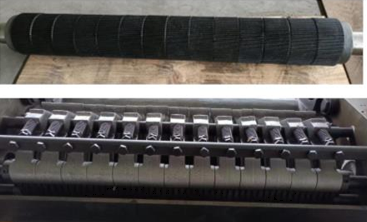

  • The chip breaker and the front feeding roller adopt a segmented structure to meet the requirement of simultaneously processing wood with a thickness difference of no more than 2mm over the entire width of the worktable.
    The chip breaker and the front feeding roller adopt a segmented structure to meet the requirement of simultaneously processing wood with a thickness difference of no more than 2mm over the entire width of the worktable.

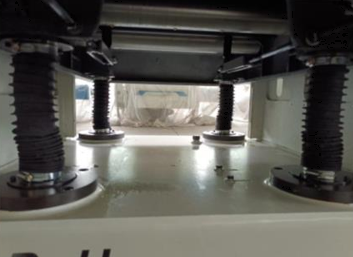

  • The lifting of the workbench is achieved through four vertical columns, which is more stable and reliable compared to the traditional two-column lifting method.
    The lifting of the workbench is achieved through four vertical columns, which is more stable and reliable compared to the traditional two-column lifting method.
Specification Unit MBZ106D/D-H
Planing Width mm 630
Planing Thickness mm 3-300
Minimum Workpiece Length mm 300
Maximum Planing Depth mm 8
Feed Speed m/min 5-18
Cutter Shaft Speed r/min 5000
Cutter Shaft Cutting Diameter mm φ125
Total Motor Power kW 9.4
Main Motor kW 7.5
Feed Motor kW 1.5
Table Lifting Motor kW 0.37
Working Voltage - AC380、50HZ
Dust Outlet Diameter mm φ150mm×2
Overall Dimension (L×W×H) cm 115×130×152
Machine Weight Kg 1250
