SRP630B
Belt Sanding Machine
High processing precision
High sanding efficiency
Wide range of applicable materials
Feature Introduction
Professional solutions: refers to jointing board industry, joinery board and solid wood processing industry and other large board fine sanding.
-

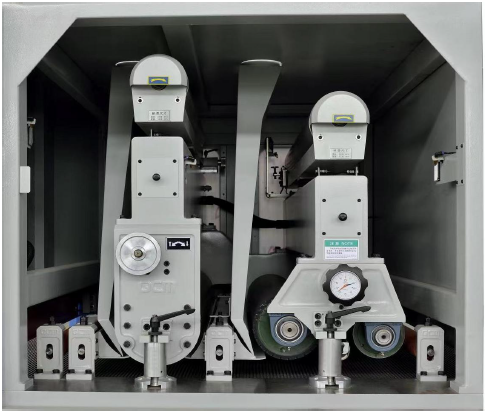

Sand frame structure
Large diameter steel roller + rubber roller with polishing combination roller + multiple sets of press roller
-

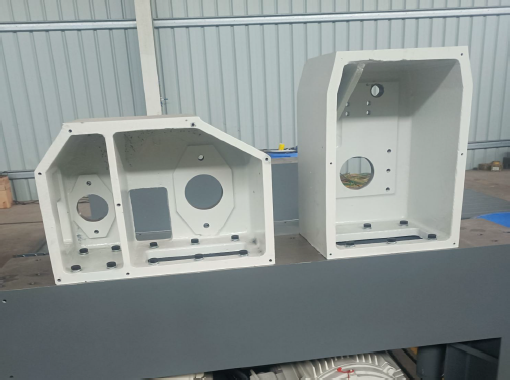

Beam bearing
The use of high-quality castings, single support good shock absorption, its performance is stable, good precision.
-

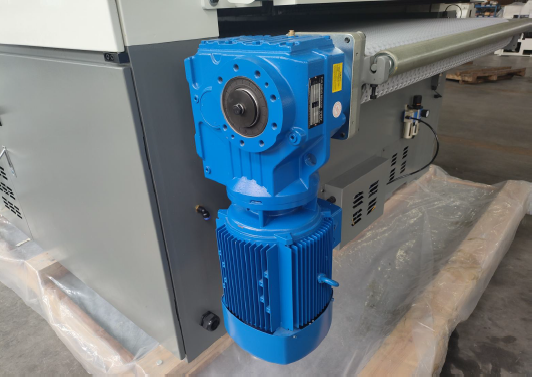

Feed reducer
Feeding with hard gear reducer and inverter supporting, feeding strong and powerful suitable for sanding a variety of different plates.
-

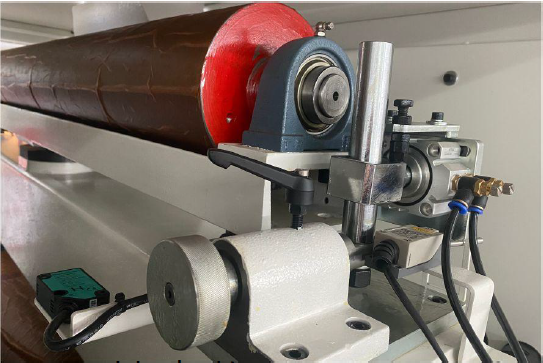

Pendulum mechanism
Using the brand photoelectric switch and brand pneumatic pneumatic components, with broken tape, deviation stop protection function.
-
The operation buttons of the button board are evenly arranged, and the operation parts are simple and easy to operate.
-
Electronic components using international brand electronic components, stable and reliable performance.
Technical parameter
| Model | SRP-630B |
| Sanding width | 40-630mm |
| Sanding thickness | 3-180mm |
| Mini. sanding length | 520mm |
| The first set of belt speed | 19m/s |
| The second set of belt speed | 16m/s |
| Feed speed | 5-27m/min |
| Belt size | 650x2100mm |
| Motor power | 20.7kw |
| The first set of sand roller motor | 11kw |
| The second set of sand roller motor | 7.5kw |
| Feeding motor | 1.5kw |
| Work table lifting motor | 0.37kw |
| Dust-removing machine | 0.37kw |
| Working pressure | 0.6Mpa |
| Vacuum cover caliber | 5-φ150mm |
| Overall dimensions（Length x Width x Height） | 212x128x205cm |
| Encasement weight | 1950Kg |
