ML9616SMF

Planer&saw Union Machine

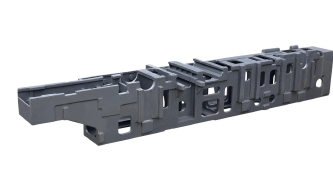

  • The machine tool bed is made by casting high-strength cast iron as a whole, with a stable structure and excellent rigidity.
    The machine tool bed is made by casting high-strength cast iron as a whole, with a stable structure and excellent rigidity.
  • The main shaft undergoes precise machining and fine grinding, and is equipped with high-precision bearings to ensure the lifespan of the tool axis.
    The main shaft undergoes precise machining and fine grinding, and is equipped with high-precision bearings to ensure the lifespan of the tool axis.

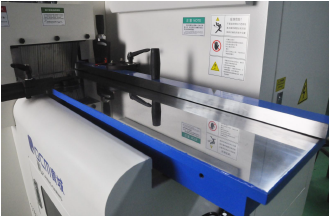

  • The workbench plate has undergone special heat treatment and is then plated with hard chromium. It is wear-resistant and has a long service life.
    The workbench plate has undergone special heat treatment and is then plated with hard chromium. It is wear-resistant and has a long service life.

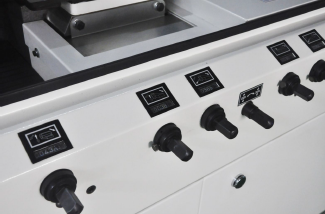

  • Push-button operation, precise and stable.
    Push-button operation, precise and stable.
  • Using international brand electronic components ensures reliable performance.
    Using international brand electronic components ensures reliable performance.
  • The delivery system adopts variable frequency speed regulation, which is more suitable for the processing requirements of various wood materials.
    The delivery system adopts variable frequency speed regulation, which is more suitable for the processing requirements of various wood materials.

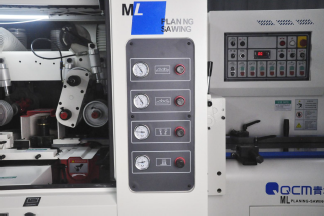

  • The pressure adjustment for each section is convenient.
    The pressure adjustment for each section is convenient.
  • Each knife shaft can be raised and lowered, moved forward and backward. The process is digitally displayed, which is precise and convenient.
    Each knife shaft can be raised and lowered, moved forward and backward. The process is digitally displayed, which is precise and convenient.
  • Install an external lateral pressure device to prevent the workpiece from deviating.
    Install an external lateral pressure device to prevent the workpiece from deviating.
  • Two sets of universal joint-driven rollers are configured below to ensure smooth and powerful material feeding during the processing.
    Two sets of universal joint-driven rollers are configured below to ensure smooth and powerful material feeding during the processing.
  • Four sets of vertical active feeding rollers are configured before and after to ensure smooth feeding for multi-piece sawing.
    Four sets of vertical active feeding rollers are configured before and after to ensure smooth feeding for multi-piece sawing.
  • The saw shaft does not have a variable-diameter sleeve, which enables the diameter of the saw blade to be reduced.
    The saw shaft does not have a variable-diameter sleeve, which enables the diameter of the saw blade to be reduced.
Specification Model Unit ML9616SMF ML9620SMF
Max Planing Width mm 160 200
Min Machining Width mm 20 20
Max Sawing Width mm 160 200
Max Machining Thickness mm 120 120
Min Machining Thickness mm 15 15
Min Machining Length (Intermittent/Continuous) mm 650/480 650/480
Max Lifting Stroke of Movable Worktable mm 6 6
Max Movement of Movable Guide Plate mm 6 6
Saw Shaft Diameter mm φ50 φ50
Saw Shaft Keyway mm 10x2 10x2
Saw Shaft Rotation Speed r/min 4000 4000
Planer Shaft Diameter mm φ40 φ40
Speed of Front Lower Planer Shaft, Left & Right Vertical Shaft r/min 6800 6800
Speed of Other Planer Shafts r/min 8000 6800
Feed Speed m/min 6-30 6-30
Feed Roller Diameter mm φ140 φ140
Cutter Rotating Diameter: Front Lower Cutter (Flat) mm φ125 φ125
Front Lower Cutter (Side Cutter Outer Diameter × Thickness) mm φ152x12 φ152x12
Left & Right Vertical Shaft mm φ115-φ170 φ110-φ180
Upper Planer Shaft mm φ105-φ150 φ110-φ180
Left & Right Saw Blade Diameter mm φ160-φ250 φ180-φ300
Total Motor Power kW 58.3 72.8
Front Lower Cutter Shaft kW 4 5.5
Left & Right Vertical Shaft, Upper Cutter Shaft kW 5.5 each 7.5 each
Left & Right Saw Motor kW 15 each 18.5 each
Feed Motor / Auxiliary Feed Motor kW 5.5 / 0.75x2 5.5 / 0.75x2
Beam Lifting Motor kW 0.75 0.75
Air Source Pressure Mpa 0.3-0.6 0.3-0.6
Compressed Air Requirement m³/min 0.15 0.15
Dust Suction Port Diameter (Saw) mm φ150x6 φ150x6
Air Velocity of Dust Collection System m/s 30-35 30-35
Air Requirement of Dust Collection System m³/min 150 150
Overall Dimension (L×W×H) mm 4170x1530x1780 4420x1790x1750
Machine Weight kg 4500 4850
