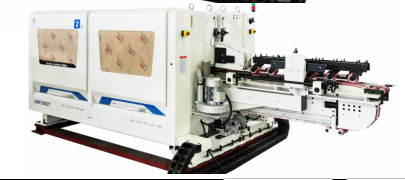

QMX1425DT
Double-end Tenoner
Fast speed, high output, and high precision
Feature Introduction
The horizontal double-end tenoner is equipped with adjustable positioning pins on two high-precision lateral conveyor chains to guarantee perpendicularity between workpieces and the reference edge after machining.
An optoelectronic controlled buffer storage bin at the front enables automatic feeding.

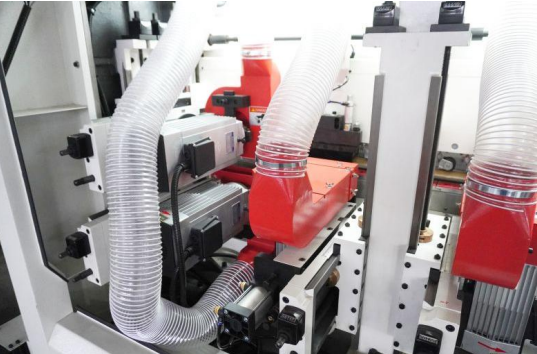

According to workpiece characteristics, stations can be optionally fitted with jump cutters, scrapers, upper/lower saws, polishing spindles, with reserved stations available for future upgrades.
-

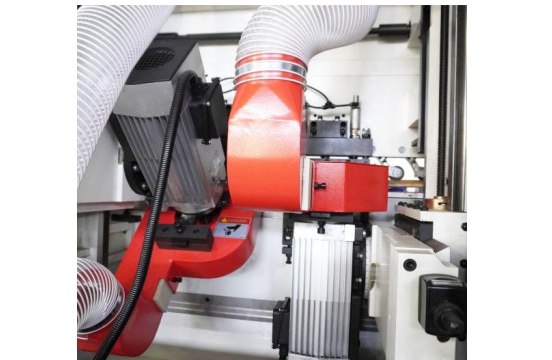

Model QMX1425DT is equipped with a jump cutting mechanism to effectively prevent edge chipping during profiling.
-
Equipped with a fully enclosed safety guard, the machine boasts an elegant appearance and low operating noise. It effectively blocks wood chip splashing to ensure safe and eco-friendly operation.
-
Model QMX1425DT is fitted with upper and lower saws at the first station, which can effectively prevent edge chipping of veneered panels.
Technical parameter
| Specification | Unit | QMX1425DT |
| Processing Width | mm | 600—2500 |
| Processing Thickness | mm | 8—25 |
| Feeding Stop Block Spacing | mm | 600 |
| Feeding Speed | m/min | 10—60 |
| Saw Shaft Speed | r/min | 3000—6000 |
| Milling Shaft Speed | r/min | 4500—6000 |
| Saw Blade Specification | mm | Φ250～300×Φ40 |
| Milling Cutter Specification | mm | Φ220～280×Φ40 |
| Worktable Height | mm | 1000 |
| Motor Power (1st, 2nd, 6th Stations) | kW | 7.5×8 |
| Motor Power (3rd, 4th, 5th Stations) | kW | 5.5×6 |
| Feeding Motor Power | kW | 4 |
| Width Adjusting Motor Power | kW | 1.0 |
| Vortex Air Pump Motor Power | kW | 2.2×2 |
| Total Motor Power | kW | 102.4 |
| Working Voltage | V/Hz | C380V、50Hz |
| Dust Suction Port Diameter | mm | φ120mm×14 |
| Dust Collection System Air Velocity | m/s | 30—35 |
| Dust Collection System Air Requirement | m³/min | 400 |
| Machine Tool Overall Dimension | cm | 550×432×180cm |
| Machine Tool Weight | Kg | 10000 |
