As the core load-bearing component, the machine bed is integrally cast with high-strength cast iron, guaranteeing structural integrity and stability, and sustaining machining accuracy during long-term operation.

The worktable surface undergoes special treatment and hard chrome plating, featuring excellent wear resistance and long service life.

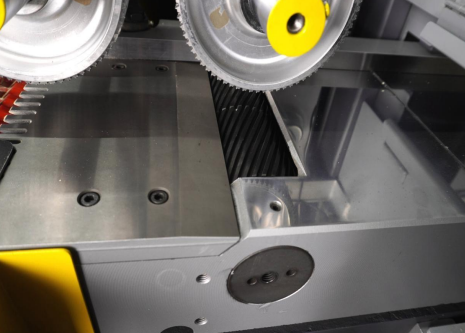

Multiple sets of upper pressure rollers adopt innovative tooth profile design and special process treatment, delivering high feeding efficiency and long service life. The air cylinder pressure can be as low as 0.2 MPa.

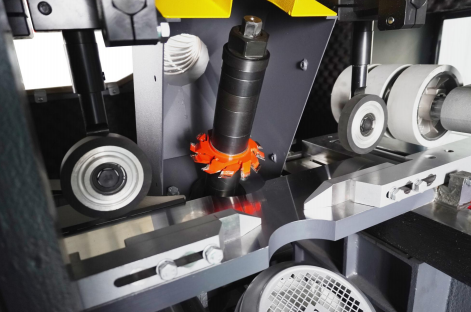

The machine is equipped with 7 high-precision cutter shafts running at 6000 RPM. It delivers smoother and superior workpiece surface finish. One of the shafts is a universal cutter shaft, which can be adjusted for horizontal top, horizontal bottom, left vertical, right vertical or angled profile machining to satisfy diverse processing requirements.

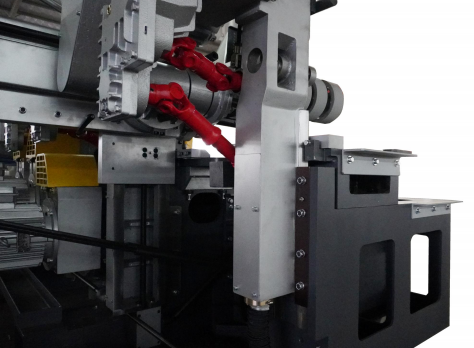

The lifting columns of the material press beam adopt dovetail guide structure, featuring low vibration and outstanding stability. Closely fitted to the machine frame and equipped with a lubrication system, it effectively reduces friction and wear between moving parts, lowers maintenance costs, and ensures continuous and stable production.

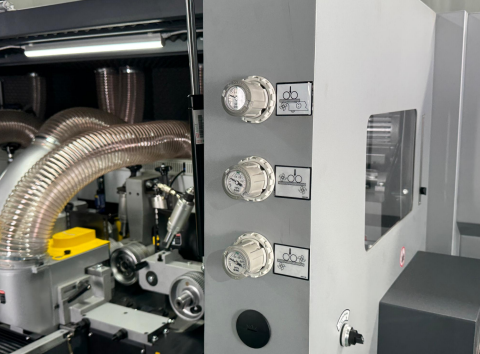

Independently controlled segmented pressure adapts to various timber types. Stable clamping prevents slippage without workpiece crushing, supporting versatile production and stable machining quality.
