MBE618DF
Four-side Moulder
Super wear-resistant coating
Tight feeding system
Professional solution: high-speed and efficient four-side planing,fit for short workpiece.
Feed speed up to 60-100m/min
Main feature
-
MBE618DF spindles layout
-

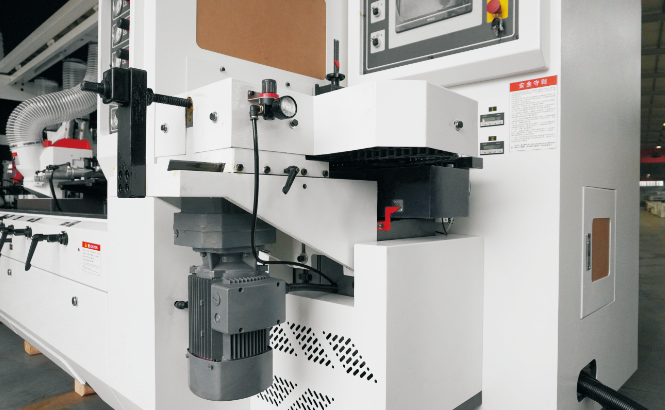

Feeding system
The feeding system is compact,
in the case of continuous feeding the min.
processing length is 180mm
-
Adopt high-speed and heavy-duty gearbox structure
The heavy-duty universal coupling is directly
connected with the feeding roller to achieve strong and
high-speed feeding of timber under low pressure
-
Electronic components
Adopt international brand electronic components
-
Adopt side pressure cylinder to press timbers, the pressure is adjustable, the performance is stable,
and the feeding is smooth30-100m/min
Adopt inverter for feed ,
the feeding speed is 30-100m/min
Technicial parameter
| Item/Model | QMBK618GH | MBE618DF | |
| Processing width (tool diameter 125mm)/mm | 25~180 | 25~180 | |
| Processing height (tool diameter 125mm)/mm | 15~110 | 15~110 | |
| Feed speed/m/min | 10~60 | 30~100 | |
| Spindle diameter /mm | 40 | 40 | |
| Spindle speed /r/min | First bottom spindle | 6800 | 6000 |
| First upper spindle | 6000 | 6000 | |
| Other spindles | 8000 | 8000 | |
| Tool cutting circle dia/mm | First bottom spindle | 125 | 125 |
| Upper spindle | 125 | 125~140 | |
| Other spindles | 125~150 | 125~140 | |
| Motor power/KW | Feed motor | 11 | 15 |
| First bottom spindle | 7.5 | 11 | |
| Second bottom spindle | 5.5 | 7.5 | |
| First right spindle | 5.5 | 7.5 | |
| First left spindle | 7.5 | 11 | |
| First upper spindle | 7.5 | 11 | |
| Second upper spindle | 5.5 | 7.5 | |
| Lifting motor | 0.75 | 1.1 | |
| Side feeder motor | 1.1 | 1.5 | |
| Overall dimension(L×W×H)/cm | 440×170×175 | 490×210×190 | |
| Weight/kg | 5100 | 5800 | |
