QMB418ETA

Four-side Moulder

Stable line accuracy

High processing efficiency

Eliminate multiple processes

Feature Introduction

This machine is a high-speed four-sided wood planer. It features a maximum processing width of 180mm and a maximum processing thickness of 80mm. The feeding system is equipped with 8 groups of active feeding rollers, including 6 upper rollers and 2 lower rollers, adopting frequency conversion speed regulation with a feeding speed ranging from 8 to 80m/min. The reasonably configured powered feeding rollers deliver powerful, stable and smooth material feeding performance. The vertical shaft slide plates and strip locking mechanisms on both sides adopt V-shaped cone adjustment and wedge block locking structures. This design prevents locking deformation of the inlaid strips, ensuring flexible movement, reliable locking and stable machining precision of the left and right vertical shaft slide plates.

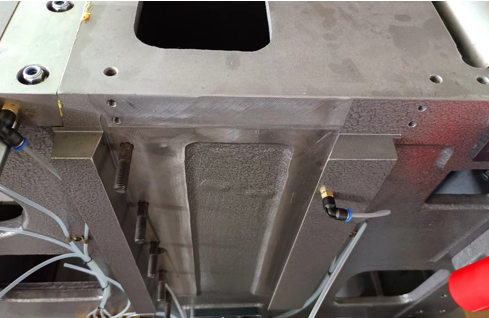

  • Adopting a heavy-duty integrated structural design, with one-piece casting, ensures the equipment operates smoothly and with high reliability at high speeds
    Adopting a heavy-duty integrated structural design, with one-piece casting, ensures the equipment operates smoothly and with high reliability at high speeds

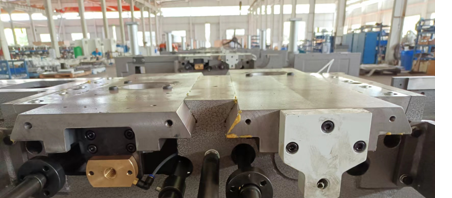

  • The horizontal slide base lifting dovetail (inlay strip) on the machine tool is integrally cast with the machine body, ensuring stability during high-speed machining.
    The horizontal slide base lifting dovetail (inlay strip) on the machine tool is integrally cast with the machine body, ensuring stability during high-speed machining.

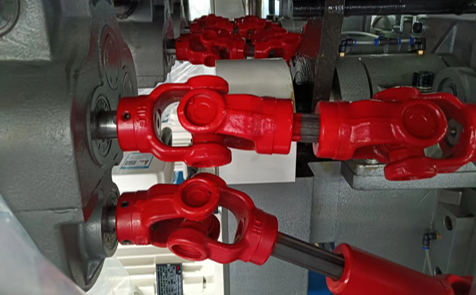

  • The feeding system is equipped with 8 sets of active feeding rollers, consisting of 6 on the top and 2 on the bottom. The feeding speed ranges from 8 to 80 m/min, ensuring strong, powerful, stable, and smooth feeding.
    The feeding system is equipped with 8 sets of active feeding rollers, consisting of 6 on the top and 2 on the bottom. The feeding speed ranges from 8 to 80 m/min, ensuring strong, powerful, stable, and smooth feeding.

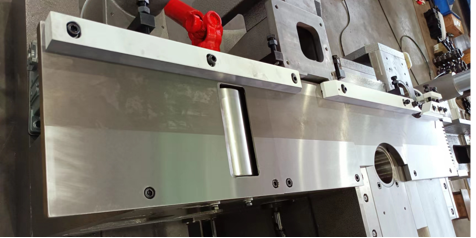

  • The workbench and guide strip are coated with a wear-resistant special coating technology. The work surface, located 110mm away from the guiding edge, is treated with a special coating, ensuring a lifespan 2 to 3 times longer than traditional chrome-plated work surfaces.
    The workbench and guide strip are coated with a wear-resistant special coating technology. The work surface, located 110mm away from the guiding edge, is treated with a special coating, ensuring a lifespan 2 to 3 times longer than traditional chrome-plated work surfaces.
Technical parameter
Specifications Unit QMB418ETA
Working width (cutter diameter 125) mm 20~180
Working thickness mm 8~80
Min. working length (intermittent/continuous) mm 530/300
Max. lifting stroke of movable worktable mm 6
Max. movement of movable guide plate mm 5
Saw spindle diameter mm φ40
Feed roller diameter mm φ140
Feeding speed m/min 8~80
Lower/Upper saw speed r/min 8000
Left/Right saw spindle speed r/min 10000
Lower saw spindle (side cutter) diameter mm Φ125 (side cutter Φ152x12)
Tool mounting diameter: Left/Right vertical cutter mm Φ115~Φ140
Upper saw spindle mm Φ105~Φ140
Total motor power KW 23.8
Lower saw spindle, left vertical spindle, right vertical spindle KW 4 each
Upper saw spindle motor KW 5.5
Feeding motor KW 5.5
Beam lifting motor KW 0.75
Overall dimension (LxWxH) cm 304x160x168
Machine weight Kg 2850
