QMB4012DT

Four-side Moulder

Recommended: The product is mainly used for all kinds of wood products four side planing molding processing, can process a variety of high quality wood products.

QMB4012DT products for four axis four-side woodworking moulder. The max. processing width is 120mm and the max. processing thickness is 100mm. The feeding system is configured with 8 groups of active feeding rolls, 6 up and 2 down. The feeding speed is adjusted by frequency conversion and the feeding speed is 8-33m /min. The feeding power roller configuration is reasonable, the feeding is strong, the operation is convenient and fast, and the processing quality is good.

  • QMB4012DT spindles layout
    QMB4012DT spindles layout

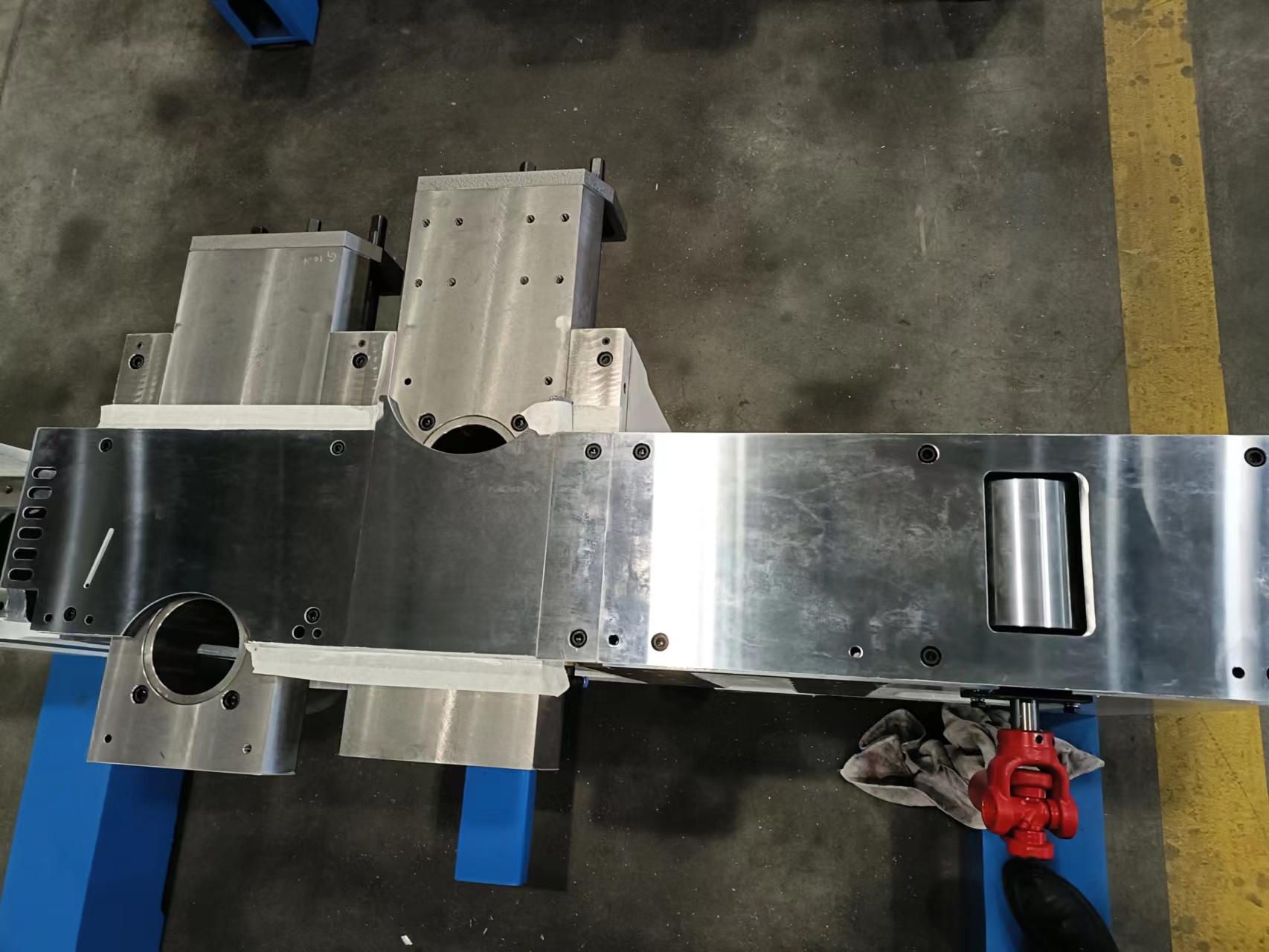

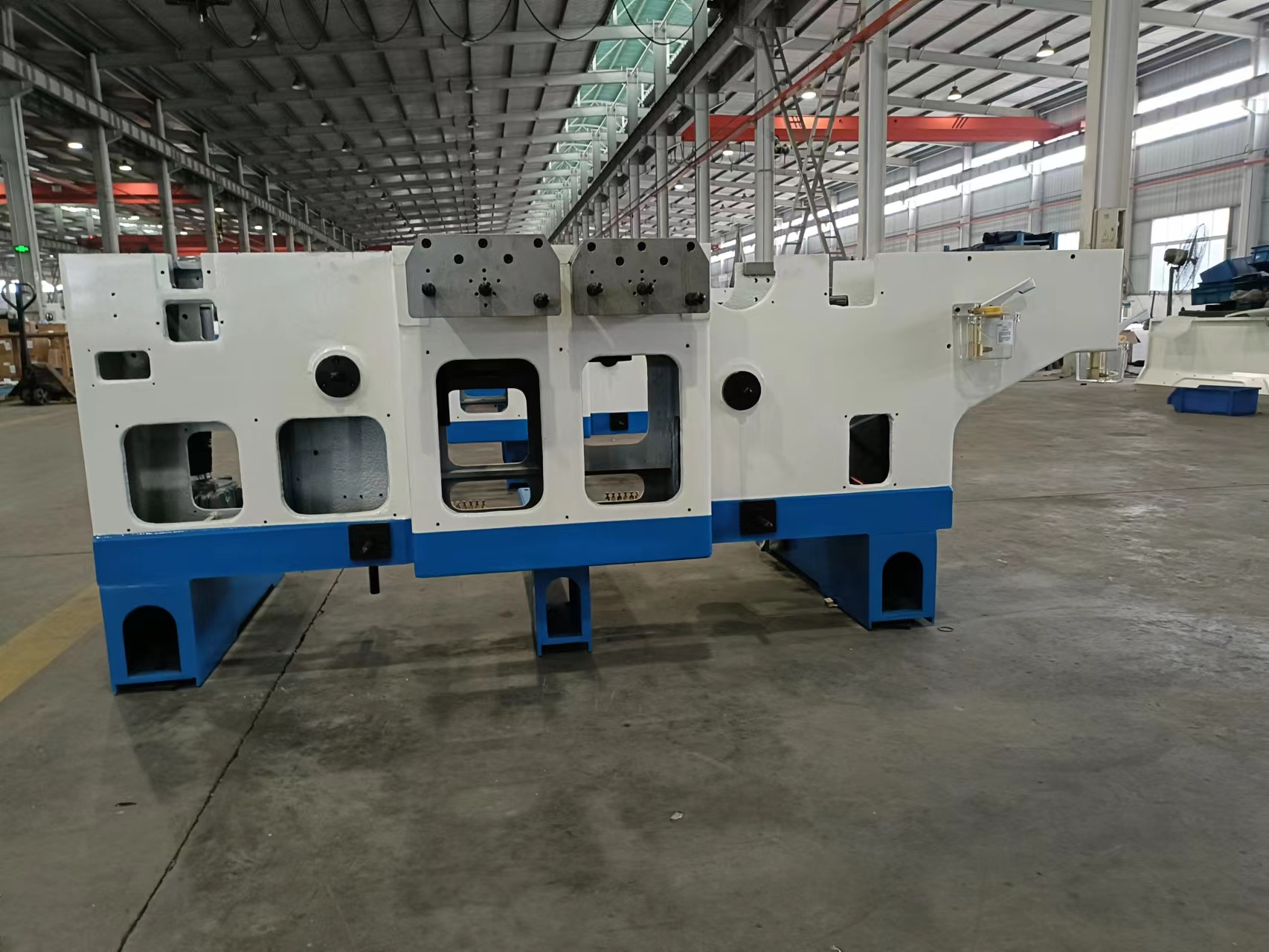

  • Adopts thick and heavy overall structure design, integrated casting molding, to ensure that the equipment is stable and reliable at high speed
    Adopts thick and heavy overall structure design, integrated casting molding, to ensure that the equipment is stable and reliable at high speed

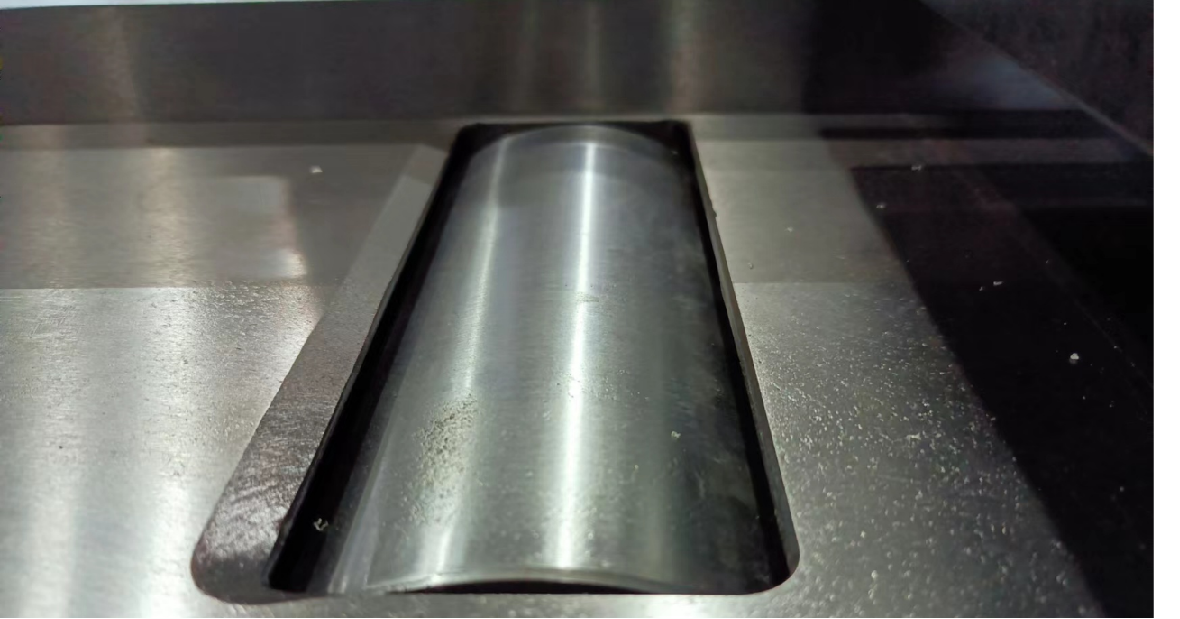

  • Each work table plate is plated with hard chromium, especially wear-resistant
    Each work table plate is plated with hard chromium, especially wear-resistant

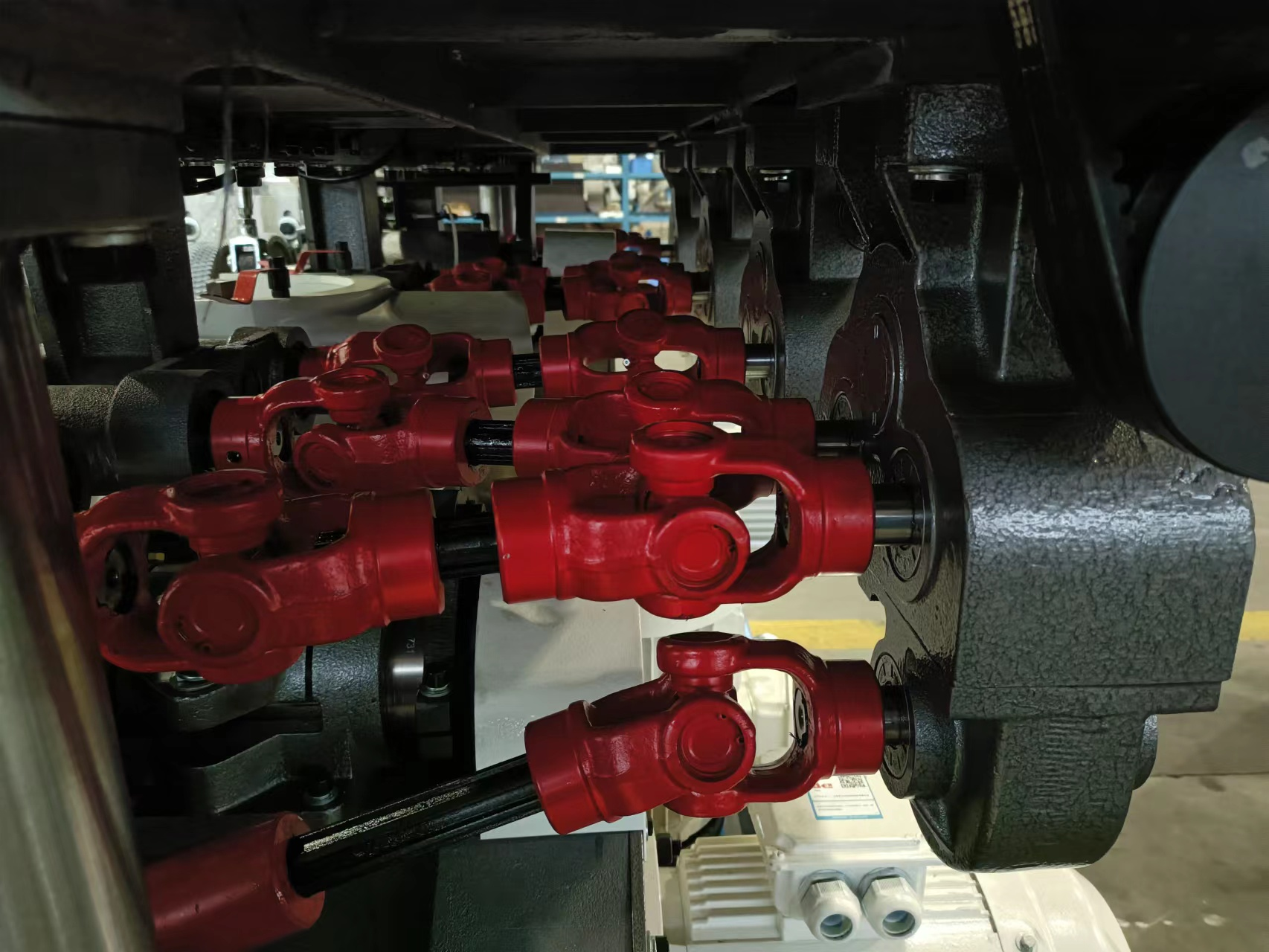

  • Powerful feeding system: the use of chainless universal transmission shaft, accurate and strong; The feed is smooth and smooth, and the surface of the workpiece is free of burning and cutter marks
    Powerful feeding system: the use of chainless universal transmission shaft, accurate and strong; The feed is smooth and smooth, and the surface of the workpiece is free of burning and cutter marks

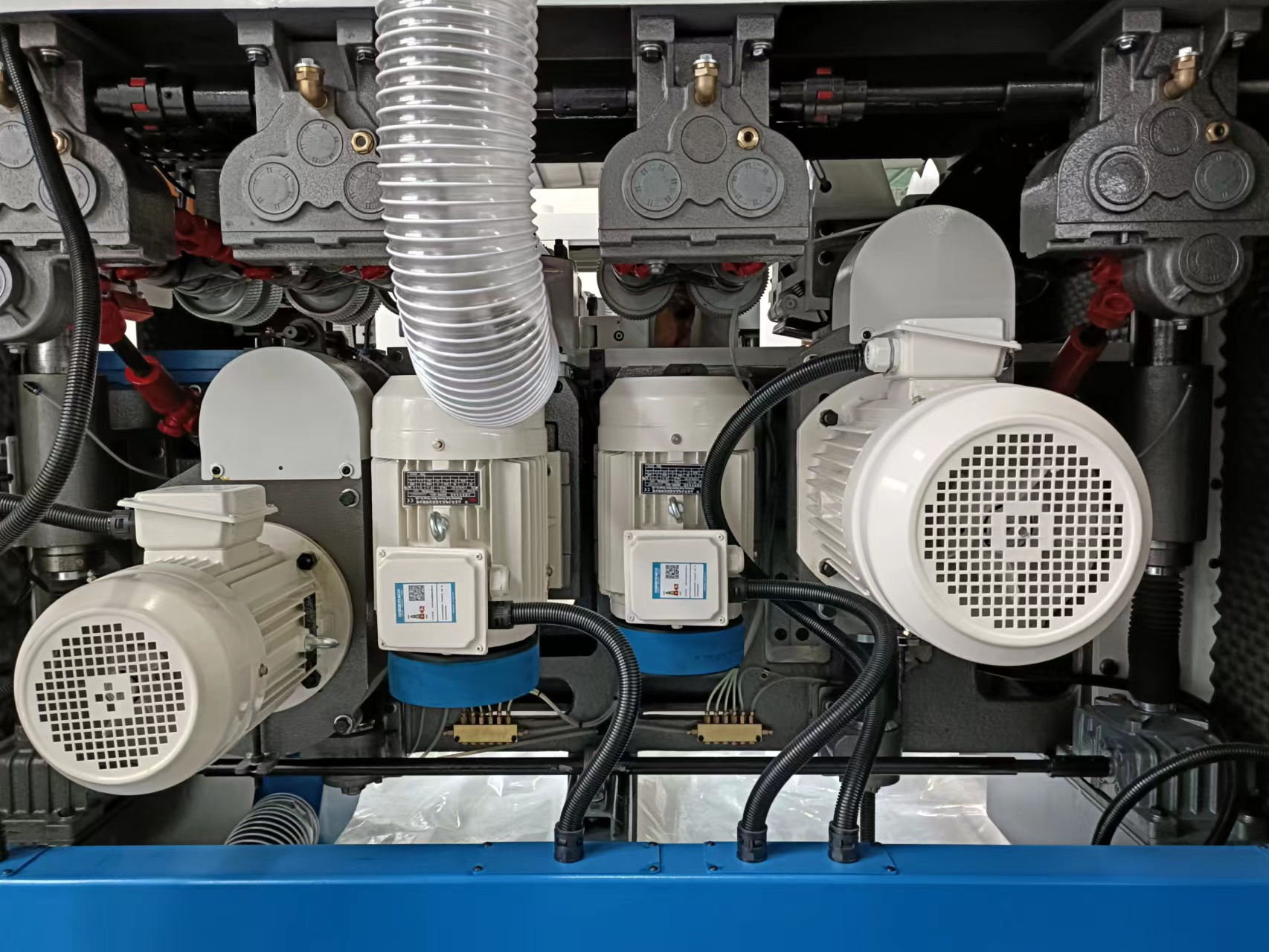

  • Each spindle is equipped with powerful power and can process more complex profile
    Each spindle is equipped with powerful power and can process more complex profile
  • Feeding power roller configuration is reasonable, the transfer of wood is strong, smooth and smooth
    Feeding power roller configuration is reasonable, the transfer of wood is strong, smooth and smooth

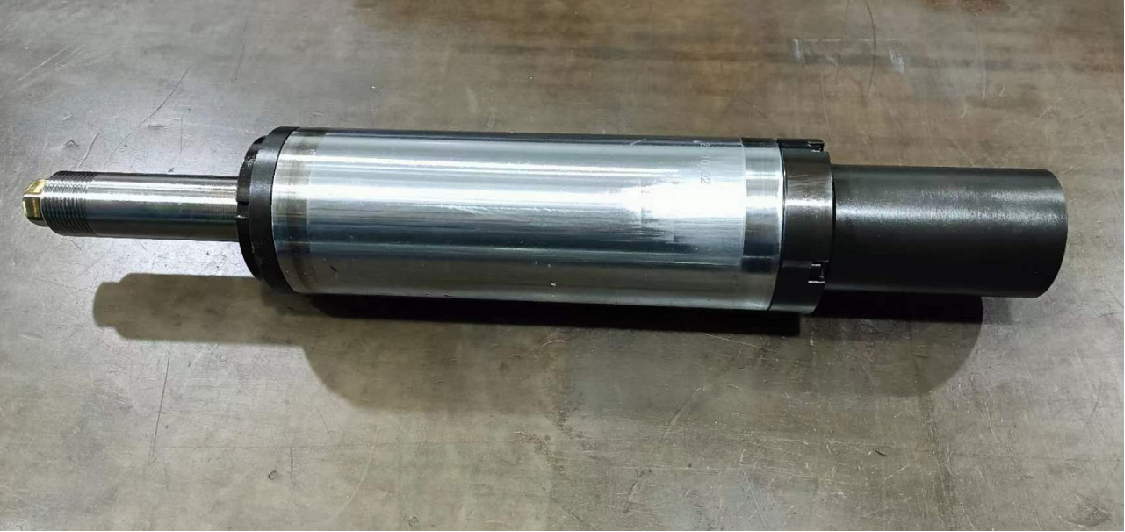

  • The spindle speed is high, up to 8000 RPM (lower spindle speed is 6800 RPM), and the machining surface is more smooth and perfect
    The spindle speed is high, up to 8000 RPM (lower spindle speed is 6800 RPM), and the machining surface is more smooth and perfect

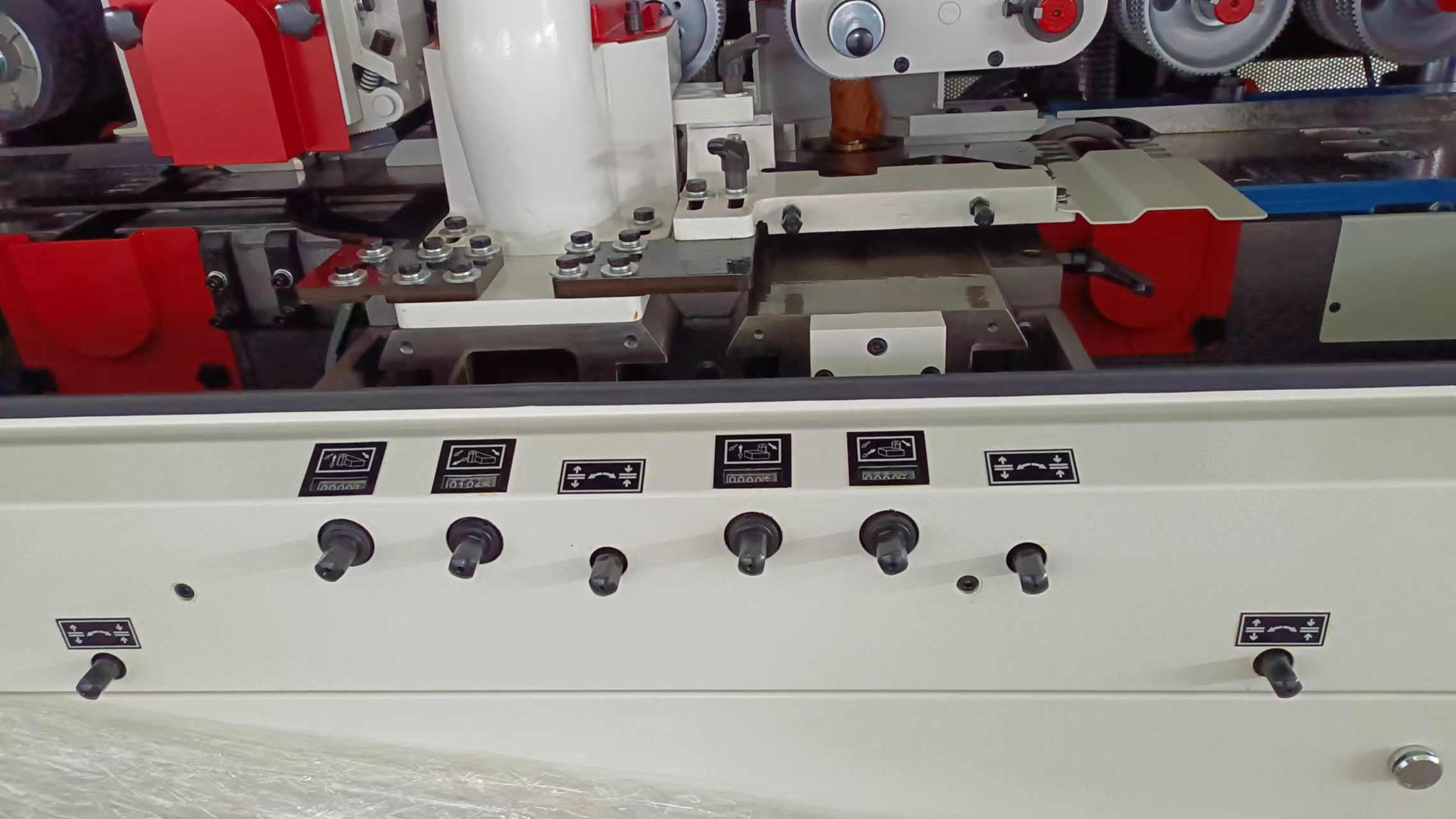

  • The spindle lifting and advancing are all concentrated in the front adjustment, convenient and quick
    The spindle lifting and advancing are all concentrated in the front adjustment, convenient and quick

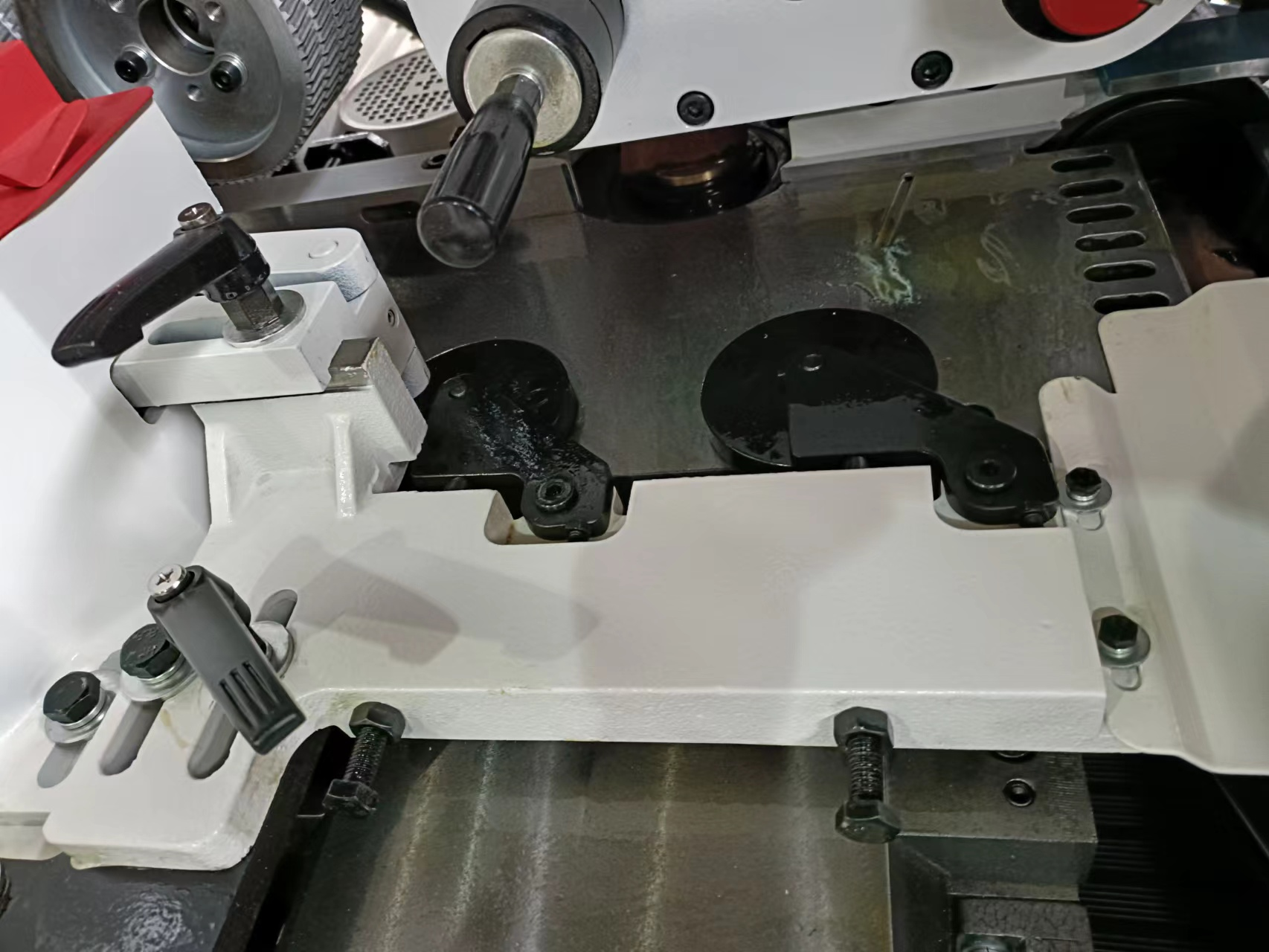

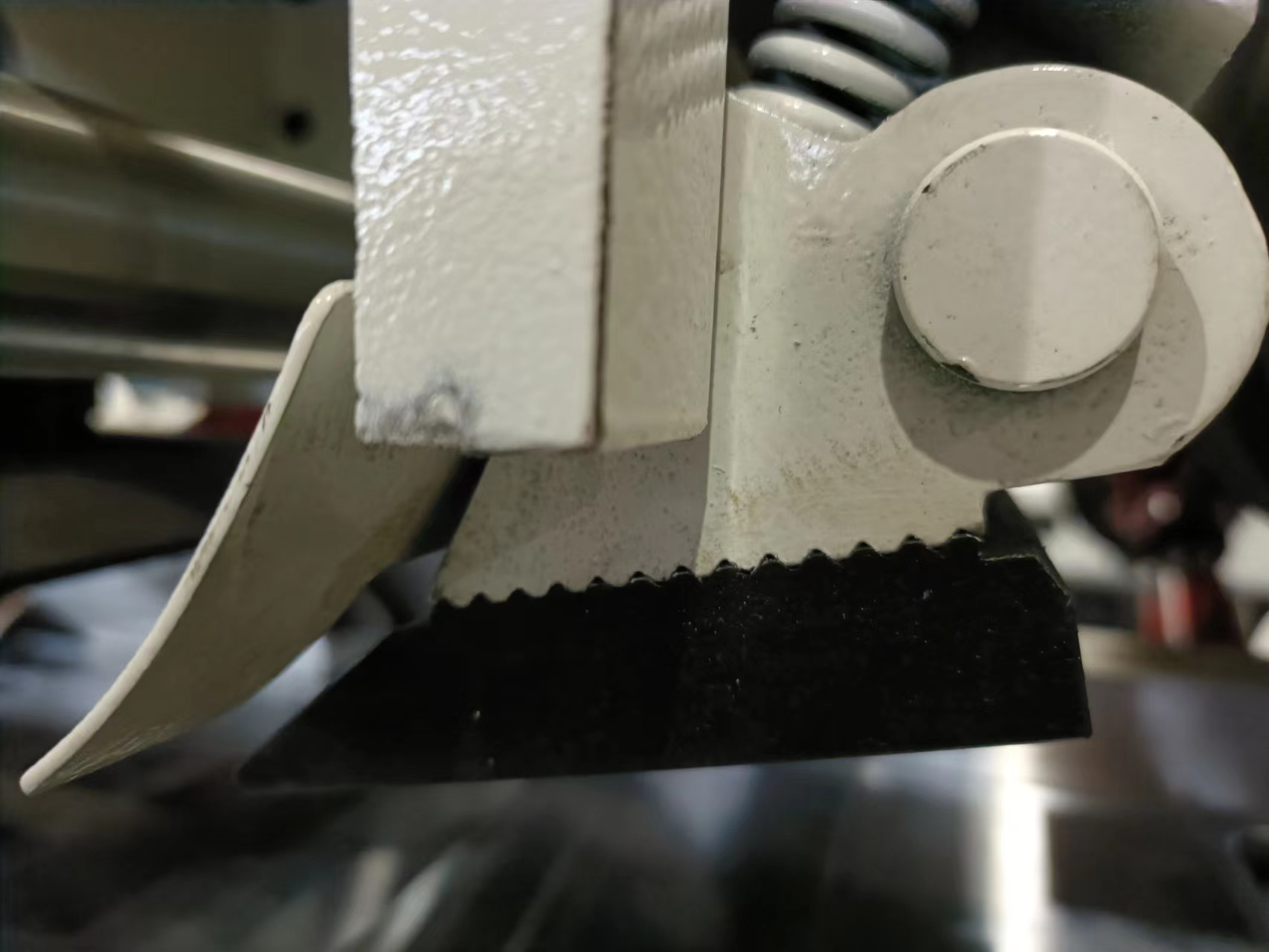

  • The front and side press assembly adopts spring press to compress large amount of material to prevent the problem of material sticking
    The front and side press assembly adopts spring press to compress large amount of material to prevent the problem of material sticking
  • The top spindle is equipped with a backward chip breaker: such as mass production, the upper pressing plate of the bottom spindle can be made into an inverse surface pressing plate to ensure that the deep milling surface quality is higher and the workpiece will not run off
    The top spindle is equipped with a backward chip breaker: such as mass production, the upper pressing plate of the bottom spindle can be made into an inverse surface pressing plate to ensure that the deep milling surface quality is higher and the workpiece will not run off

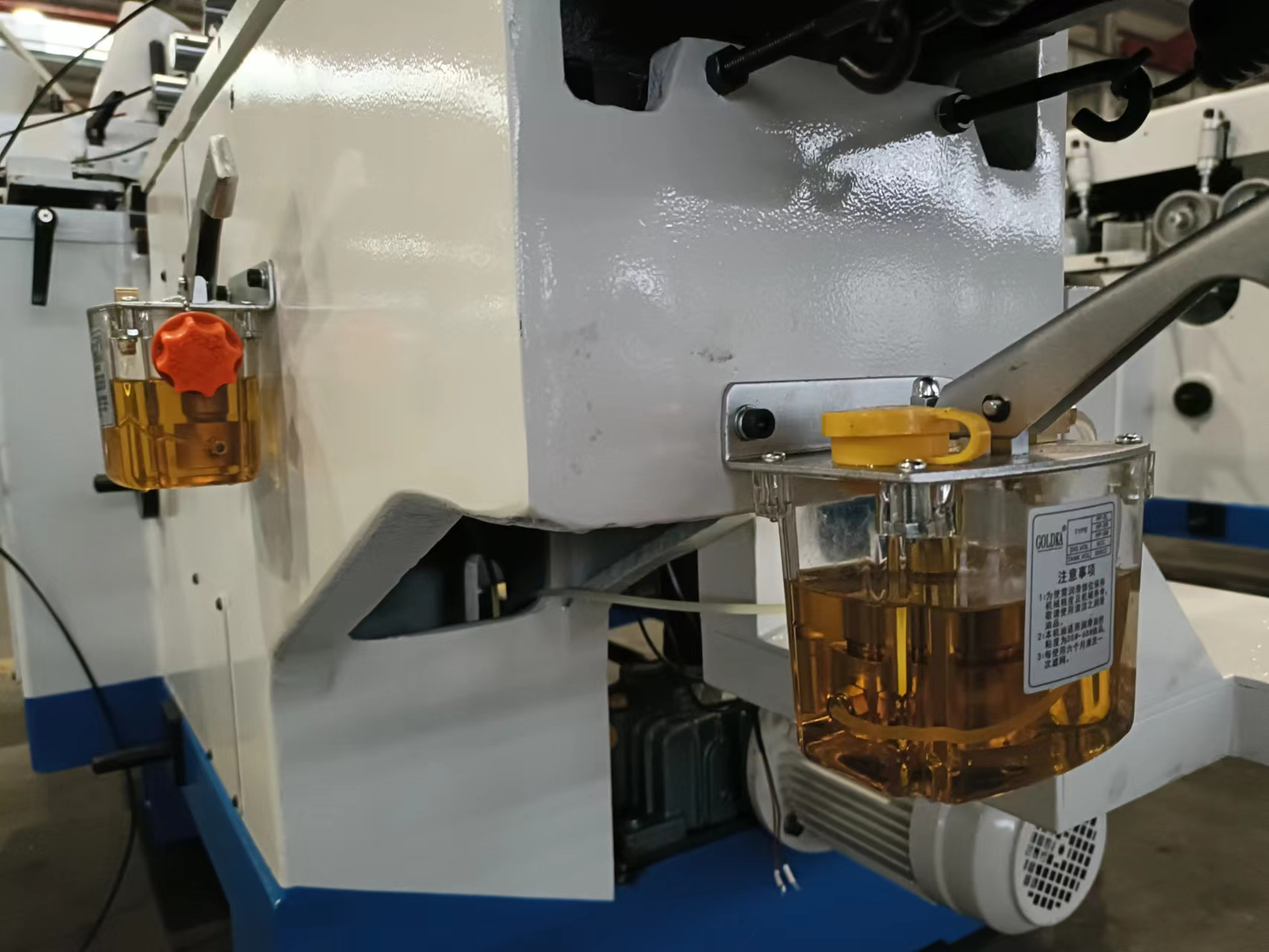

  • It is equipped with 2 manually lubricated oil pumps to lubricate the table, slide seat, spindle seat and other lubrication points manually
    It is equipped with 2 manually lubricated oil pumps to lubricate the table, slide seat, spindle seat and other lubrication points manually
  • The feeding system adopts frequency conversion speed regulation, which is more suitable for the processing requirements of various wood materials
    The feeding system adopts frequency conversion speed regulation, which is more suitable for the processing requirements of various wood materials

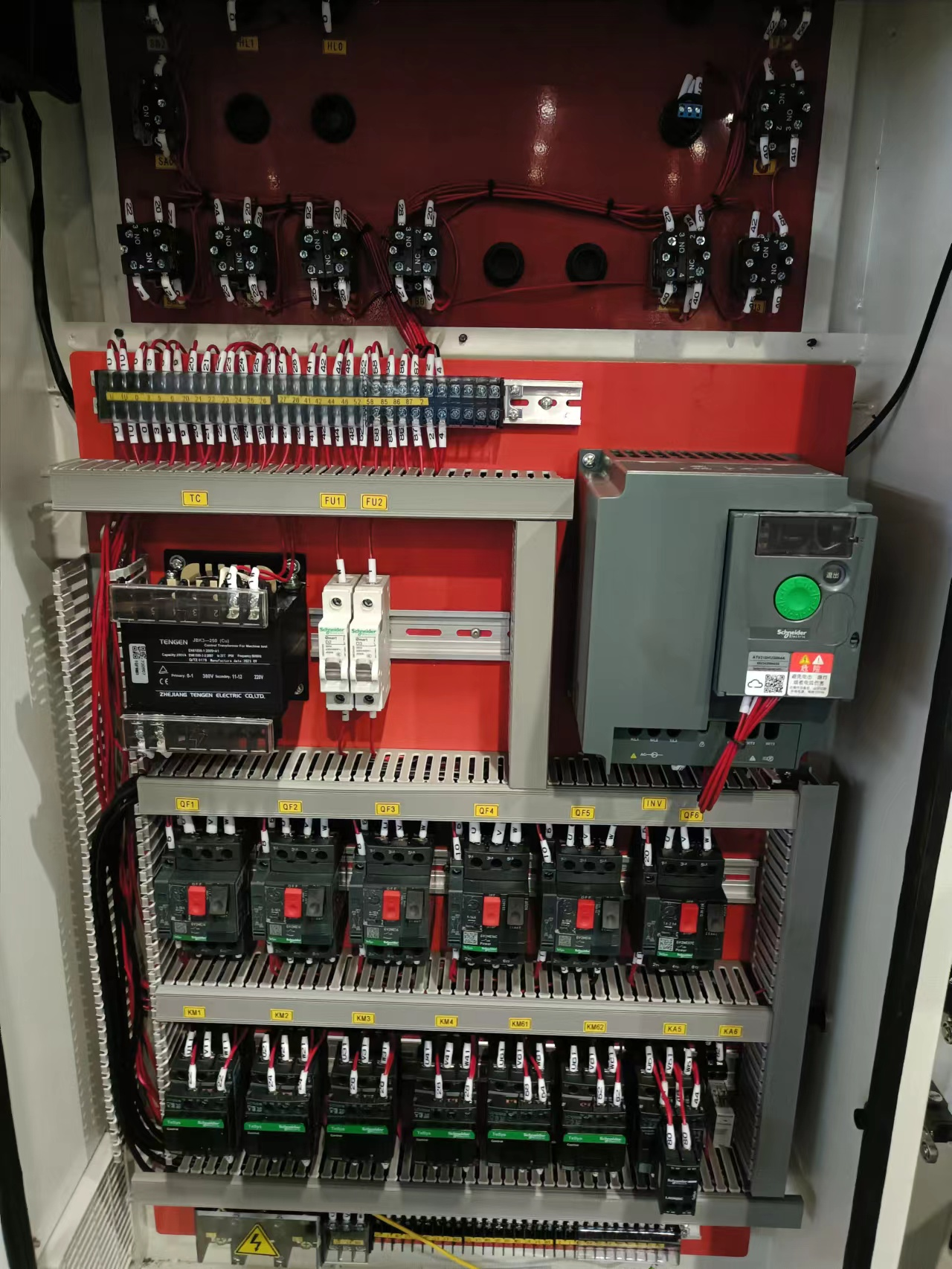

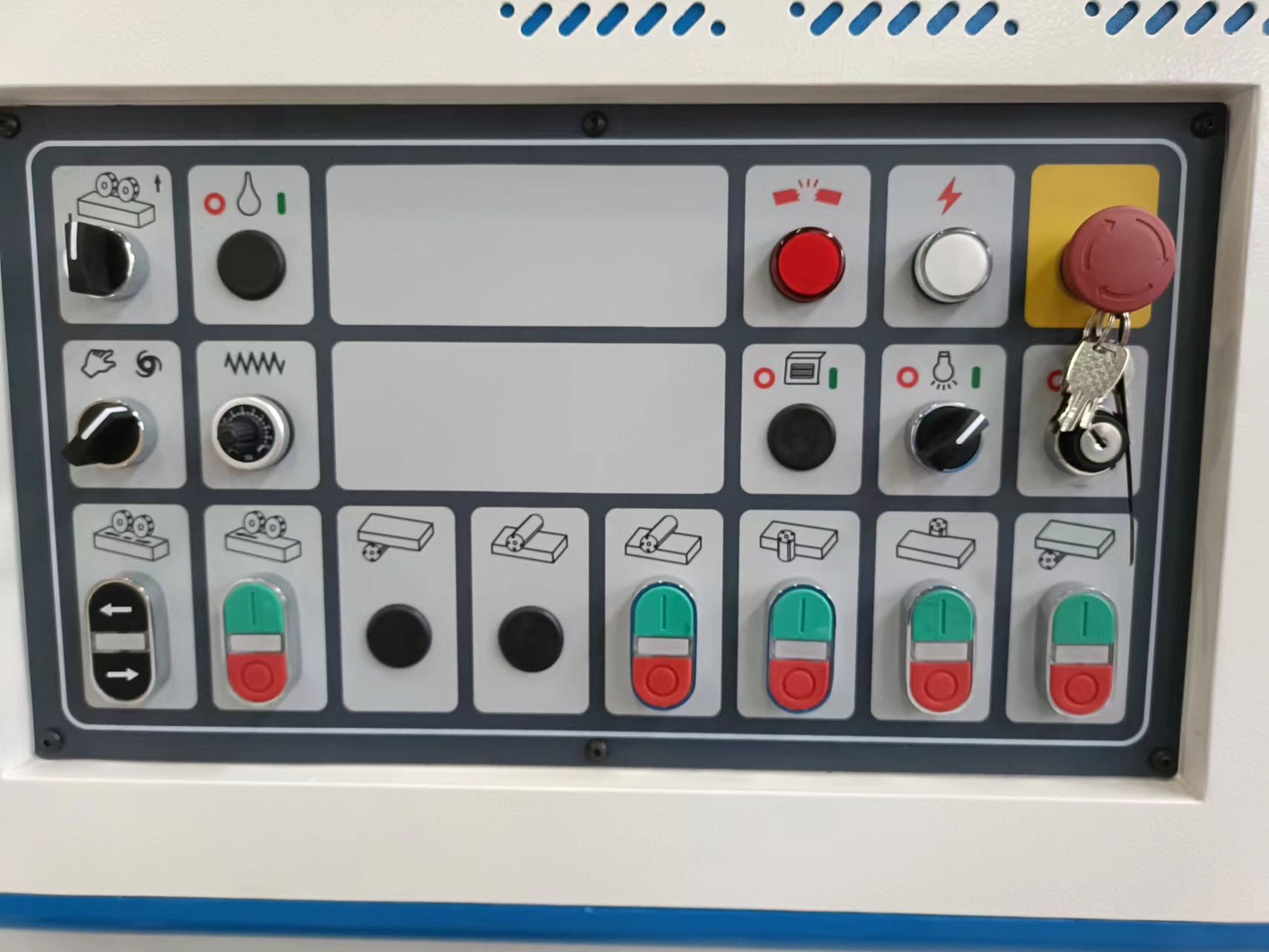

  • All electrical components are international well-known brands, stable performance, long service life
    All electrical components are international well-known brands, stable performance, long service life
QMB4012DT                    Four-side moulder
Specification and model Unit  QMB412DT
Working width (tool diameter φ125) mm 20~120
Working thickness mm 8~100
Min. working length (intermittent/continuous) mm 450/250
Max. movement of movable table mm 6
Max. movement of movable guide plate mm 6
Spindle diameter mm φ40
Feed roller diameter mm Φ140
Feeding speed m/min 8~33
Bottom spindle rotational speed r/min 6800
Other spindles rotational speed r/min 8000
Tool diameter: Bottom spindle mm Φ125
            Trimming cutter mm Φ152×12
Left and right vertical spindle mm Φ115~Φ165
Top spindle mm Φ105~Φ150
Total motor power KW 16.8
Botom spindle motor/Left and right vertical spindle motor KW Each3
Top spindle motor KW 4
Feeding motor KW 3
Beam lifting motor KW 0.75
Overall dimension (L x W x H) cm 265x132x148
Weight  KG 2050
