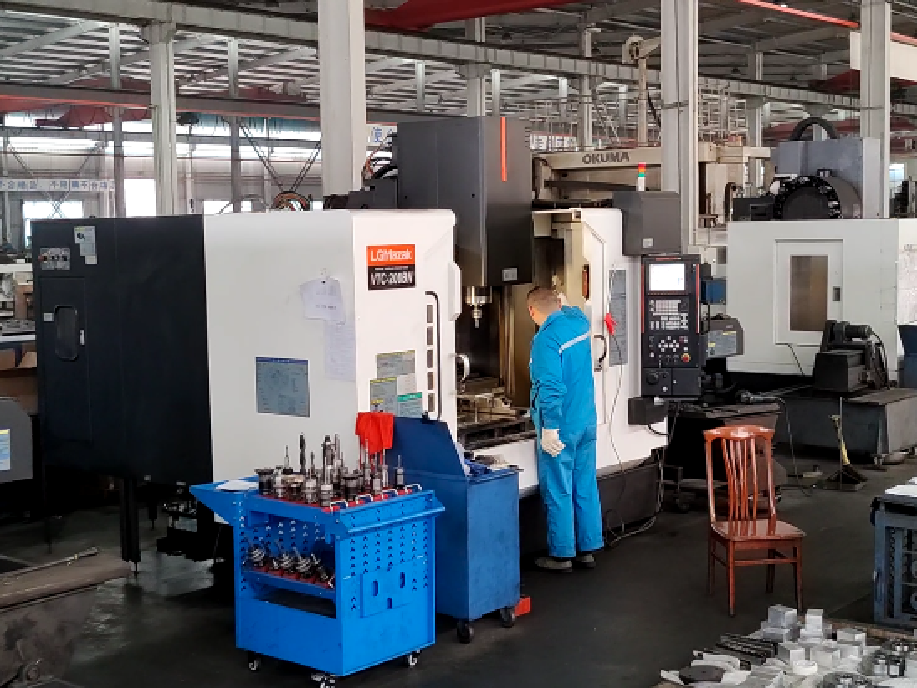

The bed has undergone special aging treatment and precision machining, and has been tested by a three-coordinate measuring instrument, with stable performance and good precision

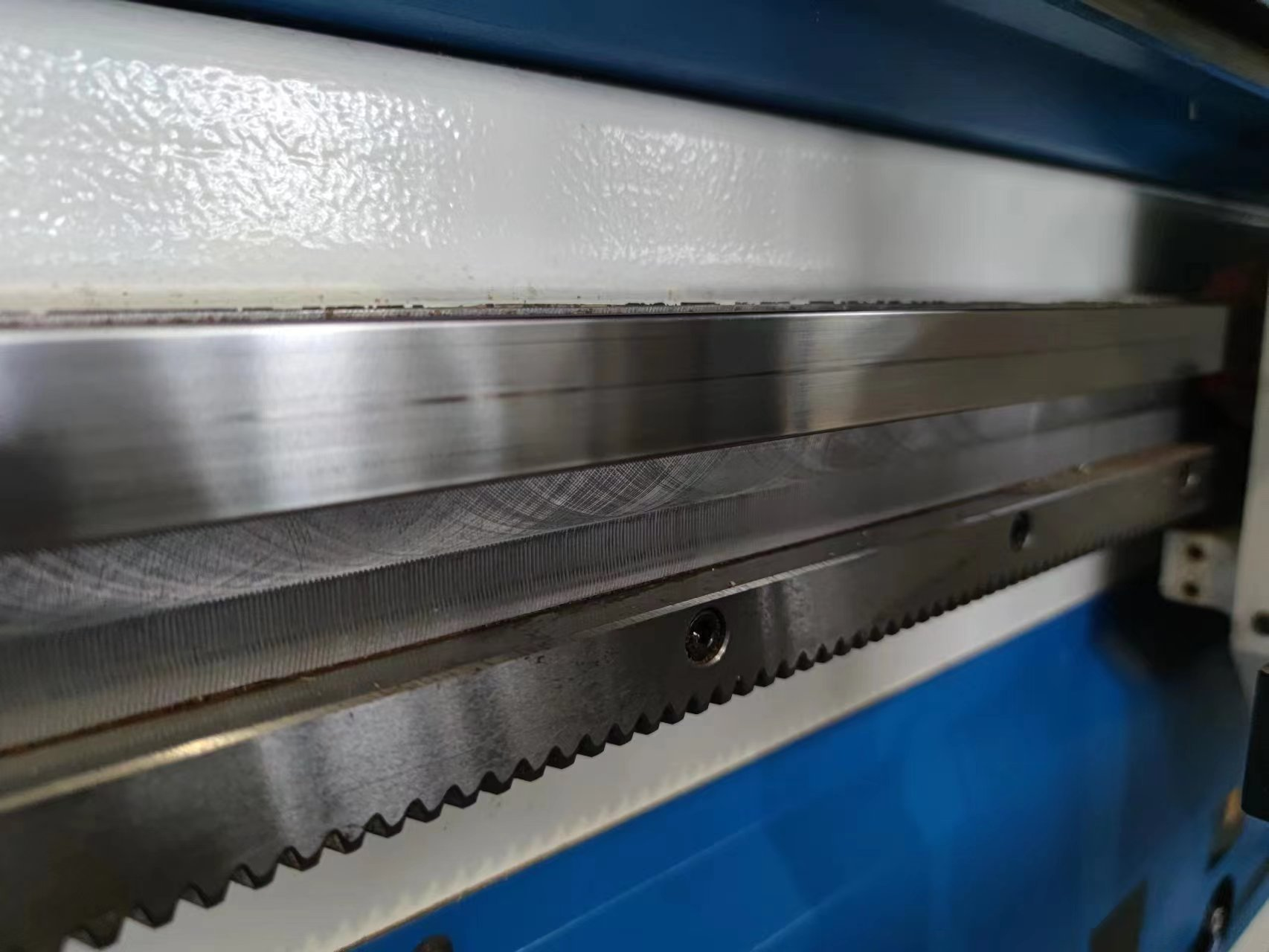

X, Y two-axis rack and pinion + precision reducer transmission, high repeat positioning accuracy

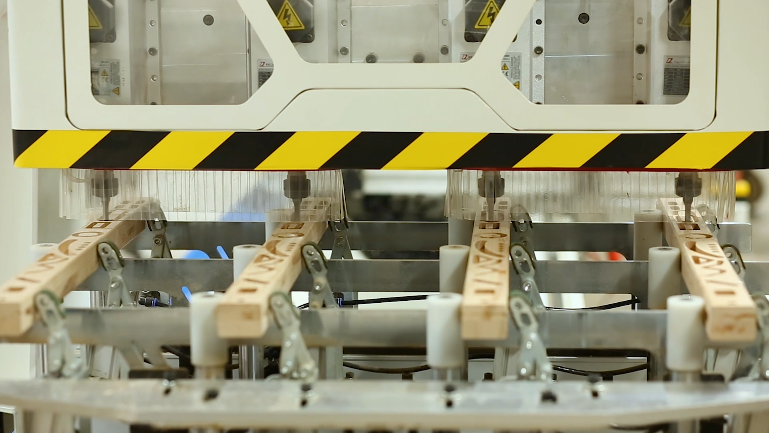

Equipped with 4 3.7KW spindles,

4 2.2kw drilling spindles can process 4 materials at the same time

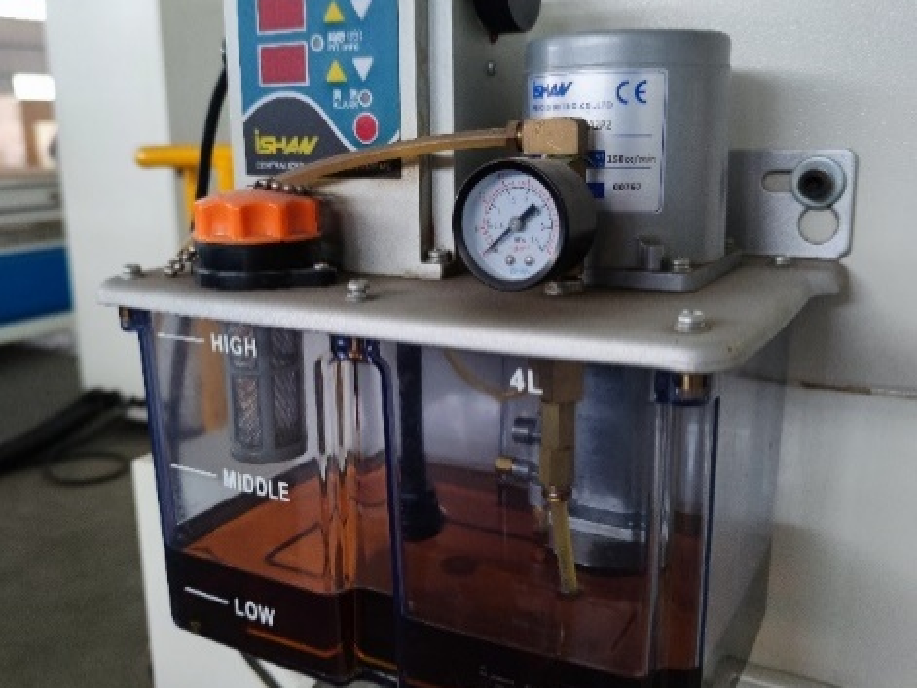

Equipped with an automatic lubricating oil supply pump, fixed-point, timing, and quantitative centralized oil supply and lubrication for each sliding guide rail and ball screw auxiliary transmission assembly

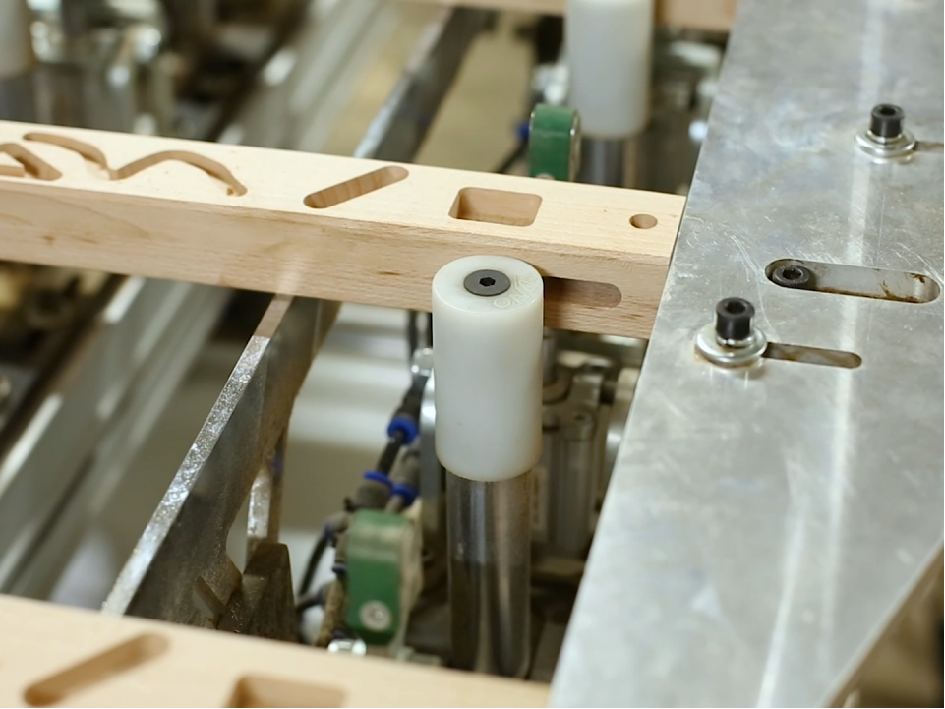

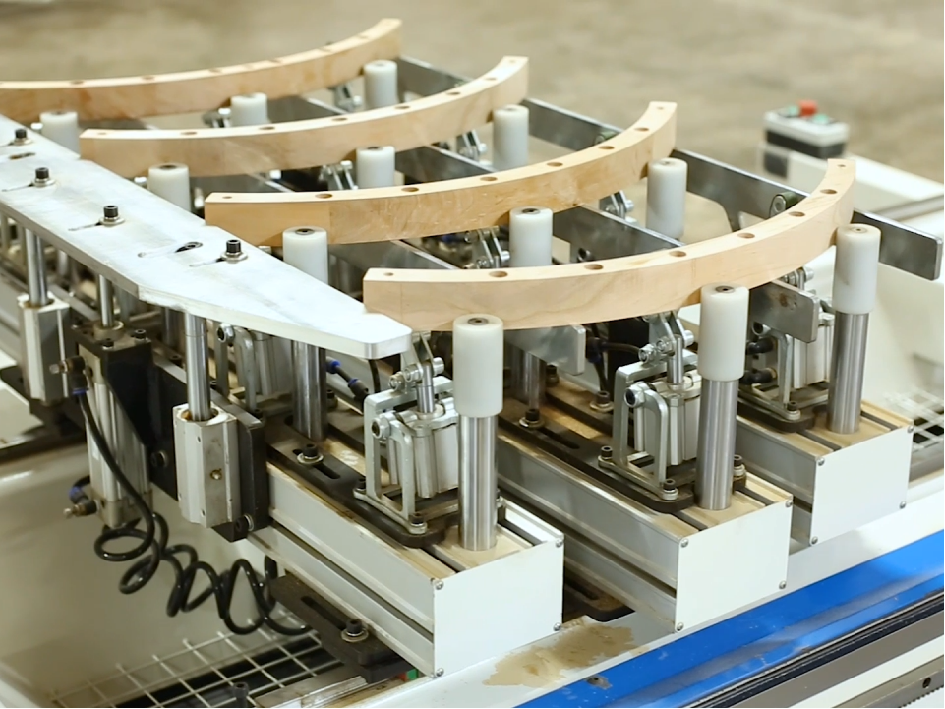

Each working area can adjust the positioning baffle and pneumatic clamps independently, and all the adjustment screws use quick-change wrenches to easily adjust the position of the clamps. It can clamp curved and straight materials, and the maximum clamping bending material is 80mm

The two working areas respectively use three pneumatically adjustable work slides. When adjusting the clamping position of the processing length, you only need to press and hold the pneumatic valve to move the slide table. After the adjustment is completed, release the slide table to automatically lock

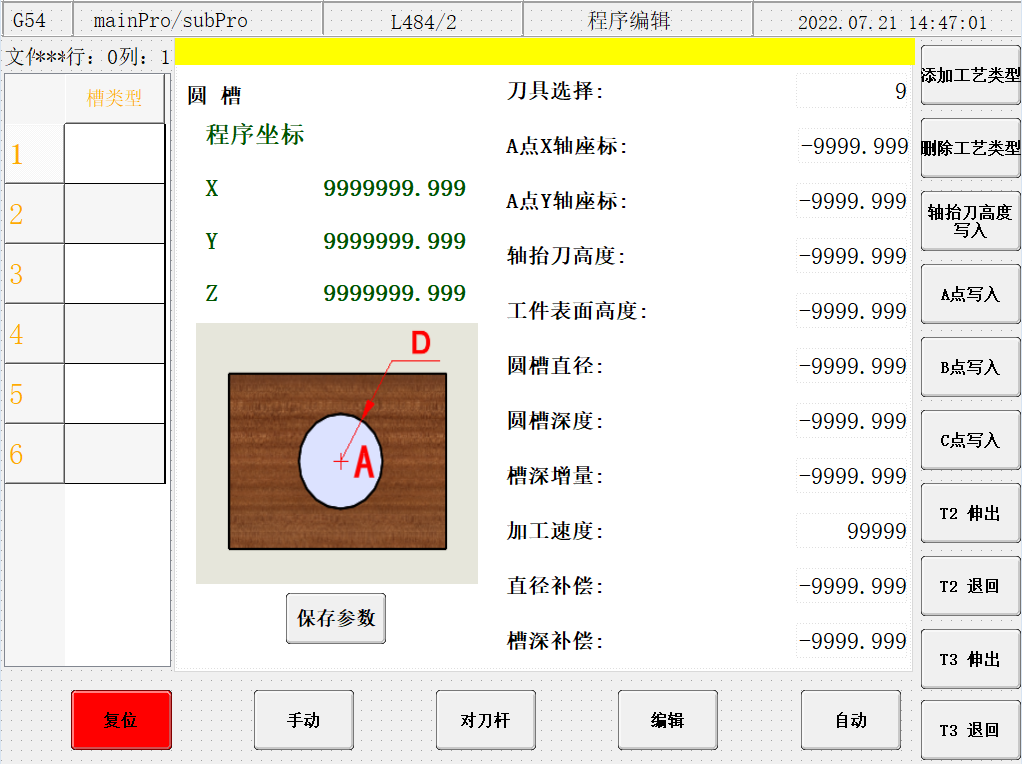

Modular programming is adopted, suitable for processing circular grooves, square grooves, spline grooves, array graphics, specific graphics

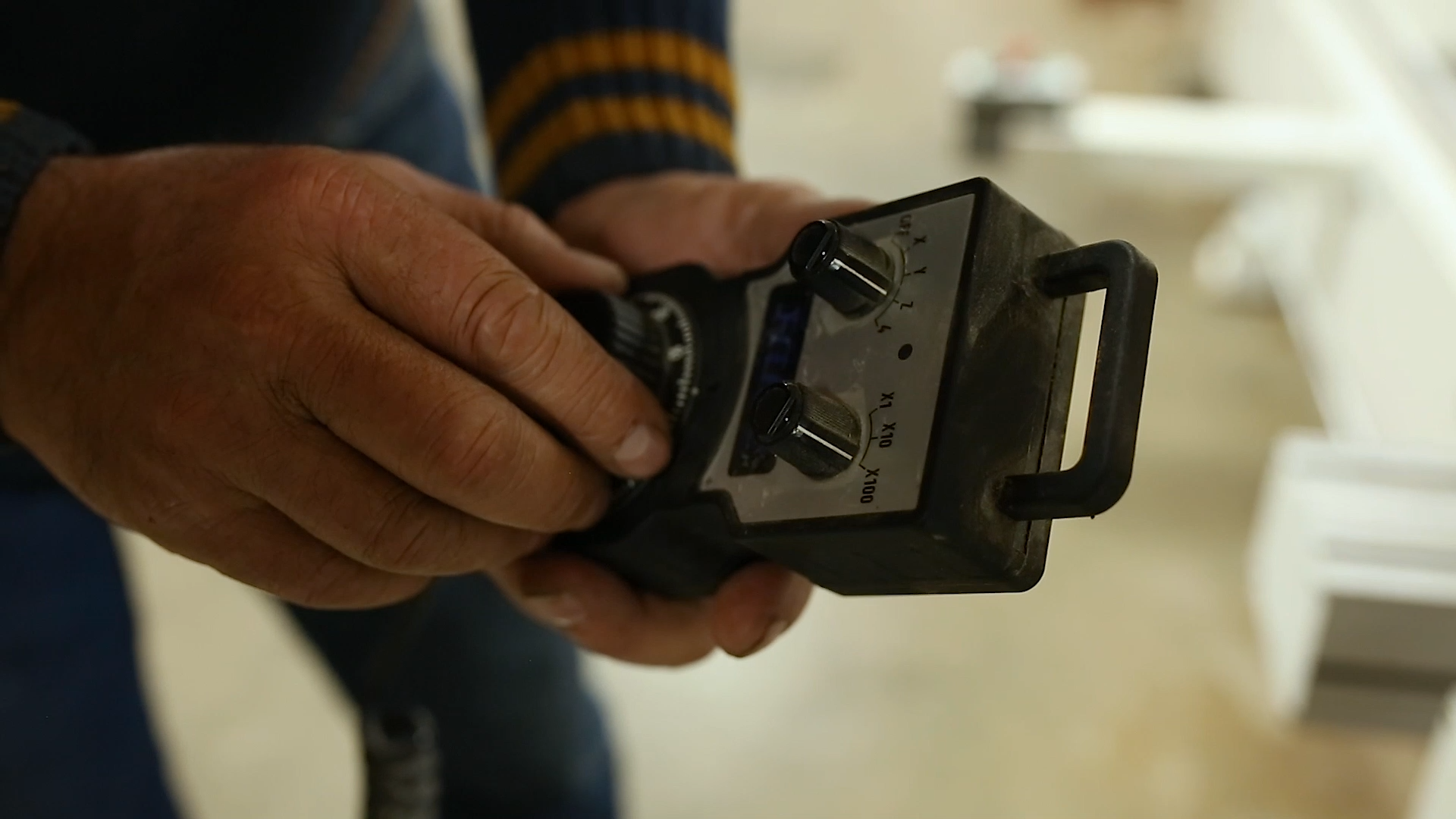

The operation of the equipment uses a wired handwheel, allowing the operator to better observe the operating status of the equipment. The machine tool has a program guidance function, which is convenient for the operator to try and run

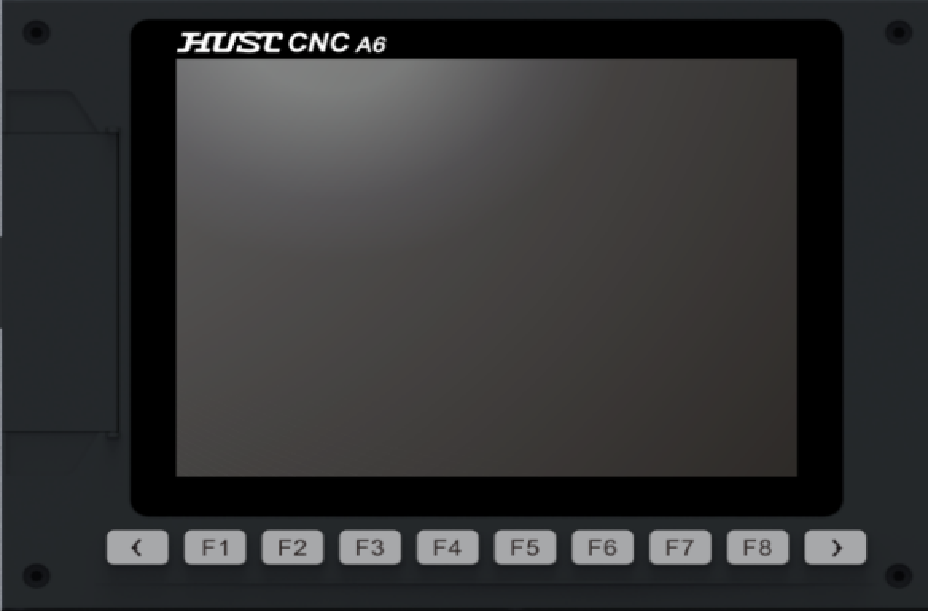

Using HUST high-end absolute value bus control system, the operation is easier

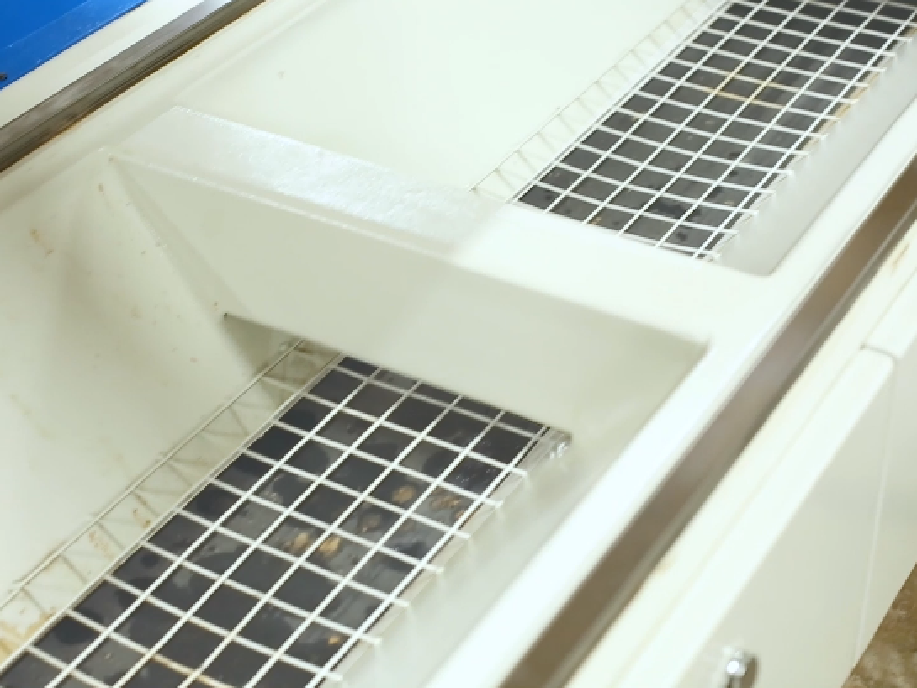

All the main shafts are covered with a dust cover, which can be connected to the central vacuum equipment to ensure that the dust in the process of processing does not flow out, and there is a chip discharge groove at the bottom of the equipment to better handle the wood chips generated during processing

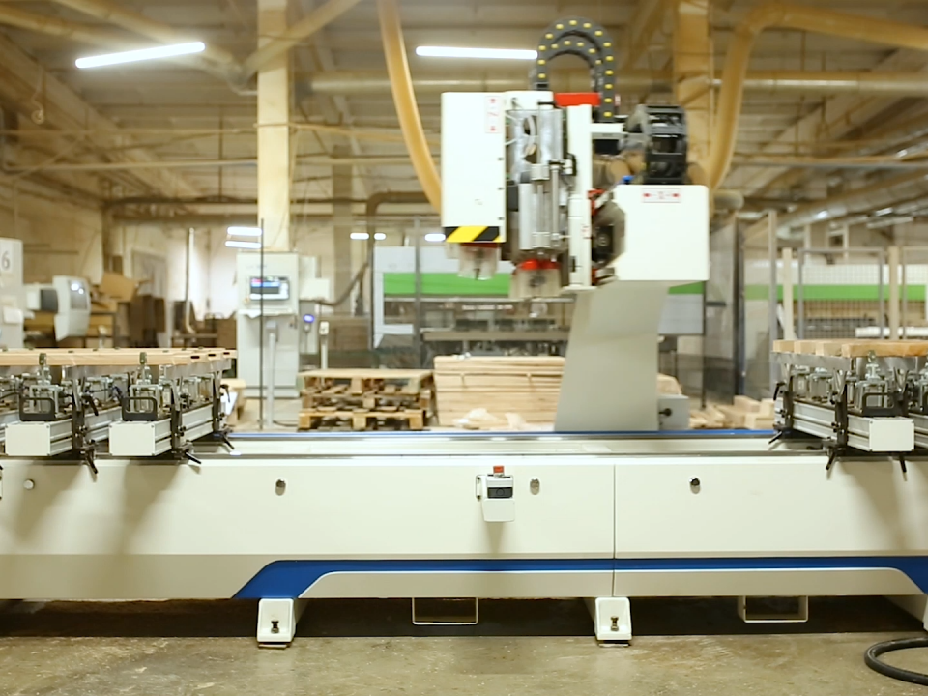

Divide the X worktable into two work areas. The two work areas can be used independently, with their own independent positioning baffles and clamping fixtures; they can also be used at the same time to process long materials

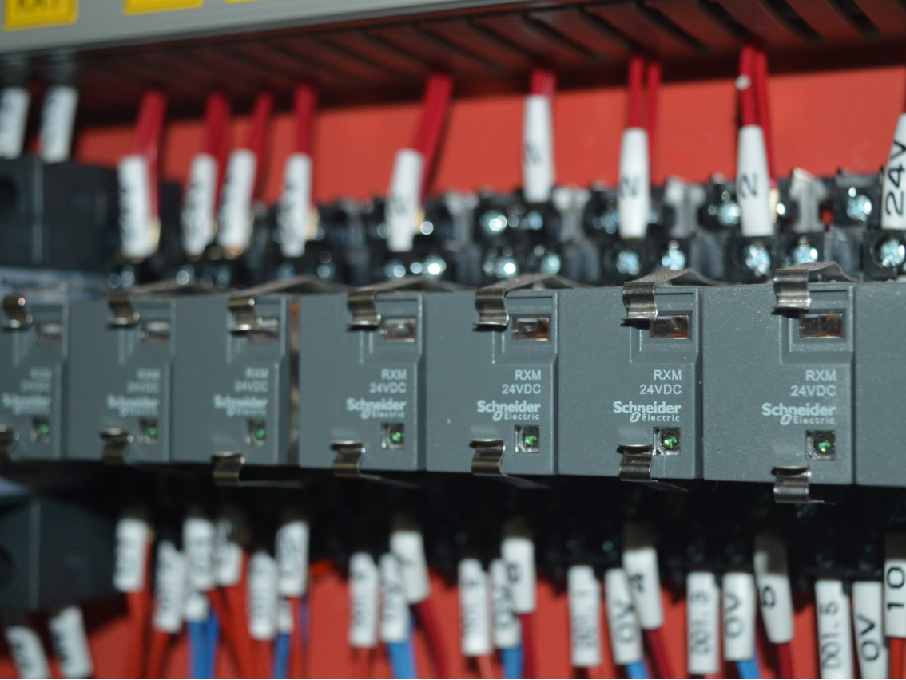

The electrical components are all imported brands such as Schneider. Pneumatic components (including cylinders, solenoid valves, etc.) use well-known brands such as Taiwan AirTAC
