Belt Sanding Machine
High processing precision
High sanding efficiency
Wide range of applicable materials
SFR-R700V products are semi-finished sand + finished sand polishing combination of upper floating primer sander. The maximum processing width is 700mm, the maximum processing thickness is 160mm, and the feeding speed is 0-24m /min (frequency conversion). The front and back sand rolls (diameter Φ215mm) are equipped with high-quality soft rubber rolls with different hardness to achieve semi-fine sand and fine sand polishing operations. It has high precision and high efficiency.
Recommendation: The product is mainly used for processing the width of the workpiece within 700mm primer grinding and pre-treatment of materials (sanding before painting) fine sanding of various surfaces, and can also be formed in the NV and UV coating line production line, to achieve safety and environmental protection, high efficiency, high quality and line production.
-
Machine body
The frame is welded with heavy channel steel and high quality plate, and is made of special treatment and precision machining, with sufficient rigidity and strength.
-
Work table
The worktable is welded with heavy channel steel and high quality plate, especially the underside of the worktable supporting reinforcement plate by special treatment, precision processing and has enough steel and strength.
-
Beam support
Coarse and fine sand beam bearing adopts high quality castings, thick volume, special treatment, precision processing to overcome the sander in the use of rigid deformation affecting product processing quality phenomenon.
-

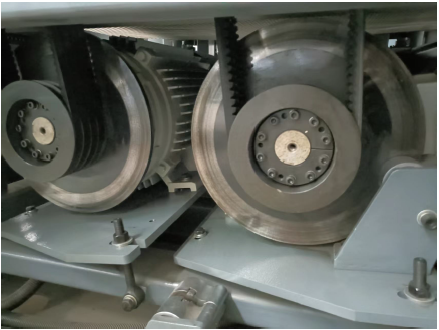

Sander motor
The power of the front and rear roller motor is equipped with 7.5kw high-power variable frequency speed regulating motor, which makes the sand cutting powerful.
-

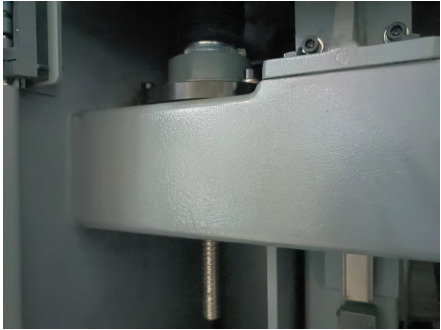

Lifting unit
Using chain drive lifting screw, linear guide rail guide lifting, lifting more accurate and stable.
-

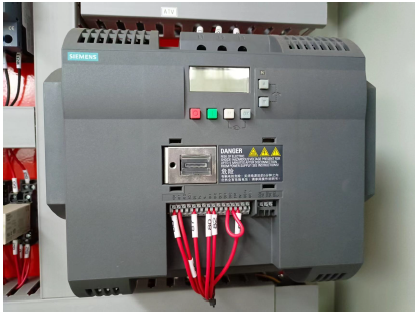

Frequency changer
Feeding adopts frequency conversion speed regulation, convenient and fast.
-
-
Feed reducer
The feeding is equipped with hard gear reducer and inverter, and the feeding is strong and suitable for sanding a variety of different plates.
-
Coarse sand roller
The bottom saw shaft components are lifted by electric lifting mechanism, which is convenient and fast to operate.
-
Pendulum assembly
Adopt the brand photoelectric switch and the brand pneumatic element gas production, with the broken belt, deviation and stop protection function.
-
Electrical component
All electrical components adopt international well-known brands, stable and reliable performance, long service life.
-
Button panel
The operation buttons of the button board are evenly arranged, and the operation parts are simple and easy to operate.
| Model | SFR-R700V |
| Sanding sheet width | 40-700mm |
| Sanding sheet thickness | 3~160mm |
| Sanding sheet length | Not less than 300mm |
| Conveyor belt feed speed | 0~24m/min |
| Belt size | 770x2100mm |
| Motor power | 21.5kW |
| The first group of sand belt motors | 7.5kW |
| The second group of sand belt motors | 7.5kW |
| Vacuum adsorption motor | 4kW |
| Conveyor motor | 1.5kW |
| Dust-removing machine | 0.37kW |
| Work table lifting motor | 0.55kW |
| Blowing oscillating motor | 25W |
| Air source pressure | 0.6Mpa |
| Vacuum cover caliber | φ150x6mm |
| Overall dimensions（Length x Width x Height） | 205x211x230cm |
| Encasement weight | 3000Kg |
